Section 358 (Charging System - Generators & Regulators): Generator: Components

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

For locations of generator components, see illustration. See Fig 1 and Fig 2 .

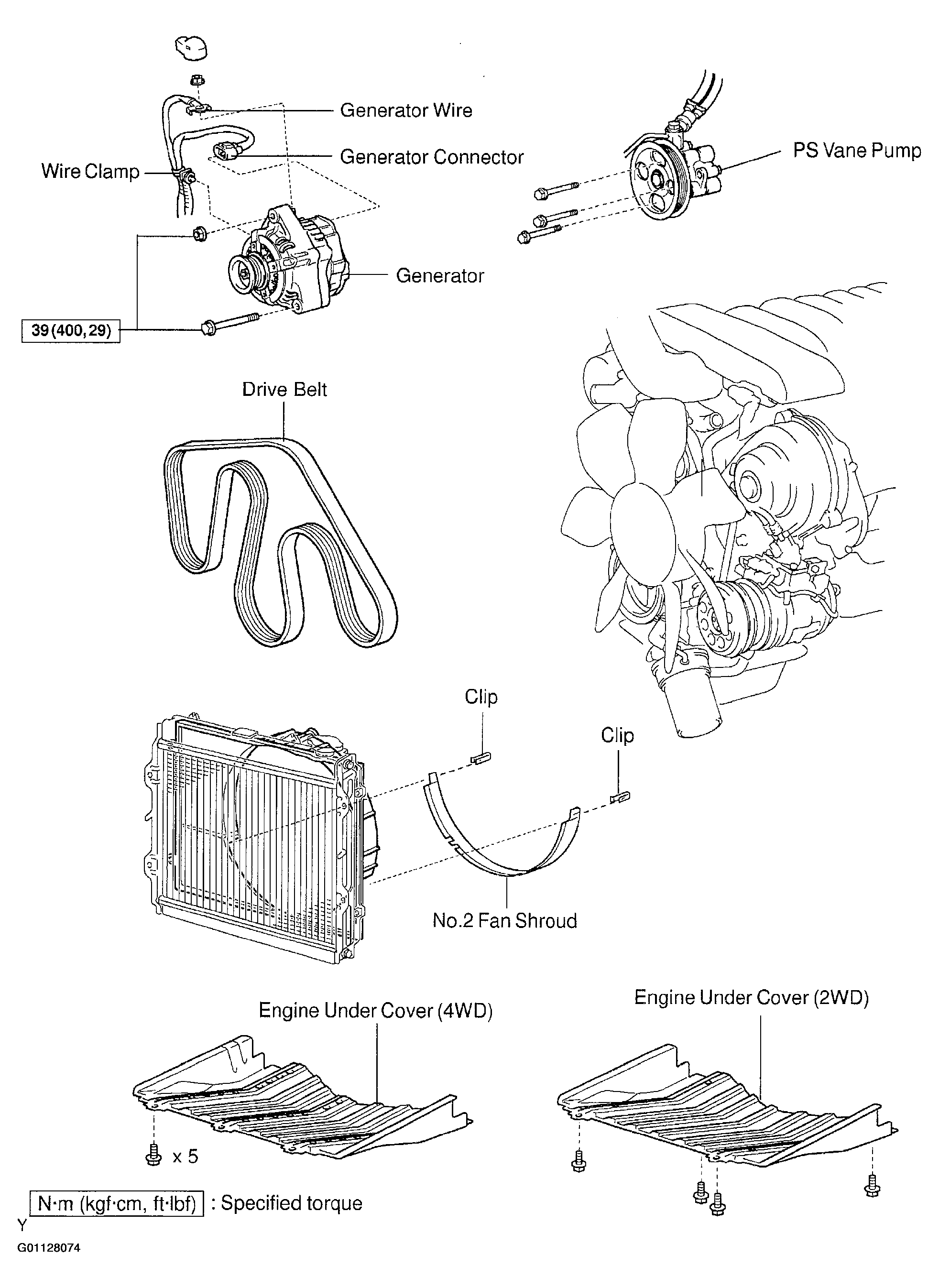

Fig 1: Locating Peripheral Underhood Generator Components

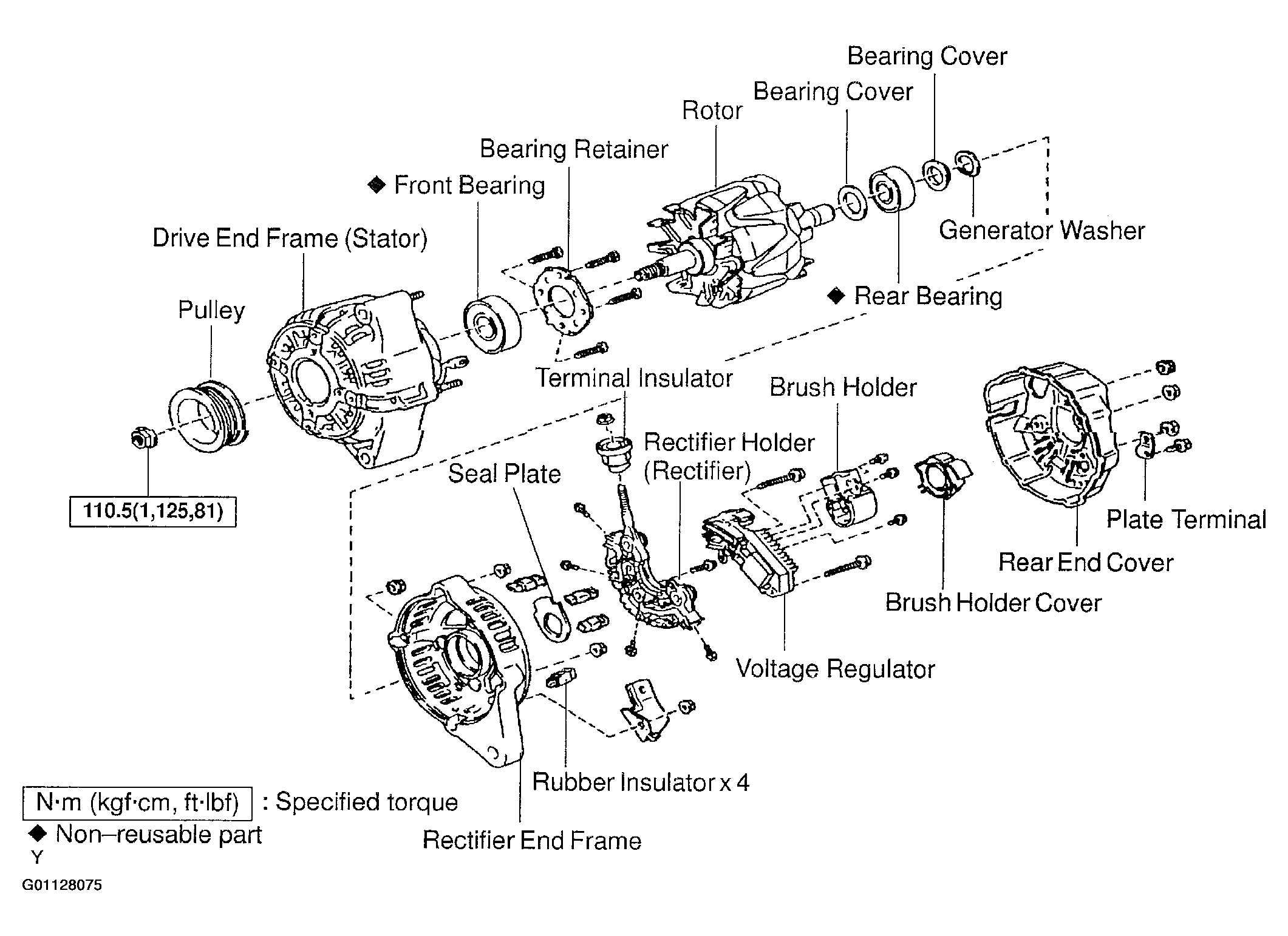

Fig 2: Exploded View Of Generator
