Input Flange Seal: Installation

WARNING: This page is about a different car, the 2004 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

Using tool 8802, install input flange seal to overrunning clutch case (Fig 1 ).

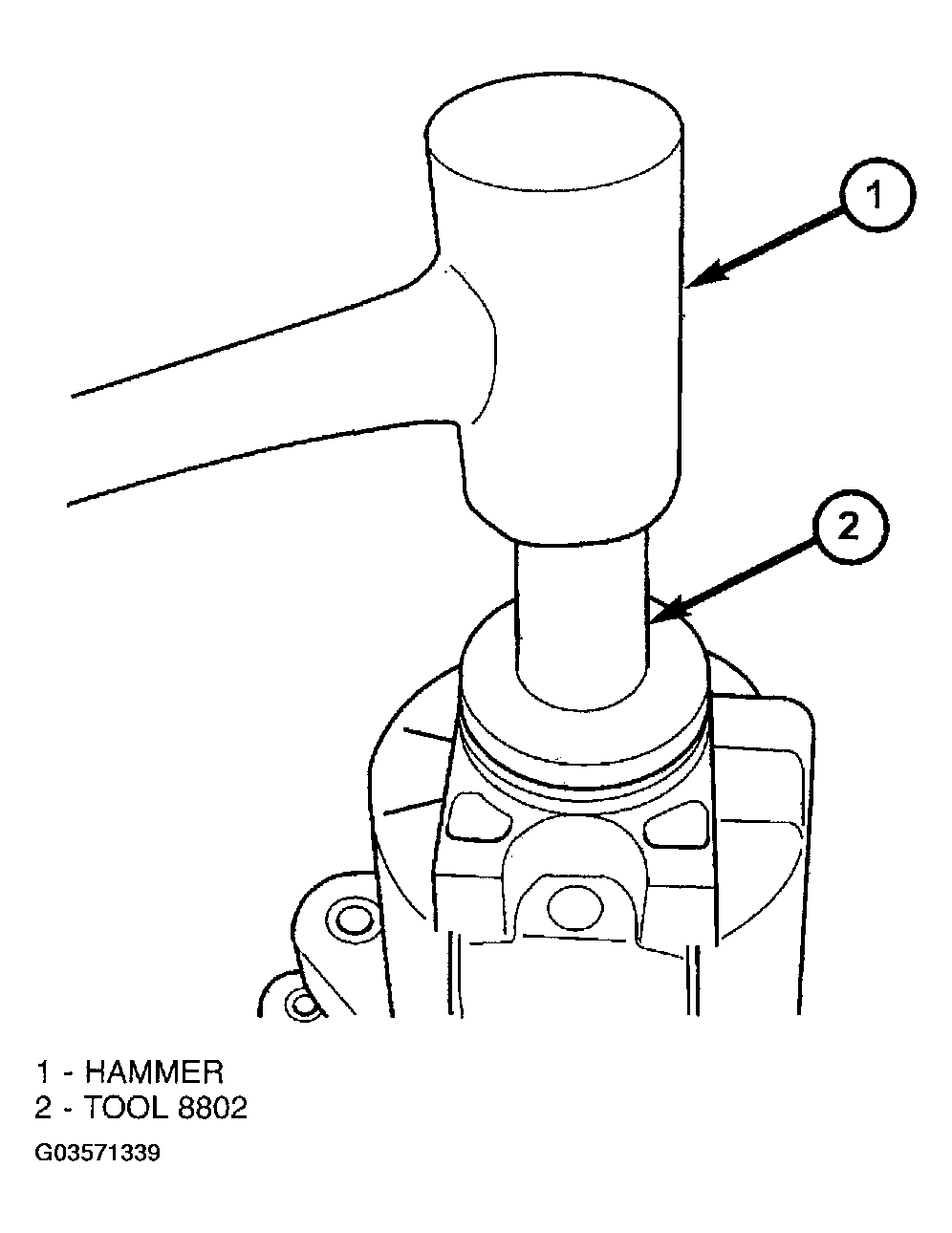

Fig 1: Installing Input Seal
Courtesy of DAIMLERCHRYSLER CORP.
Install input flange (Fig 2 ).

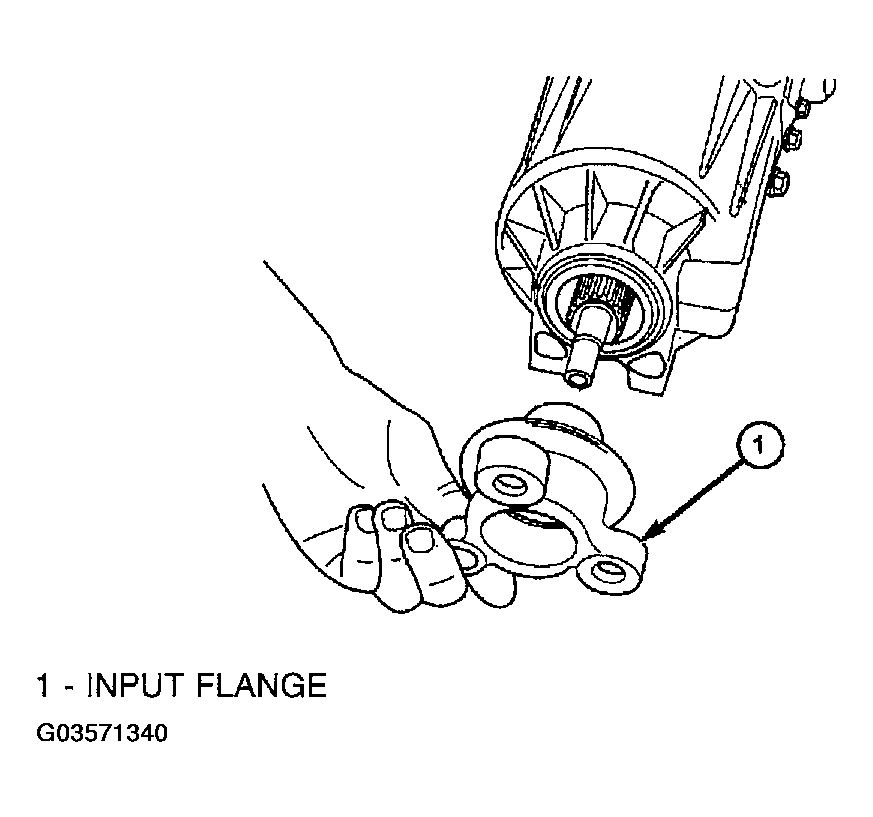

Fig 2: Installing Input Flange
Courtesy of DAIMLERCHRYSLER CORP.
Install flange washer and nut (Fig 3 ) (Fig 4 ).

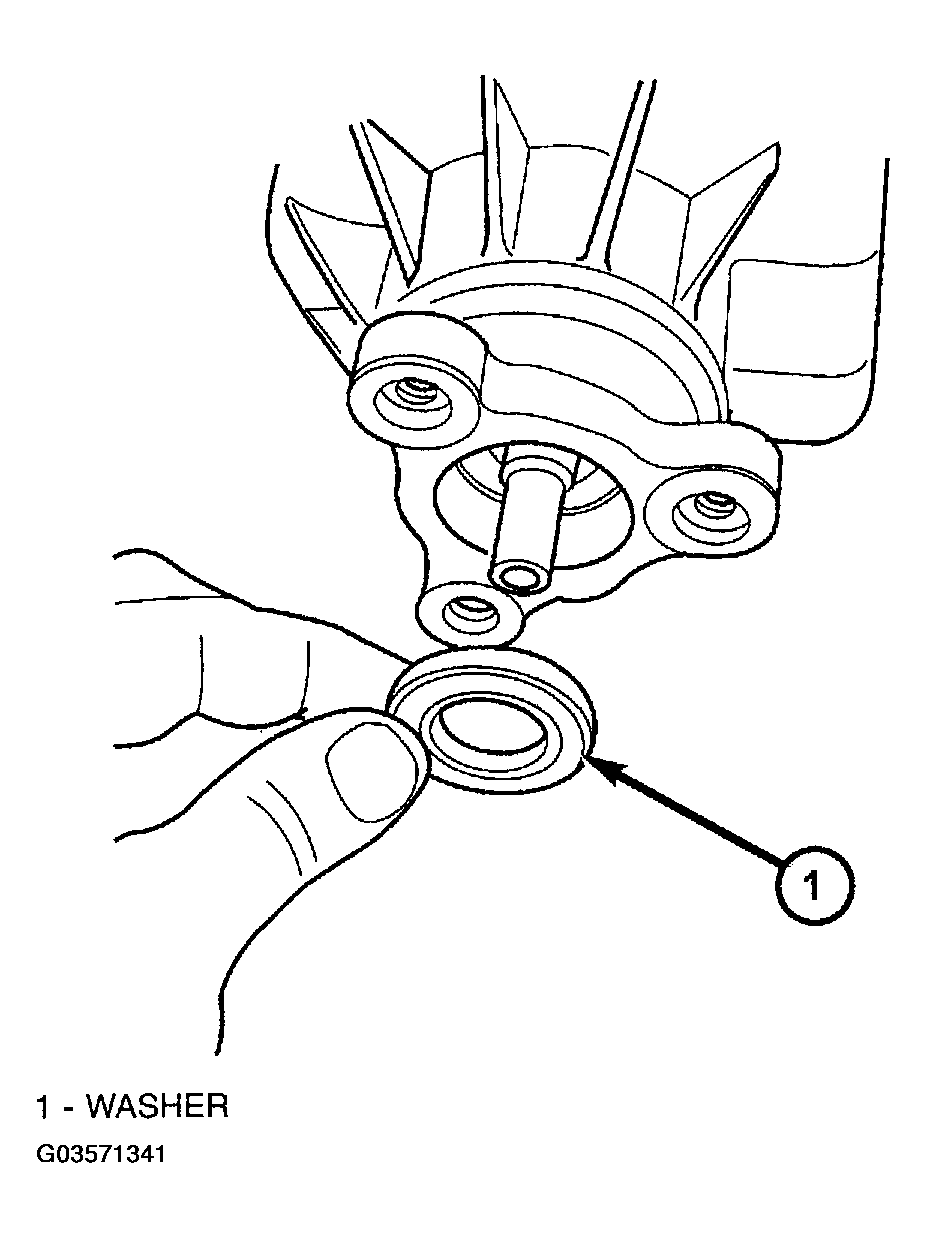

Fig 3: Installing Input Flange Washer
Courtesy of DAIMLERCHRYSLER CORP.

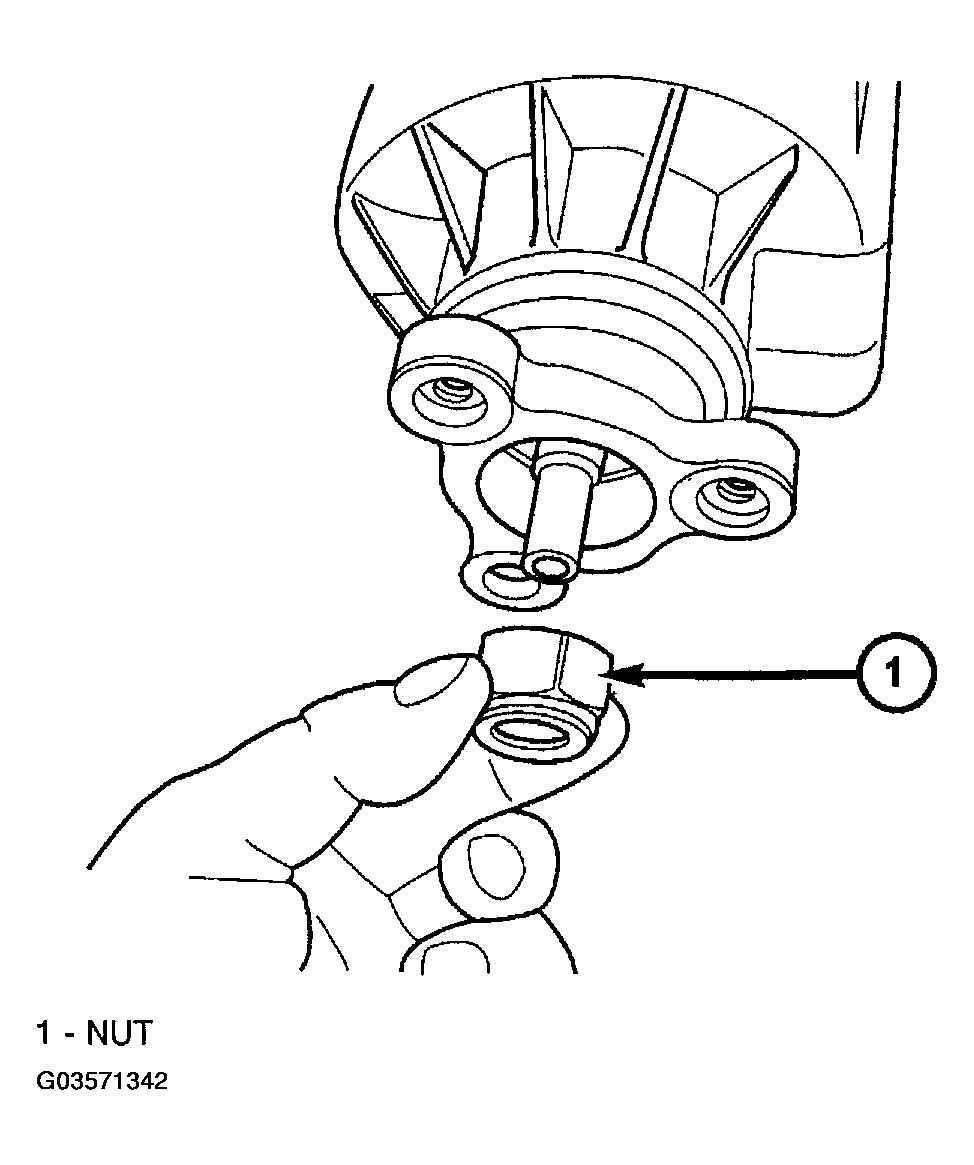

Fig 4: Installing Input Flange Nut
Courtesy of DAIMLERCHRYSLER CORP.
Using tool 6958, torque flange nut to 135 N.m (100 ft. lbs.) (Fig 5 ).

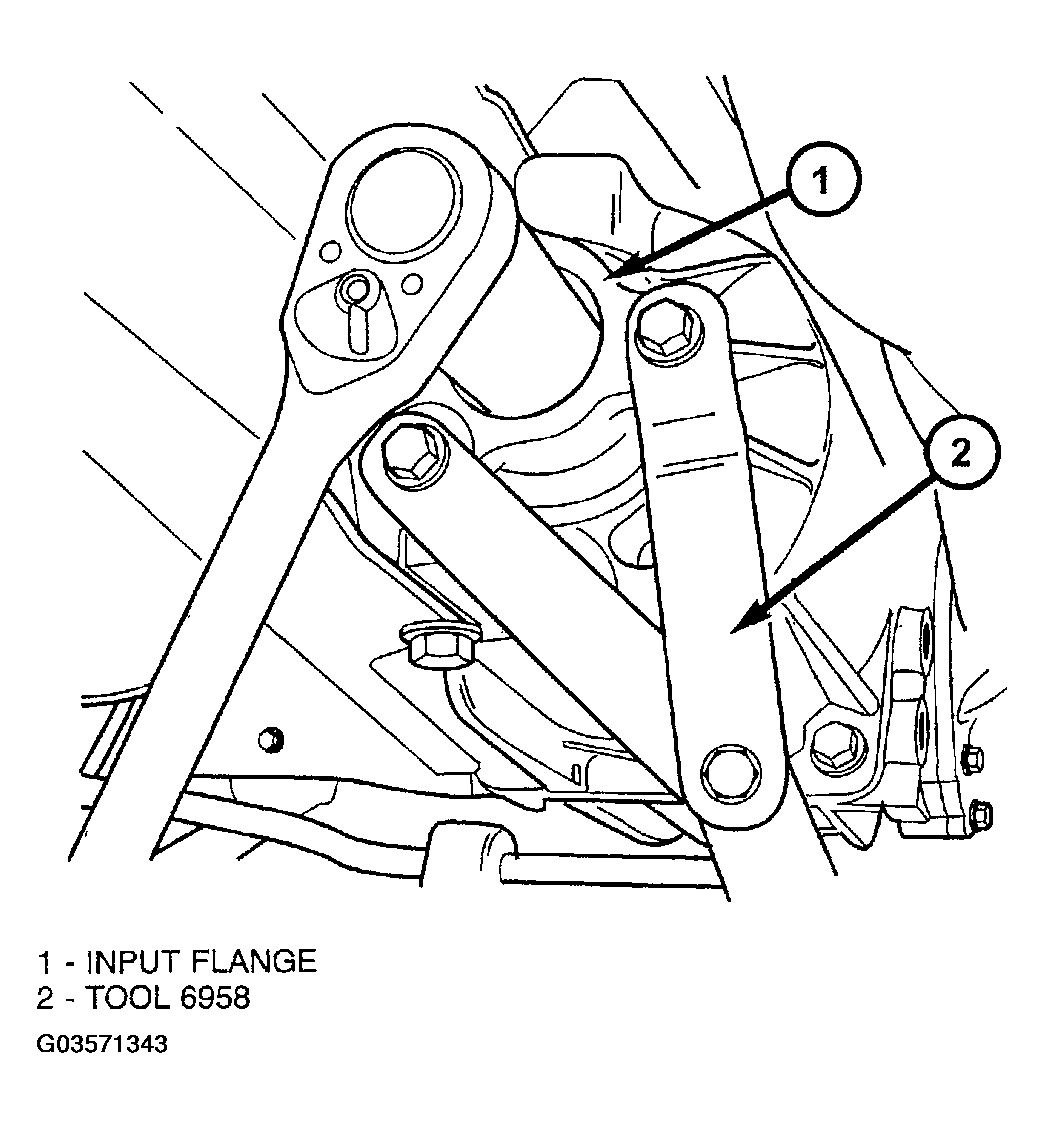

Fig 5: Installing Input Flange Nut
Courtesy of DAIMLERCHRYSLER CORP.
Install propeller shaft. (Refer to PROPELLER SHAFT (AWD) )
Lower vehicle.
