Floor Shift Assembly (ATM): Overhaul

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (See  REPLACEMENT  )
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (See  REPLACEMENT  )
  3. REMOVE INSTRUMENT PANEL BOX (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See  REPLACEMENT  )
  5. DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Push the claw and disconnect the parking lock cable assy from the shift lock release link.

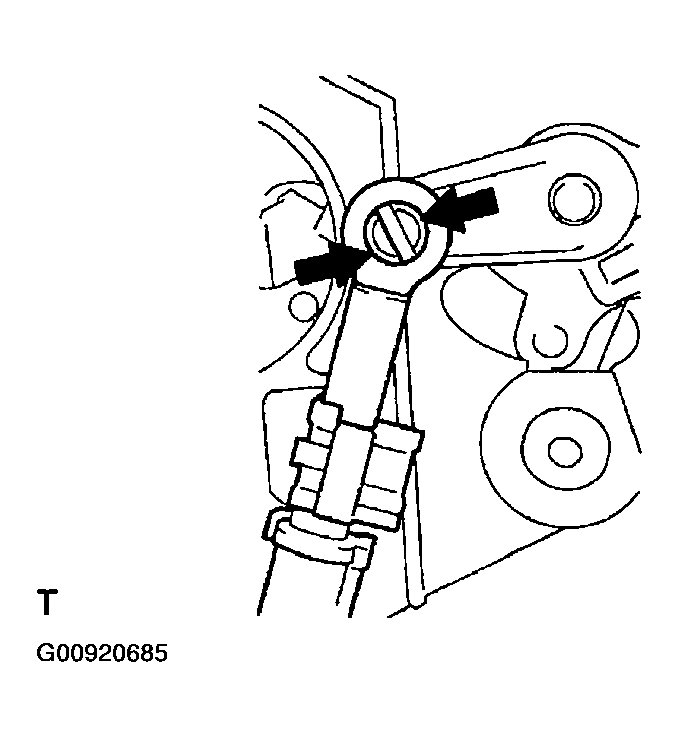

      Fig 1: Disconnecting Parking Lock Cable Assy From Shift Lock Release Link
      G00920685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

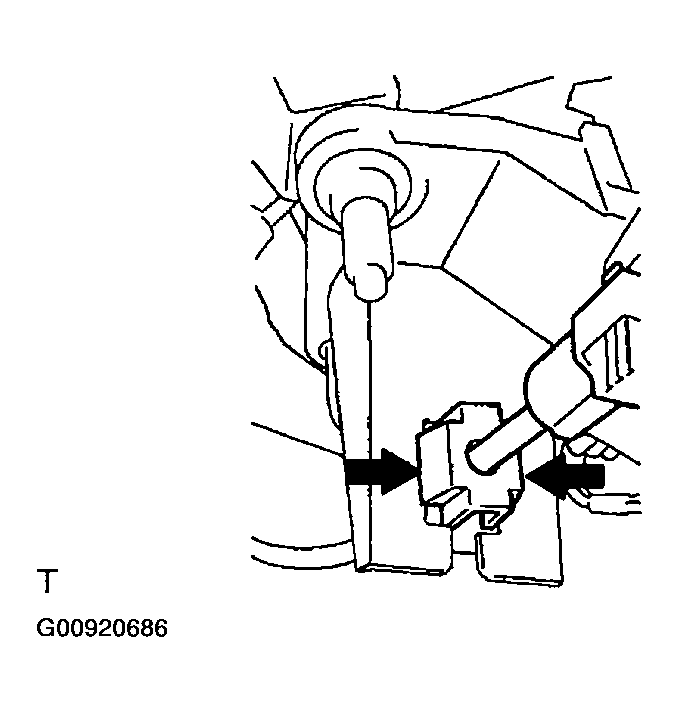

    2. Using a screw driver, disconnect the parking lock cable assy from the shift lever plate.
      Fig 2: Disconnecting Parking Lock Cable Assy From Shift Lever Plate Using Screw Driver
      G00920686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT

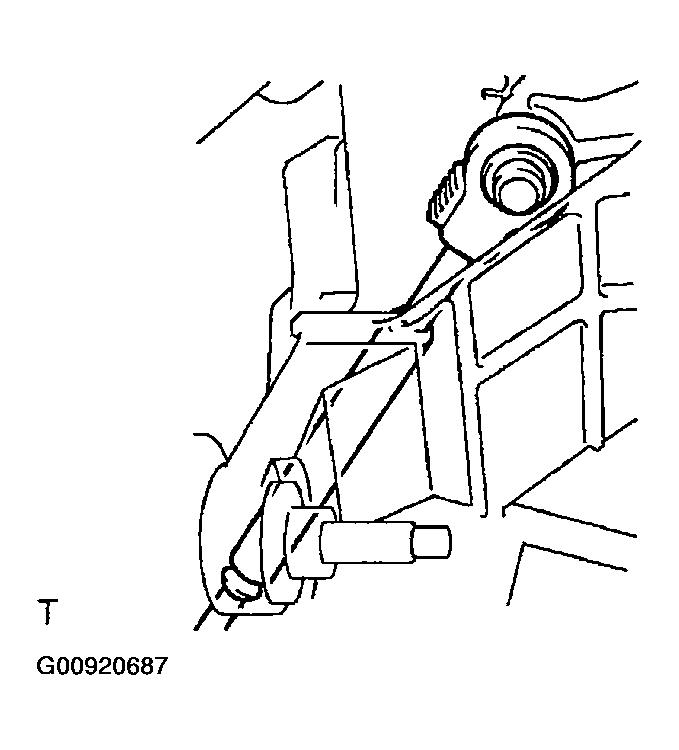

    1. Disconnect the control cable end from the shift lever.
      Fig 3: Disconnecting Control Cable End From Shift Lever
      G00920687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

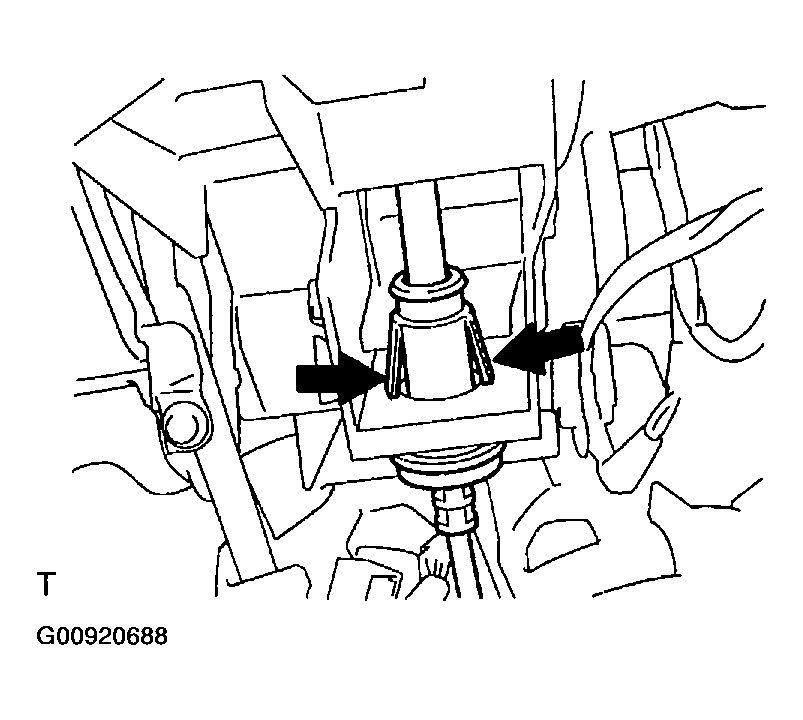

    2. Using a screw driver, disconnect the control cable from the shift lever plate.
      Fig 4: Disconnecting Control Cable From Shift Lever Plate Using Screw Driver
      G00920688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FLOOR SHIFT ASSY
    1. Disconnect the shift lock control ECU connector and indicator lamp wire connector.
      Fig 5: Disconnecting Shift Lock Control ECU Connector And Indicator Lamp Wire Connector
      G00920689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the wire harness clamp.
    3. Remove the 4 nuts and floor shift assy.

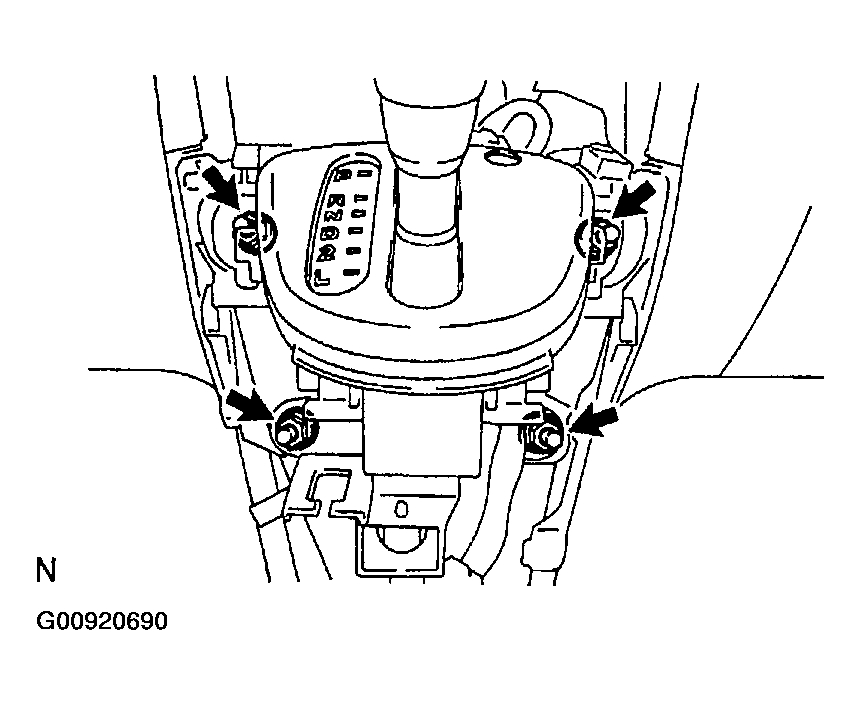

      Fig 6: Removing Nuts And Floor Shift Assy
      G00920690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FLOOR SHIFT LEVER KNOB SUB-ASSY
    1. Disconnect the indicator lamp wire connector from the shift lever plate.
    2. Using a small screw driver, remove the push nut.
    3. Separate the wire harness from the shift lever plate.

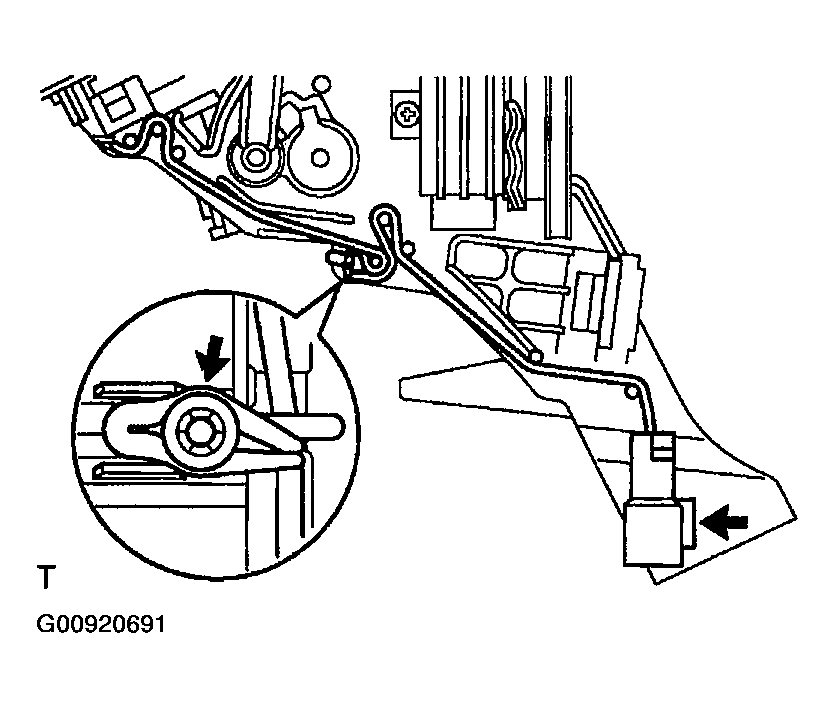

      Fig 7: Separating Wire Harness From Shift Lever Plate
      G00920691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the secondary locking device.
    5. Release the locking lug of the terminals 2 and 4, and pull the terminals out from the rearward.

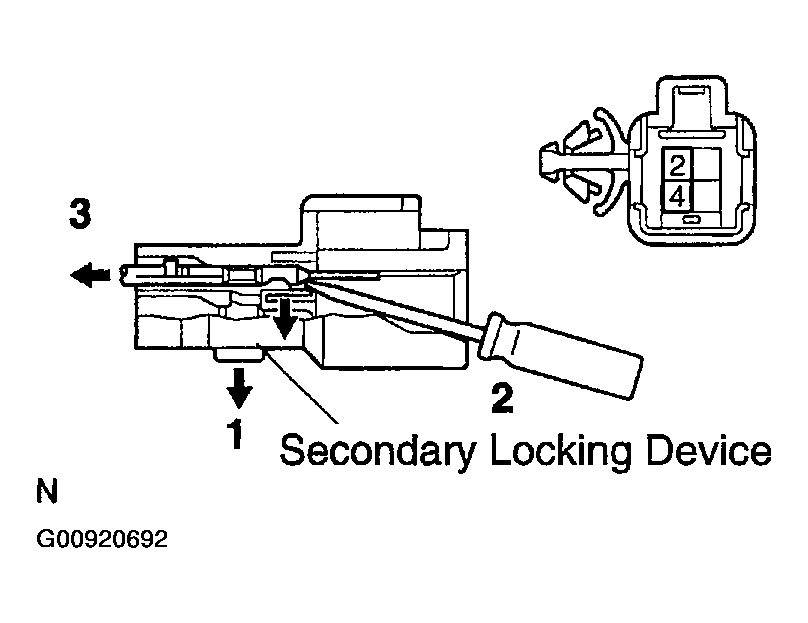

      Fig 8: Releasing Locking Lug Of Terminals 2 And 4, And Pull Terminals Out From Rearward
      G00920692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the 2 screws and shift lever knob sub-assy with the position indicator slide cover.
    NOTE: Pay attention not to apply unnatural load to transmission control switch wire harness.

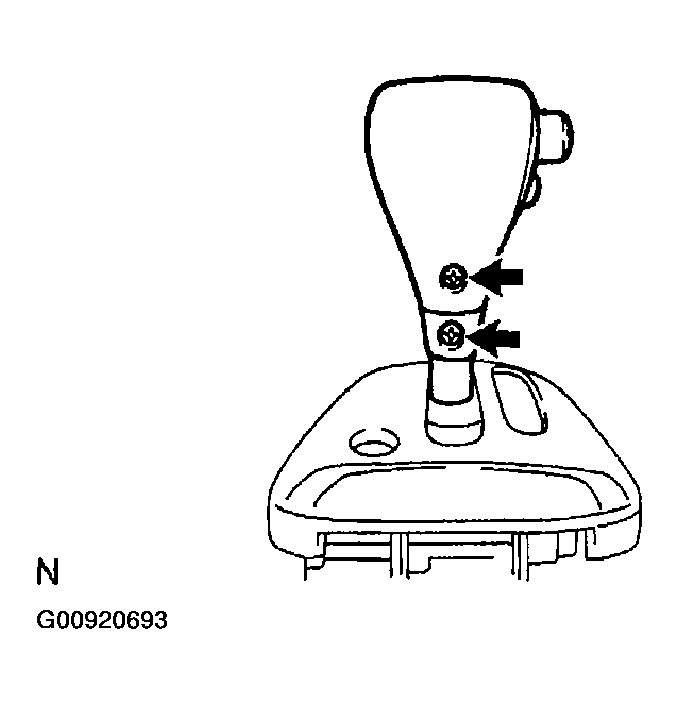

    Fig 9: Removing Screws And Shift Lever Knob Sub-Assy With Position Indicator Slide Cover
    G00920693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SHIFT LEVER KNOB BUTTON
    1. Remove the shift lever knob button and spring from the shift lever knob.

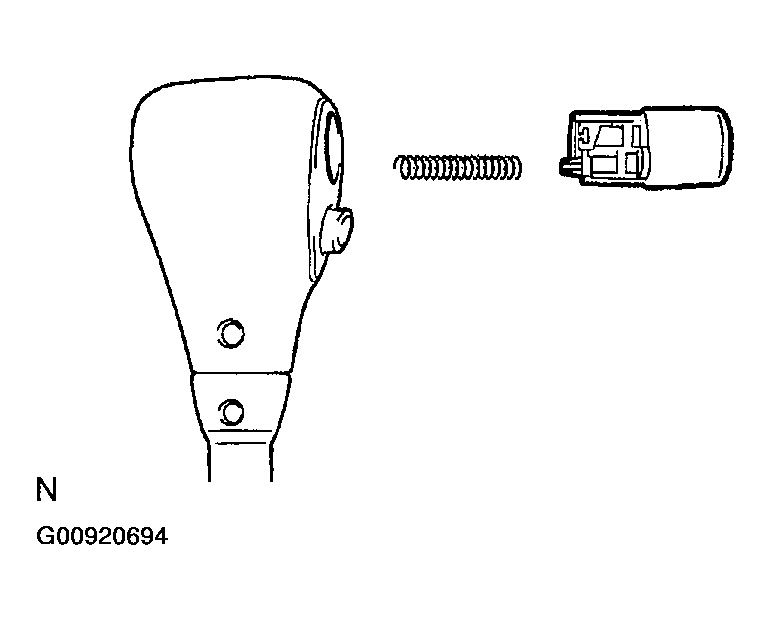

    Fig 10: Removing Shift Lever Knob Button And Spring From Shift Lever Knob
    G00920694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover No. 2 from the shift lever knob.

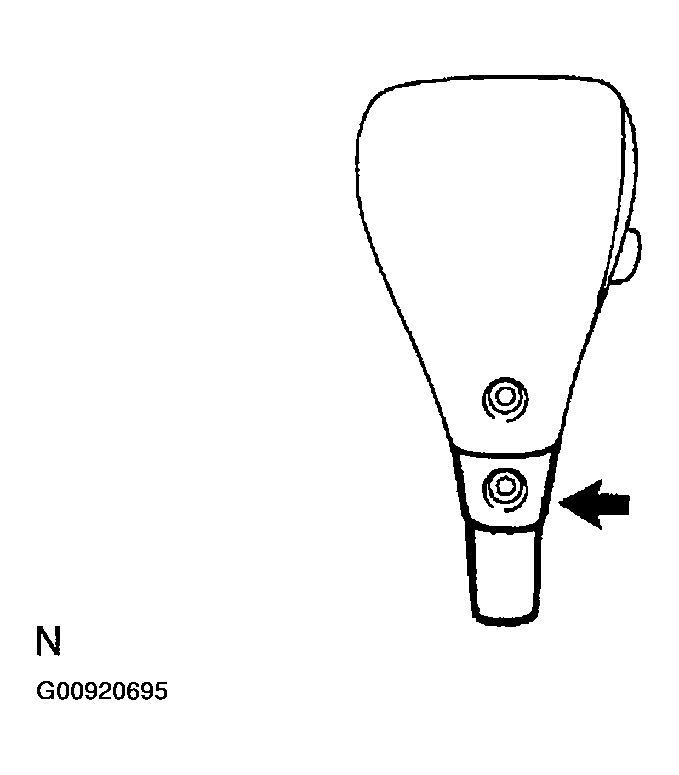

    Fig 11: Removing Position Indicator Slide Cover From Shift Lever Knob
    G00920695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE TRANSMISSION CONTROL SWITCH
    1. Using a small screw driver, remove the transmission control switch from the shift lever knob.

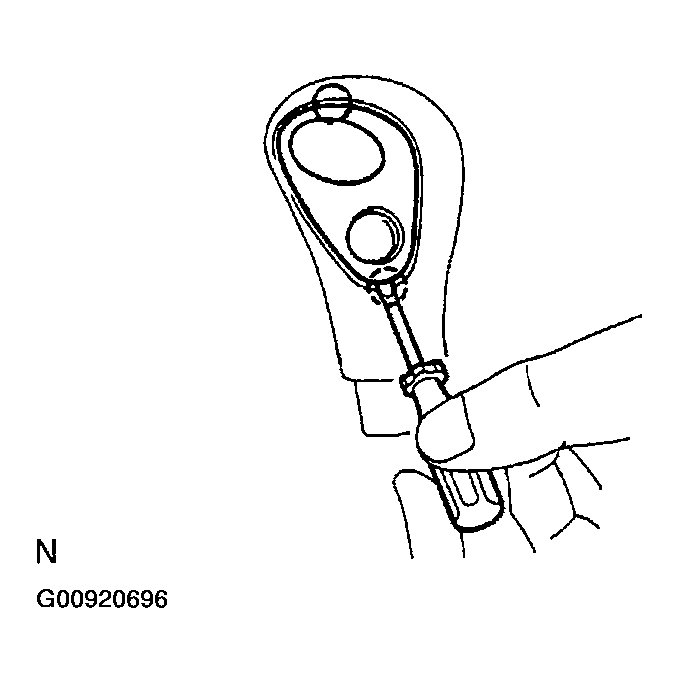

    Fig 12: Removing Transmission Control Switch From Shift Lever Knob Using Small Screw Driver
    G00920696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE INDICATOR LAMP WIRE SUB-ASSY
    1. Remove the indicator lamp wire sub-assy from the position indicator housing lower.

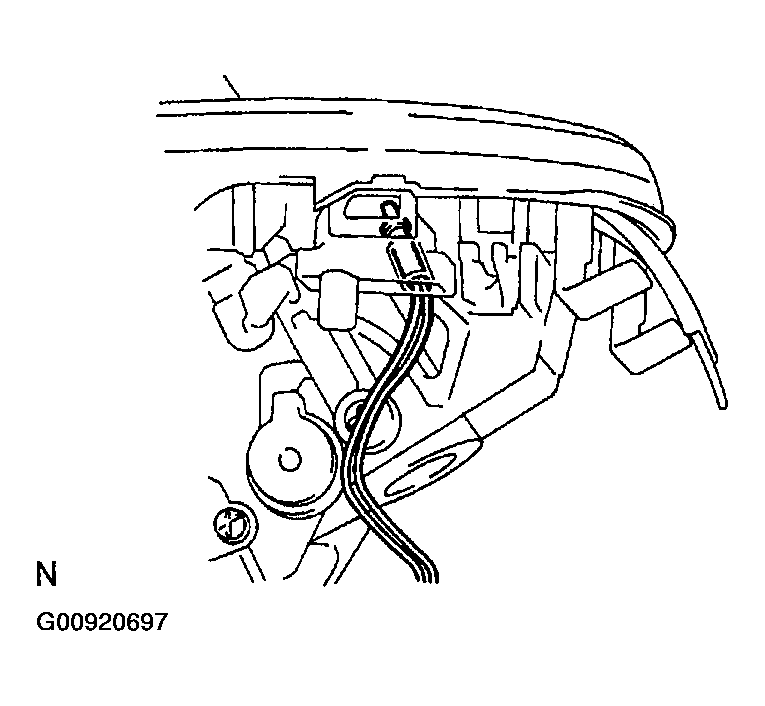

    Fig 13: Removing Indicator Lamp Wire Sub-Assy From Position Indicator Housing Lower
    G00920697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE POSITION INDICATOR HOUSING LOWER
    1. Remove the position indicator housing lower with the position indicator housing upper from the shift lever plate.

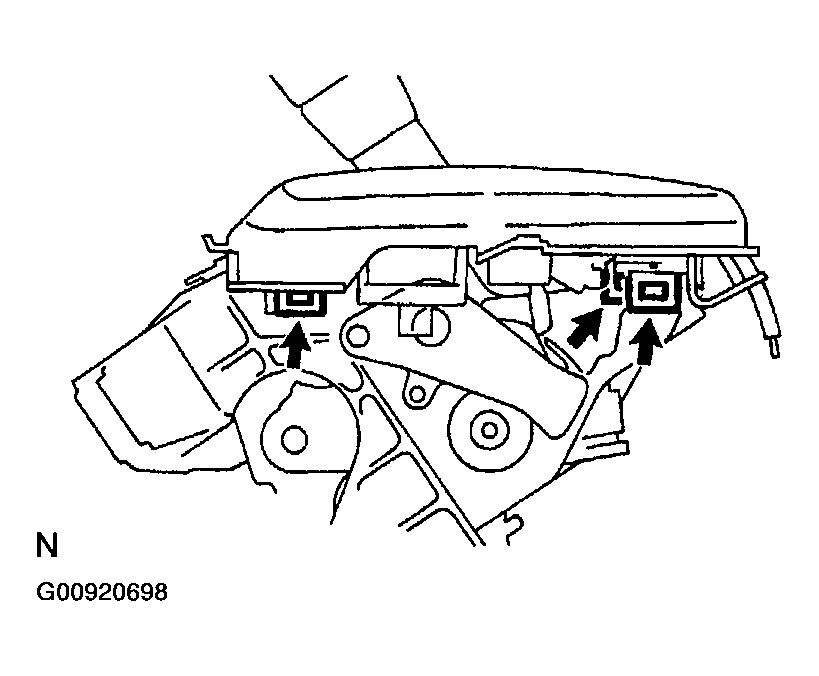

    Fig 14: Removing Position Indicator Housing Lower With Position Indicator Housing Upper From Shift Lever Plate
    G00920698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE POSITION INDICATOR HOUSING UPPER
    1. Using a small screw driver, remove the position indicator housing upper from the position indicator housing lower.

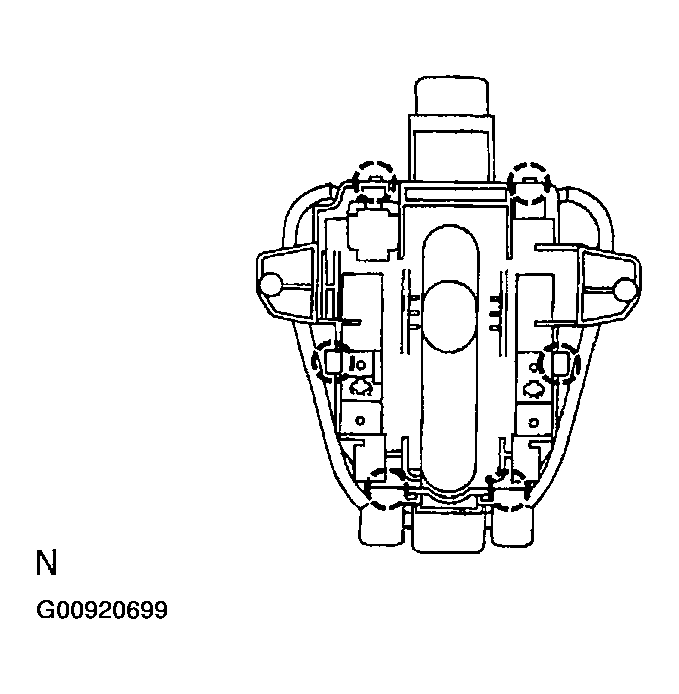

    Fig 15: Removing Position Indicator Housing Upper From Position Indicator Housing Lower Using Small Screw Driver
    G00920699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    1. Using a screwdriver, remove the shift lock release button cover.

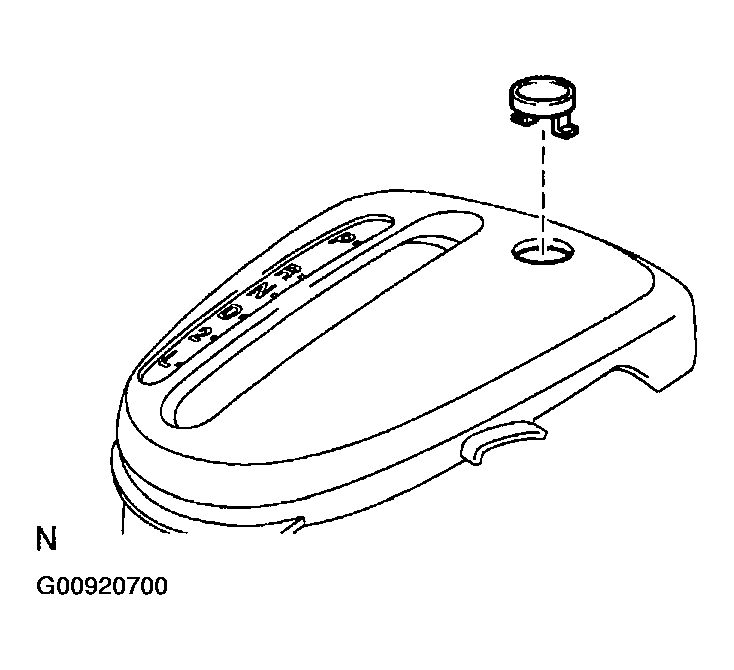

    Fig 16: Removing Shift Lock Release Button Cover Using Screwdriver
    G00920700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE CONTROL POSITION INDICATOR PLATE
    1. Remove the position indicator plate from the position indicator housing upper.

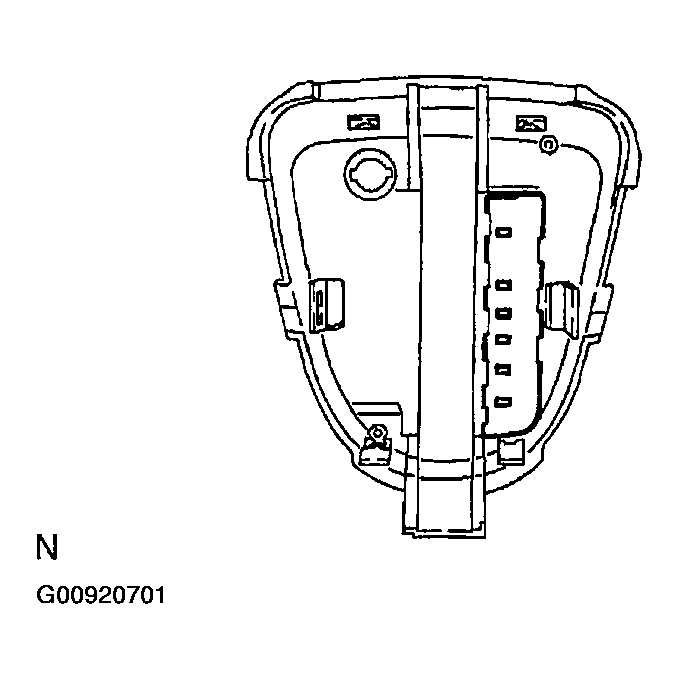

    Fig 17: Removing Position Indicator Plate From Position Indicator Housing Upper
    G00920701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE POSITION INDICATOR SLIDE COVER
    1. Remove the position indicator slide cover from the position indicator housing lower.

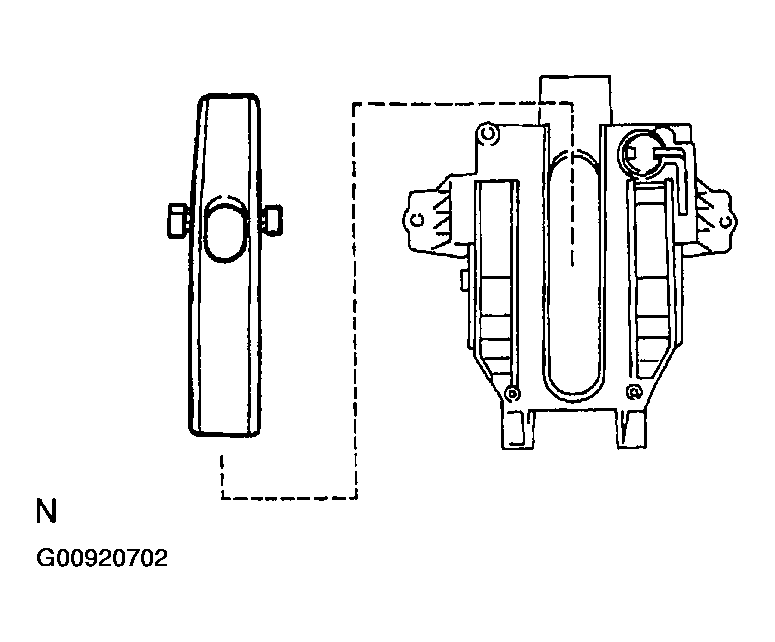

    Fig 18: Removing Position Indicator Slide Cover From Position Indicator Housing Lower
    G00920702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE SHIFT LOCK RELEASE BUTTON
    1. Remove the shift lock release button and spring from the position indicator housing lower.

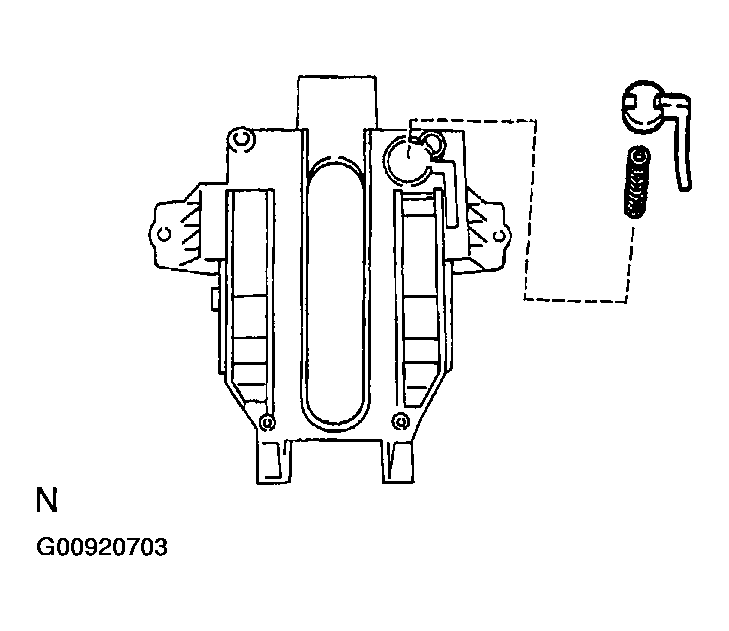

    Fig 19: Removing Shift Lock Release Button And Spring From Position Indicator Housing Lower
    G00920703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SHIFT LOCK CONTROL ECU
    1. Remove the screw.
    2. Disconnect the shift lock solenoid connector and remove the shift lock control ECU from the shift lever plate.
    Fig 20: Disconnecting Shift Lock Solenoid Connector And Removing Shift Lock Control ECU From Shift Lever Plate
    G00920704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE SHIFT LOCK SOLENOID
    1. Using a screw driver, remove the shift lock solenoid from the shift lever plate.

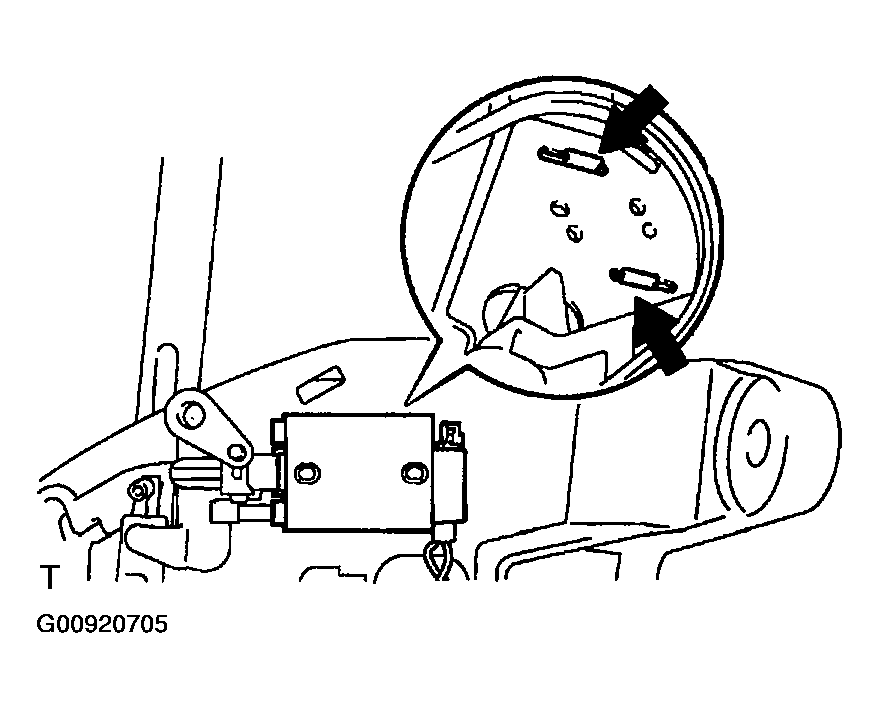

    Fig 21: Removing Shift Lock Solenoid From Shift Lever Plate Using Screw Driver
    G00920705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

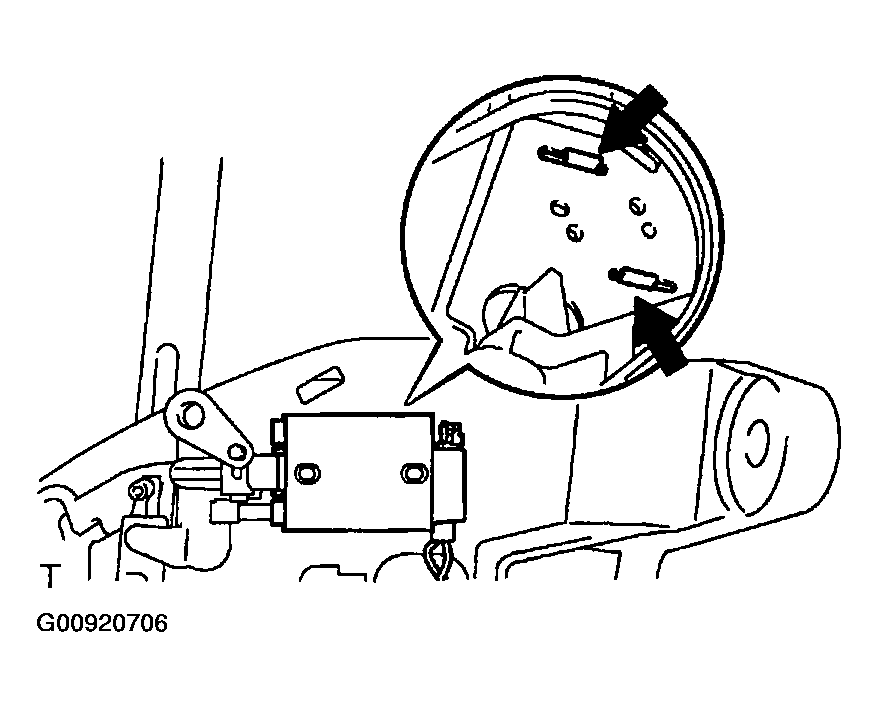

  21. INSTALL SHIFT LOCK SOLENOID
    1. Install the shift lock solenoid to the shift lever plate.
    Fig 22: Installing Shift Lock Solenoid To Shift Lever Plate
    G00920706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL SHIFT LOCK CONTROL ECU
    1. Connect the shift lock solenoid connector to the shift lock control ECU.
    2. Install the shift lock control ECU with the screw.

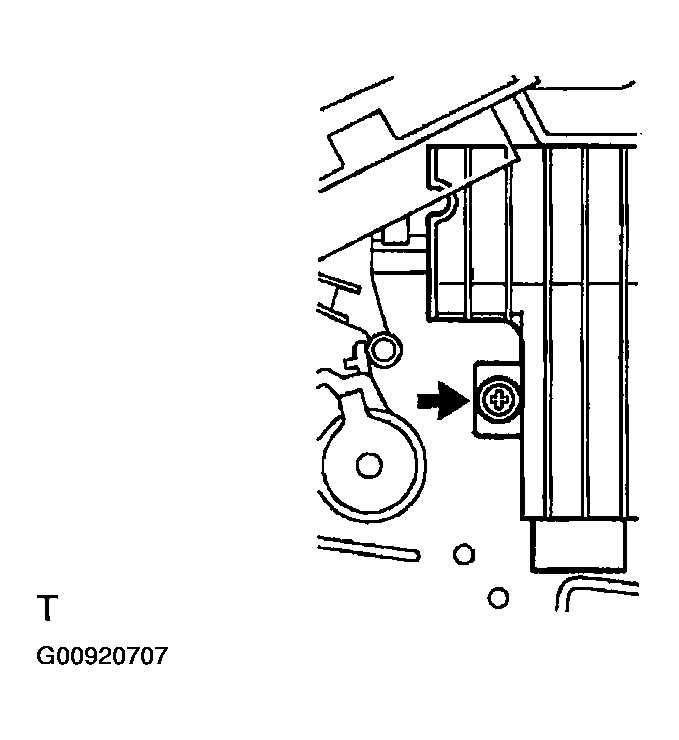

    Fig 23: Installing Shift Lock Control ECU With Screw
    G00920707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL SHIFT LOCK RELEASE BUTTON
    1. Apply MP grease to the spring.
    2. Install the shift lock release button and spring.

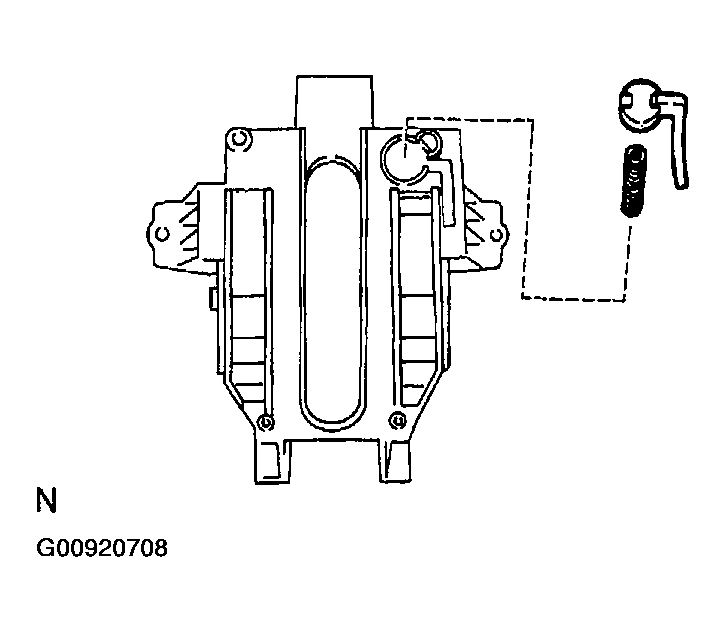

    Fig 24: Installing Shift Lock Release Button And Spring
    G00920708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover to the position indicator housing lower.

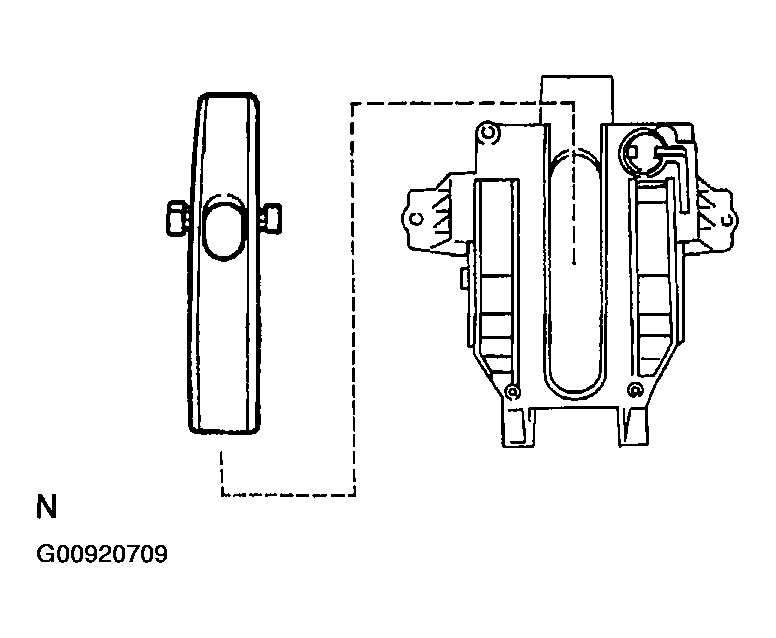

    Fig 25: Installing Position Indicator Slide Cover To Position Indicator Housing Lower
    G00920709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL CONTROL POSITION INDICATOR PLATE
    1. Install the position indicator plate to the position indicator housing upper.
    Fig 26: Installing Position Indicator Plate To Position Indicator Housing Upper
    G00920710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SHIFT LOCK RELEASE BUTTON COVER
    1. Install the shift lock release button cover.
    Fig 27: Installing Shift Lock Release Button Cover
    G00920711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL POSITION INDICATOR HOUSING UPPER
    1. Install the position indicator housing upper to the position indicator housing lower.
    NOTE:

    Fit the claws securely.

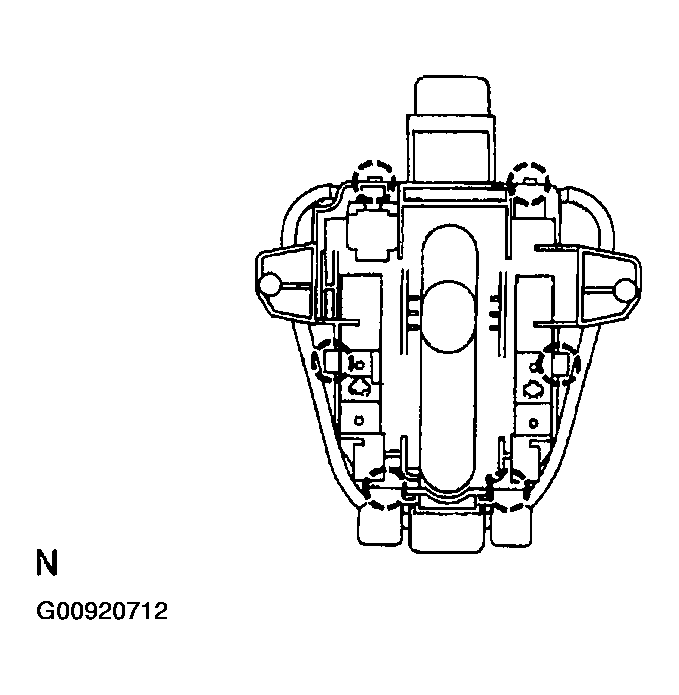

    Fig 28: Installing Position Indicator Housing Upper To Position Indicator Housing Lower
    G00920712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

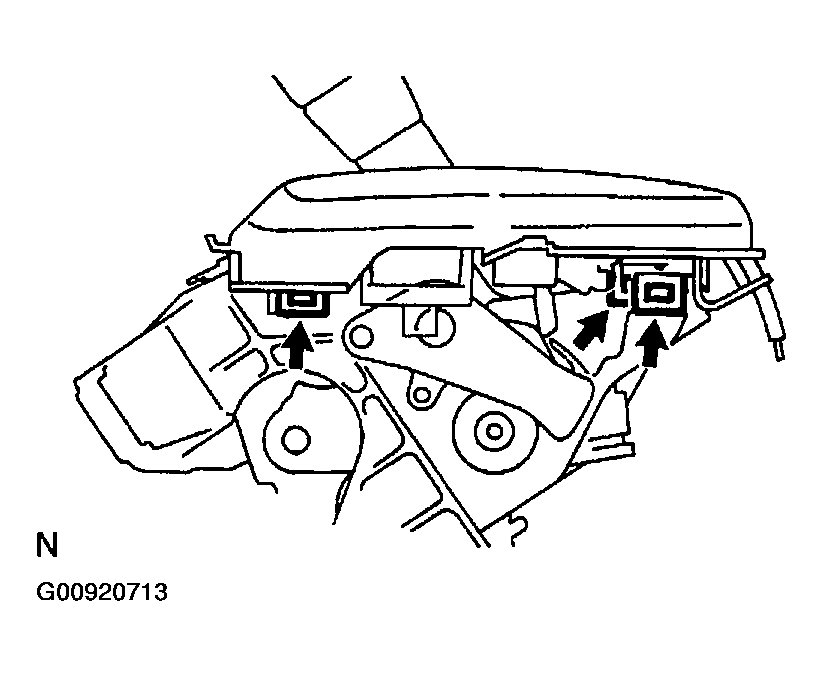

  28. INSTALL POSITION INDICATOR HOUSING LOWER
    1. Install the position indicator housing lower with the position indicator housing upper to the shift lever plate.
    NOTE:

    Fit the claws securely.

    Fig 29: Installing Position Indicator Housing Lower With Position Indicator Housing Upper To Shift Lever Plate
    G00920713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL INDICATOR LAMP WIRE SUB-ASSY
    1. Install the indicator lamp wire sub-assy to the position indicator housing lower.

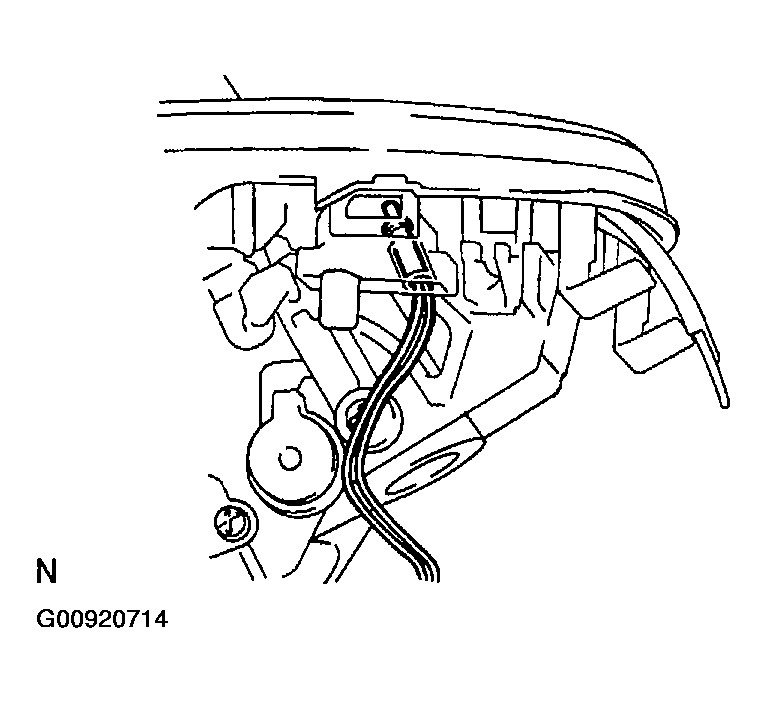

    Fig 30: Installing Indicator Lamp Wire Sub-Assy To Position Indicator Housing Lower
    G00920714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. INSTALL TRANSMISSION CONTROL SWITCH
    1. Insert the wire harness into the shift lever knob from the part shown by the arrow in Fig 31, and install the transmission control switch to the shift lever knob.

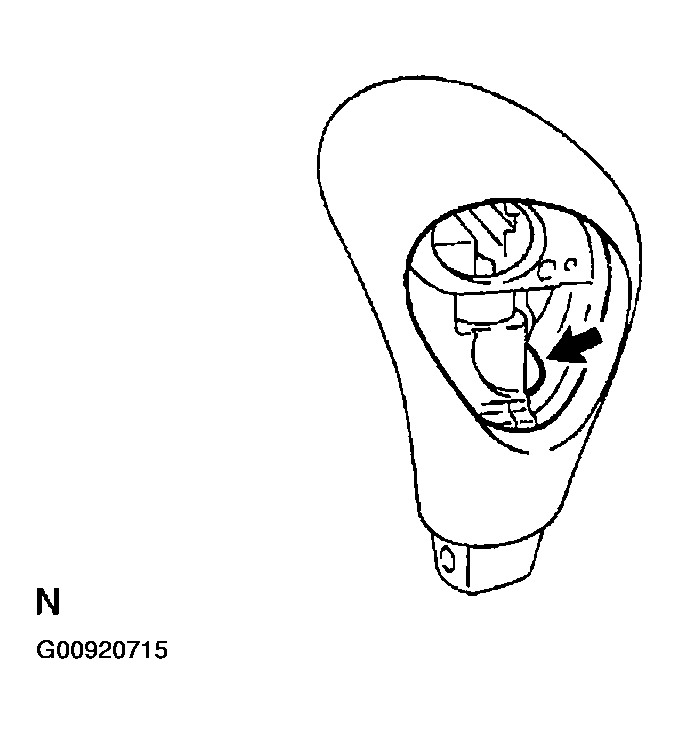

    Fig 31: Inserting Wire Harness Into Shift Lever Knob
    G00920715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL POSITION INDICATOR SLIDE COVER
    1. Install the position indicator slide cover No. 2 to the shift lever knob.

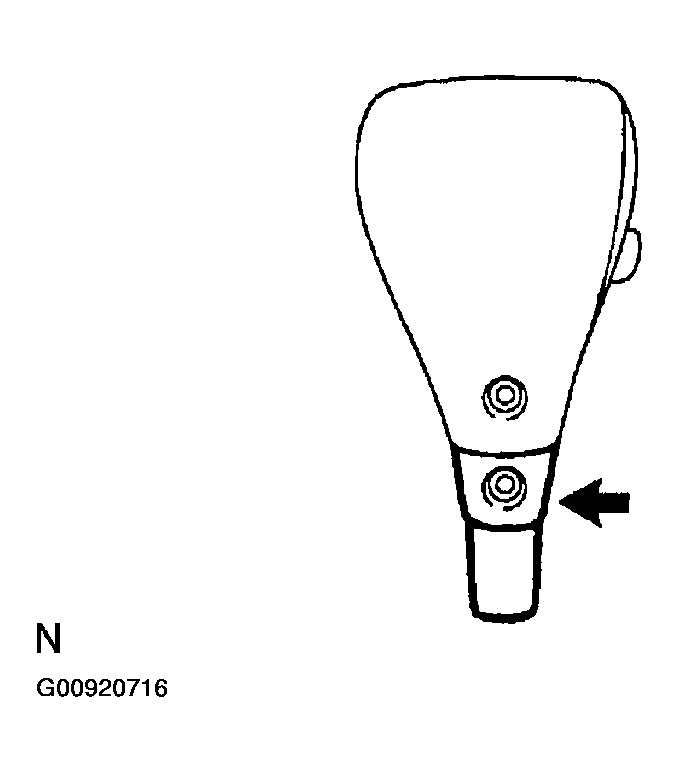

    Fig 32: Installing Position Indicator Slide Cover To Shift Lever Knob
    G00920716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL SHIFT LEVER KNOB BUTTON
    1. Apply MP grease to the spring and shift lever knob button.
    2. Install the spring and shift lever knob button to the shift lever knob.

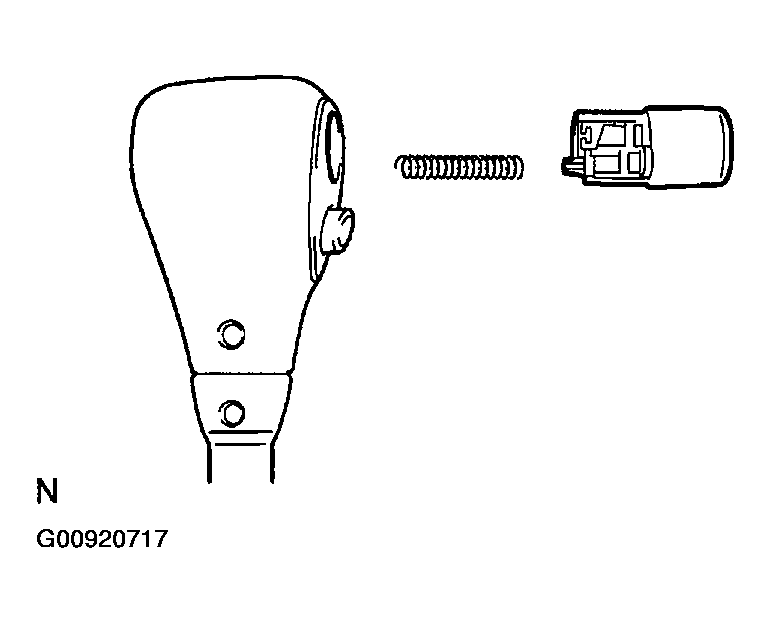

    Fig 33: Installing Spring And Shift Lever Knob Button To Shift Lever Knob
    G00920717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL FLOOR SHIFT LEVER KNOB SUB-ASSY
    1. Install the shift lever knob with the 2 screws.

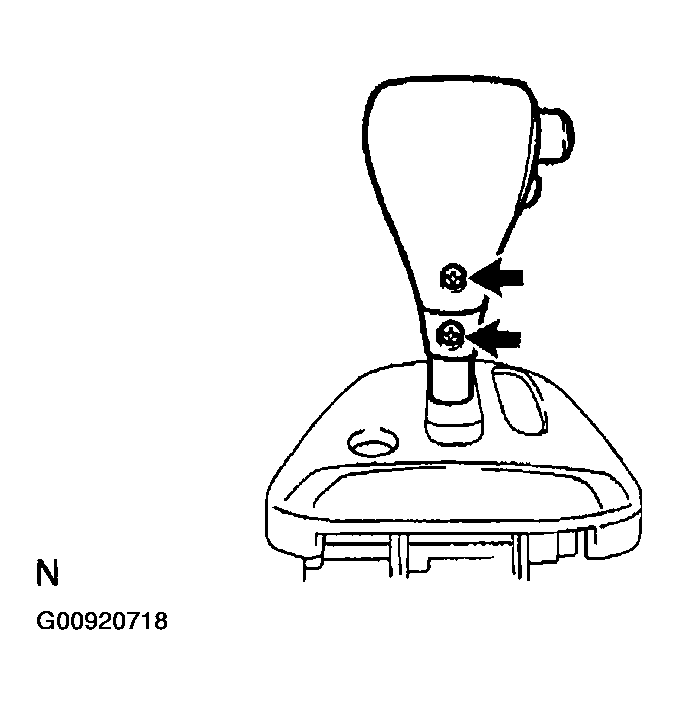

      Fig 34: Installing Shift Lever Knob With Screws
      G00920718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 wire harness of transmission control switch to the connector of indicator lamp wire.

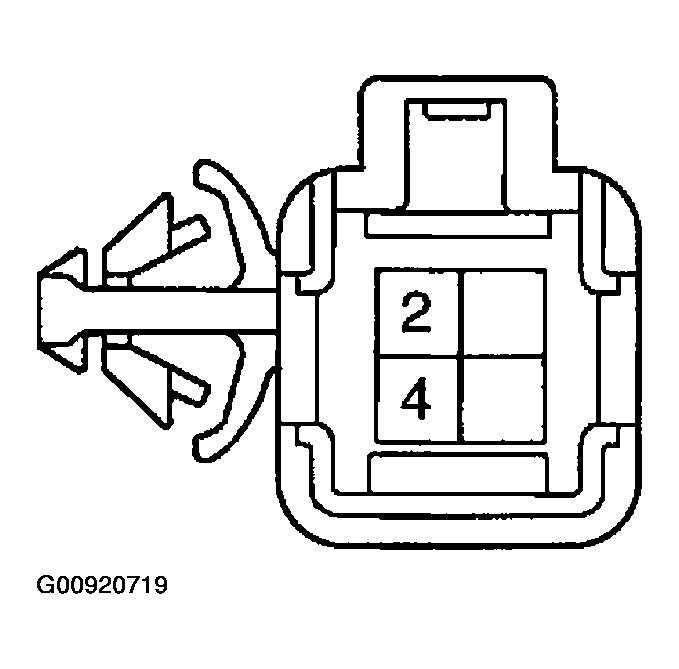

      Fig 35: Connecting Wire Harness Of Transmission Control Switch To Connector Of Indicator Lamp Wire
      G00920719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

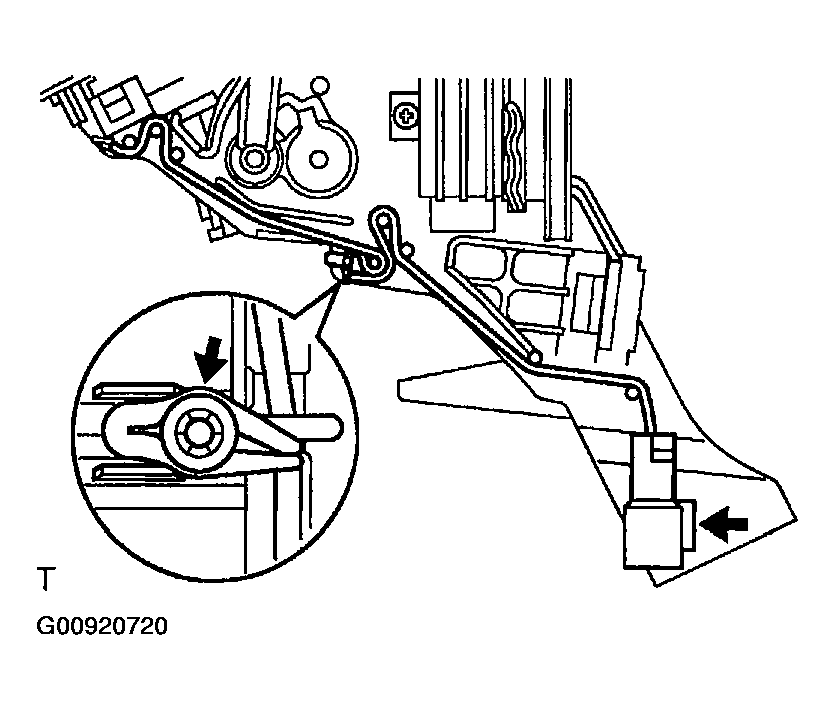

    3. Install the wire harness with a new push nut to the shift lever plate as shown in Fig 36 .
      Fig 36: Installing Wire Harness With New Push Nut To Shift Lever Plate
      G00920720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the indicator lamp wire connector to the shift lever plate.
  34. INSTALL FLOOR SHIFT ASSY
    1. Install the floor shift assy with the 4 nuts
      1. Torque: 11.8 N.m (122 kgf.cm, 9 ft.lbf)
      NOTE:

      Tighten them in the order, A, B, C and D.

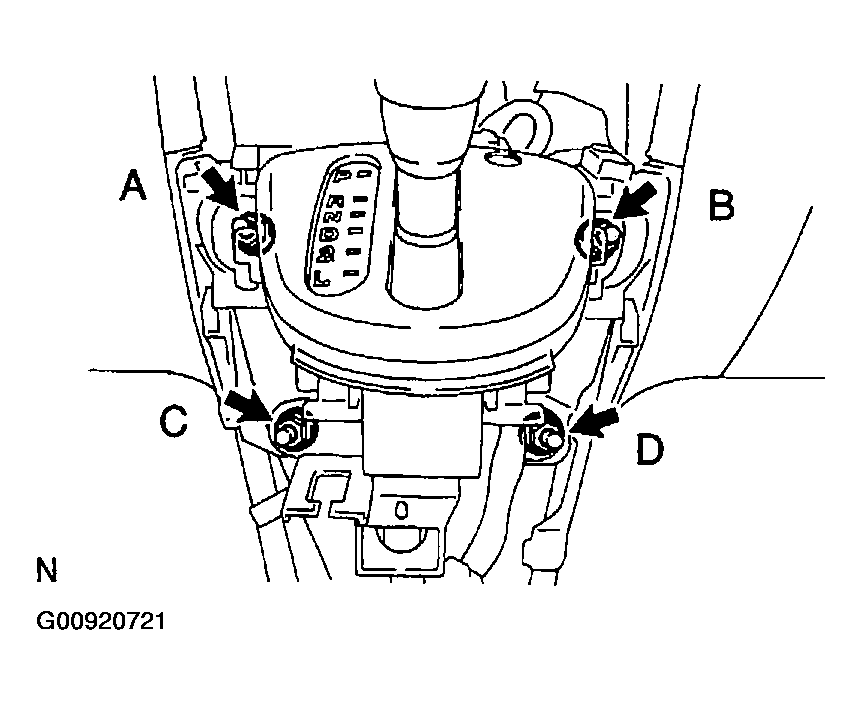

      Fig 37: Installing Floor Shift Assy With Nuts
      G00920721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the shift lock control ECU connector and indicator lamp wire connector.

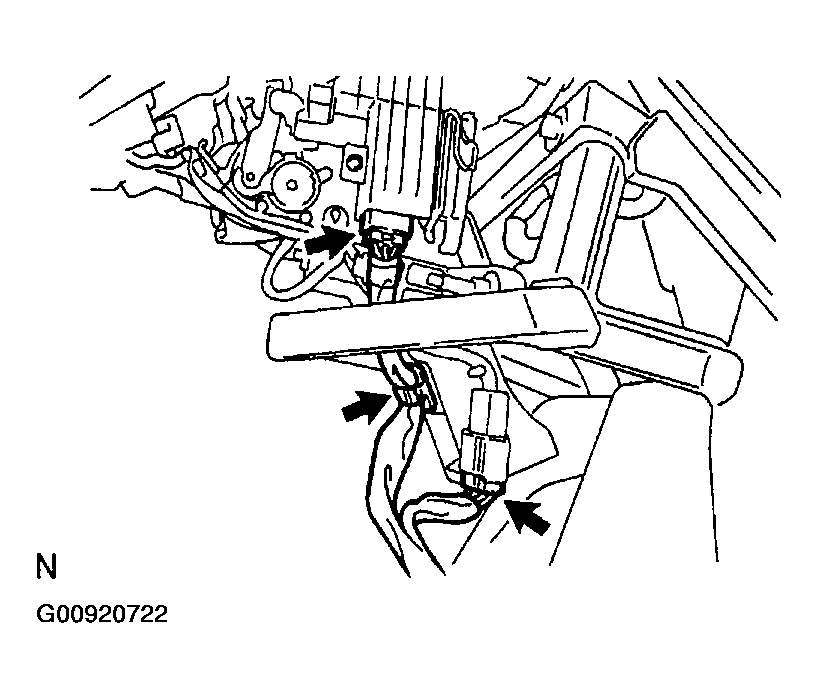

      Fig 38: Connecting Shift Lock Control ECU Connector And Indicator Lamp Wire Connector
      G00920722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the wire harness clamp.
  35. CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Install the control cable to the shift lever plate.

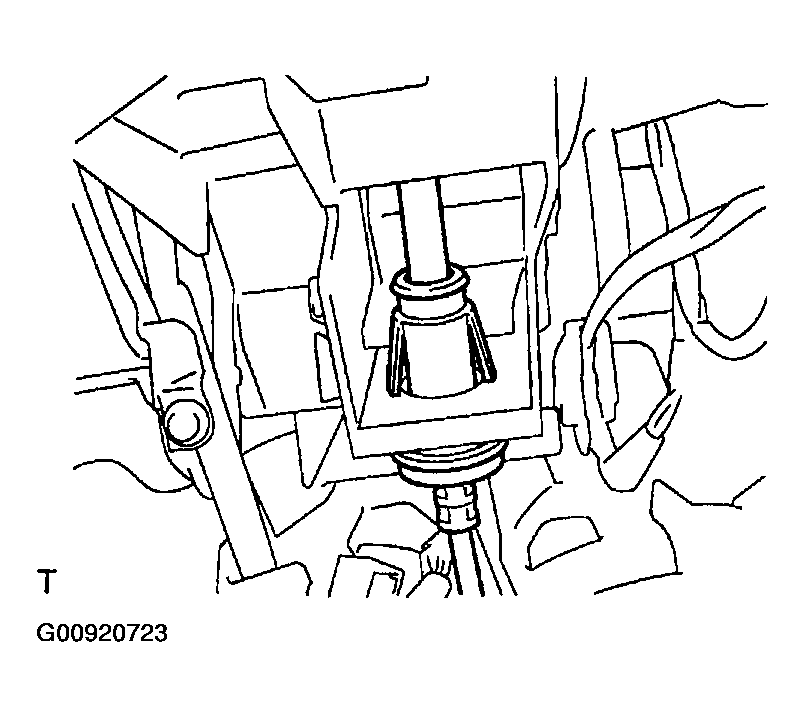

      Fig 39: Installing Control Cable To Shift Lever Plate
      G00920723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the control cable end to the floor shift assy.
    NOTE:

    Install it with the uneven surface facing up.

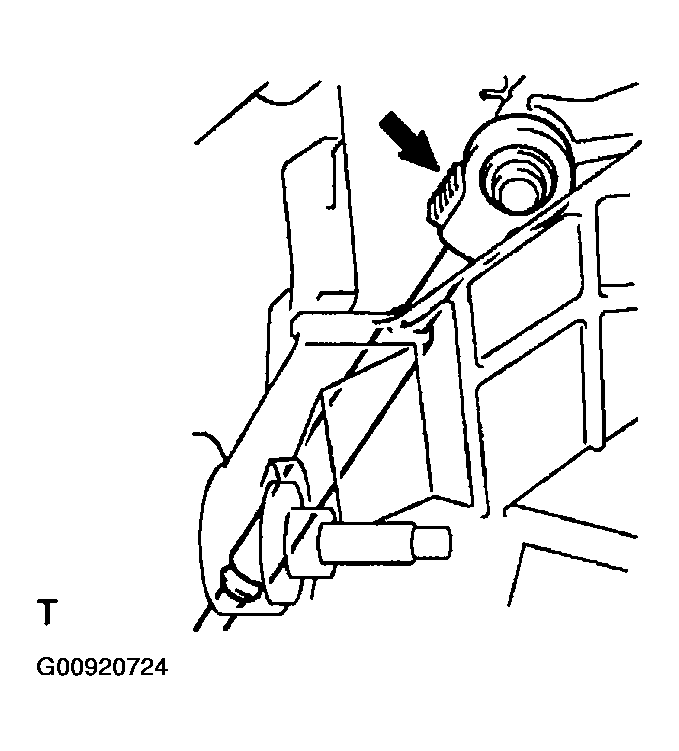

    Fig 40: Connecting Control Cable End To Floor Shift Assy
    G00920724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSY
    1. Pass the parking lock cable through the hole of shift lever plate.
    2. Insert the slide cap into the shift lever plate.

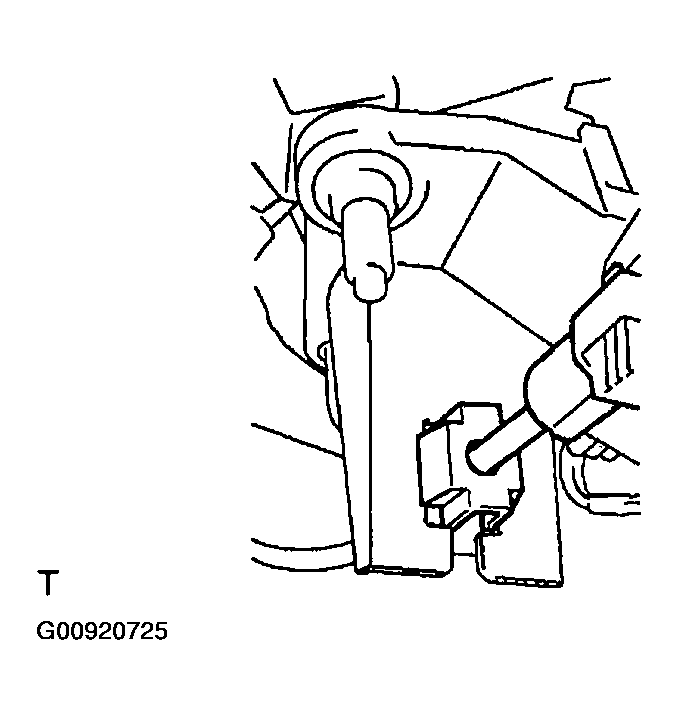

      Fig 41: Inserting Slide Cap Into Shift Lever Plate
      G00920725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Apply MP grease to the shift lock release link.
    4. Insert the lever pin into the hole in the cable end.

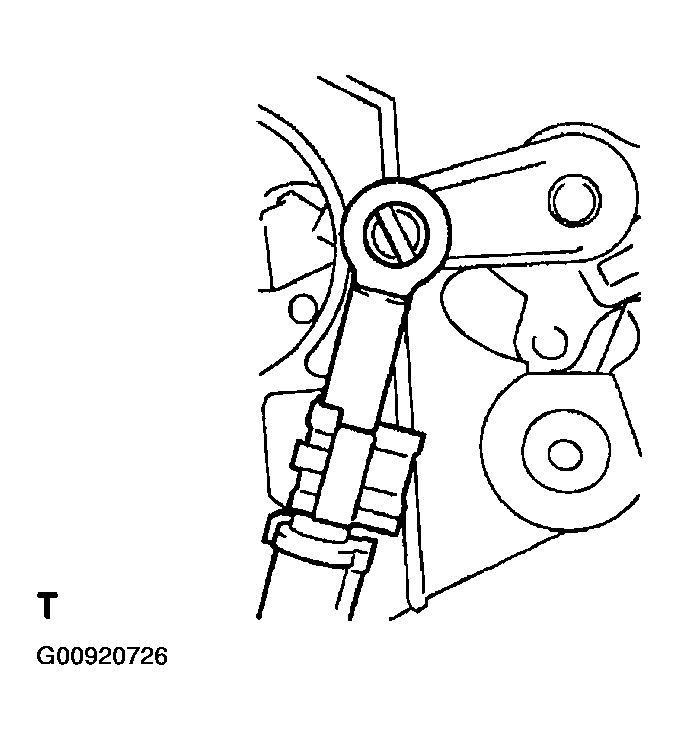

    Fig 42: Inserting Lever Pin Into Hole In Cable End
    G00920726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. CHECK KEY INTERLOCK OPERATION (See  ON-VEHICLE INSPECTION   )
  38. CHECK SHIFT LOCK OPERATION (See  ON-VEHICLE INSPECTION   )
  39. CHECK SHIFT LOCK RELEASE BUTTON OPERATION (See  ON-VEHICLE INSPECTION   )
