Disc Player Changer: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL (SEE  SUPPLEMENTAL RESTRAINT SYSTEM  )
2. REMOVE FRONT SEAT (PASSENGER SEAT POSITION) (SEE  OVERHAUL  )
3. REMOVE DISC PLAYER CHANGER
   1. Disconnect the connector.
   2. Remove the 3 bolts and disc player changer.

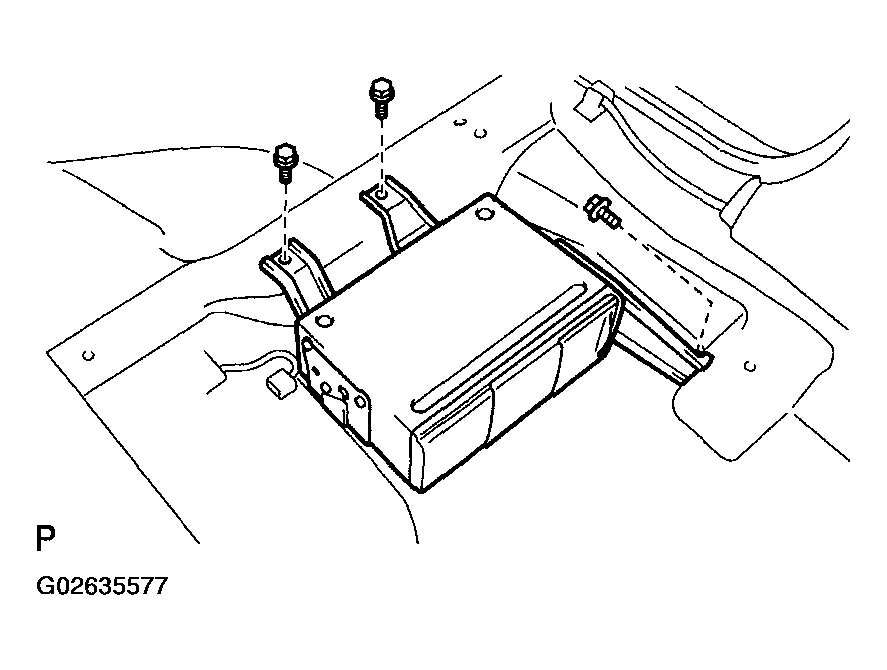

   Fig 1: Removing 3 Bolts And Disc Player Changer

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL FRONT SEAT (PASSENGER SEAT POSITION) (SEE  OVERHAUL  )
