Navigation Receiver ASSY: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
2. REMOVE NAVIGATION RECEIVER ASSEMBLY W/BRACKET
   1. Remove the 4 screws.
   2. Disconnect the clamp from the radio bracket No.2.
   3. Disconnect the connectors, then remove the navigation receiver assembly w/bracket.

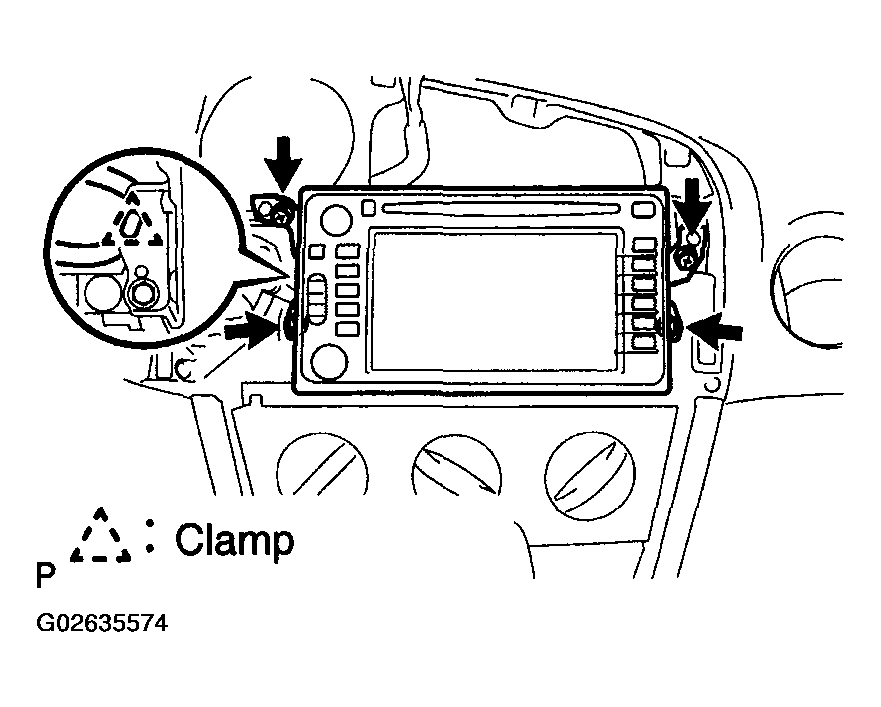

   Fig 1: Removing Screws & Navigation Receiver Assembly W/Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE RADIO BRACKET NO.1
   1. Remove the 4 screws and radio bracket No.1.

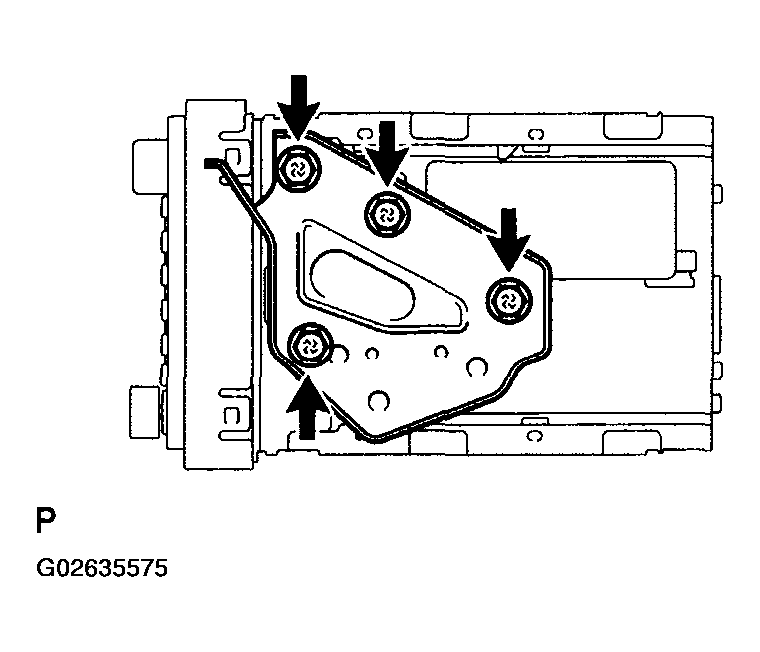

   Fig 2: Removing Screws And Radio Bracket No.1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. REMOVE RADIO BRACKET NO.2
   1. Remove the 4 screws and radio bracket No.2.

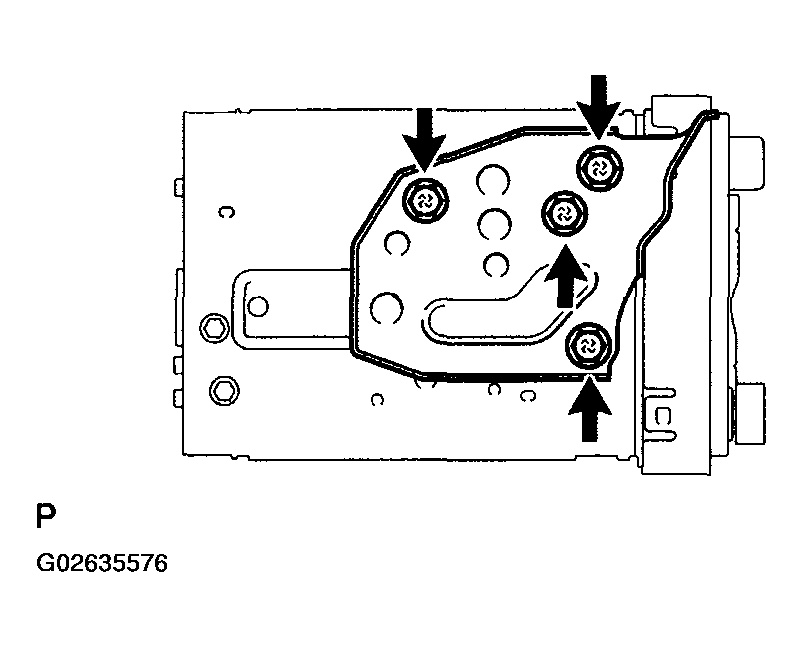

   Fig 3: Removing Screws And Radio Bracket No.2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE NAVIGATION RECEIVER ASSY
