Power Point Socket ASSY: Replacement

HINT:

• See COMPONENTS .
• Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (SEE  REPLACEMENT  )
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CTR (SEE  REPLACEMENT  )
3. REMOVE CONSOLE BOX ASSY REAR (SEE  REPLACEMENT  )
4. REMOVE POWER POINT SOCKET ASSY
   1. Turn the socket in the circumference direction as shown in the illustration, disengage the claw between the socket and the power point socket cover, and push out the socket to the room side.
   2. Align the socket with the notch on the power point socket cover, remove the power point socket assy to the room side.

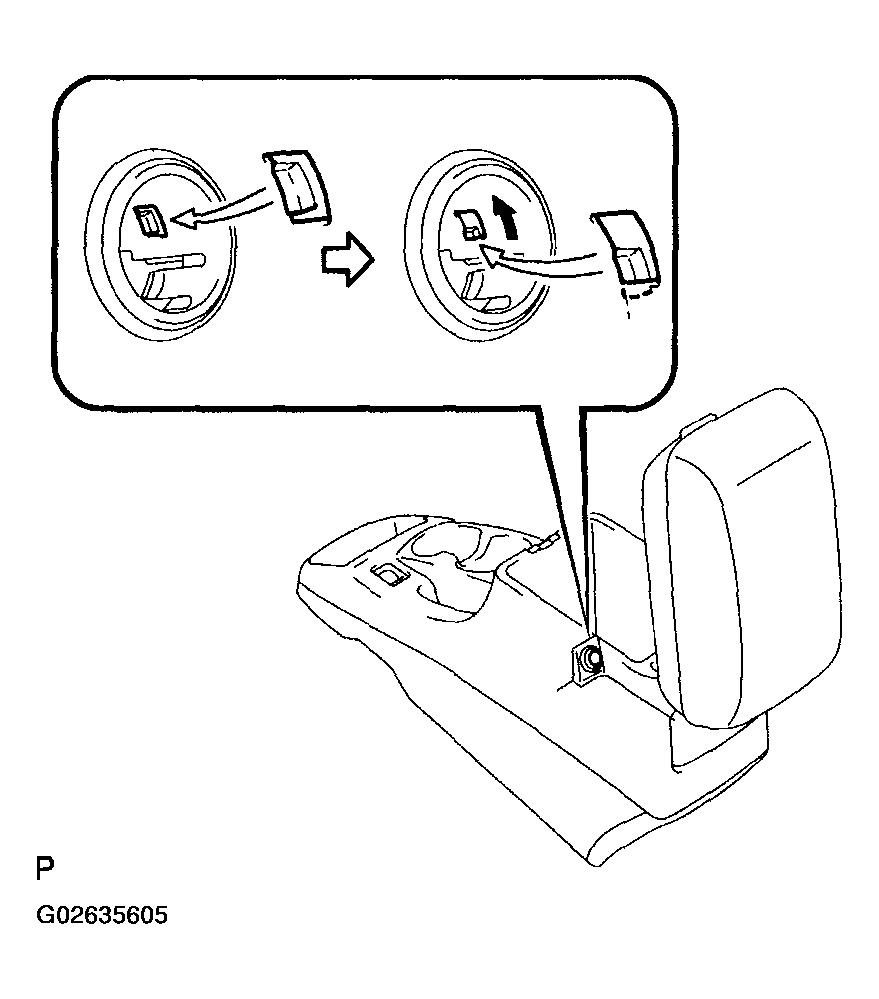

   Fig 1: Turning Socket In Circumference Direction (1 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

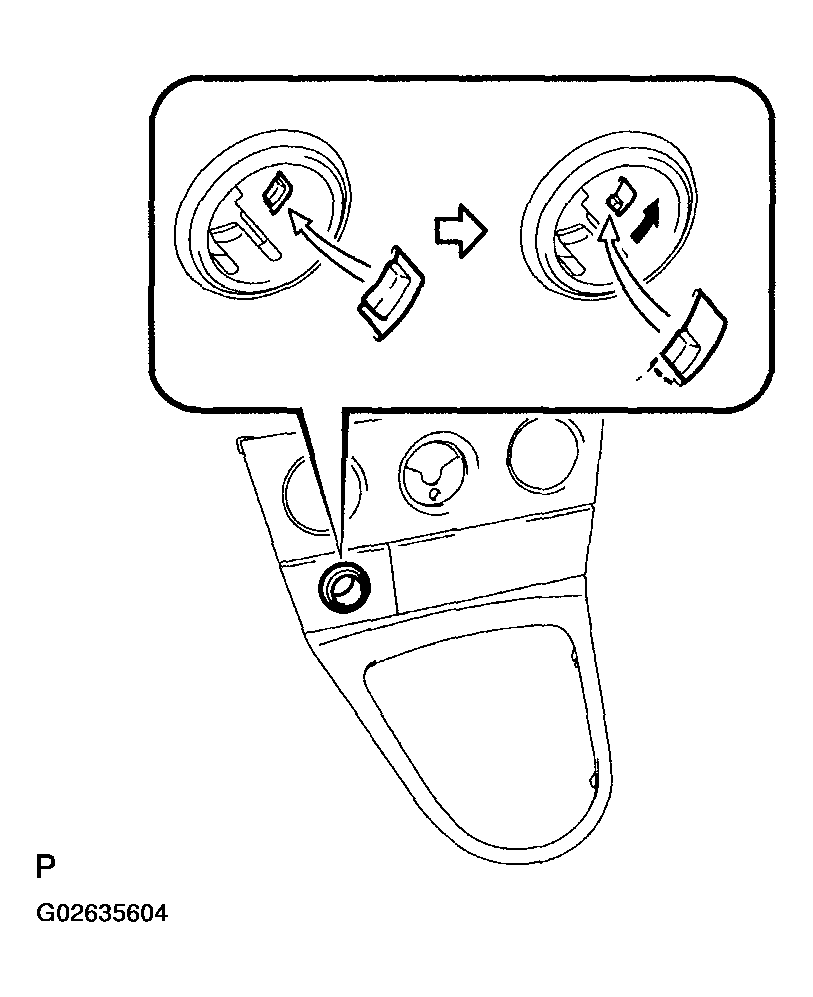

   Fig 2: Turning Socket In Circumference Direction (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL POWER POINT SOCKET ASSY
   1. Align the socket with the notch on the power point socket cover, push the power point socket assy into as hard as possible and install it.
6. INSTALL CONSOLE BOX ASSY REAR (SEE  REPLACEMENT  )
