Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT RADIO AND NAVIGATION ASSEMBLY

Disconnect the radio and navigation assembly connector R7.

Measure the resistance according to the value(s) in the table below.

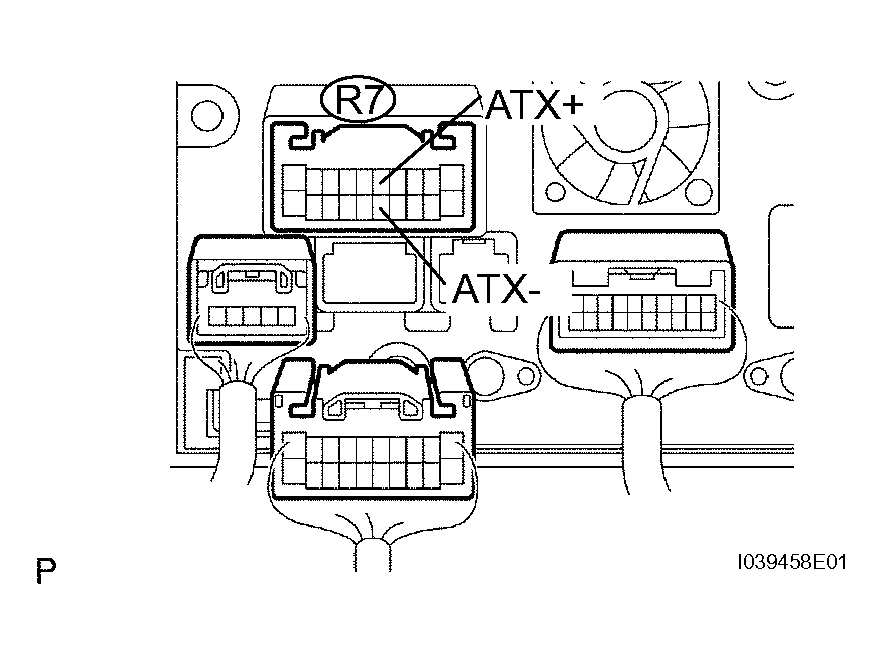

Fig 1: Identifying Radio And Navigation Assembly Connector R7 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

RADIO AND NAVIGATION ASSEMBLY RESISTANCE SPECIFIED CONDITION

Tester connection	Condition	Specified condition
ATX+ - ATX-	Always	60 to 80 Ω

NG: REPLACE RADIO AND NAVIGATION ASSEMBLY

OK: GO TO NEXT STEP

CHECK HARNESS AND CONNECTOR (RADIO AND NAVIGATION ASSEMBLY - STEREO COMPONENT AMPLIFIER)

Disconnect the connectors from the radio and navigation assembly R7 and stereo component amplifier assembly S11.

Measure the resistance according to the value(s) in the table below.

Standard resistance

RESISTANCE SPECIFIED CONDITION

Tester connection

Condition

Specified condition

ATX+/- TX+ (S11-8) ⁽¹⁾

Always

Below 1 Ω

ATX-/- TX- (S11-7) ⁽¹⁾

Always

Below 1 Ω

ATX+/- TX+ (S11-20) ⁽²⁾

Always

Below 1 Ω

ATX-/- TX- (S11-19) ⁽²⁾

Always

Below 1 Ω

ATX+/- Body ground

Always

10 kΩ or higher

ATX-/- Body ground

Always

10 kΩ or higher

⁽¹⁾

Coupe

⁽²⁾	Convertible

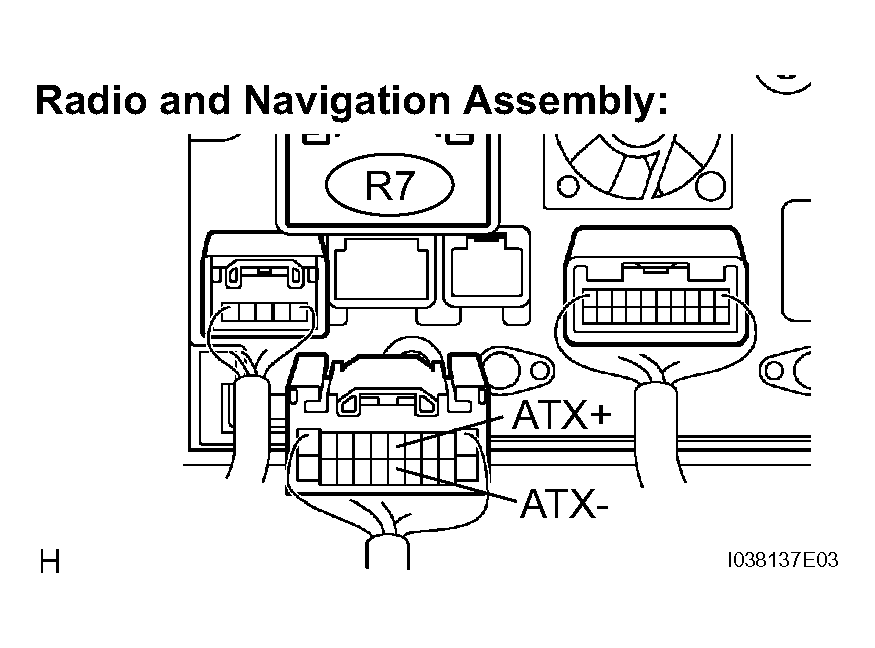

Fig 2: Identifying Radio And Navigation Assembly Connector R7 Terminals

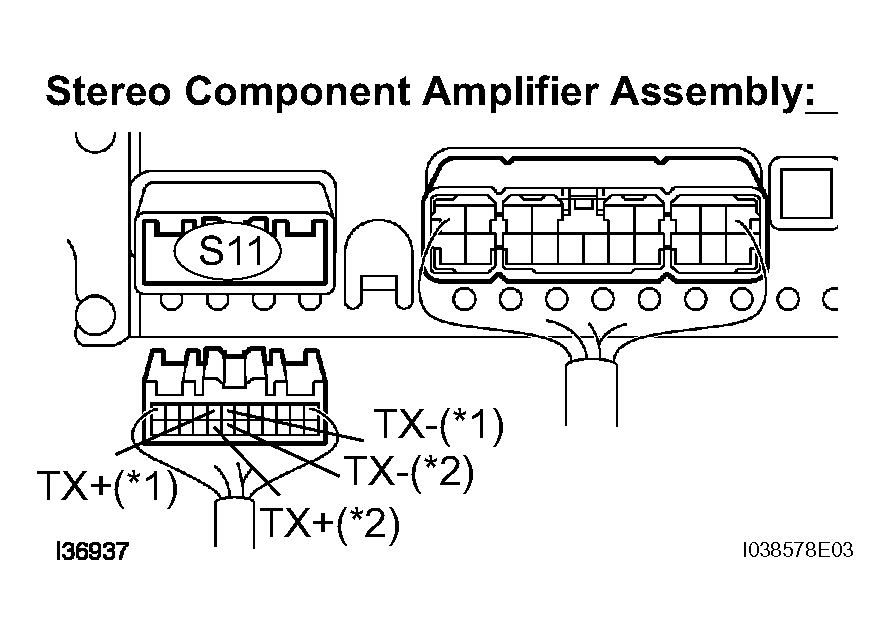

Fig 3: Identifying Stereo Component Amplifier Assembly S11 Terminals

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
