Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STEREO COMPONENT AMPLIFIER ASSEMBLY (B+, B2+, ACC, GND, GND2/E)

Disconnect the stereo component amplifier assembly S10 and S11 connectors.

Measure the resistance according to the value(s) in the table below.

Standard resistance

TERMINALS RESISTANCE SPECIFICATION

Tester Connection

Condition

Specified Condition

GND - Body ground

Always

Below 1 Ω

GND2 ⁽¹⁾, E ⁽²⁾ - Body ground

Always

Below 1 Ω

⁽¹⁾

Coupe

⁽²⁾	Convertible

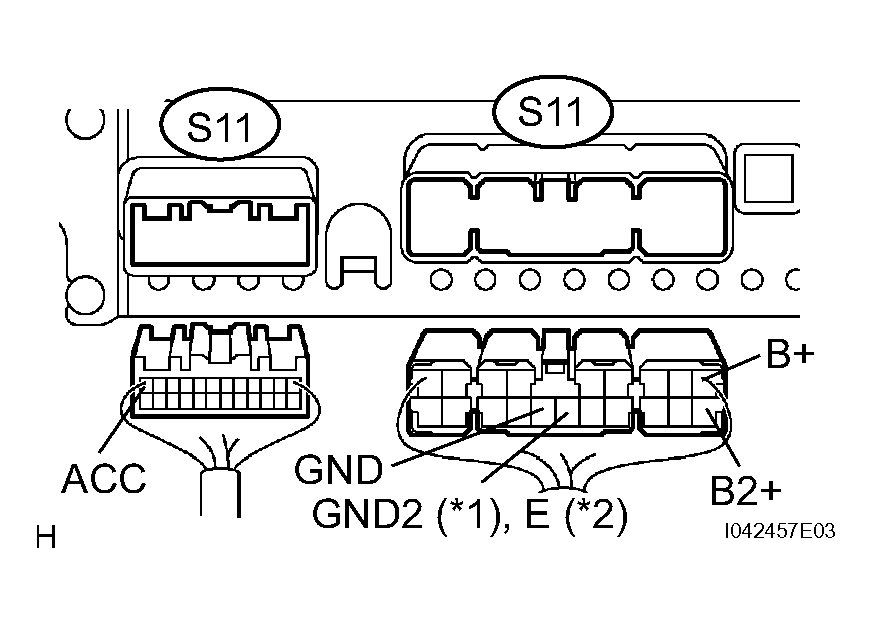

Fig 1: Identifying Stereo Component Amplifier Assembly S10 And S11 Connectors

Measure the voltage according to the value(s) in the table below.

Standard voltage

TERMINALS VOLTAGE SPECIFICATION

Tester Connection	Condition	Specified Condition
B+/- GND	Always	10 to 14 V
B2+/- GND	Always	10 to 14 V
ACC - GND	Ignition SW ACC	10 to 14 V

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE OR DIAGNOSTIC TROUBLE CODE CHART
