Inspection Procedure

1. Connect the intelligent tester to the DLC3.
2. Start the engine and turn the intelligent tester on.
3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / INTAKE CTL VSV1. Operate the VSV for ACIS.

   OK: Operational noise can be heard.

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG: Go TO NEXT STEP.

1. Disconnect the B58 air intake valve connector.

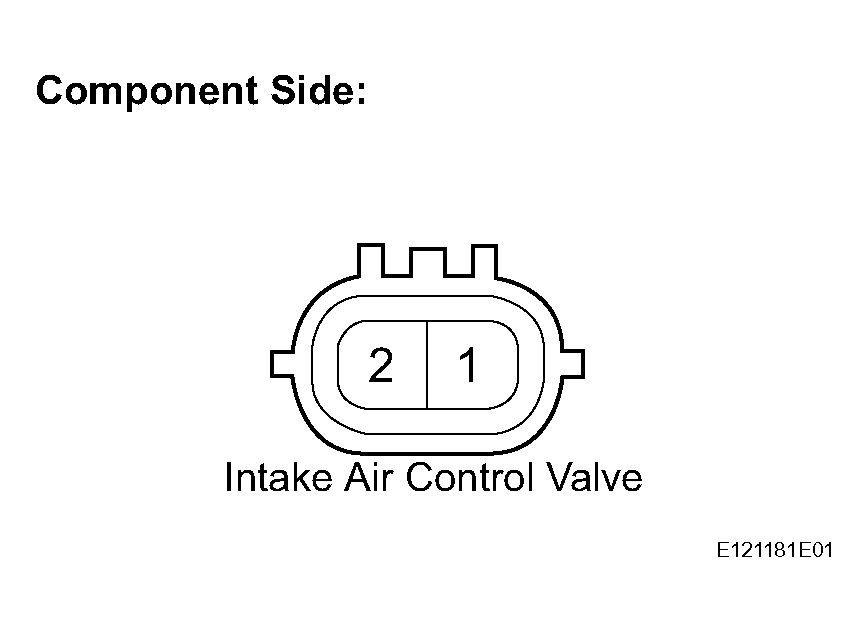

   Fig 1: Identifying B58 Air Intake Valve Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply battery voltage between the terminals of the air intake valve connector.
3. Check the air intake valve operation.

   OK: Operational noise can be heard.

NG: REPLACE INTAKE AIR SURGE TANK

OK: Go TO NEXT STEP.

1. Remove the EFI NO. 1 fuse from the engine room No. 1 relay block (see Fig 2).
2. Check the EFI NO. 1 fuse.
3. Reinstall the EFI NO. 1 fuse.
4. Disconnect the B58 intake air control valve connector.
5. Disconnect the B30 ECM connector.
6. Remove the integration relay from the engine room No. 1 relay block.
7. Disconnect the 1A integration relay connector.
8. Measure the resistance of the wire harness side connectors.

   Standard resistance

   CONNECTOR TERMINALS RESISTANCE REFERENCE AND CONDITION



   Tester Connection	Specified Condition
   B58-1 - B30-107 (ACIS)	Below 1 Ω
   B58-2 - 1A-4	Below 1 Ω
   B58-1 or B30-107 (ACIS) - Body ground	10 kΩ or higher
   B58-2 or 1A-4 - Body ground	10 kΩ or higher

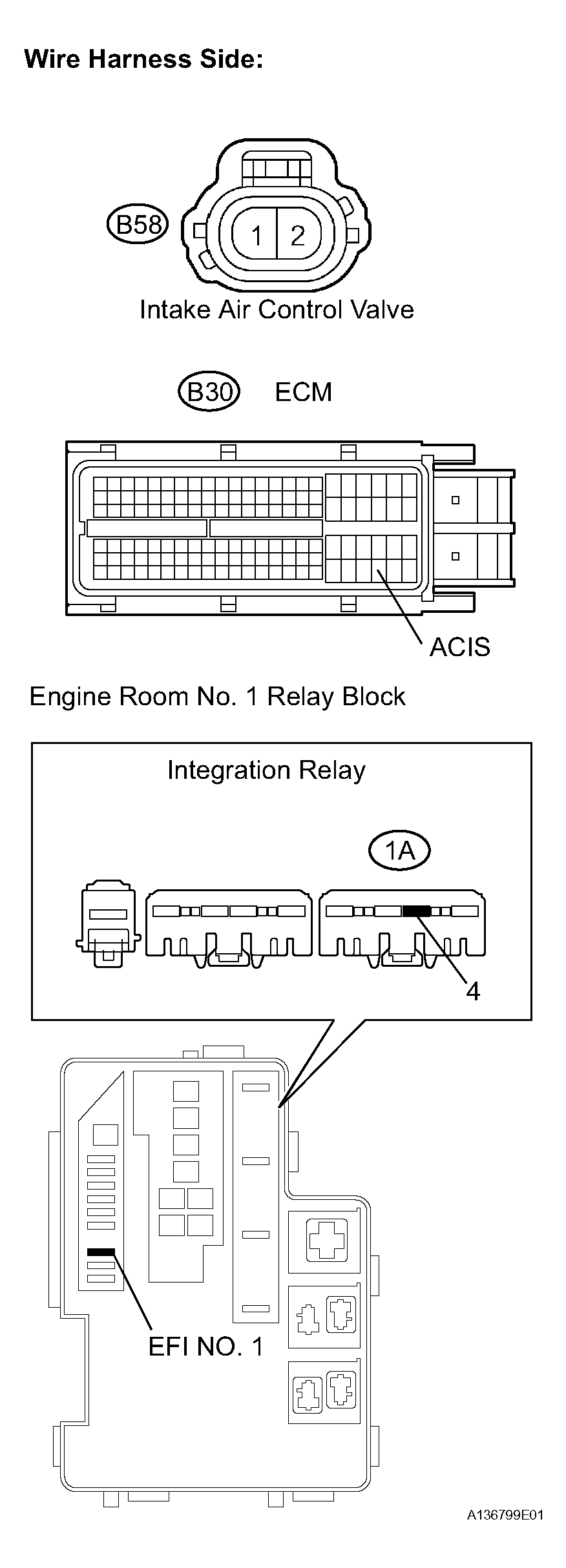

   Fig 2: Identifying Engine Room No. 1 Relay Block, B58 & B50 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Reconnect the intake air control valve connector.
10. Reconnect the ECM connector.
11. Reconnect the integration relay connector.
12. Reinstall the integration relay.

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE ECM
