Inspection Procedure

1. Disconnect the G6 regulator switch connector.
Fig 1: Identifying G6 Regulator Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage of the wire harness side connector.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   G6-4 - Body ground	Ignition switch ON	11 to 14 V

3. Reconnect the switch connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the power window regulator switch.
Fig 2: Identifying Power Window Regulator Switch Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   1 - 2 3 - 4	UP	Below 1 Ω
   1 - 2 3 - 5	OFF	Below 1 Ω
   1 - 4 3 - 5	DOWN	Below 1 Ω

3. Reinstall the switch.

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (PASSENGER SIDE)  (See REMOVAL  )

OK: Go to next step

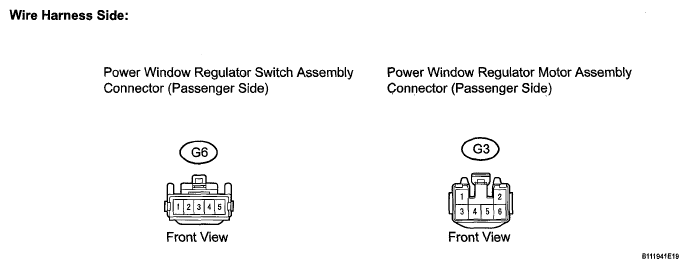

1. Disconnect the G6 power window regulator switch connector.
   Fig 3: Identifying G6 And G3 Power Window Regulator Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the G3 power window regulator motor connector.
3. Check the resistance.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   G6-3 - G3-2	Below 1 Ω
   G6-1 - G3-1	Below 1 Ω
   G6-3 or G3-2 - Body ground	10 kΩ or higher
   G6-1 or G3-1 - Body ground	10 kΩ or higher

4. Reconnect the motor connector.
5. Reconnect the switch connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the power window regulator motor.
2. Apply battery voltage to connector terminals 1 and 2.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
3. Check that the motor gear rotates smoothly as follows.

   OK

   MEASUREMENT CONDITION



   Measurement Condition	Specified Condition
   Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates clockwise
   Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates counterclockwise

   Fig 4: Identifying Motor Gear Rotation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reinstall the motor.

NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE)  (See REMOVAL  )

OK: Go to next step

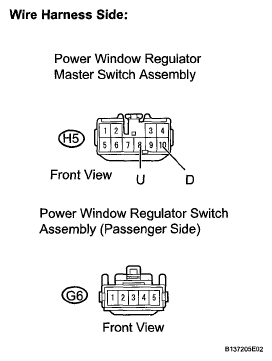

1. Disconnect the H5 power window regulator master switch connector.
Fig 5: Identifying H5 Switch And G6 Connectors Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the G6 power window regulator switch connector.
3. Check the resistance.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   H5-8 (U) - G6-5	Below 1 Ω
   H5-10 (D) - G6-2	Below 1 Ω
   H5-8 (U) or G6-5 - Body ground	10 kΩ or higher
   H5-10 (D) or G6-2 - Body ground	10 kΩ or higher

4. Reconnect the switch connector.
5. Reconnect the master switch connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the power window regulator master switch.

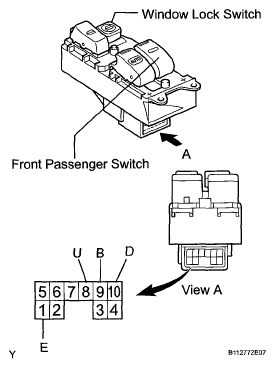

Fig 6: Identifying Power Window Regulator Master Switch Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the resistance.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Window Lock Switch Condition	Power Window Switch Condition	Tester Connection	Specified Condition
   OFF	UP	1 (E) - 10 (D) 8 (U) - 9 (B)	Below 1 Ω
   OFF	OFF	1 (E) - 8 (U) 1 (E) - 10 (D)	Below 1 Ω
   OFF	DOWN	1 (E) - 8 (U) 9 (B) - 10 (D)	Below 1 Ω
   ON	UP	1 (E) - 10 (D)	10 kΩ or higher
   		8 (U) - 9 (B)	Below 1 Ω
   ON	OFF	8 (U) - 10 (D)	Below 1 Ω
   ON	DOWN	1 (E) - 8 (U)	10 kΩ or higher
   		9 (B) - 10 (D)	Below 1 Ω

3. Reinstall the master switch.

NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY  (See REMOVAL  )

OK: SYSTEM IS OK  (See INSPECTION PROCEDURE  )
