Blower Unit: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL BLOWER ASSEMBLY (w/o PTC Heater)
    1. Install the blower assembly with the 3 screws.

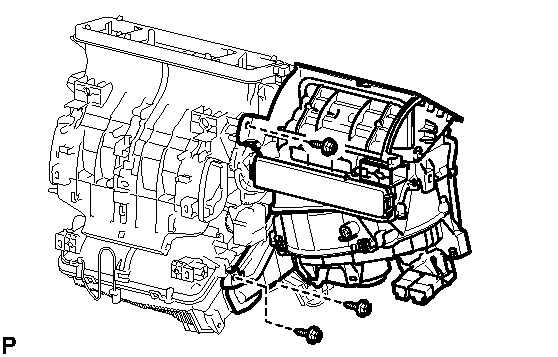

      Fig 1: Remove/Install Blower Assembly Screws (w/o PTC Heater)
      GTY229585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL BLOWER ASSEMBLY (w/ PTC Heater)
    1. Install the blower assembly with the 3 screws.

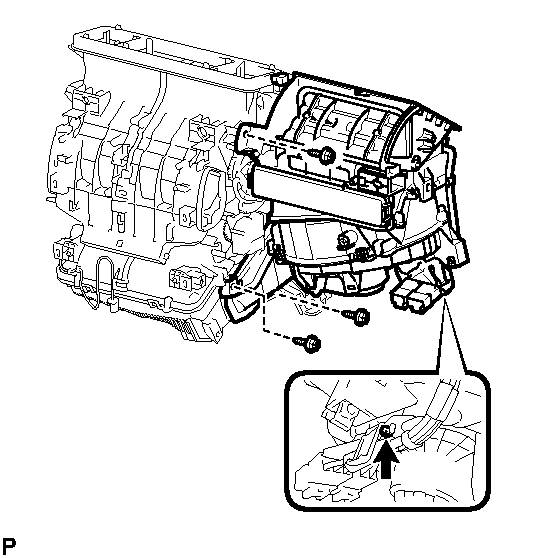

      Fig 2: Remove/Install Blower Assembly Screws (w/ PTC Heater)
      GTY229460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the quick heater connector and install the screw.
    3. Engage each clamp.

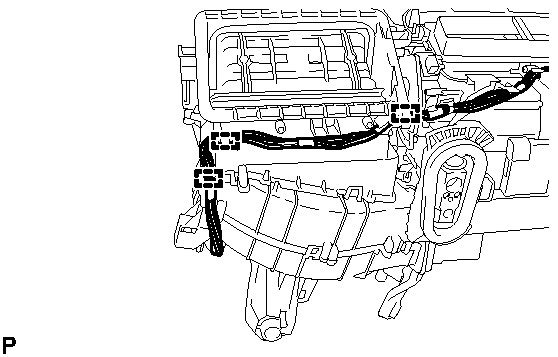

      Fig 3: View Of Blower Assembly Clamp
      GTY187814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 3 AIR DUCT SUB-ASSEMBLY  See step  3
  4. TEMPORARILY TIGHTEN AIR CONDITIONING UNIT  See step  4
  5. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY  See step  5
  6. INSTALL AIR CONDITIONING UNIT  See step  6
  7. INSTALL INSTRUMENT PANEL BRACE SUB-ASSEMBLY  See step  8
  8. INSTALL CENTER INSTRUMENT PANEL TO COWL BRACE  See step  9
  9. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY  See step  10
  10. INSTALL CENTER INSTRUMENT PANEL REGISTER CONNECTOR ASSEMBLY  See step  11
  11. INSTALL REAR NO. 1 AIR DUCT (w/ Rear Air Duct)  See step  12
  12. INSTALL REAR NO. 2 AIR DUCT (w/ Rear Air Duct)  See step  13
  13. INSTALL REAR NO. 3 AIR DUCT (w/ Rear Air Duct)  See step  14
  14. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY  See step  1
  15. INSTALL POWER STEERING ECU ASSEMBLY  . Refer to INSTALLATION - Step 1
  16. INSTALL STEERING POST ASSEMBLY  . Refer to INSTALLATION - Step 2
  17. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  18. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 2WD)  . Refer to INSTALLATION - Step 4
  19. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY (for 4WD)  . Refer to INSTALLATION - Step 5
  20. INSTALL STOP LIGHT SWITCH ASSEMBLY  . Refer to INSTALLATION - Step 1
  21. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 7
  22. INSTALL INSTRUMENT PANEL SUB REINFORCEMENT  . Refer to INSTALLATION - Step 8
  23. INSTALL COLUMN HOLE COVER SILENCER SHEET  . Refer to INSTALLATION - Step 9
  24. INSTALL TRANSPONDER KEY AMPLIFIER (w/ Engine Immobilizer System)  . Refer to INSTALLATION - Step 10
  25. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 1
  26. INSTALL RADIO WIRE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 4
  27. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 11
  28. INSTALL UPPER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 12
  29. INSTALL LOWER STEERING COLUMN COVER  . Refer to INSTALLATION - Step 13
  30. CONNECT SHIFT LEVER ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 6
  31. CONNECT SHIFT LEVER ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 7
  32. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION - Step 81
  33. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 82
  34. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (w/ Instrument Panel Under Cover)  . Refer to INSTALLATION - Step 10
  35. INSTALL COWL SIDE TRIM BOARD RH  . Refer to INSTALLATION - Step 85
  36. INSTALL FRONT DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 86
  37. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 13
  38. INSTALL NO. 1 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 14
  39. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Manual Transaxle)  . Refer to INSTALLATION - Step 15
  40. INSTALL LOWER CENTER INSTRUMENT PANEL FINISH PANEL (for Automatic Transaxle)  . Refer to INSTALLATION - Step 16
  41. INSTALL FRONT NO. 1 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 17
  42. INSTALL FRONT NO. 2 CONSOLE BOX INSERT  . Refer to INSTALLATION - Step 18
  43. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 2WD)  . Refer to INSTALLATION - Step 1
  44. INSTALL FRONT CONSOLE BOX ASSEMBLY (for 4WD)  . Refer to INSTALLATION - Step 2
  45. INSTALL CONSOLE BOX CARPET
  46. INSTALL NO. 2 SWITCH HOLE BASE  . Refer to INSTALLATION - Step 22
  47. INSTALL FRONT UPPER CONSOLE BOX  . Refer to INSTALLATION - Step 23
  48. INSTALL AIR CONDITIONING PANEL ASSEMBLY  See step  1
  49. INSTALL NAVIGATION ANTENNA CORD SUB-ASSEMBLY (w/ Navigation Antenna)  . Refer to INSTALLATION - Step 1
  50. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET  . Refer to INSTALLATION - Step 4
  51. INSTALL UPPER INSTRUMENT PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 1
  52. CONNECT INSTRUMENT PANEL WIRE ASSEMBLY  . Refer to INSTALLATION - Step 5
  53. INSTALL NO. 1 INSTRUMENT PANEL BOX DOOR SUB-ASSEMBLY  . Refer to INSTALLATION - Step 3
  54. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION - Step 4
  55. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 5
  56. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 6
  57. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)  . Refer to INSTALLATION - Step 7
  58. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transaxle)  . Refer to INSTALLATION - Step 8
  59. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY  . Refer to INSTALLATION - Step 9
  60. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 79
  61. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION - Step 80
  62. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 83
  63. CONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION - Step 84
  64. INSTALL COMBINATION METER ASSEMBLY  . Refer to INSTALLATION - Step 1
  65. INSTALL METER HOOD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 2
  66. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 16
  67. INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 17
  68. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  69. ADJUST SPIRAL CABLE  . Refer to INSTALLATION - Step 23
  70. INSTALL STEERING WHEEL ASSEMBLY

    Refer to INSTALLATION

  71. INSTALL HEATER OUTLET WATER HOSE  See step  73
  72. INSTALL HEATER INLET WATER HOSE  See step  74
  73. INSTALL LIQUID PIPE SUB-ASSEMBLY  See step  75
  74. INSTALL SUCTION PIPE SUB-ASSEMBLY  See step  76
  75. CHARGE WITH REFRIGERANT  See step  2
  76. ADD ENGINE COOLANT (for 2AZ-FE)  . Refer to REPLACEMENT - Step 2
  77. ADD ENGINE COOLANT (for 2ZR-FE)  . Refer to REPLACEMENT - Step 2
  78. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  79. INSPECT FOR COOLANT LEAK (for 2AZ-FE)  . Refer to ON-VEHICLE INSPECTION - Step 1
  80. INSPECT FOR COOLANT LEAK (for 2ZR-FE)  . Refer to ON-VEHICLE INSPECTION - Step 1
  81. INSPECT STEERING PAD  . Refer to INSTALLATION - Step 5
  82. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM

  83. WARM UP ENGINE  See step  3
  84. INSPECT FOR REFRIGERANT LEAK  See step  4
