Engine Unit: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL RADIO SETTING CONDENSER
1. Install the condenser with the bolt.

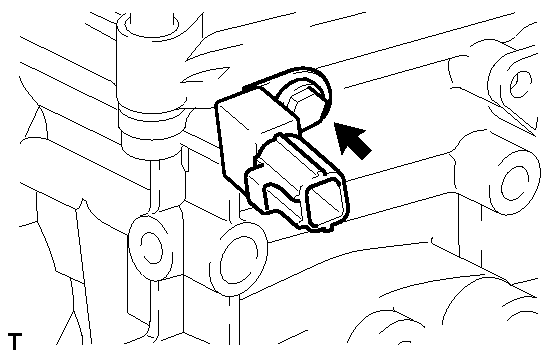

  Fig 1: Locating Radio Setting Condenser Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
INSTALL ENGINE COOLANT TEMPERATURE SENSOR . Refer to INSTALLATION - Step 1
INSTALL OIL PRESSURE SWITCH . Refer to INSTALLATION - Step 1
INSTALL KNOCK SENSOR . Refer to INSTALLATION - Step 1
INSTALL IGNITION COIL ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL NO. 1 WATER BY-PASS PIPE
1. Install a new gasket and the pipe with the bolt and 2 nuts.

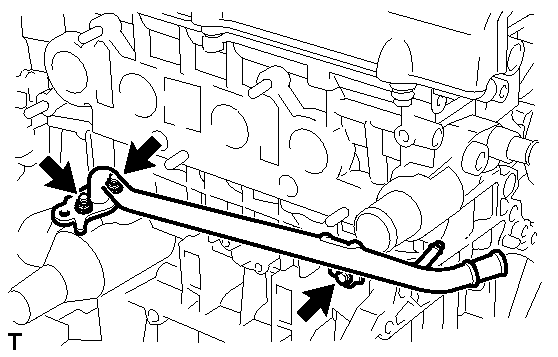

  Fig 2: Locating No. 1 Water By-Pass Pipe Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
INSTALL ENGINE OIL DIPSTICK GUIDE See step 35
INSTALL ENGINE OIL DIPSTICK
INSTALL THERMOSTAT . Refer to INSTALLATION - Step 1
INSTALL INLET WATER . Refer to INSTALLATION - Step 2
INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL NO. 2 MANIFOLD STAY . Refer to INSTALLATION - Step 4
INSTALL MANIFOLD STAY . Refer to INSTALLATION - Step 5
INSTALL NO. 1 EXHAUST MANIFOLD HEAT INSULATOR . Refer to INSTALLATION - Step 7
INSTALL NO. 1 INTAKE MANIFOLD INSULATOR
1. Install the No. 1 intake manifold insulator onto the cylinder block.

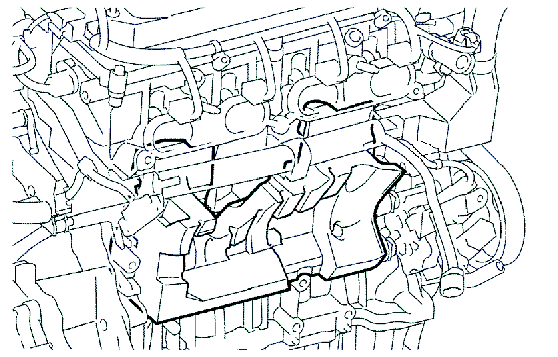

  Fig 3: Identifying Intake Manifold Insulator And Cylinder Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD . Refer to INSTALLATION - Step 1
INSTALL FUEL INJECTOR ASSEMBLY . Refer to INSTALLATION - Step 1
INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY . Refer to INSTALLATION - Step 2
