Microphone Amplifier: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL TELEPHONE MICROPHONE ASSEMBLY (w/o Sliding Roof)
1. Engage the 2 claws and install the telephone microphone assembly.

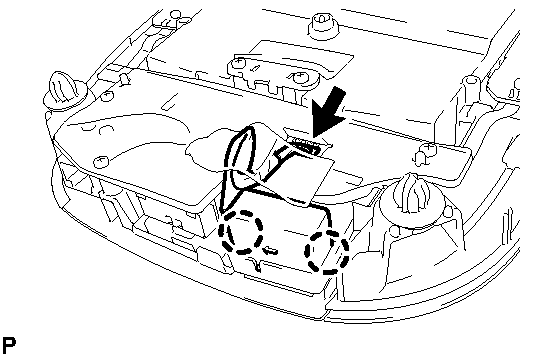

  Fig 1: View Of Telephone Microphone Assembly Claws (w/o Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the 2 clamps.
INSTALL TELEPHONE MICROPHONE ASSEMBLY (w/ Sliding Roof)
1. Engage the 2 claws and install the telephone microphone assembly.

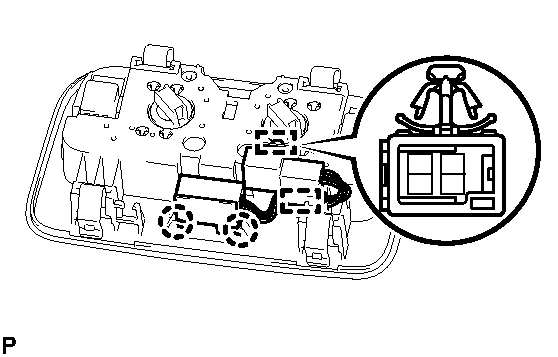

  Fig 2: Locating Telephone Microphone Assembly Connector (w/ Sliding Roof)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL MAP LIGHT ASSEMBLY (w/o Sliding Roof) . Refer to INSTALLATION - Step 3
INSTALL MAP LIGHT ASSEMBLY (w/ Sliding Roof) . Refer to INSTALLATION - Step 4
