Evaporative Emissions System: Maintenance

Every 12, 500 miles, check all lines and connections for chafing, leakage, or deterioration. Check fuel cap seal. At 50, 000 miles, replace charcoal canisters.

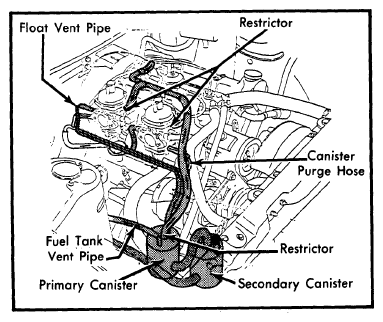

Fig 1: TR7 Fuel Evaporation Control System
G09310576Courtesy of ABLE BODY CORP.
