Front Side Door Window Frame Sealing Removal And Installation/Replacement

Mobile Repair Possible: Van/Car

Overview:

Courtesy of VINFAST, LLC

WARNING: Crushing by moving parts
Failure to follow specified procedures may result in death or serious injury due to movement of the window regulator.

Secure the component against uncontrolled movement.
Always use personal protective equipment (PPE)
Ensure vehicle is correctly disabled/powered down to prevent unexpected motion or activation of components.

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

Remove front side door window. Refer to FRONT SIDE DOOR WINDOW REMOVAL AND INSTALLATION/REPLACEMENT
Remove front side door window inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REMOVAL AND INSTALLATION/REPLACEMENT
Remove front side door speaker. Refer to FRONT SIDE DOOR SPEAKER REMOVAL AND INSTALLATION/REPLACEMENT

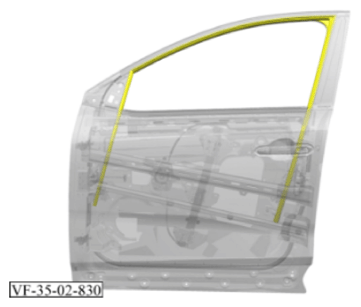

Courtesy of VINFAST, LLC

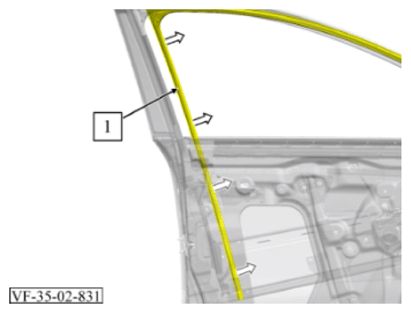

Pull off the window frame sealing (1) in the rear area in the direction of the arrow.

Courtesy of VINFAST, LLC

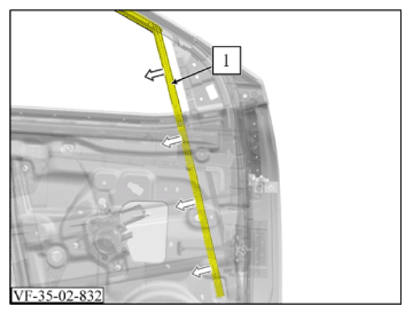

Pull off the window frame sealing (1) in the front area in the direction of the arrow.

Courtesy of VINFAST, LLC

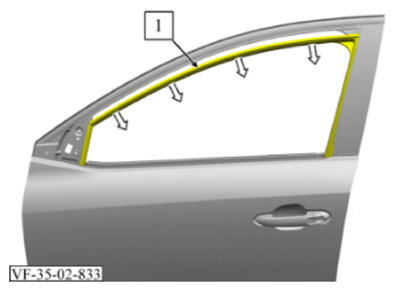

Pull off the window frame sealing (1) in the upper area in the direction of the arrow.

Courtesy of VINFAST, LLC

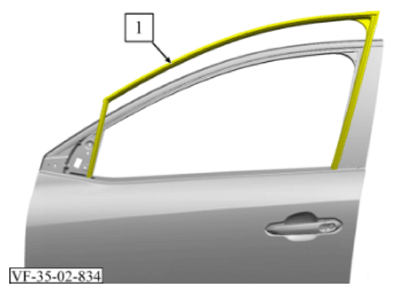

Guide out the door window frame sealing (1) and remove.

Installation Procedure:

Courtesy of VINFAST, LLC

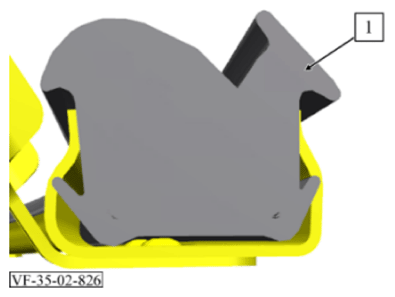

Installation note: Rear side door window frame sealing (1) must engage all around.

Installation is the reverse of removal procedure, noting the following.
Install front side door window inner sealing strip. Refer to FRONT SIDE DOOR WINDOW INNER SEALING STRIP REMOVAL AND INSTALLATION/REPLACEMENT
Install front side door speaker. Refer to FRONT SIDE DOOR SPEAKER REMOVAL AND INSTALLATION/REPLACEMENT
Install front side door window. Refer to FRONT SIDE DOOR WINDOW REMOVAL AND INSTALLATION/REPLACEMENT
