Test requirements

The respective fuses of the Valve -1- for camshaft adjustment - N205-must be OK.
Fuel Pump (FP) Relay -J17- must be OK.
Battery voltage must be at least 11.5 volts.
All electrical consumers like, for example, lights and rear window heating must be switched off.
Parking brake must be engaged or else daylight driving lights will be switched on.
If vehicle is equipped with an A/C system, it must be switched off.
Ground (GND) connections between engine and chassis must be OK.
Ignition switched off.

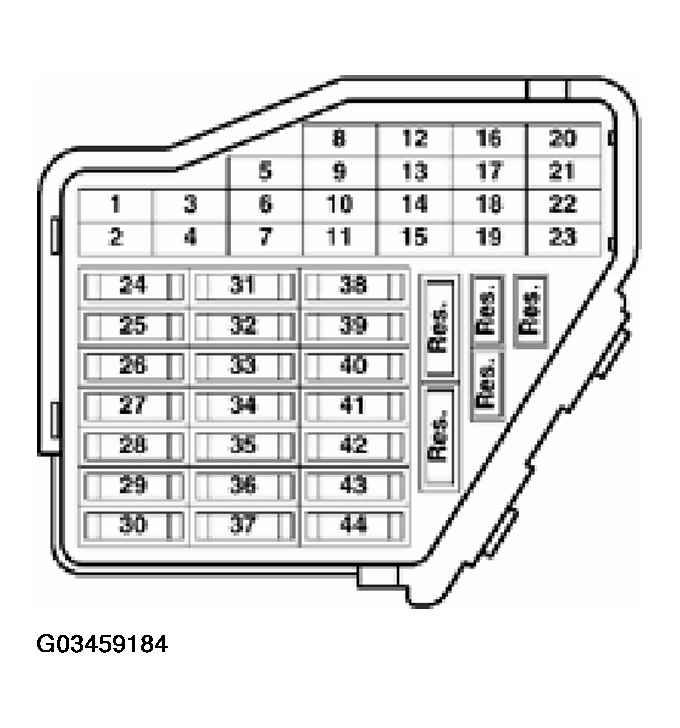

Fig 1: Identifying Fuses

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: Fuse block is located behind access panel at far left end of dash.
