Test sequence

• Disconnect 3-pin connector -1- from Camshaft Position (CMP) sensor 2 -G163- -2-.

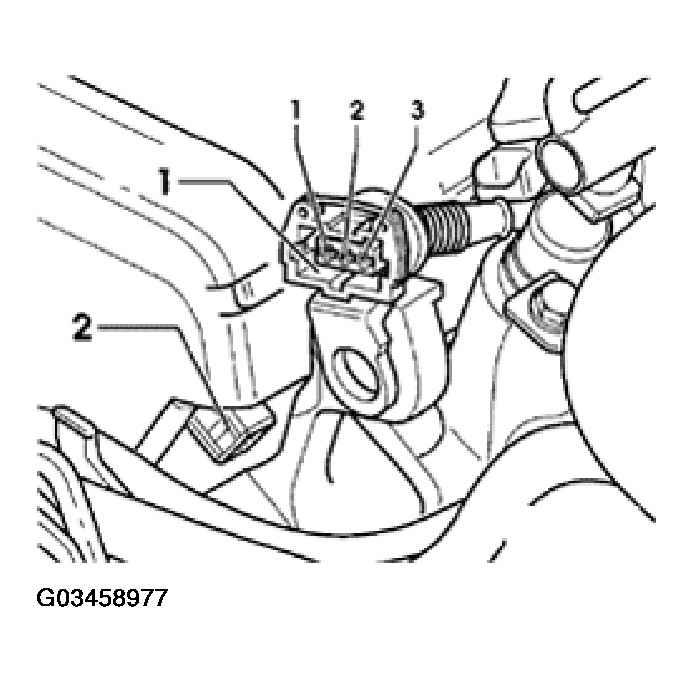

Fig 1: Disconnecting Pin Connector From Camshaft Position (CMP) Sensor
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Connect multimeter to measure voltage using auxiliary cables from V.A.G 1594 C to outer contacts of connector.
• Switch ignition on.
• Specification: min. 4.5 V
• Switch ignition off.
• Connect V.A.G 1598/31 test box to control module wiring harness. Engine control module remains disconnected.

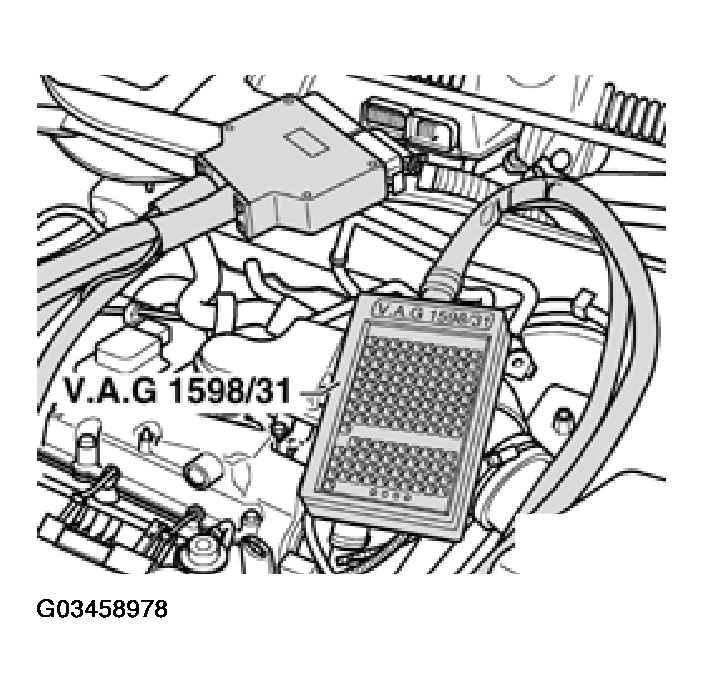

  Fig 2: Connecting V.A.G 1598/31 Test Box To Control Module Wiring Harness

  Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Check wiring for open circuit between test box and connector using
• Wiring diagram.
  1. Contact 1+socket 98
  2. Contact 2+socket 86
  3. Contact 3+socket 108
  4. Wire resistance: Max. 1.5
Fig 3: Checking Wiring For Open Circuit Between Test Box And (CMP) Sensor Connector
Courtesy of VOLKSWAGEN OF AMERICA, INC.
• Check wires for short to one another.

If no wiring malfunction is detected and voltage was present between contacts 1+3:

• Replace Camshaft Position (CMP) sensor 2 -G40-.
• Check DTC Memory, if necessary, repair any malfunctions and then Erase DTC Memory, see DTC MEMORY, CHECKING AND ERASING (FUNCTIONS 02 AND 05) .
• Read readiness code, see READINESS CODE, READING . If DTC memory has been erased or engine control module was disconnected from permanent positive, readiness code must be generated again:

  Engine code AWW, see READINESS CODE FOR ENGINE CODE AWW, GENERATING

  Engine code AWP, see READINESS CODE FOR ENGINE CODE AWP, GENERATING

If no wiring malfunction is detected and no voltage was present between contacts 1+3:

• Replace engine control module, see ENGINE CONTROL MODULE, REPLACING .
