Display Group 5 (Basic Functions)

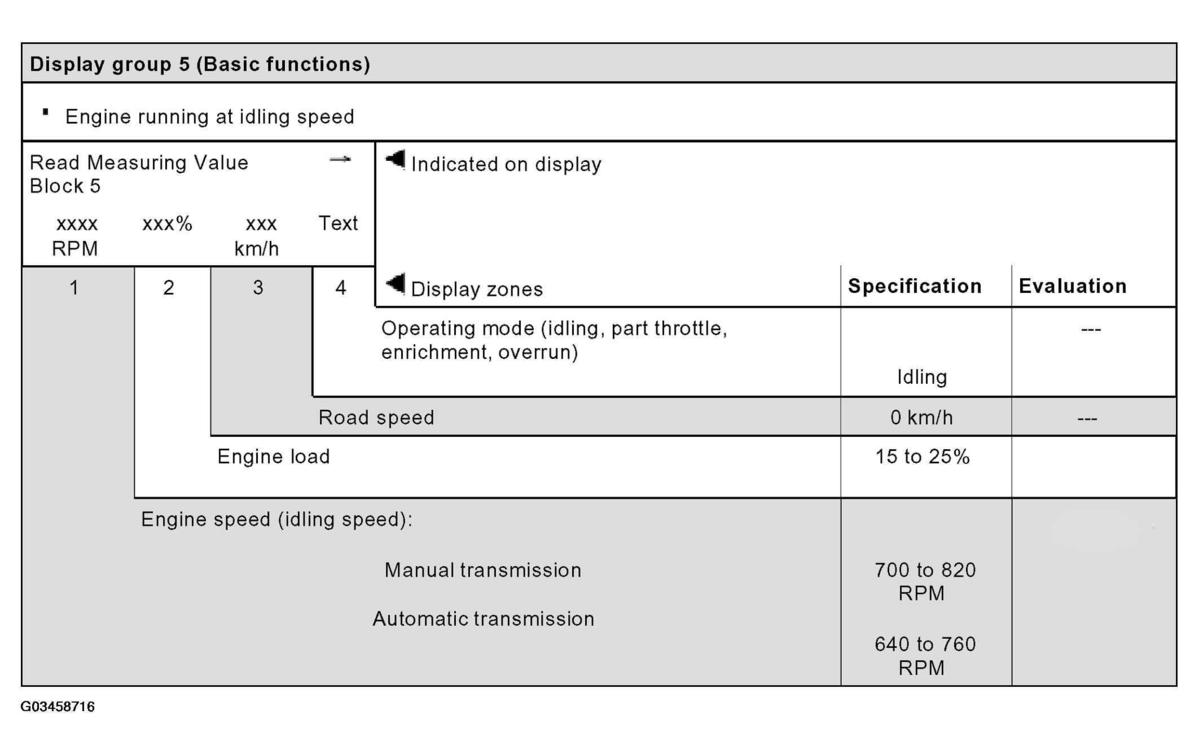

Fig 1: Display Group 5 (Basic Functions)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Evaluations

• For Engine speed (idling speed), see Evaluating display group 1, display zone 1 - Engine speed (idling speed)
• For Engine load, see Evaluating display group 10, display zone 2 - Engine load

Note on display zone 2:

Engine load at idle is given as the specified value.
