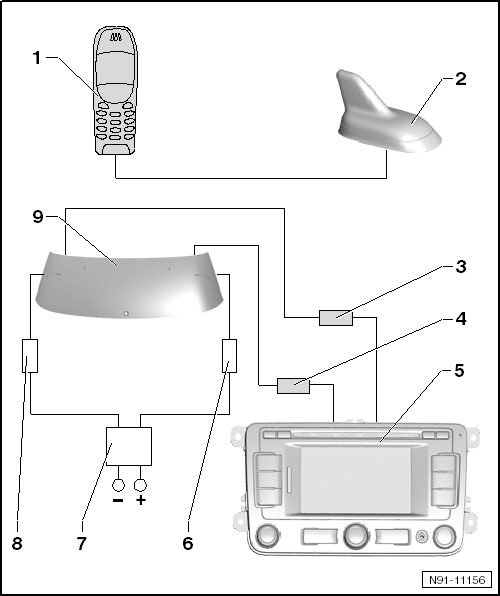

Diversity Function And Navigation System Overview
- Cellular Telephone -R54-
- Optional
- Antenna Antenna -R66-
- Mounted on the roof.
- Installed only on vehicles with telephone, navigation or auxiliary heater with remote control.
- Removing and installing, refer to ROOF ANTENNA .
- Left Antenna Module -R108-
- For FM reception
- FM 2 diversity antenna
- Impedance converter
- Right Antenna Module -R109-
- For FM/AM reception
- Diversity antenna AM/FM 1
- Impedance converter
- Radio -R- or Radio/Navigation Display Control Module -J503-
- RNS 315
- FM Frequency Filter In Negative Wire -R178-
- Its function is to prevent antenna signals from shorting to Ground (GND).
- Installed in the rear lid, refer to REAR WINDOW ANTENNA COMPONENTS INSTALLED LOCATIONS OVERVIEW .
- AM Frequency Filter -R177-
- Its function is to prevent antenna signals from shorting to Ground (GND).
- Installed in the rear lid, refer to REAR WINDOW ANTENNA COMPONENTS INSTALLED LOCATIONS OVERVIEW .
- FM Frequency Filter (in positive wire) -R179-
- Its function is to prevent antenna signals from shorting to Ground (GND).
- Installed in the rear lid, refer to REAR WINDOW ANTENNA COMPONENTS INSTALLED LOCATIONS OVERVIEW .
- Rear Window Antenna 1 -R130-
