Component Location Overview - Rear Control Module

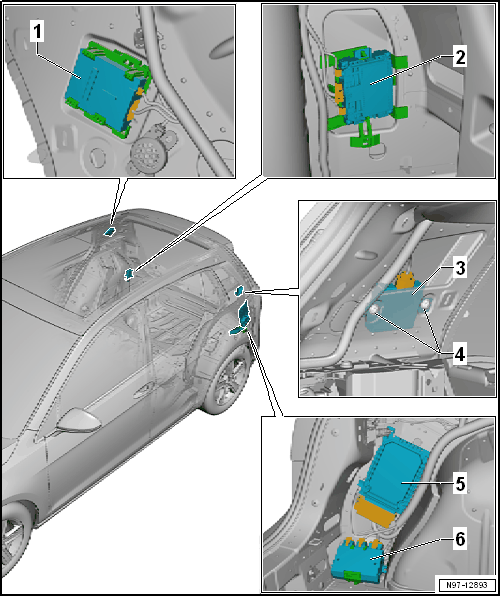

Fig 1: Component Location Overview For Rear Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Auxiliary Engine Coolant Heater Radio Frequency Receiver -R149-
   • Auxiliary Engine Coolant Heater Radio Frequency Receiver -R149-, Removing and installing. Refer to the appropriate service information
2. Mobile Communication 2-Way Signal Amplifier -J984-
   • Overview. Refer to COMPONENT LOCATION OVERVIEW - TELEPHONE SYSTEM .
3. Engine Sound Generator Control Module -J943-
   • Not for North American Market.
   • Removing and installing. Refer to Fig 1 .
4. Bolt
   • 2 Nm
   • Quantity: 2
5. Electronic Damping Control Module -J250-
   • Overview. Refer to OVERVIEW - ELECTRONIC DAMPING .
6. Towing Recognition Control Module -J345-
   • Overview. Refer to OVERVIEW - TRAILER HITCH SOCKET
