Fault Tracing Procedure (Fuel System)

NOTE: For information on fault tracing, see Fig 1 .

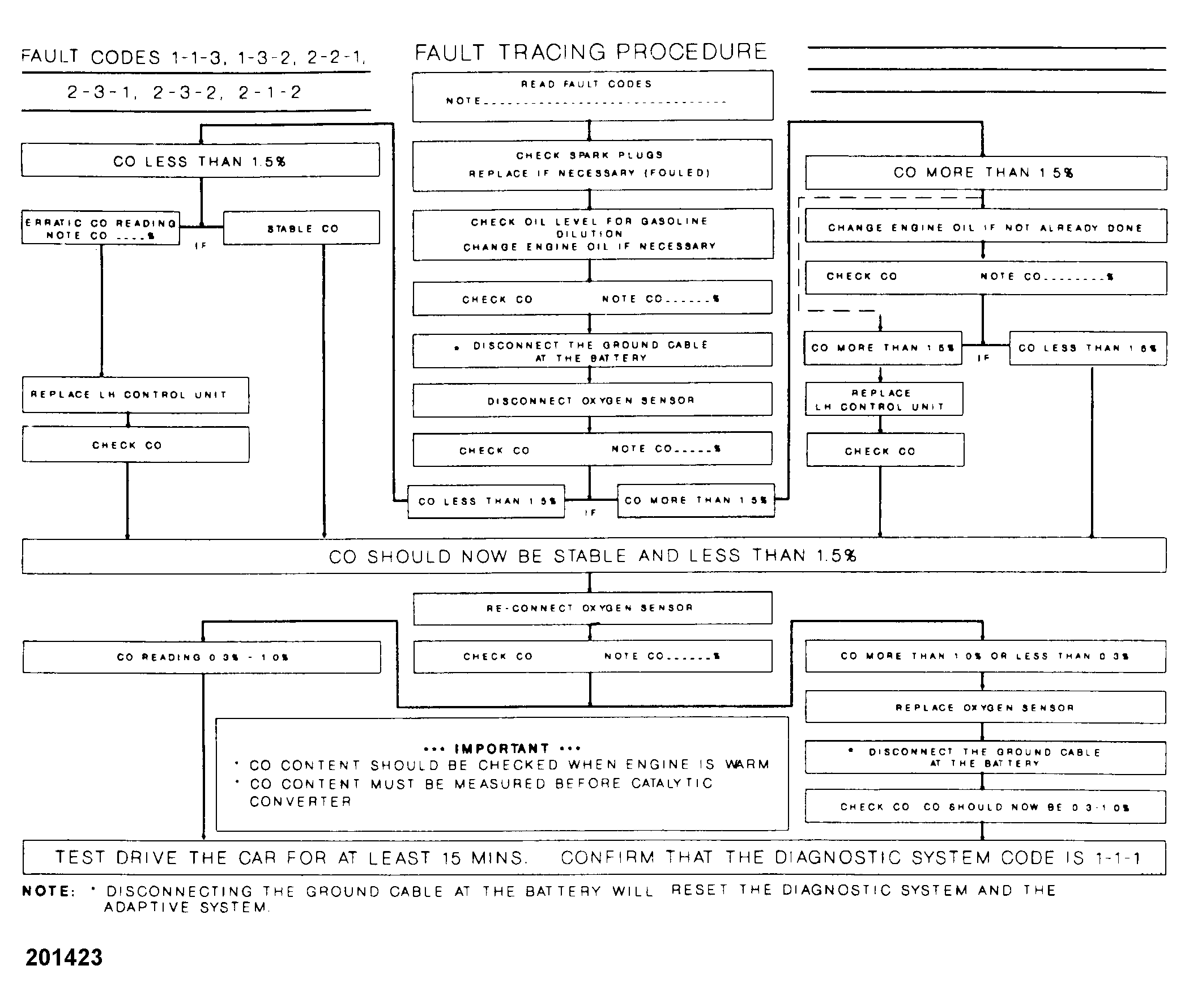

Fig 1: Fuel System Fault Tracing Procedure
G201423Courtesy of VOLVO CARS OF NORTH AMERICA.
