Disconnecting hoses

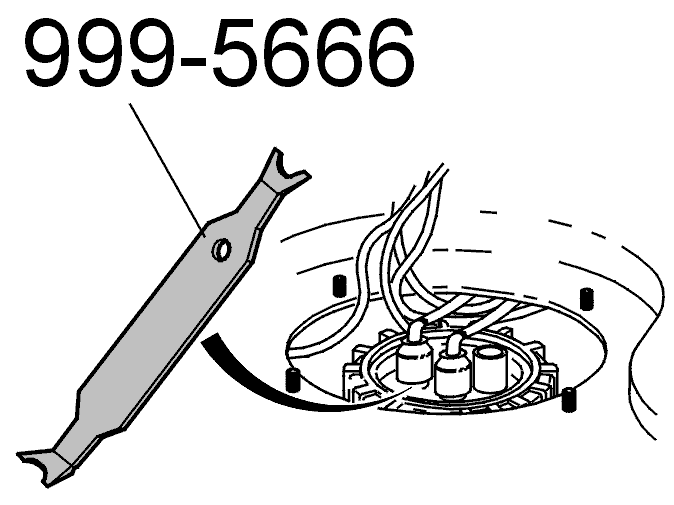

Fig 1: Identifying Tool 9995666 & Quick-Release Couplings

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Carefully remove the quick couplings of the feed and return lines.

Use tool 9995666 . Move the outer sleeve of the coupling upward. Avoid pinching the sleeve.
