Location Of Components

Fig 1: Fuel Pump In Fuel Tank

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel pump:

in the fuel tank.

Fig 2: Fuel Filter By Left Rear Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fuel filter:

by the left rear wheel.

Fig 3: Engine Control Module (ECM) On Center Console Under Dashboard

Courtesy of VOLVO CARS OF NORTH AMERICA.

Engine control module (ECM):

on center console under dashboard.

Fig 4: Data Link Connector (DLC)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Data Link Connector (DLC):

to the left on the center console (left-hand drive cars)

to the right on the center console (right-hand drive cars).

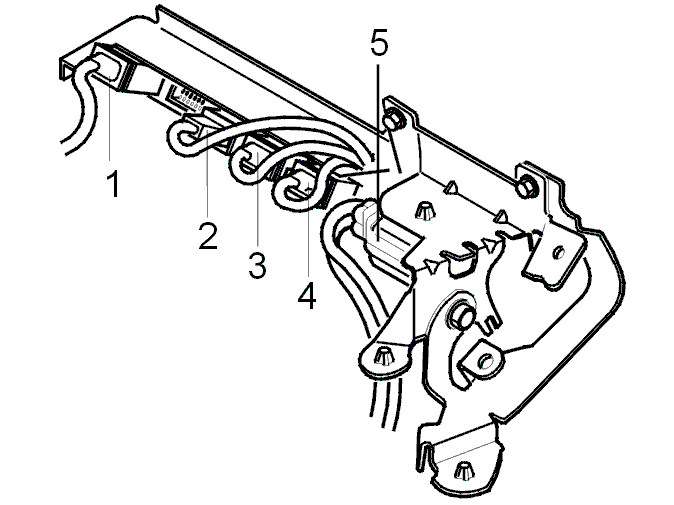

Fig 5: Identifying Connectors On Firewall In Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

The bracket for the connectors:

on the firewall in the engine compartment.

1	The connector for the front heated oxygen sensor (HO2S)
2	The connector for the engine speed (RPM) sensor
3	The connector for the knock sensor (KS)
4	The connector for the camshaft position (CMP) sensor
5	The connector for the ignition coils and the camshaft valve

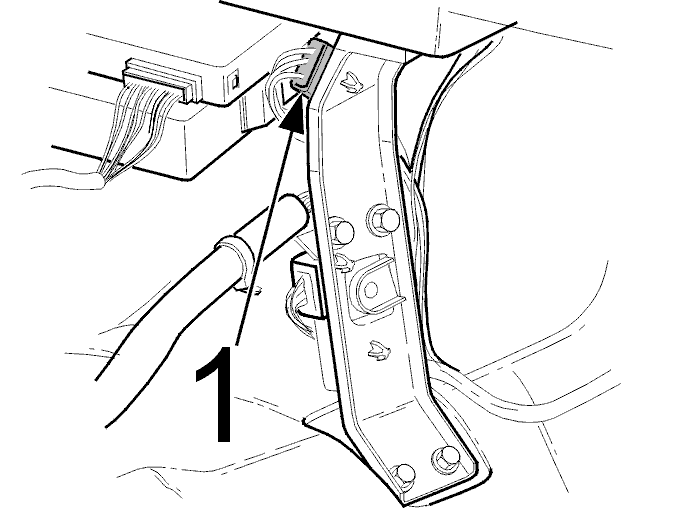

Fig 6: Identifying Connector For Rear Heated Oxygen Sensor (HO2S)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Connector for the rear heated oxygen sensor (HO2S):

behind the rear center console.
