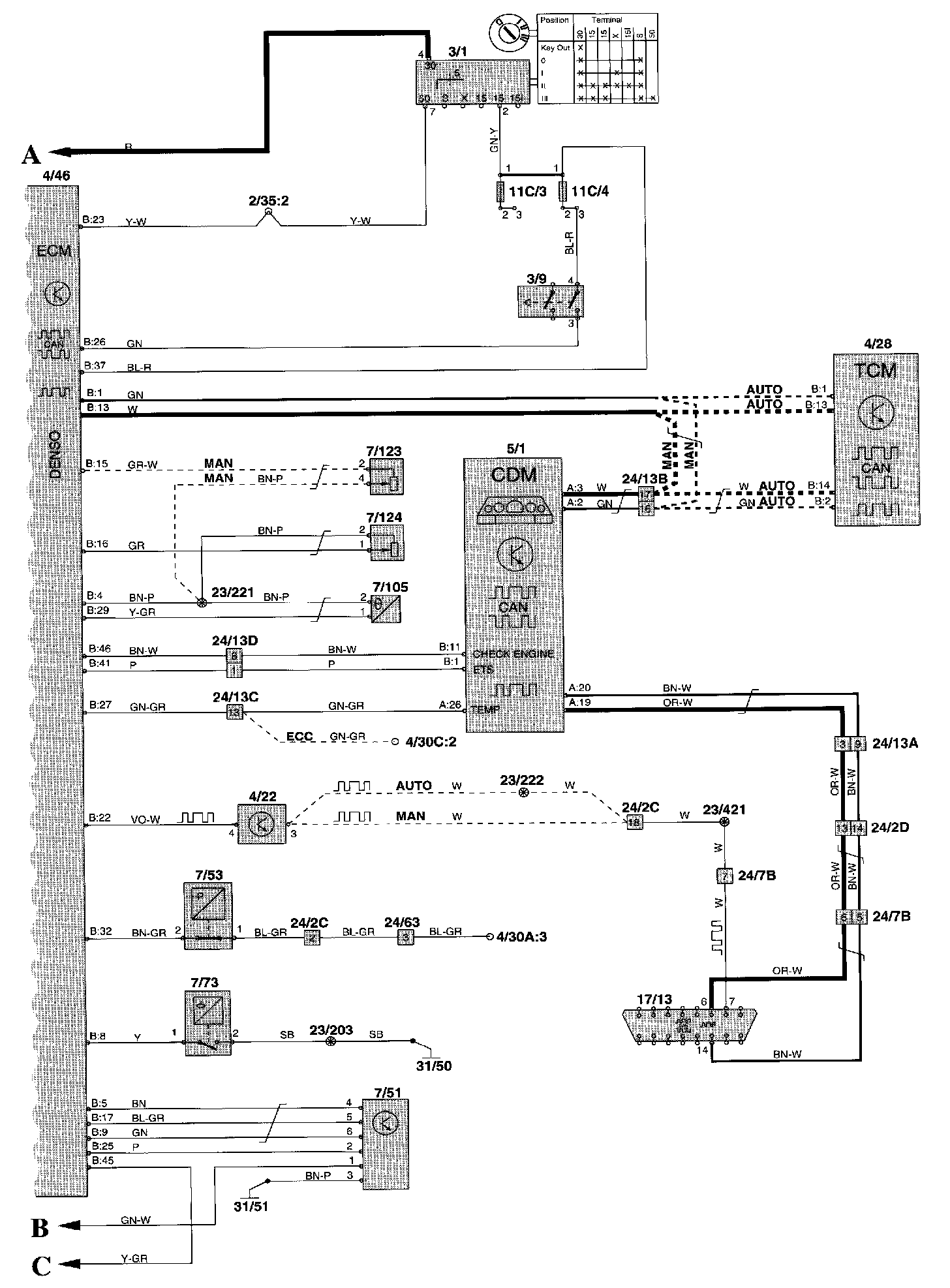

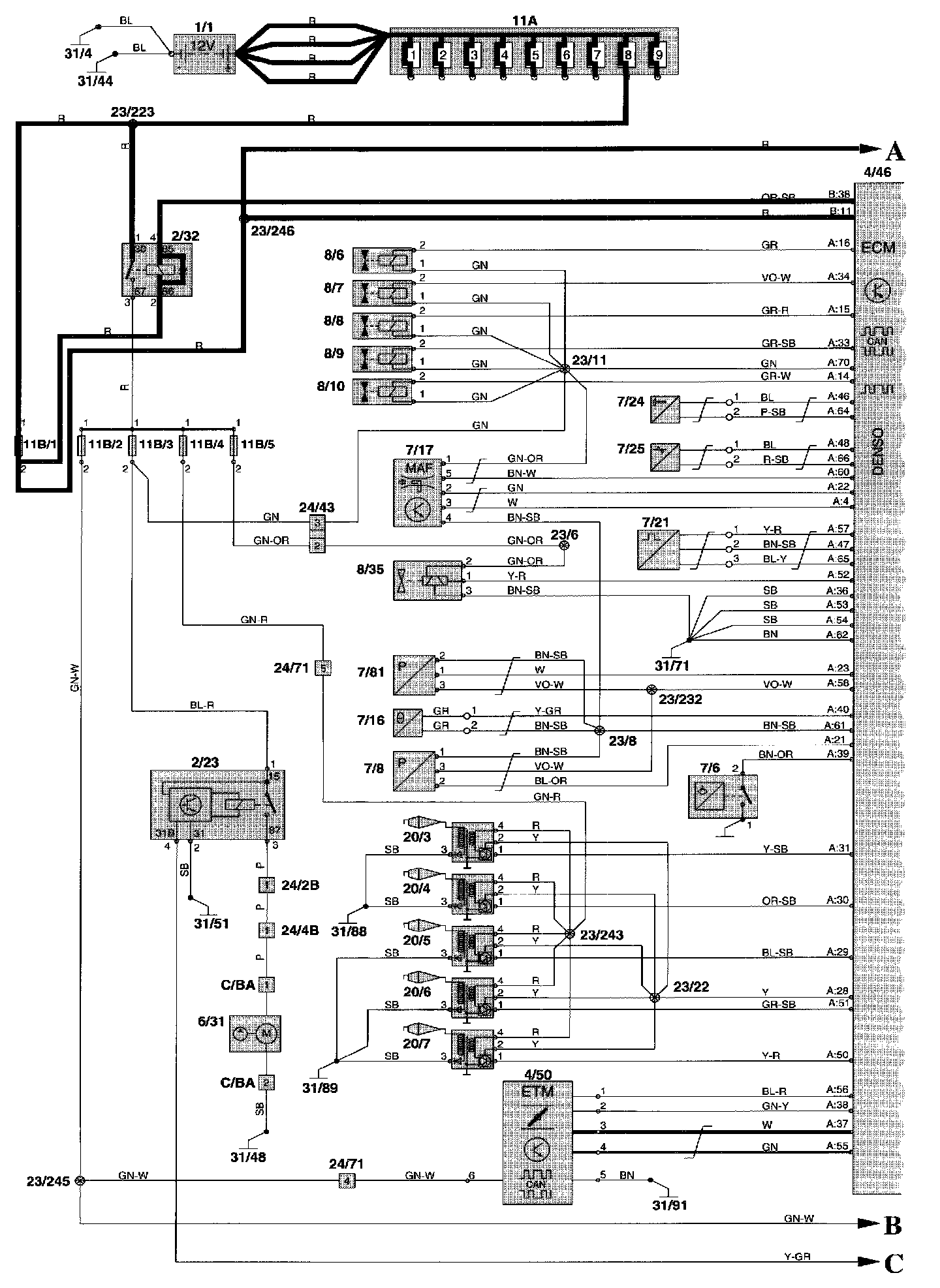

Engine Management System

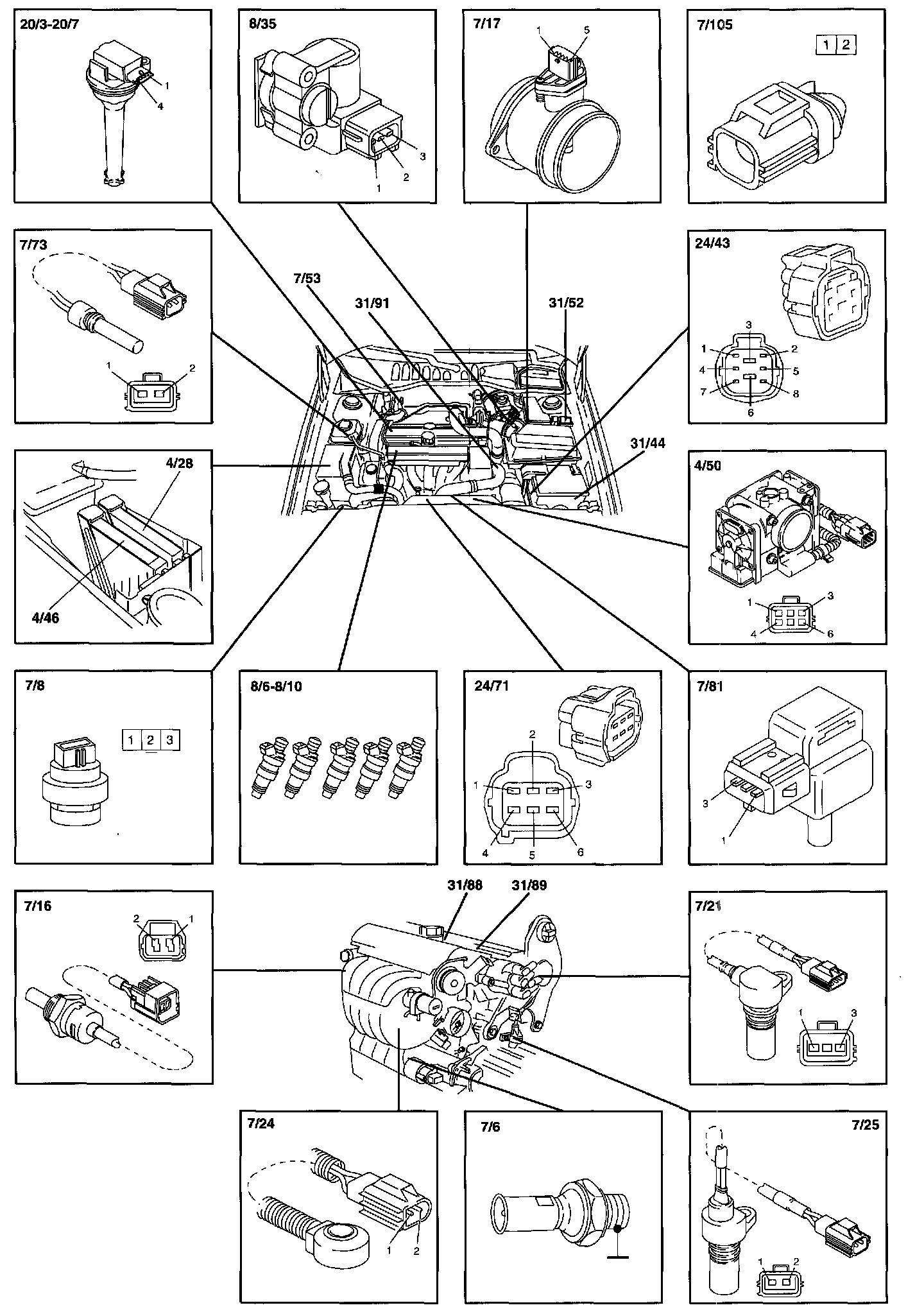

Denso - Component Location Fig. 1:

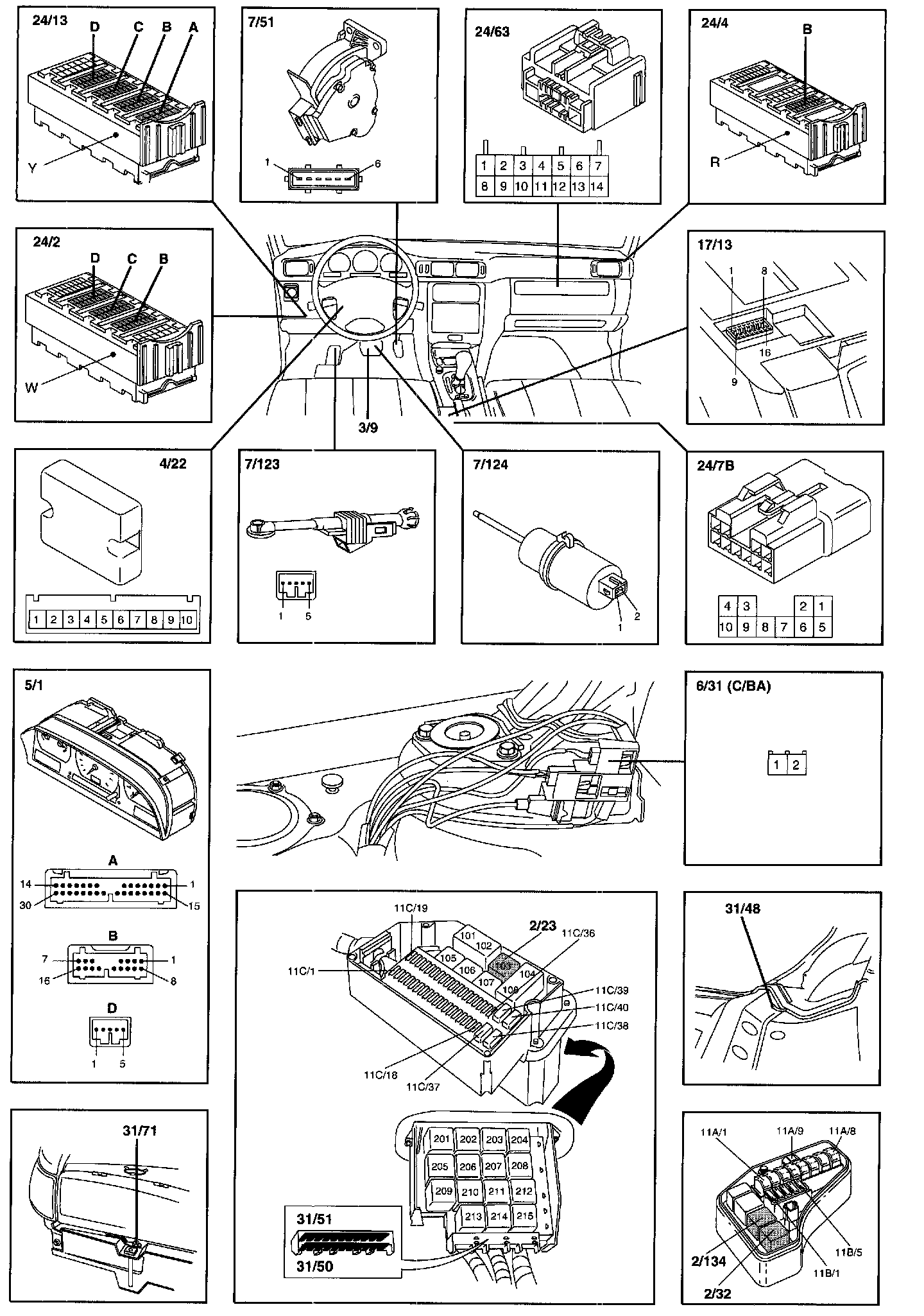

Denso - Component Location Fig. 2:
To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
To identify components from the numeric designation, see "Component I.D List (Name and Numeric Designation)". Diagram Information and Instructions
