Location of Components

LOCATION OF COMPONENTS

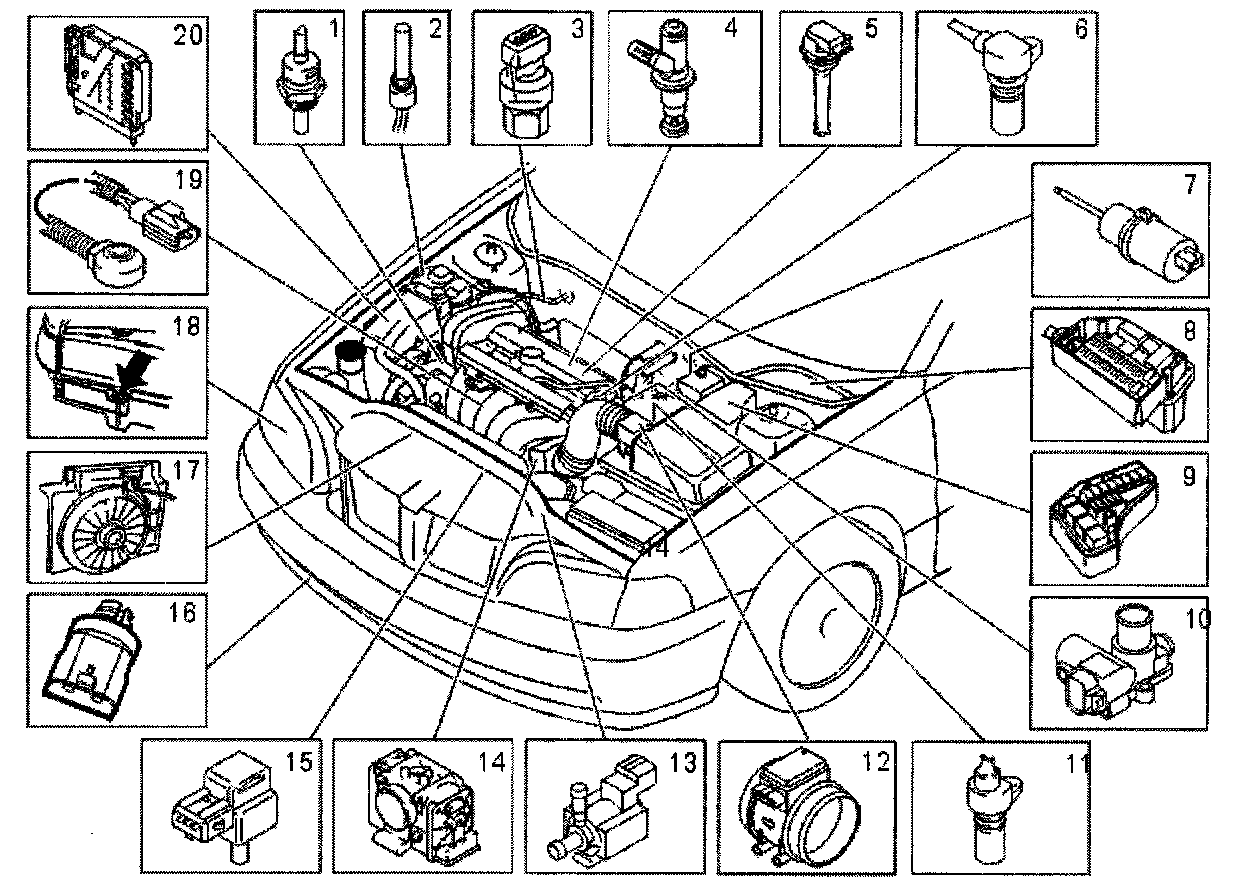

Location of components
1. Engine coolant temperature (ECT) sensor
2. Coolant level sensor
3. A/C pressure sensor
4. Injector
5. Ignition coil
6. Camshaft sensor
7. Brake pedal sensor
8. Fusebox
9. Relay box
10. Air assisted control valve (AACV)
11. Engine speed (RPM) sensor
12. Mass air flow (MAF) sensor with integrated temperature sensor
13. Canister purge (CP) valve
14. Throttle unit
15. Manifold absolute pressure (MAP) sensor
16. Outer temperature sensor
17. Engine cooling fan (FC) relay
18. Engine control module (ECM) ground terminal
19. Knock sensor (KS)
20. Engine control module (ECM).
