Main Relay (Computer/Fuel System): Locations
Fuse/Relay Identification and Location
Fuses

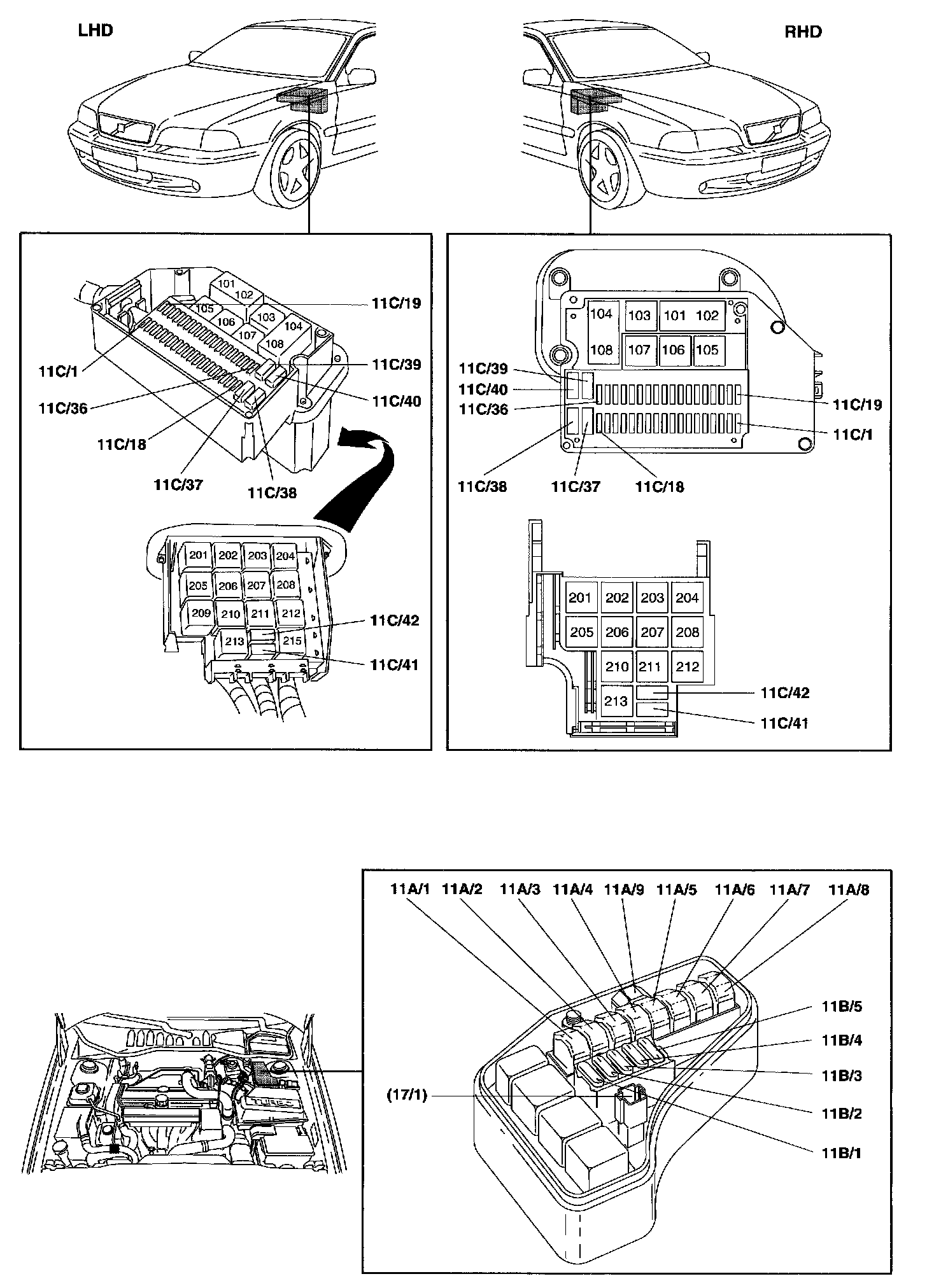

Panel Locations:

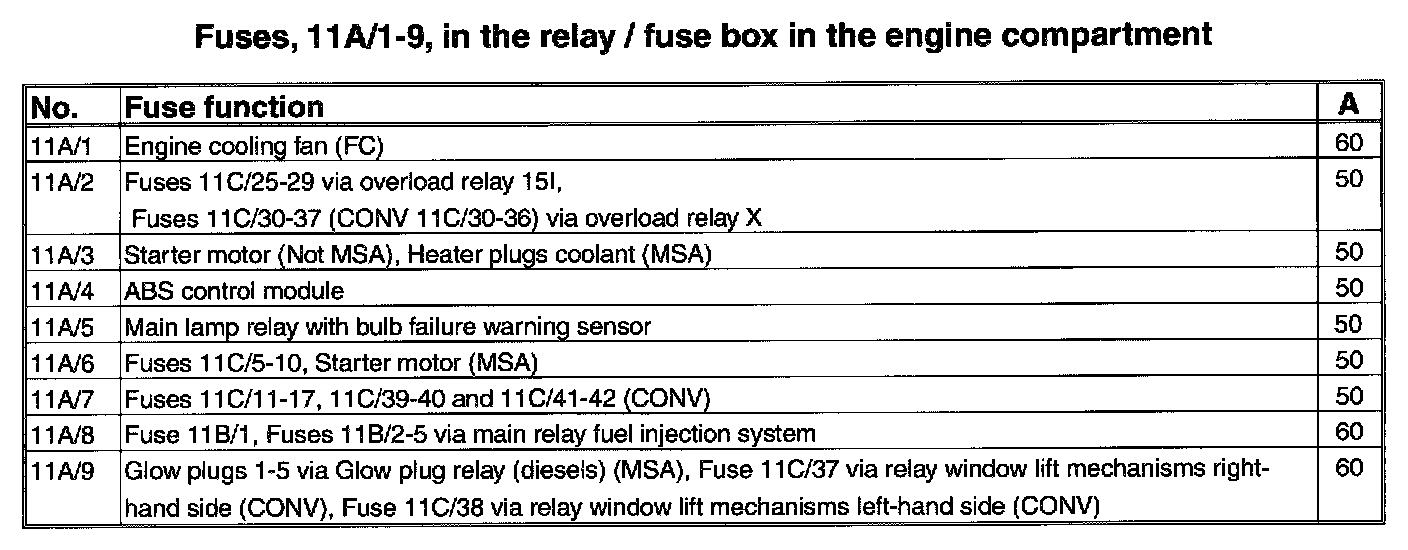

Fuses, 11A/1-9, In the relay / fuse box in the engine compartment:

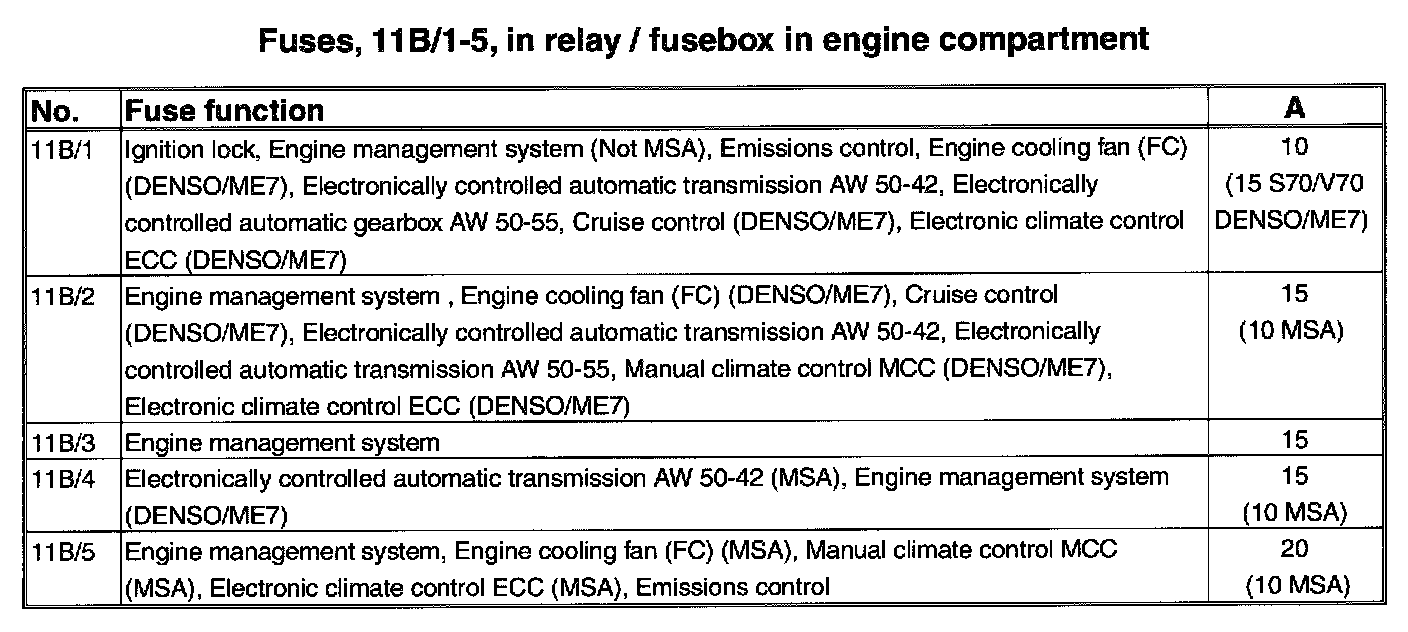

Fuses, 11B/1-5, In relay / fusebox in engine compartment:

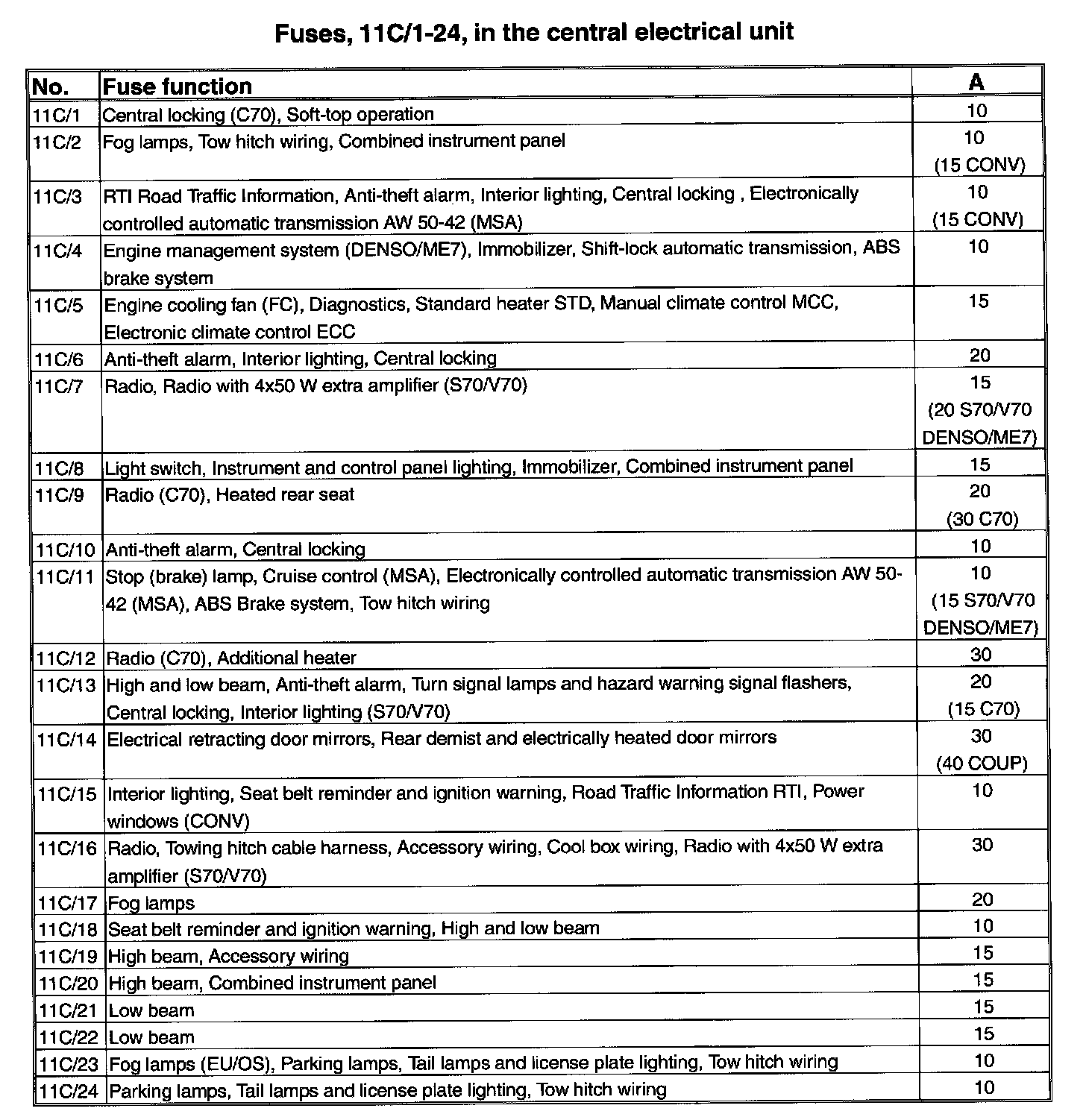

Fuses, 11C/1-24, In the central electrical unit:

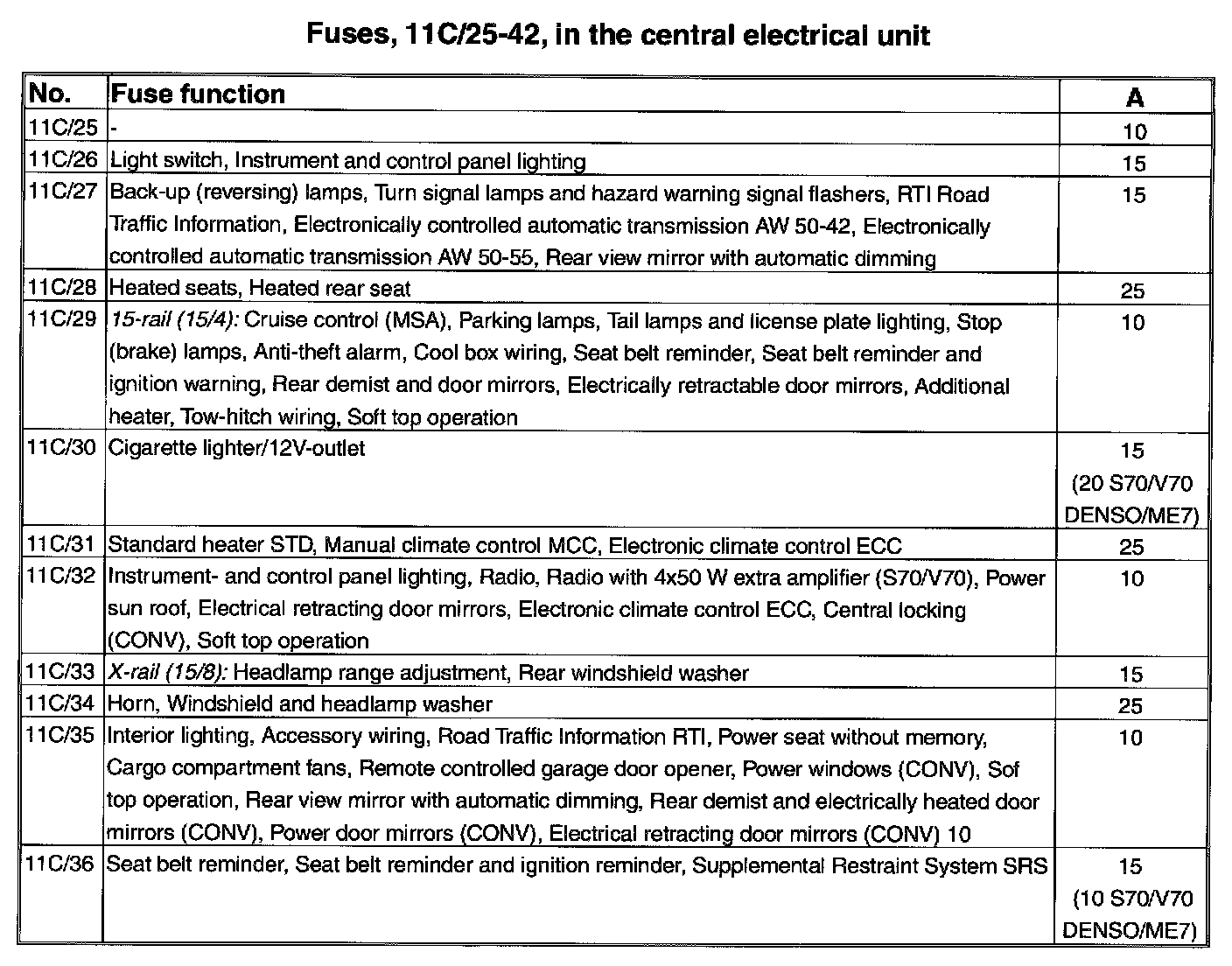

Fuses, 11C/25-36, In the central electrical unit:
Fuses, 11C/37-42, Automatic fuses:

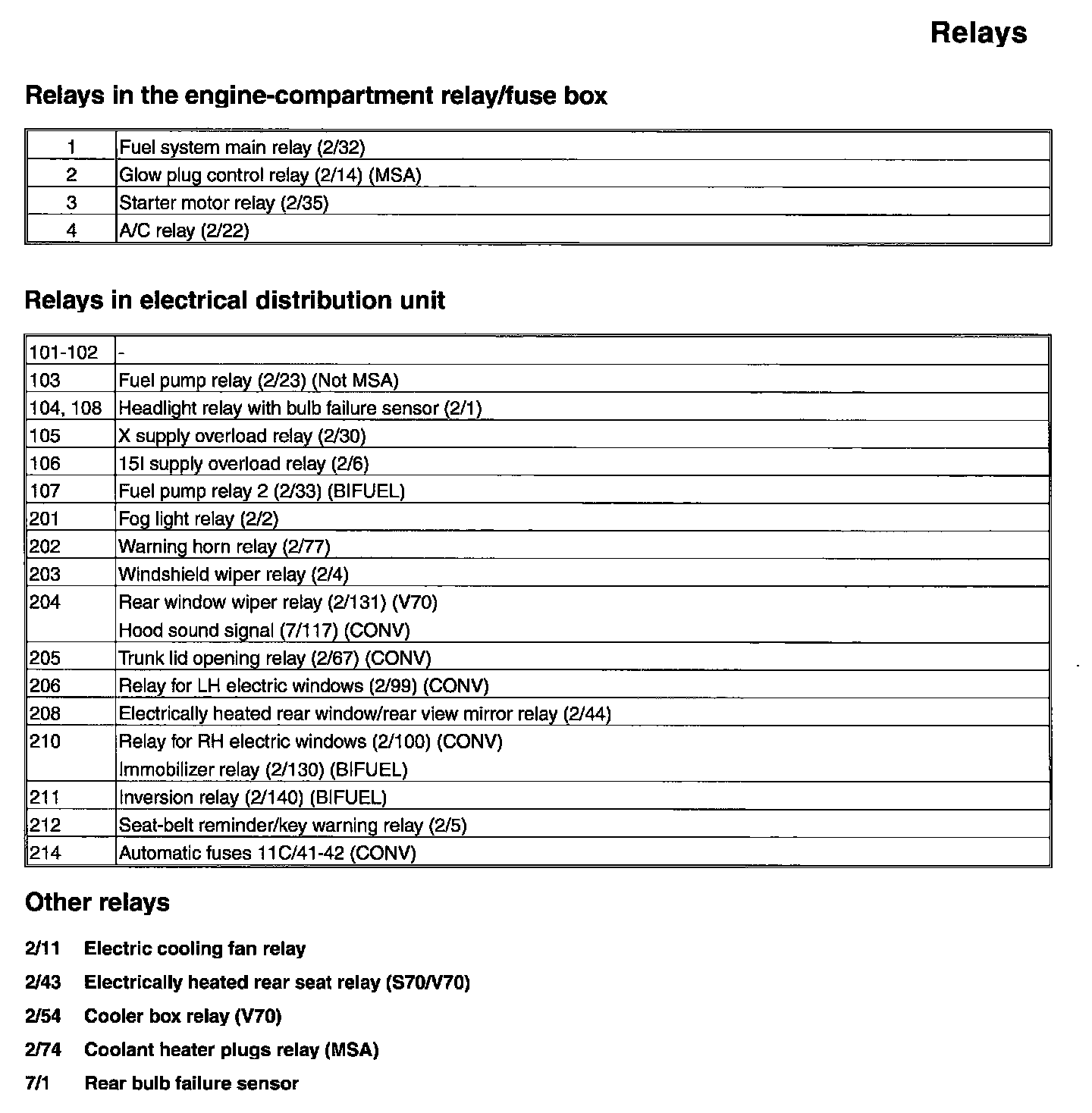

Relays

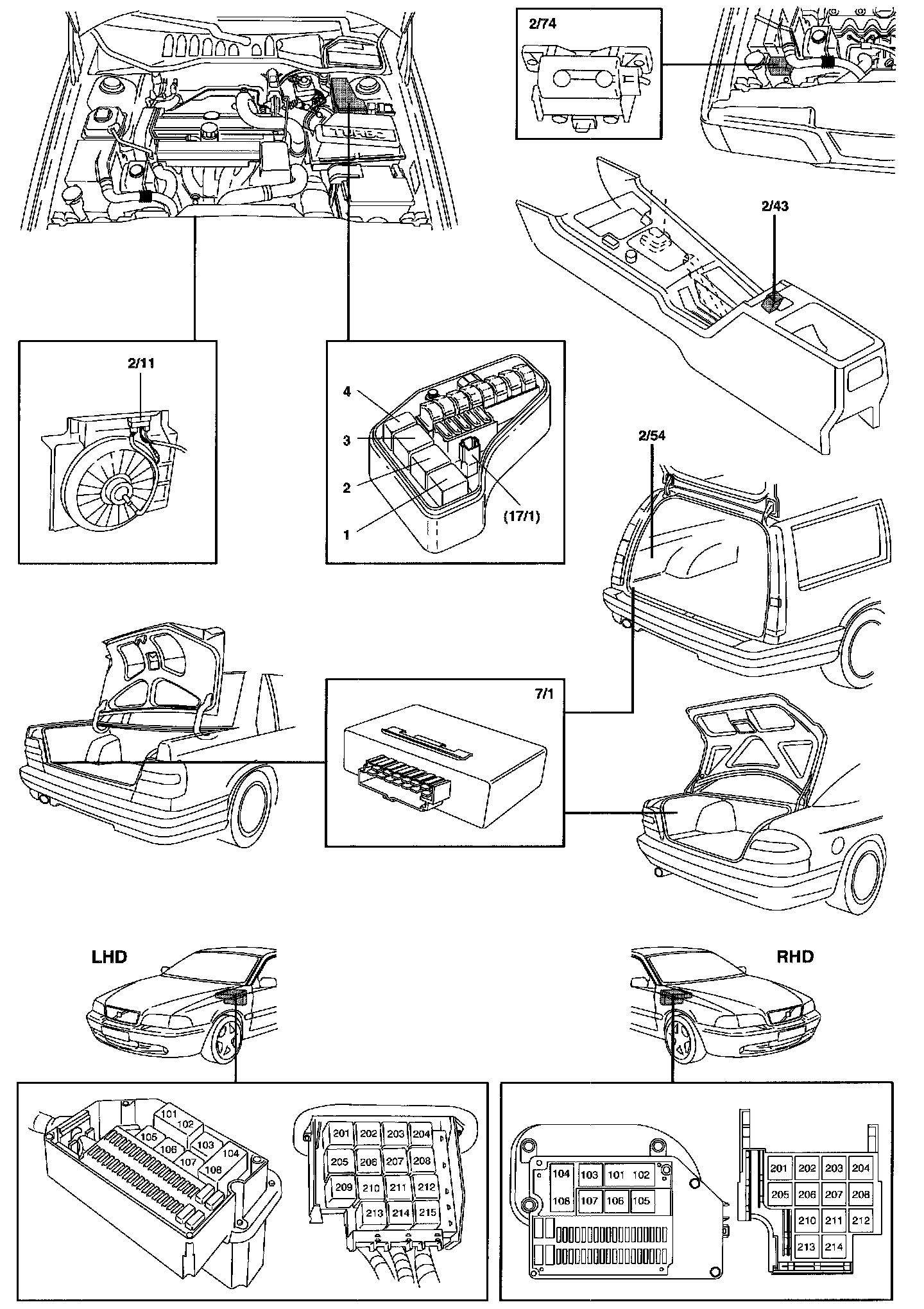

Panel Locations:
