Checking And Cleaning

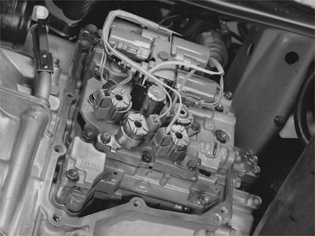

Fig 1: Identifying Solenoid Connectors
GLL141011Courtesy of VOLVO CARS CORPORATION

Clean the gasket residue from the cover and the transmission.

NOTE:

Make sure that no debris enters the transmission. Wash the cover thoroughly.

Check that the mating surface for the cover is level.
