Parking Aid Camera Module [2010]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

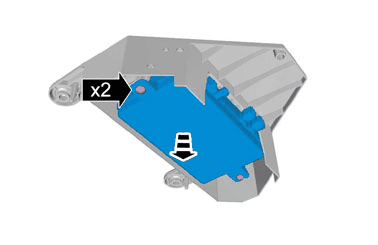

Courtesy of VOLVO CARS CORPORATION

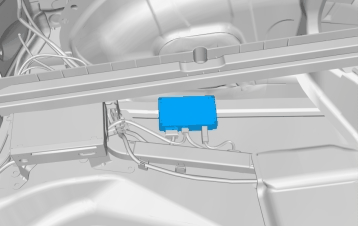

VEHICLES MANUFACTURED UP TO CHASSIS NUMBER: 2050099

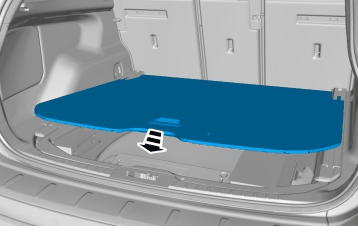

Courtesy of VOLVO CARS CORPORATION

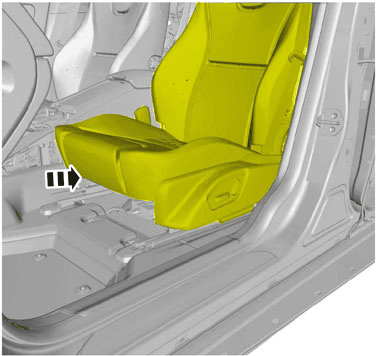

Courtesy of VOLVO CARS CORPORATION

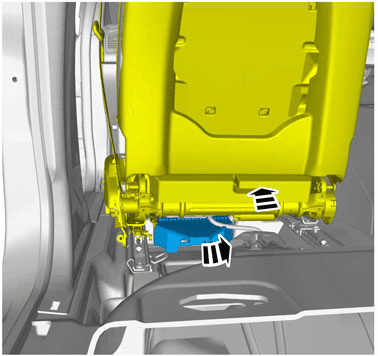

Courtesy of VOLVO CARS CORPORATION

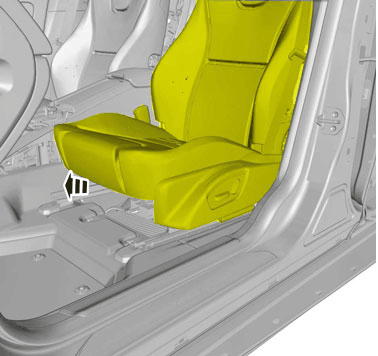

Courtesy of VOLVO CARS CORPORATION

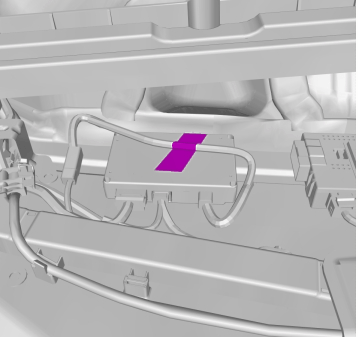

Follow the instructions regarding components with double-sided adhesive tape, refer to: COMPONENTS WITH DOUBLE-SIDED TAPE

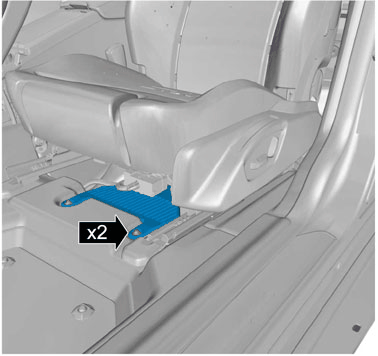

Courtesy of VOLVO CARS CORPORATION

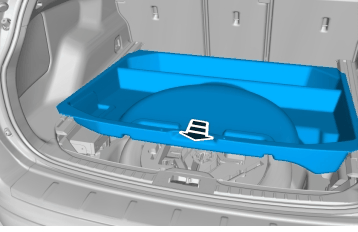

Courtesy of VOLVO CARS CORPORATION

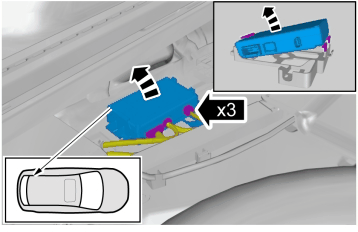

Courtesy of VOLVO CARS CORPORATION

Use: Fastening tape, 9511072

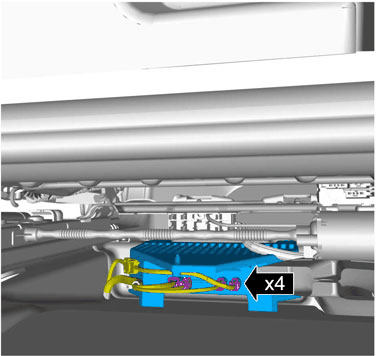

VEHICLES MANUFACTURED FROM CHASSIS NUMBER: 2050099

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
