Side Obstacle Detection Control Module, Right (SODR) [2014-2017]: Removal

Loosen right side casing bumper, rear. Refer to: COVER BUMPER REAR

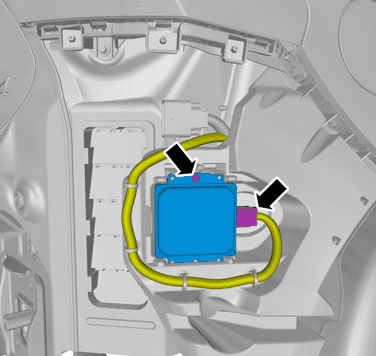

GLL1039538Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Remove the screw.

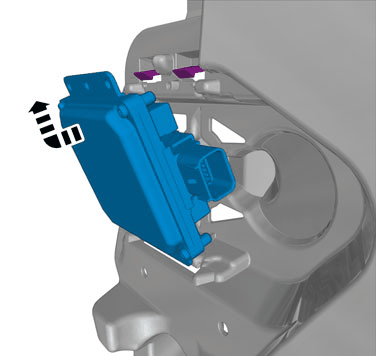

GLL1032346Courtesy of VOLVO CARS CORPORATION
