WARNING: This page is about a different car, the 1997 Acura 3.5RL. However, it is still accessible from the selected car via links, so may be relevant.
Refer to illustrations for component locations. SeeFig 1
and Fig 2
.

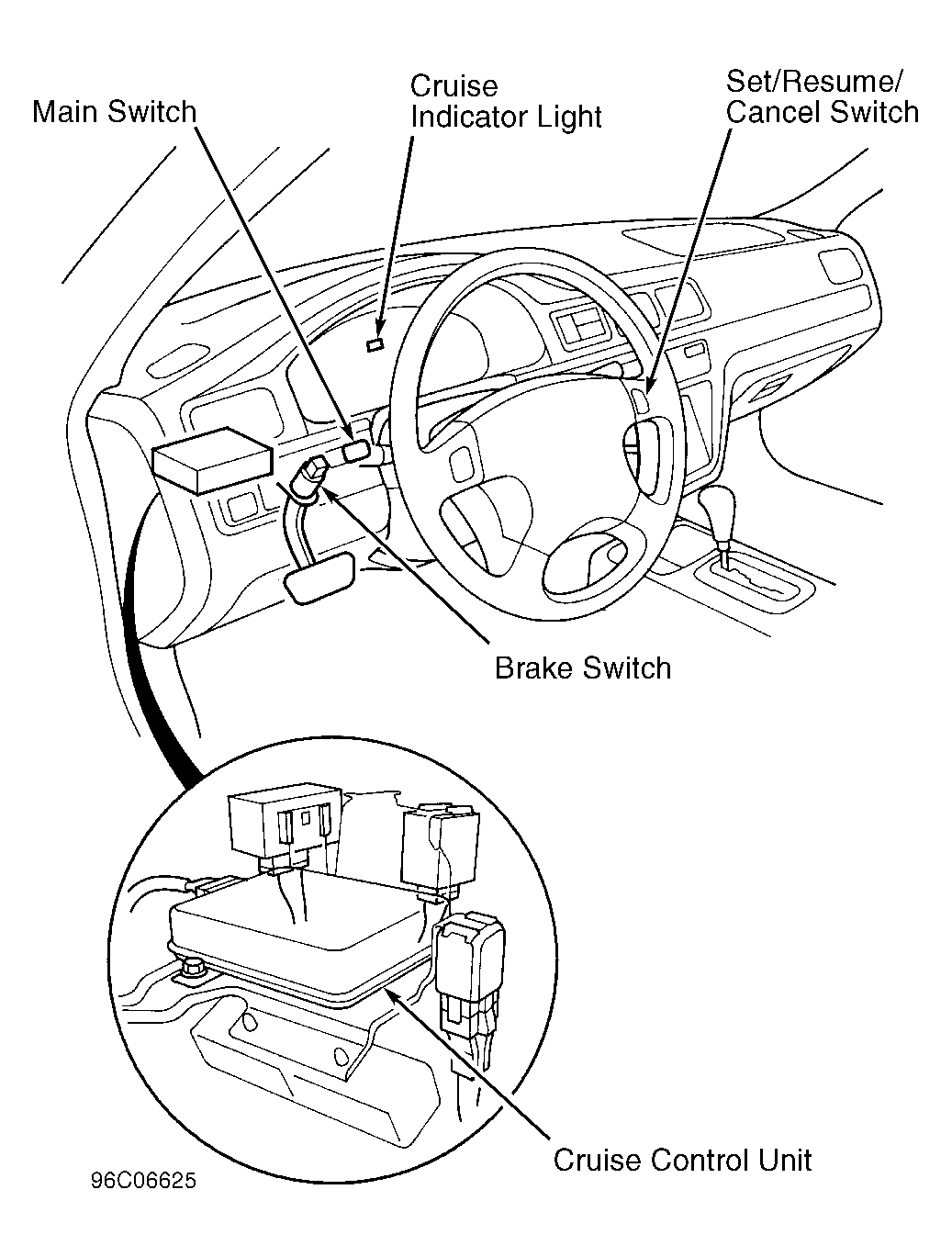

Fig 1: Locating Instrument Panel Cruise Control Components (Similar)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

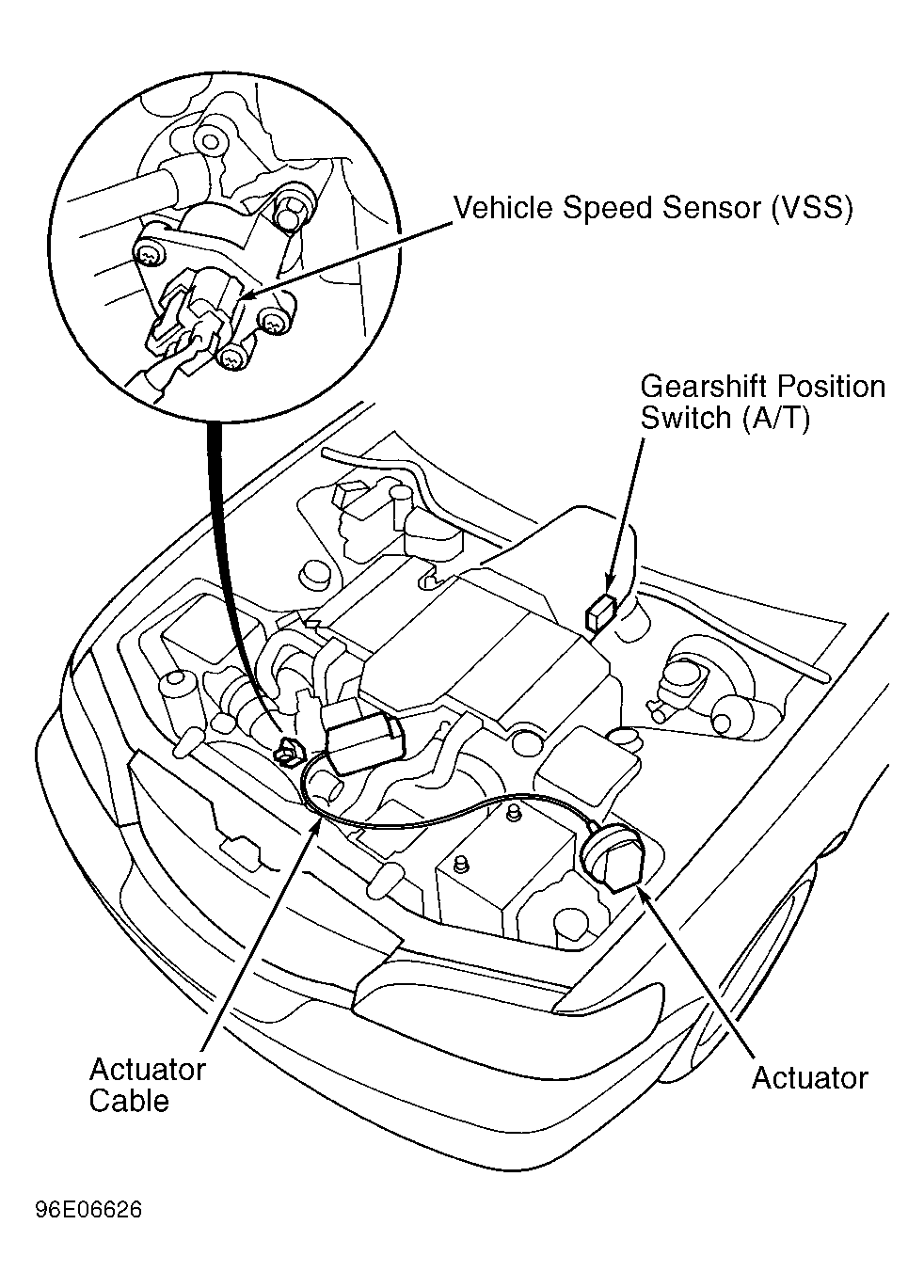

Fig 2: Locating Engine Compartment Cruise Control Components (Similar)
