Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

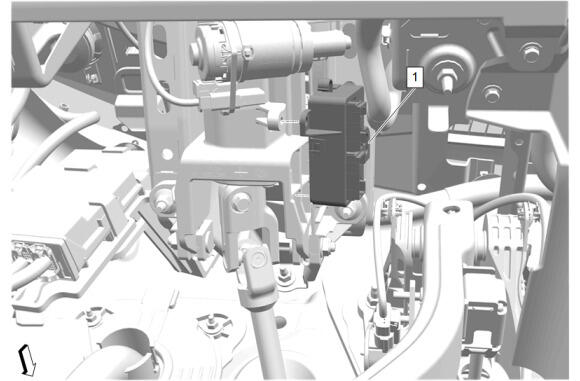

Steering Column Control Module (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

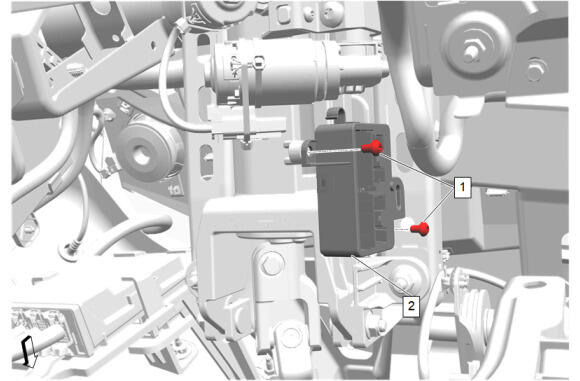

Steering Column Control Module Bracket Bolt (1) - Install and tighten [2x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

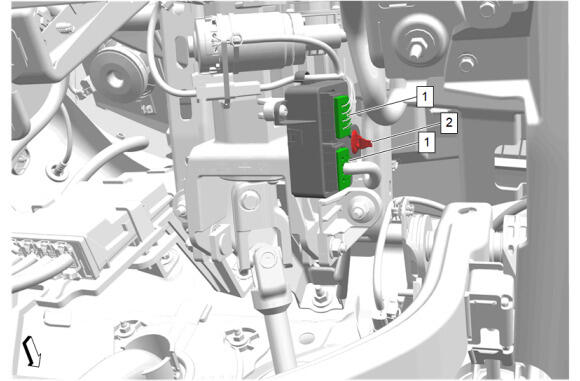

Retainer (2) - Install
Electrical Connector (1) - Connect [2x]
Courtesy of GENERAL MOTORS COMPANY

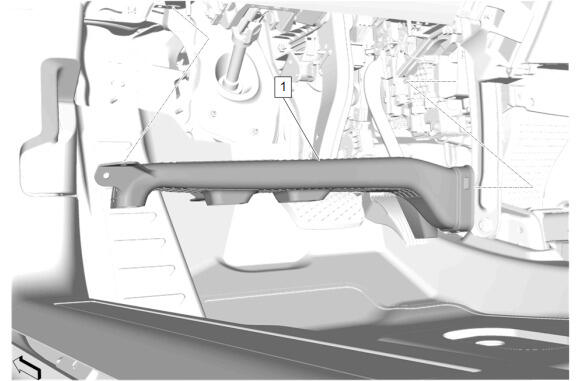

Floor Front Air Outlet Duct - Left Side (1) - Install
Courtesy of GENERAL MOTORS COMPANY

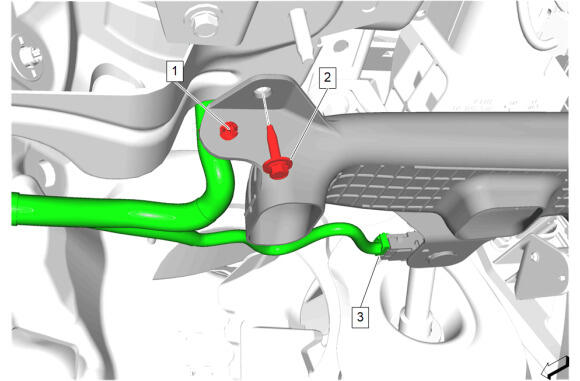

Floor Front Air Outlet Duct Bolt (2) - Install and tighten - Fastener Specifications
Install the wire harness clip (1) at the front floor air outlet duct.
Connect the electrical connector. (3)
Courtesy of GENERAL MOTORS COMPANY

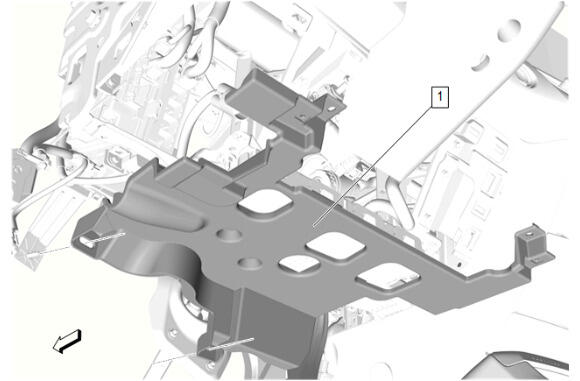

Install the left instrument panel lower trim panel insulator (1) to the floor studs.
Courtesy of GENERAL MOTORS COMPANY

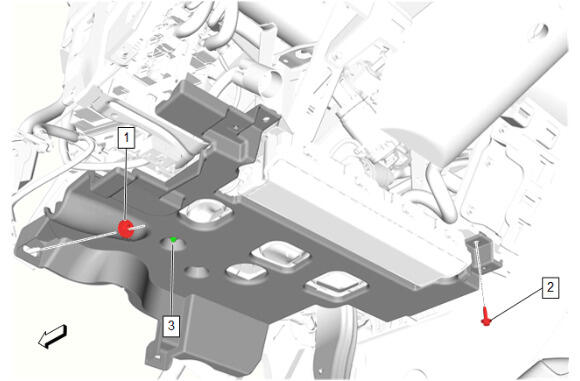

Connect the instrument panel wiring harness (3) to the instrument panel lower trim panel insulator.
Instrument Panel Lower Trim Panel Insulator Bolt (2) - Install and tighten - Fastener Specifications
{If equipped} Instrument Panel Insulator Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

WARNING:
When removing, handling or installing this component wear protective gloves. The sharp edges on the component may be very sharp and may cause injury.

Instrument Panel Knee Bolster (1) - Install
Courtesy of GENERAL MOTORS COMPANY

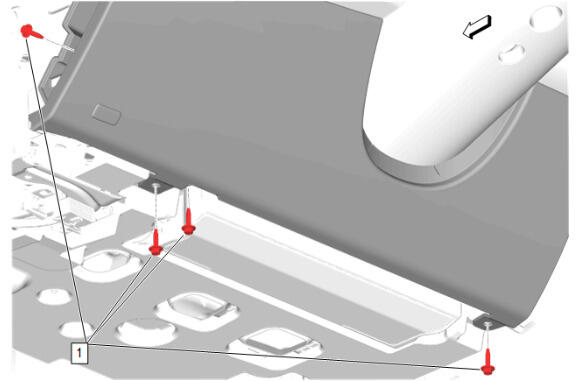

Instrument Panel Knee Bolster Bolt (1) - Install and tighten [4x] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

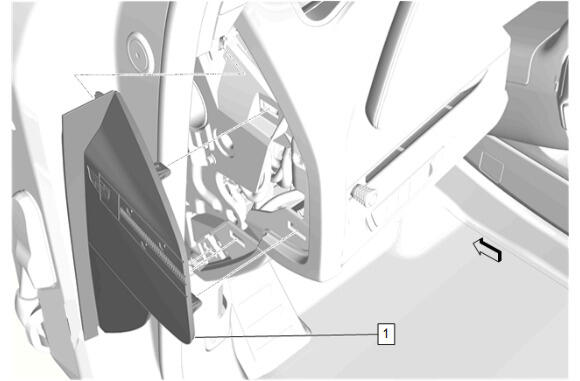

Insert the tab at the top of the instrument panel outer trim cover (1) into the instrument panel before installing.

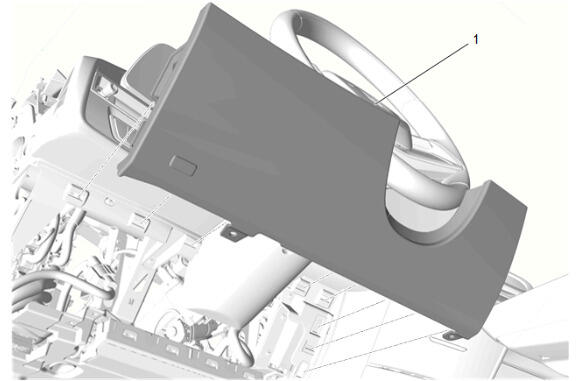

Instrument Panel Outer Trim Cover (1) - Install
Perform the necessary programming and setup procedure: - Control Module References
Enable the SIR System. SIR Disabling and Enabling
