Installation Procedure

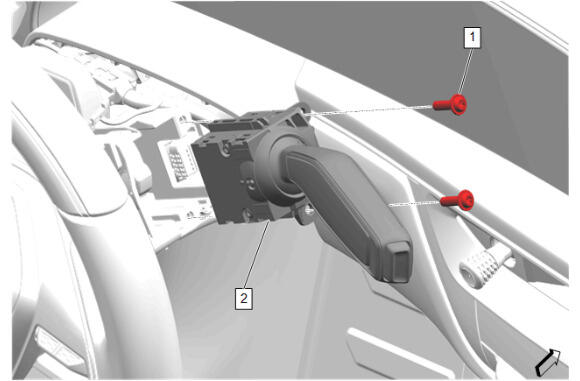

  1. GM5994675Courtesy of GENERAL MOTORS COMPANY

    Gear Shift Control Module (2) - Install

    2. CAUTION:

    Fastener Caution .

  2. Automatic Transmission Electronic Control Bolt (1) - Install and tighten [2x] - Fastener Specifications

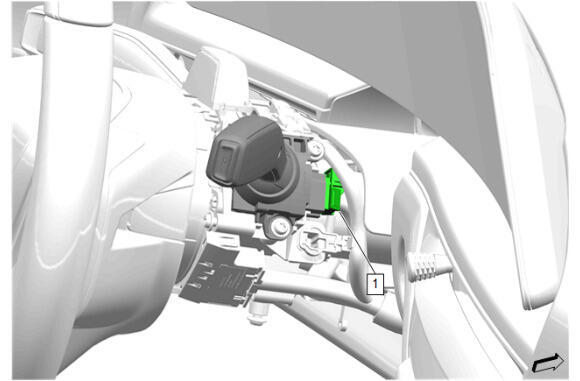

  3. GM5994551Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

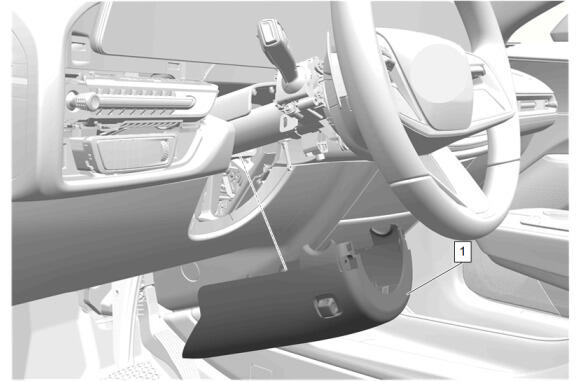

  4. GM5973159Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  5. Instrument Panel Steering Column Lower Trim Cover (1) - Install

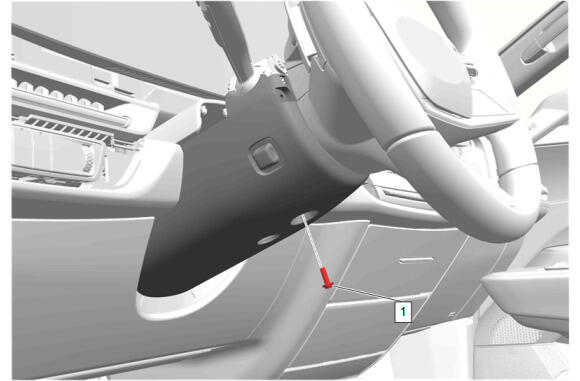

  6. GM5973140Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

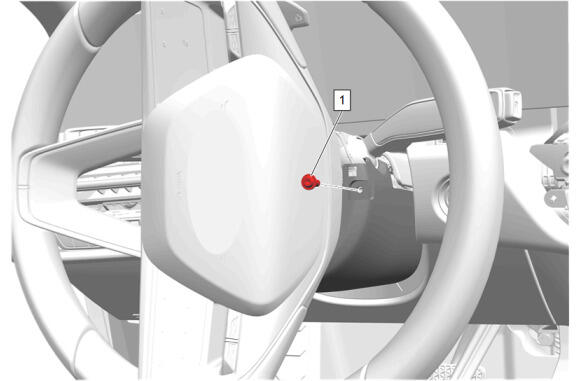

  7. GM5973113Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  8. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

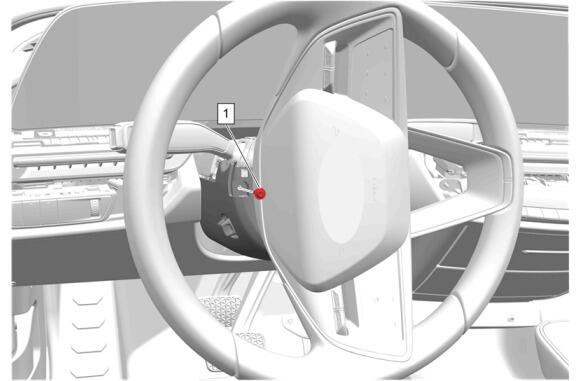

  9. GM5973087Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  10. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  11. Turn the steering wheel to the centered position.

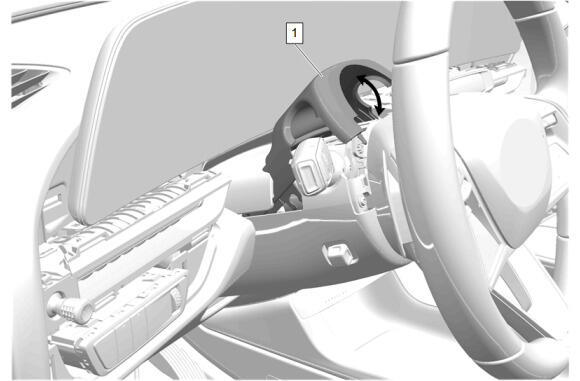

  12. GM5972301Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  13. Reprogram the gear shift control module. Control Module References
