Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

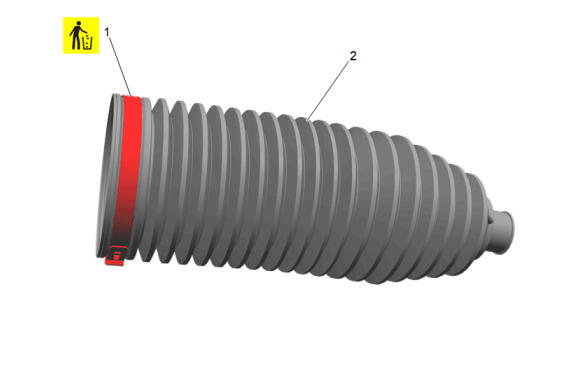

Position a NEW steering gear boot clamp-inner (1) on the steering gear boot (2).
Courtesy of GENERAL MOTORS COMPANY

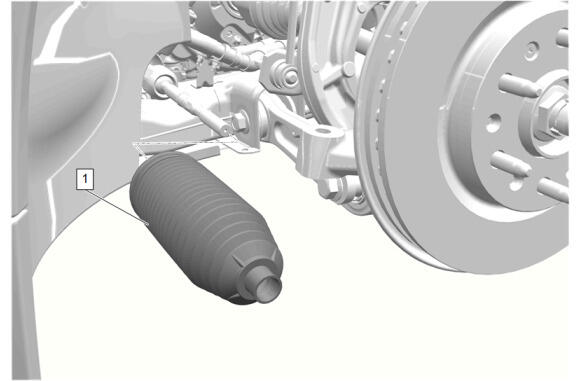

Steering Gear Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

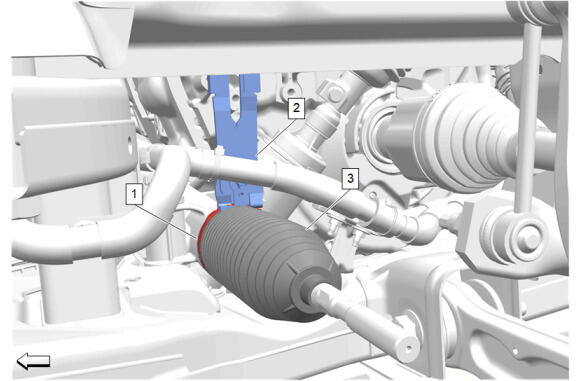

Using CH-22610 Keystone Clamp Pliers (2), tighten the inner steering gear boot clamp (1).
Courtesy of GENERAL MOTORS COMPANY

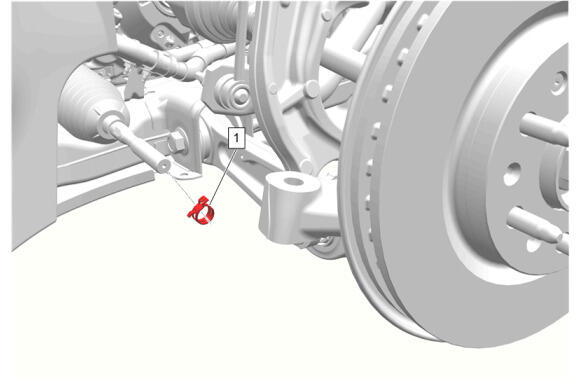

Steering Gear Boot Clamp - Outer (1) - Install
Courtesy of GENERAL MOTORS COMPANY

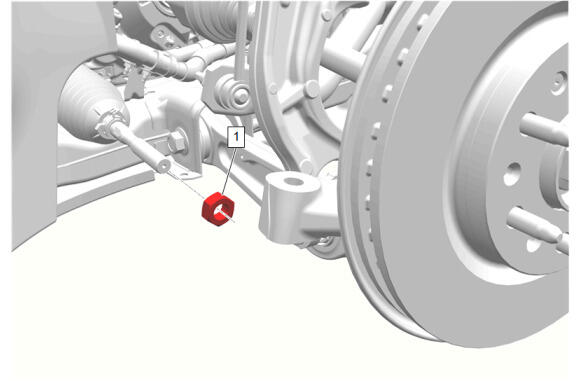

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
Courtesy of GENERAL MOTORS COMPANY

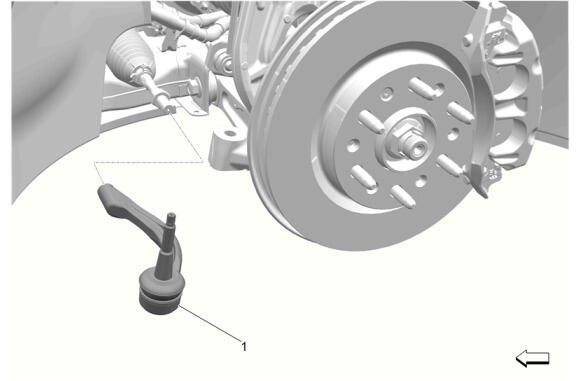

Steering Linkage Outer Tie Rod (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution .

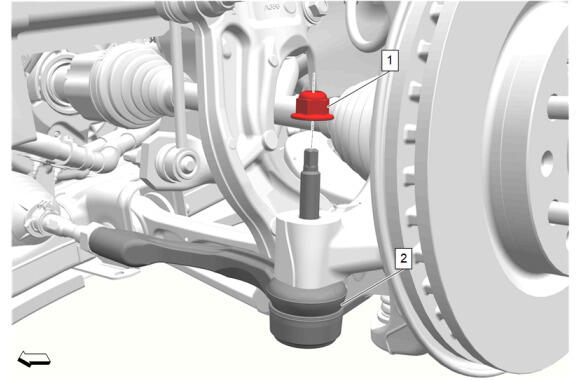

Steering Linkage Outer Tie Rod Nut (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

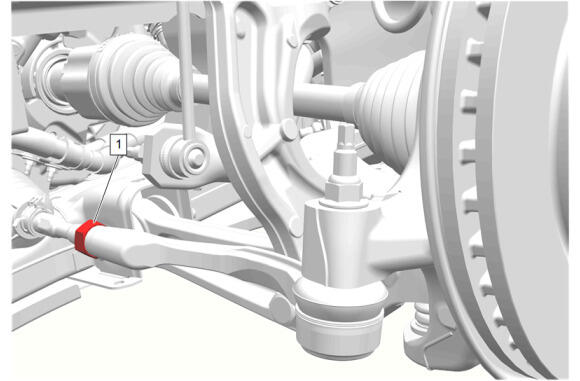

Tighten the steering linkage inner tie rod nut (1) during the front toe adjustment procedure.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

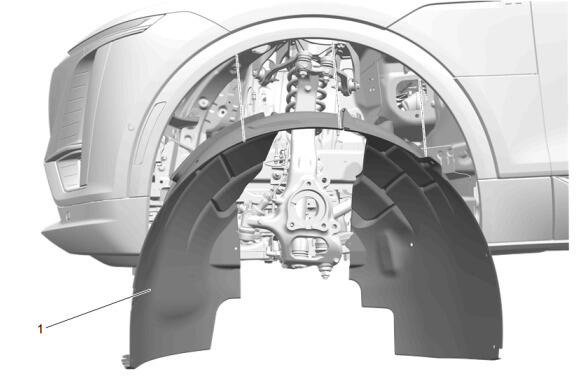

Front Wheelhouse Liner (1) - Install - Front Wheelhouse Liner Replacement
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
