Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1
Auto Shutdown (ASD) Relay	Fig 2 & Fig 3
Crankshaft Position Sensor	Fig 4
Exhaust Gas Recirculation (EGR) Solenoid	Fig 5
Engine Coolant Temperature (ECT) Sensor	Fig 6
Evaporative Purge Solenoid	Fig 7
Fuel Pump	Fig 8
Fuel Pump Relay	Fig 9 & Fig 10
Idle Air Control (IAC) Motor	Fig 11
Manifold Absolute Pressure (MAP) Sensor	Fig 12
02S	Fig 13
Powertrain Control Module (PCM)	Fig 19
Radiator Fan Relay	Fig 14 & Fig 15
Torque Converter Clutch (TCC) Solenoid	Fig 16
Throttle Position (TP) Sensor	Fig 17
Transmission Temperature Sensor	Fig 18

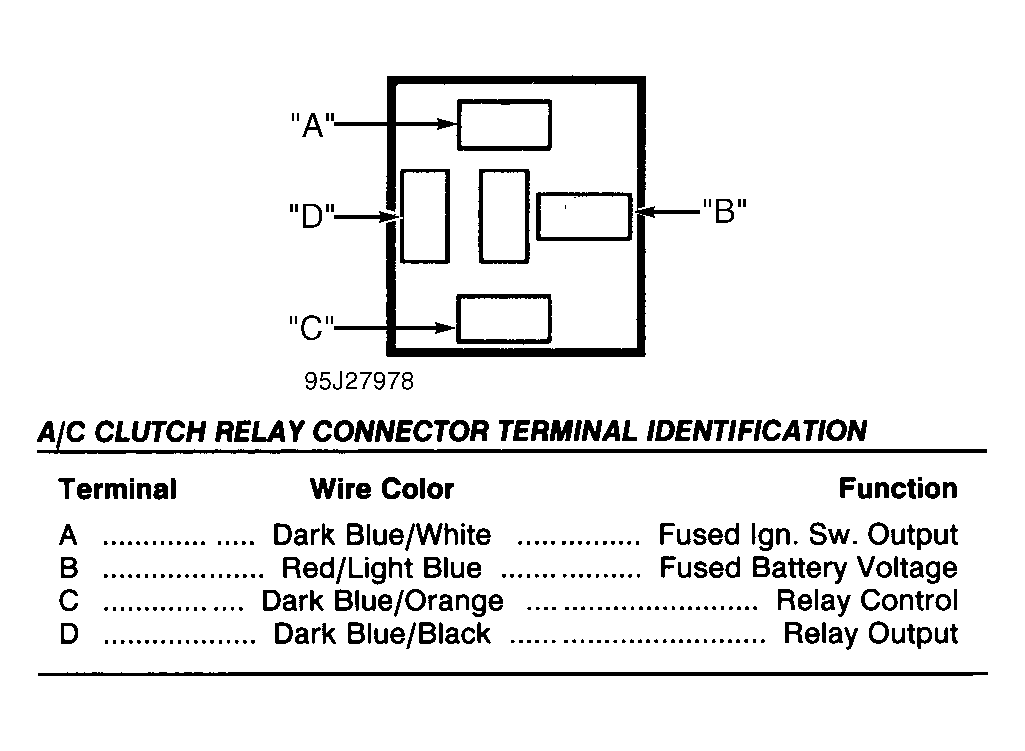

A/C CLUTCH RELAY CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/Light Blue	Fused Battery Voltage
C	Dark Blue/Orange	Relay Control
D	Dark Blue/Black	Relay Output

Fig 1: Identifying A/C Clutch Relay Connector Terminals (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

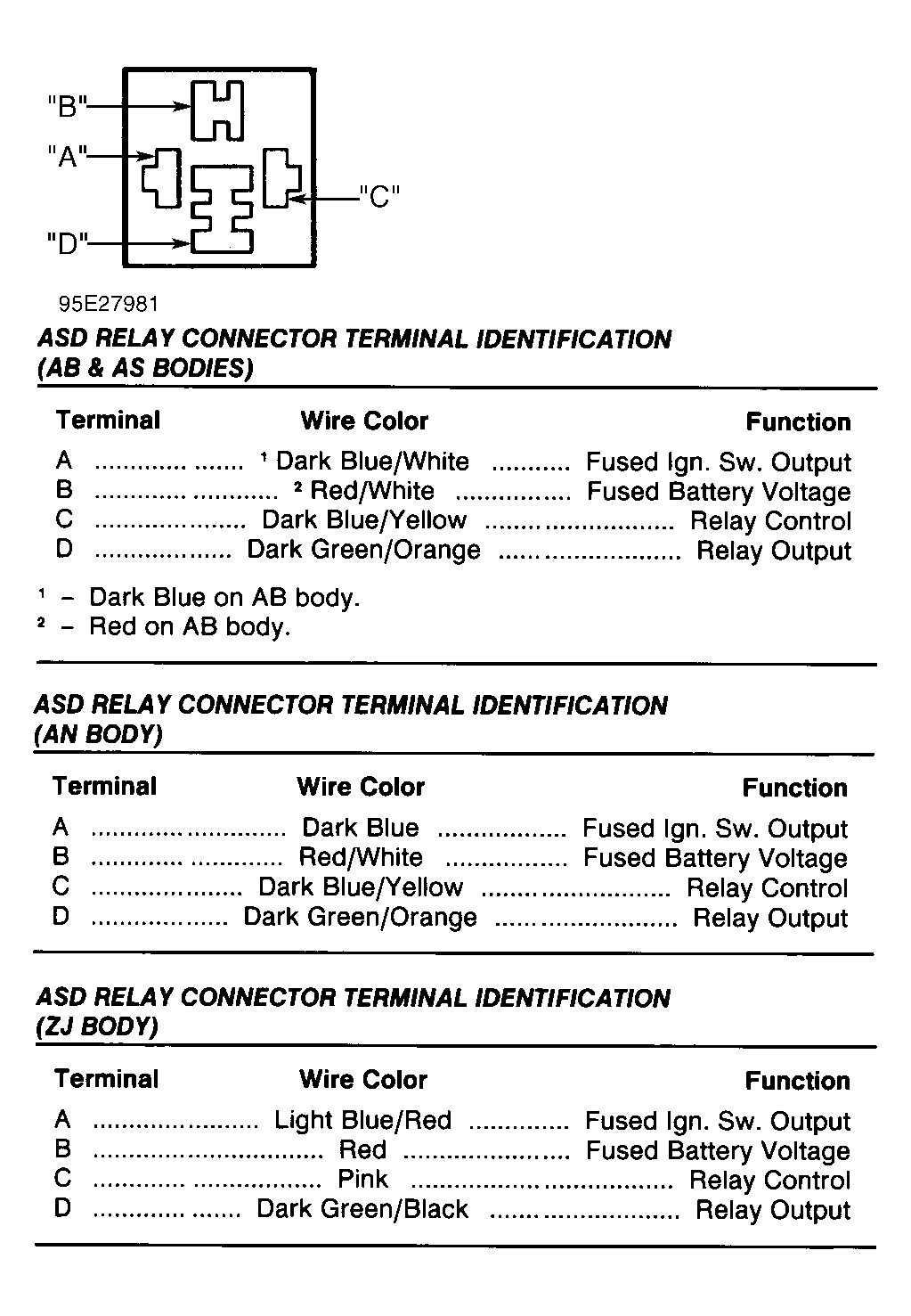

ASD RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Relay Control
D	Dark Green/Orange	Relay Output

Fig 2: ASD Relay Connector Terminal ID - 1 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

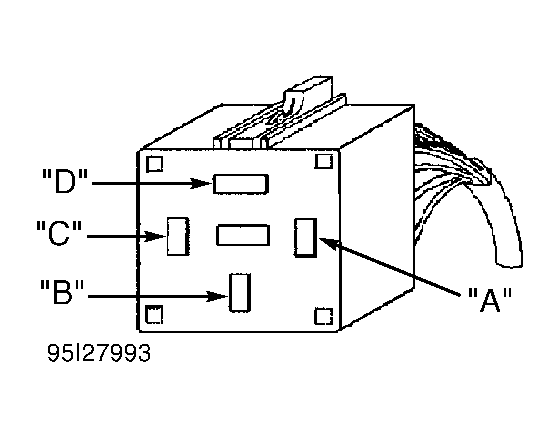

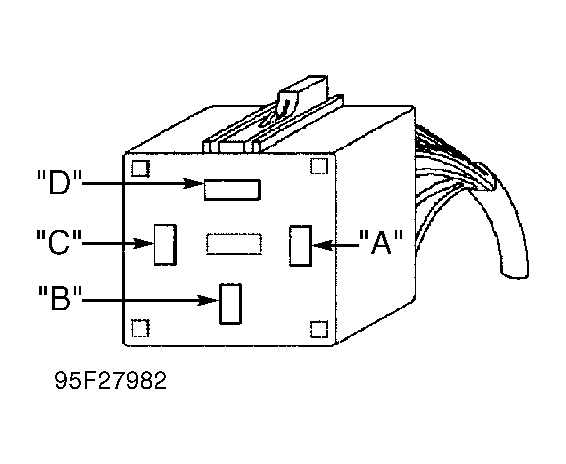

Fig 3: ASD Relay Connector Terminal ID - 2 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

Fig 4: Identifying Crankshaft Sensor Connector Terminals (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

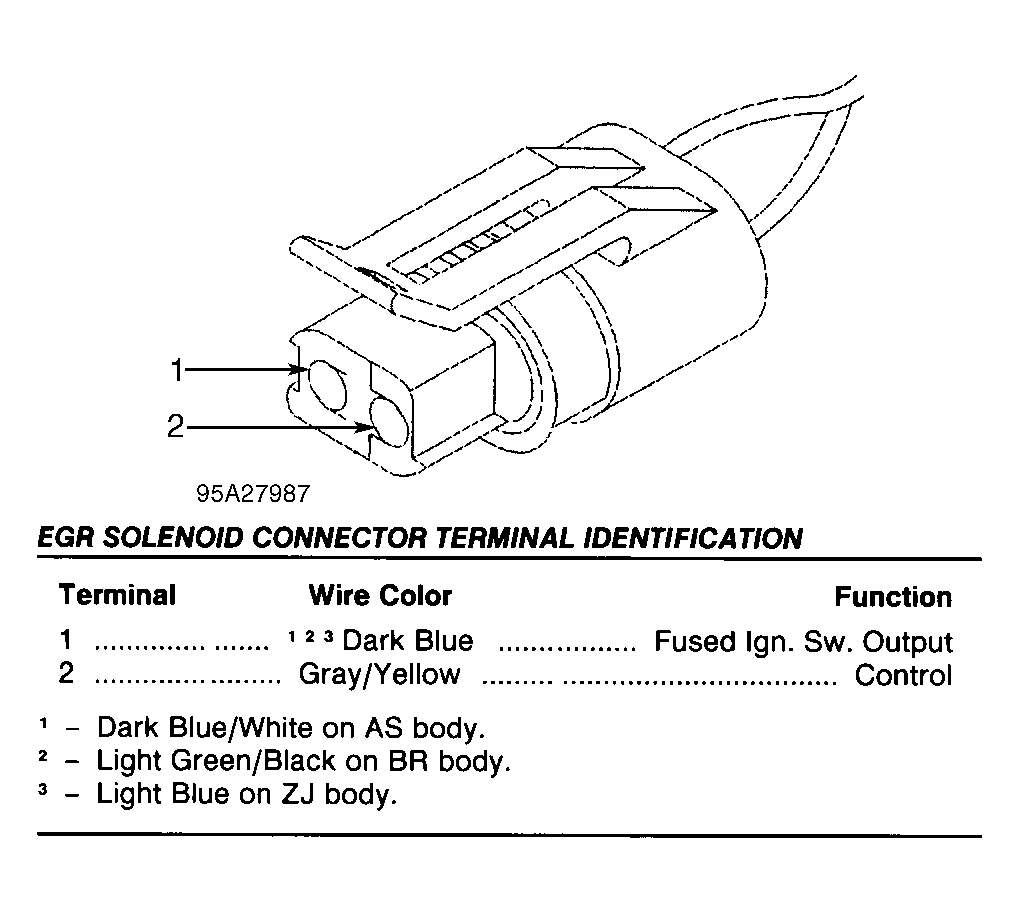

EGR SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Blue/White	Fused Ign. Sw. Output
2	Gray/Yellow	Control

Fig 5: EGR Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

ENGINE COOLANT TEMPERATURE (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 6: ECT Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

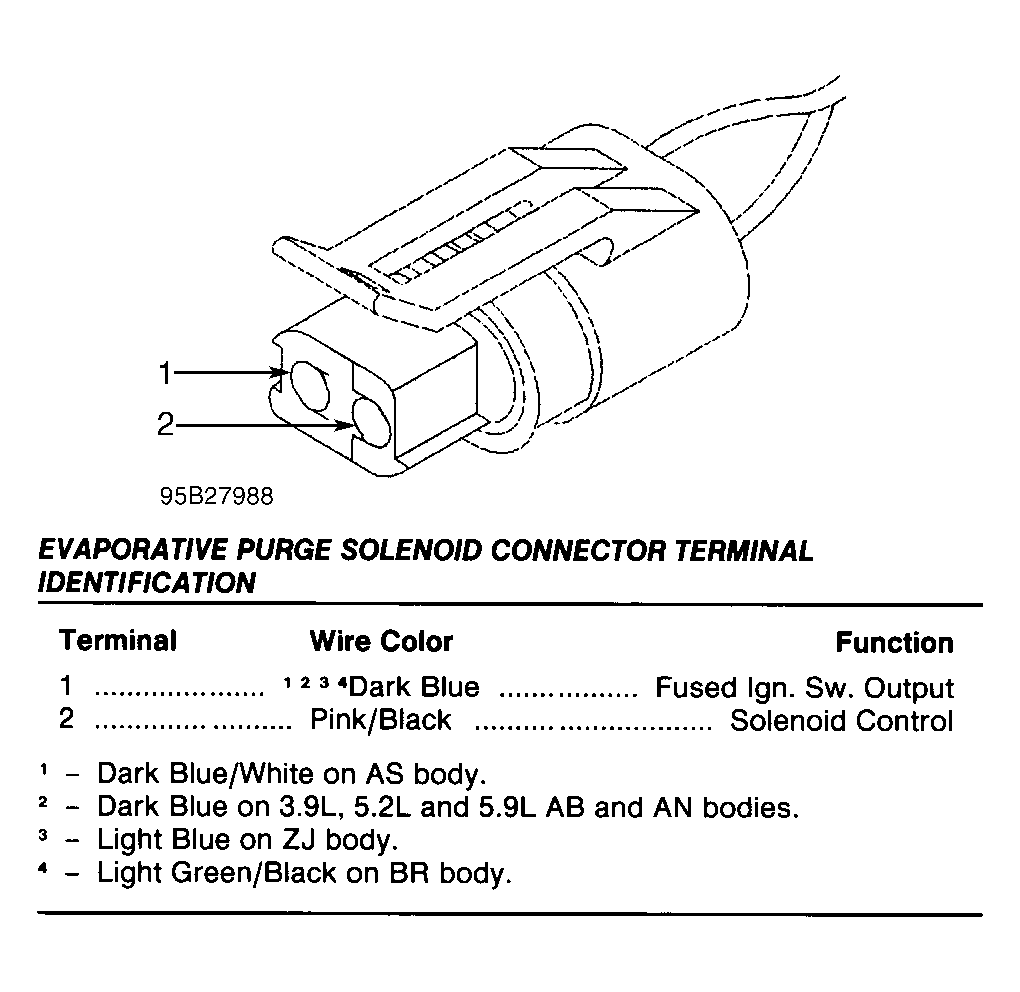

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Blue/White	Fused Ign. Switch Output
2	Pink/Black	Solenoid Control

Fig 7: Evaporative Purge Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

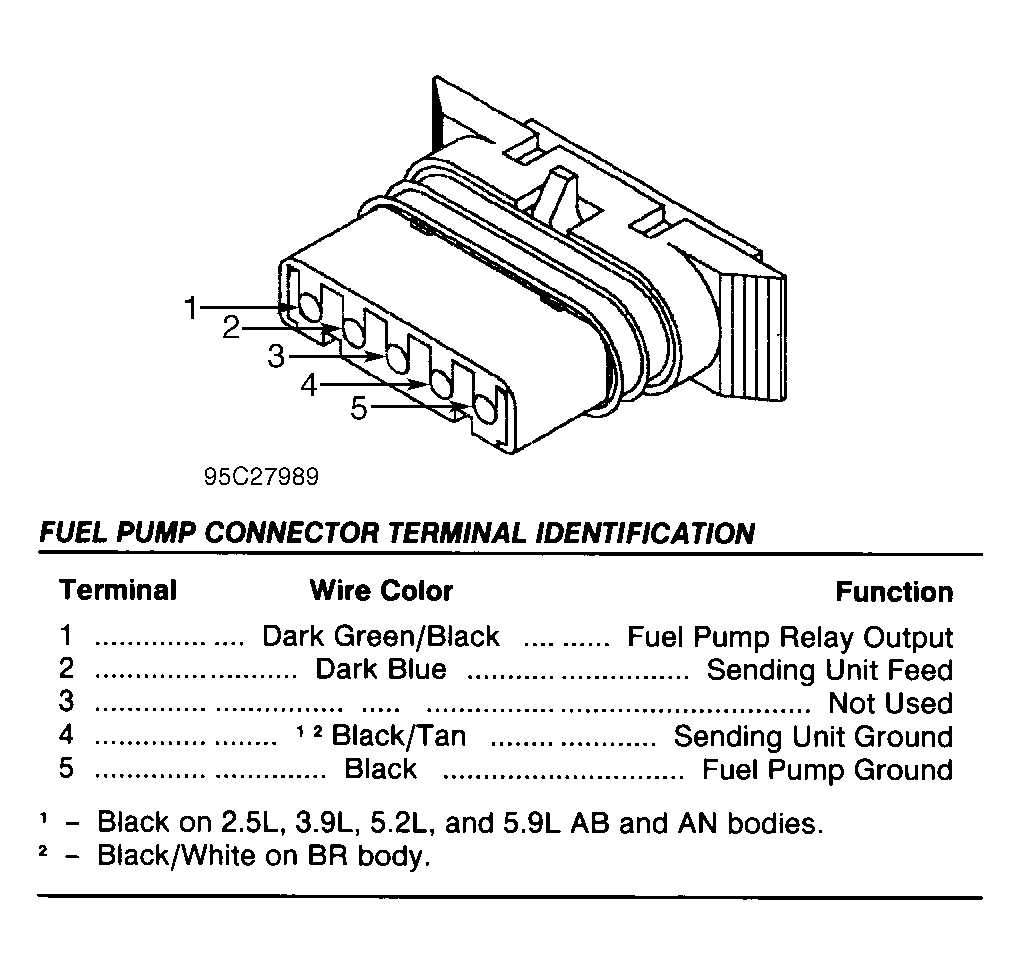

FUEL PUMP CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Dark Blue	Sending Unit Feed
3	---	Not Used
4	Black	Sending Unit Ground
5	Black	Fuel Pump Ground

Fig 8: Fuel Pump Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

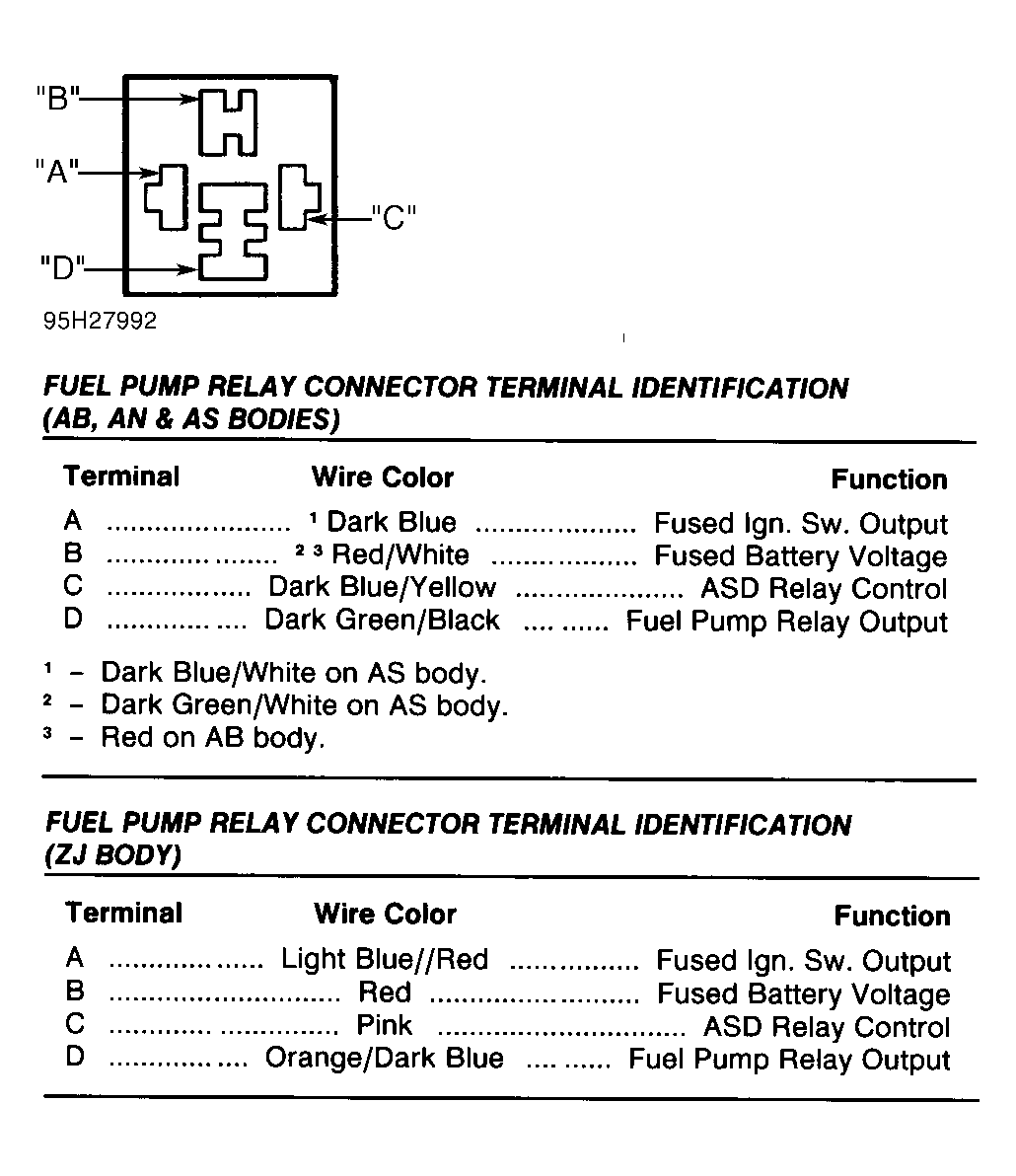

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Dark Green/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 9: Fuel Pump Relay Connector Terminal ID - 1 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 10: Fuel Pump Relay Connector Terminal ID - 2 Of 2 (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

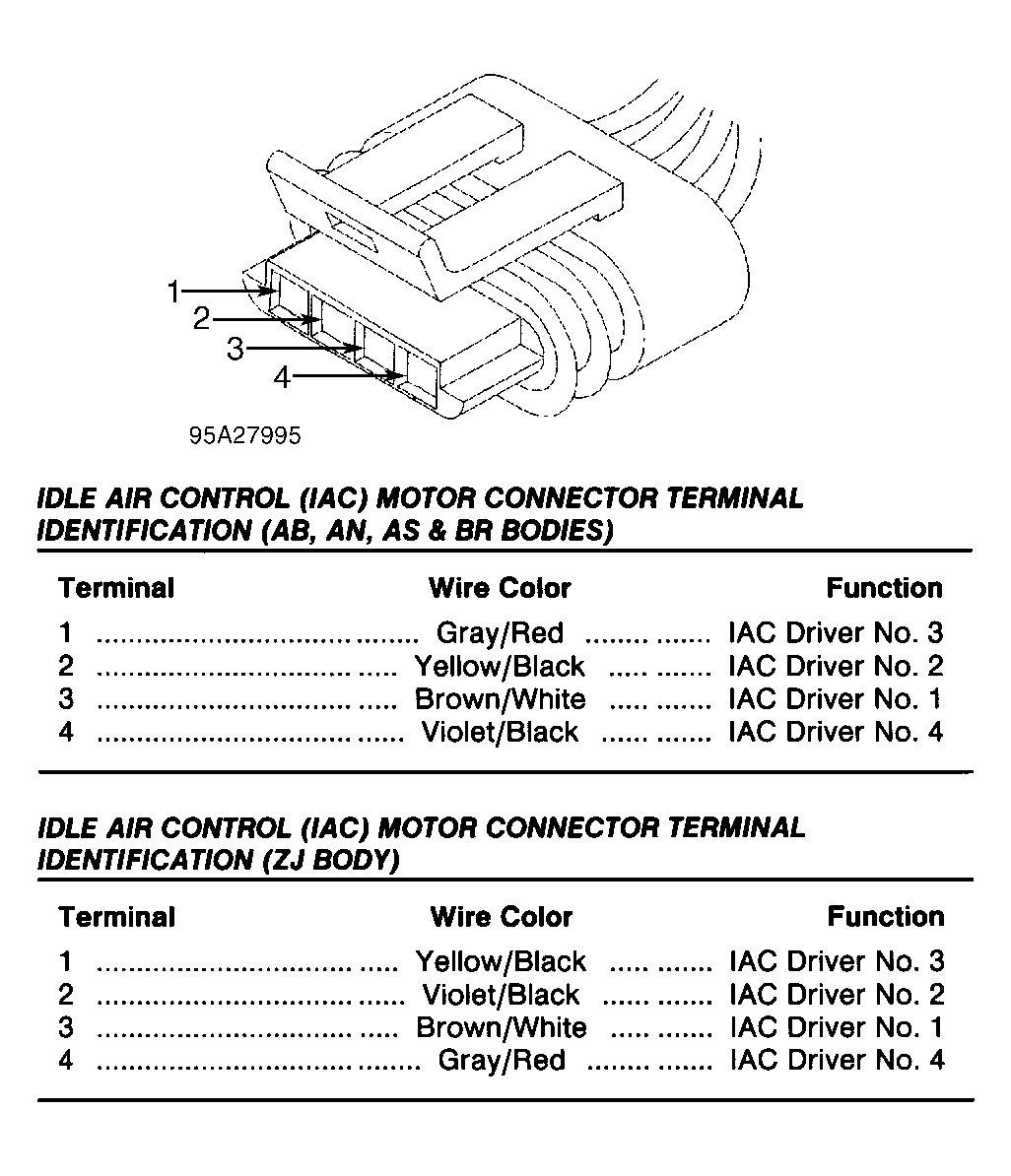

IAC MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 11: IAC Motor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

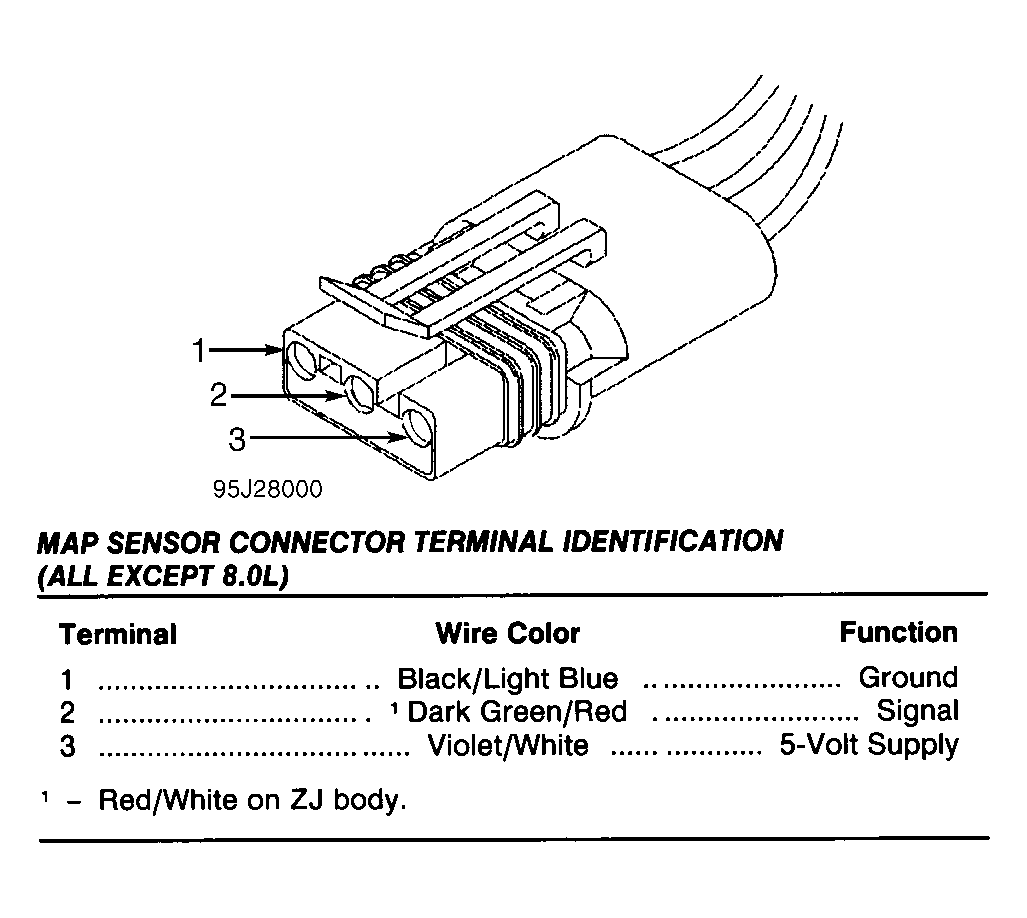

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 12: MAP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

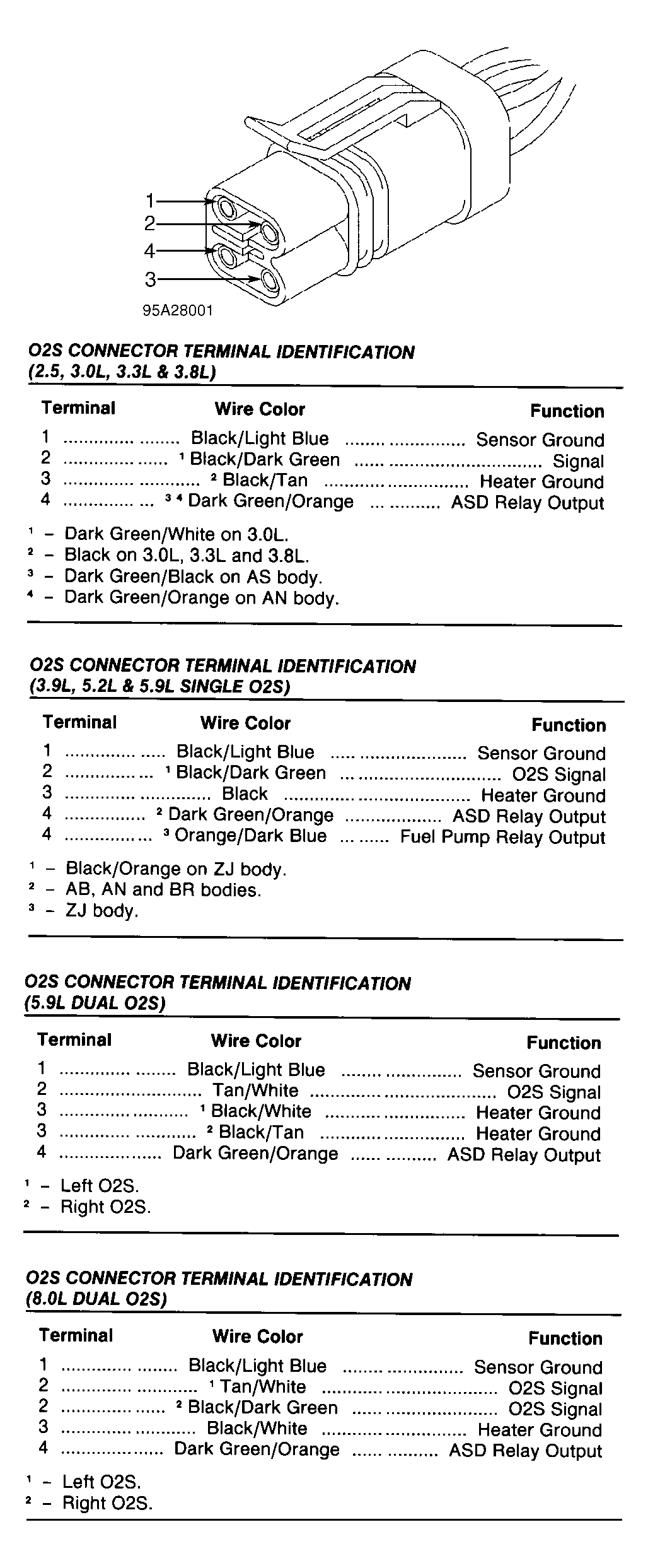

O2S CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black/Tan	Heater Ground
4	Dark Green/Black	ASD Relay Output

Fig 13: Identifying O2S Connector Terminals (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

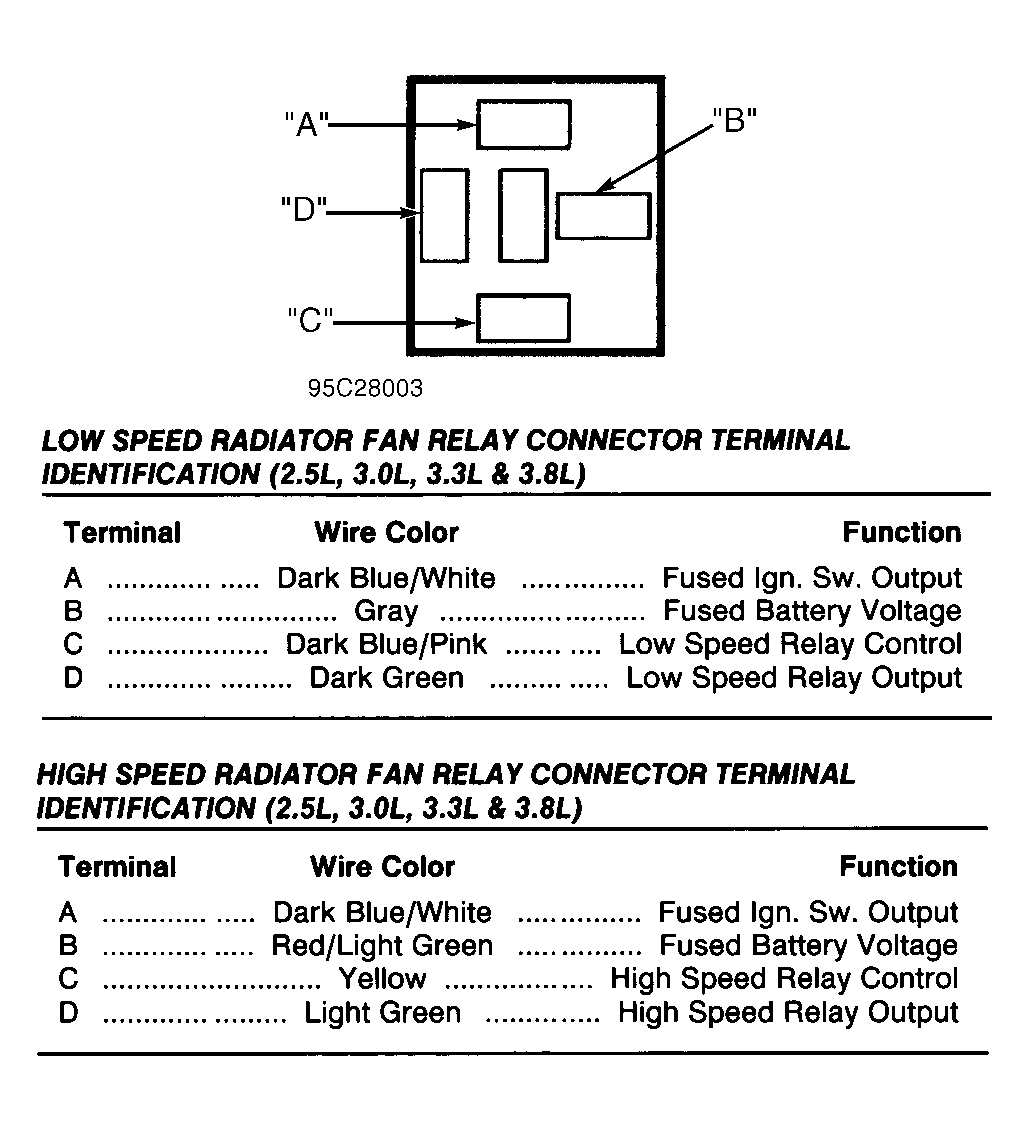

LOW SPEED RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Gray	Fused Battery Voltage
C	Dark Blue/Pink	Low Speed Relay Control
D	Dark Green	Low Speed Relay Output

Fig 14: Low/High Speed Radiator Fan Relay Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

HIGH SPEED RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue/White	Fused Ign. Sw. Output
B	Red/Light Green	Fused Battery Voltage
C	Yellow	High Speed Relay Control
D	Light Green	High Speed Relay Output

Fig 15: Low/High Speed Radiator Fan Relay Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

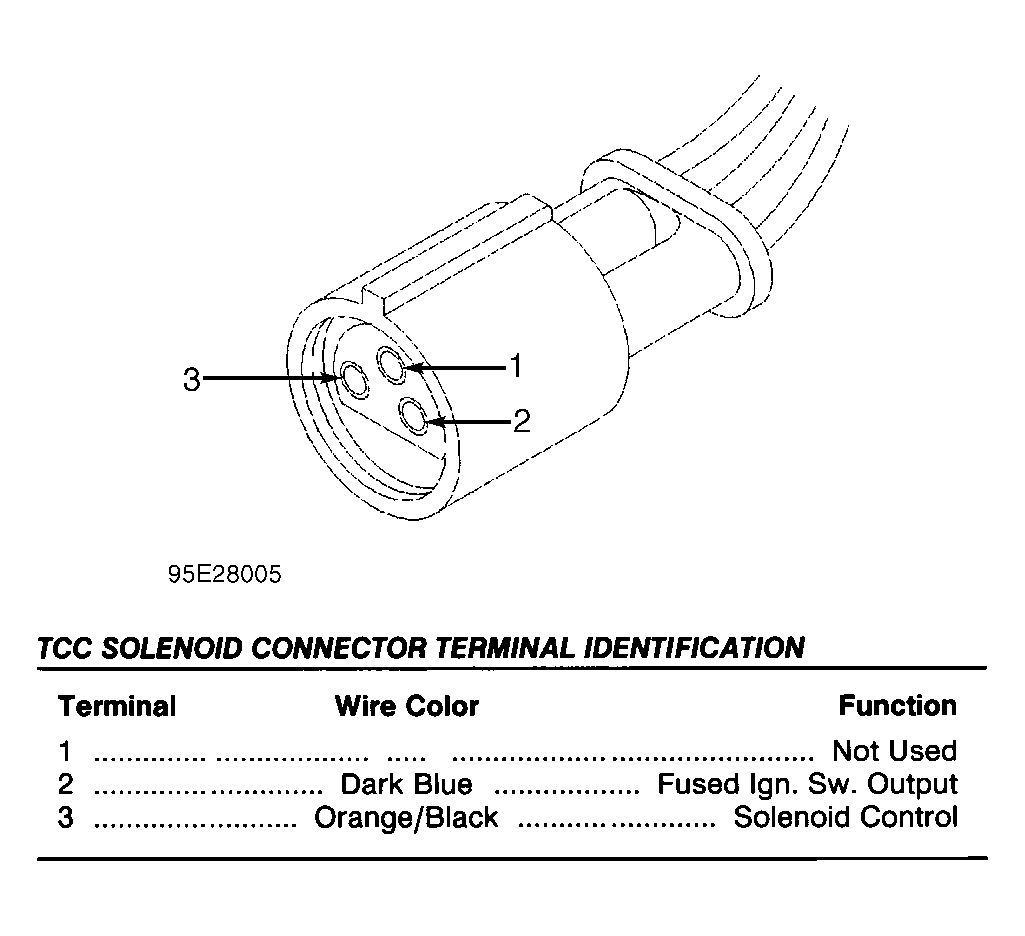

TCC SOLENOID CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	---	Not Used
2	Dark Blue	Fused Ign. Sw. Output
3	Orange/Black	Solenoid Control

Fig 16: TCC Solenoid Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

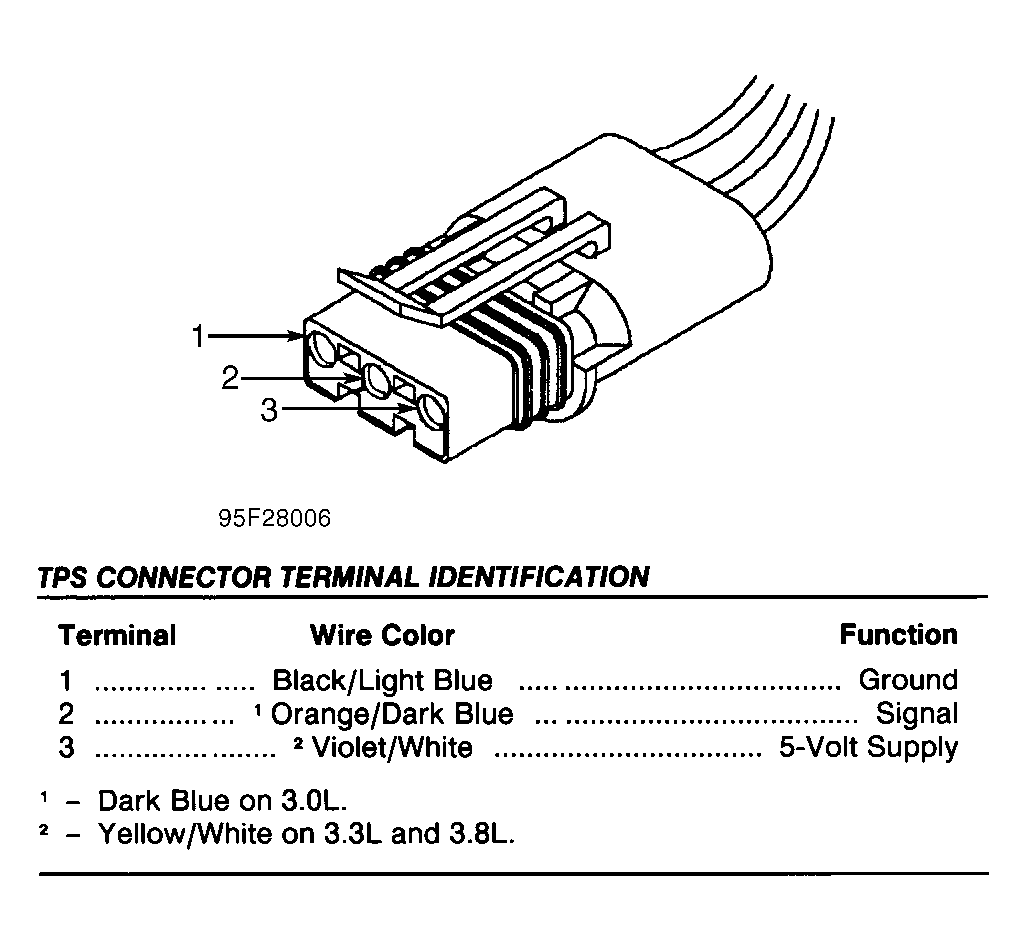

TPS CONNECTOR TERMINAL IDENTIFICATION

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 17: TP Sensor Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

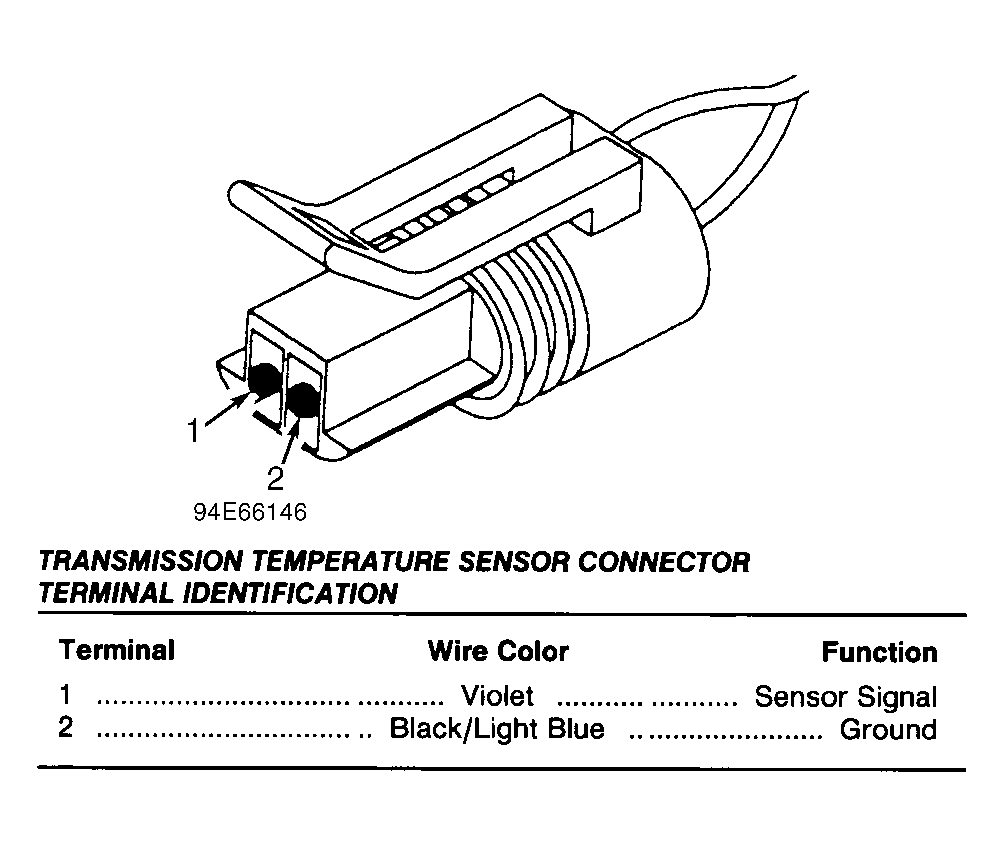

TRANSMISSION TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Violet	Sensor Signal
2	Black/Light Blue	Ground

Fig 18: Transmission Temp. Sensor Conn. Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.

Fig 19: PCM Connector Terminal ID (Caravan & Voyager)

Courtesy of CHRYSLER CORP.
