Fuel Pump Module: Installation

  1. Ensure sealing area on fuel tank is clean. Using NEW rubber gasket, install fuel pump module on fuel tank. DO NOT reuse rubber gasket. Ensure rubber gasket remains in place.
    NOTE: Fuel pump module must be properly positioned in fuel tank to prevent float from contacting the fuel tank.
  2. Rotate fuel pump module so alignment arrow on fuel pump module is at 7 o'clock position and aligns with reference mark on fuel tank. See Fig 2. Install and hand tighten fuel pump module lock nut.
  3. Note location of fuel pressure regulator on fuel pump module. See Figure. Ensure fuel filter/pressure regulator is positioned on fuel pump module so fuel line fitting on side fuel filter/fuel pressure regulator points toward driver's side of vehicle.
  4. Hold fuel pump module in place while tightening fuel pump module lock nut to specification. See TORQUE SPECIFICATIONS . Reinstall fuel tank using proper procedure.

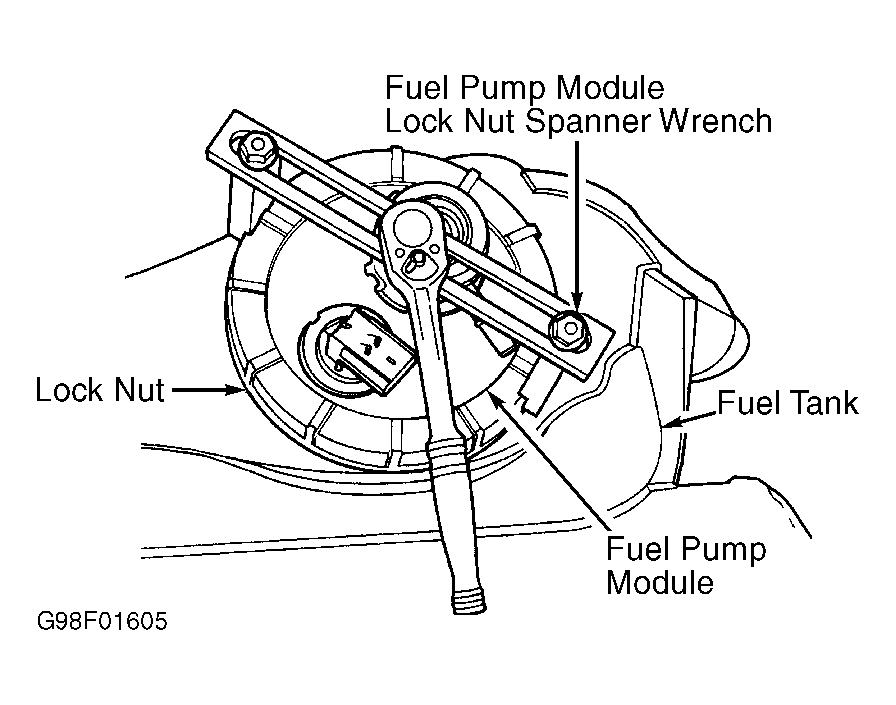

Fig 1: Removing & Installing Typical Fuel Pump Module Lock Nut (Dakota, Ram Pickup, Ram Van * Ram Wagon)
G98F01605Courtesy of CHRYSLER LLC

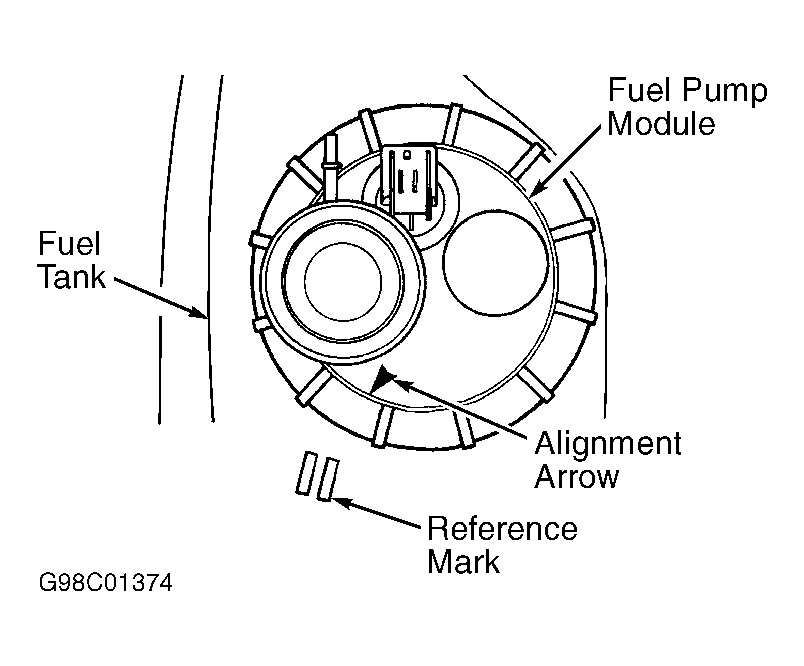

Fig 2: Positioning Fuel Pump Module In Fuel Tank (Dakota)
G98C01374Courtesy of CHRYSLER LLC


  1. Ensure sealing area on fuel tank is clean. Using NEW rubber gasket, install fuel pump module on fuel tank. DO NOT reuse rubber gasket. Ensure rubber gasket remains in place.
    NOTE: Fuel pump module must be properly positioned in fuel tank to prevent float from contacting the fuel tank.
  2. Rotate fuel pump module so fuel pump is properly positioned in the fuel tank. See Fig 1. Apply a small amount of engine oil on each locking finger at fuel pump module lock ring area. Install fuel pump lock ring on fuel pump module.
  3. Using a hammer and brass drift, tap fuel pump module lock ring clockwise until the 6 locking fingers engage in fuel pump module lock ring and lock tab engages notch on fuel pump module lock ring. Ensure lock tab fully engages with notch on fuel pump module lock ring. Reinstall fuel tank using proper procedure.
Fig 1: Locating Fuel Pump Module Lock Ring, Locking Fingers & Positioning Fuel Pump Module In Fuel Tank (Durango)
G98F01375Courtesy of CHRYSLER LLC


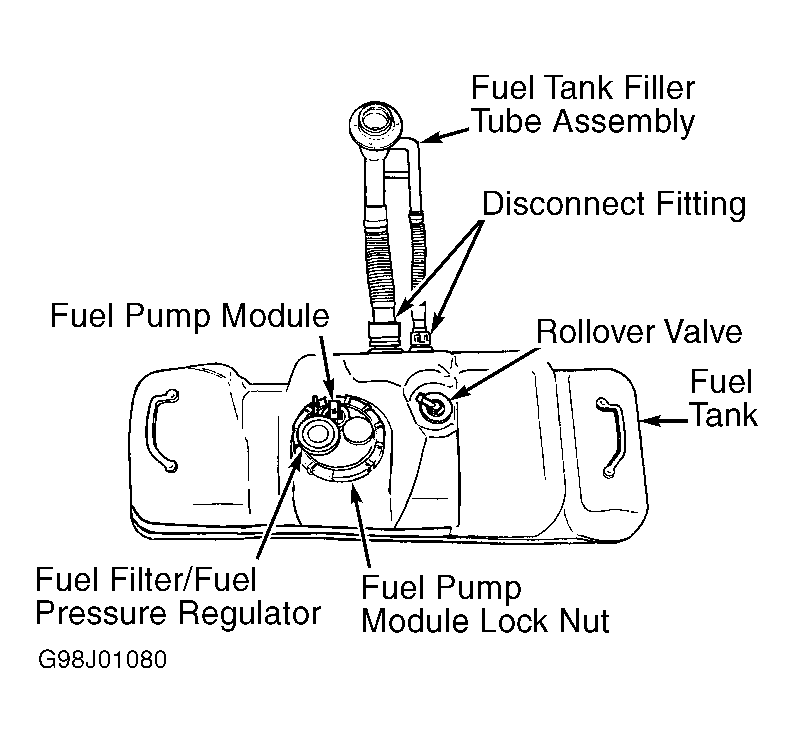

  1. Ensure sealing area on fuel tank is clean. Using NEW rubber gasket, install fuel pump module on fuel tank. DO NOT reuse rubber gasket. Ensure rubber gasket remains in place.
    NOTE: Fuel pump module must be properly positioned in fuel tank to prevent float from contacting the fuel tank.
  2. Loosely install fuel pump module lock nut. Rotate fuel pump module so electrical connector is pointing toward driver's side of fuel tank. See Figure.
  3. Note location of fuel pressure regulator on fuel pump module. See Figure. Ensure fuel filter/pressure regulator is positioned on fuel pump module so fuel line fitting on side fuel filter/fuel pressure regulator points toward driver's side of fuel tank.
  4. Hold fuel pump module in place while tightening fuel pump module lock nut to specification. See TORQUE SPECIFICATIONS . Reinstall fuel tank using proper procedure.


  1. Ensure sealing area on fuel tank is clean. Using NEW rubber gasket, install fuel pump module on fuel tank. DO NOT reuse rubber gasket. Ensure rubber gasket remains in place.
    NOTE: Fuel pump module must be properly positioned in fuel tank to prevent float from contacting the fuel tank.
  2. Rotate fuel pump module so alignment mark on fuel pump module aligns with reference mark on fuel tank. See Fig 1. Install and hand tighten fuel pump module lock nut.
  3. Note location of fuel pressure regulator on fuel pump module. See Fig 1. Ensure fuel filter/pressure regulator is positioned on fuel pump module so fuel line fitting on side fuel filter/fuel pressure regulator points toward driver's side of vehicle.
  4. Hold fuel pump module in place while tightening fuel pump module lock nut to specification. See TORQUE SPECIFICATIONS . Reinstall fuel tank using proper procedure.

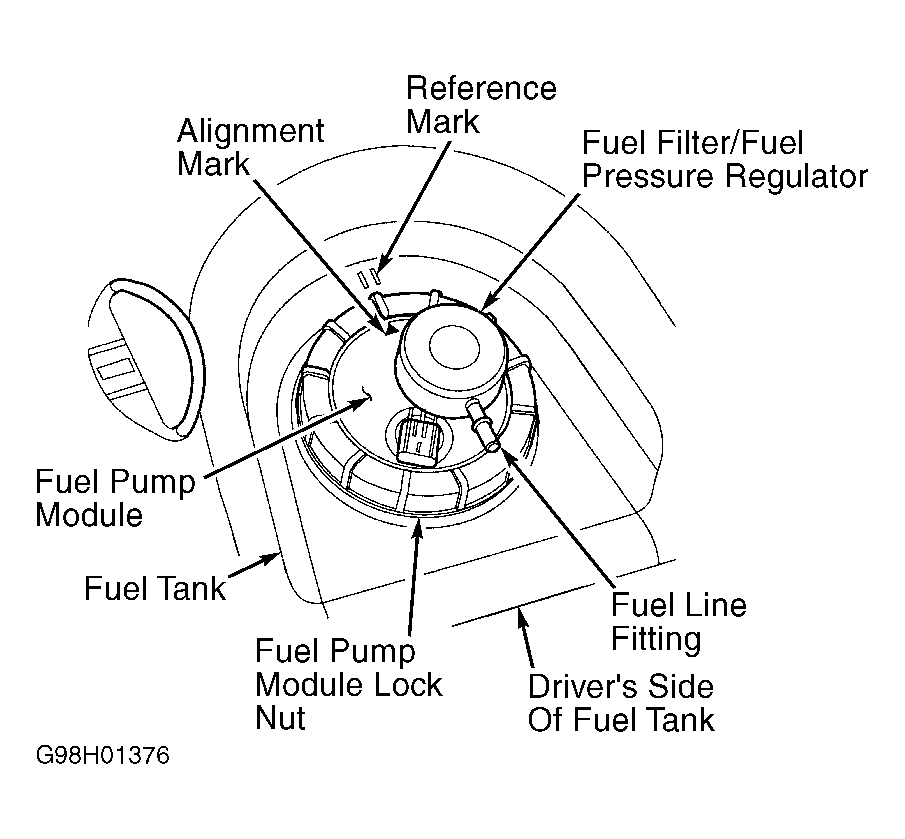

Fig 1: Positioning Fuel Pump Module In Fuel Tank & Fuel Filter/Fuel Pressure Regulator (Ram Van & Ram Wagon)
G98H01376Courtesy of CHRYSLER LLC
