Removal (Durango)

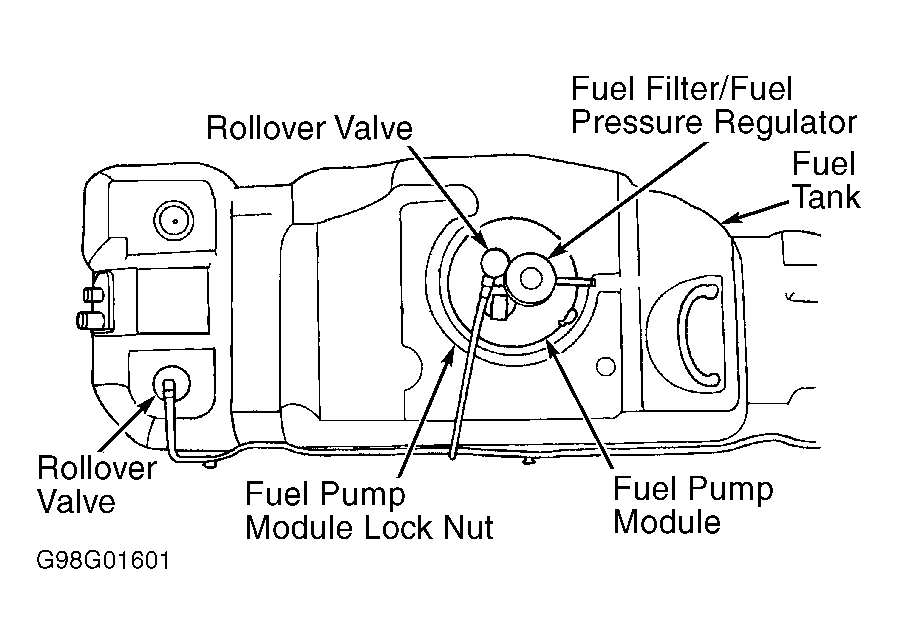

- Fuel pump module is located on top of fuel tank. See Figure. Fuel tank must be removed for servicing of fuel pump module. Remove fuel tank. See FUEL TANK .
- Ensure area around fuel pump module is clean. Rotate fuel filter/pressure regulator so fuel line fitting on side fuel filter/fuel pressure regulator points toward center of fuel pump module.

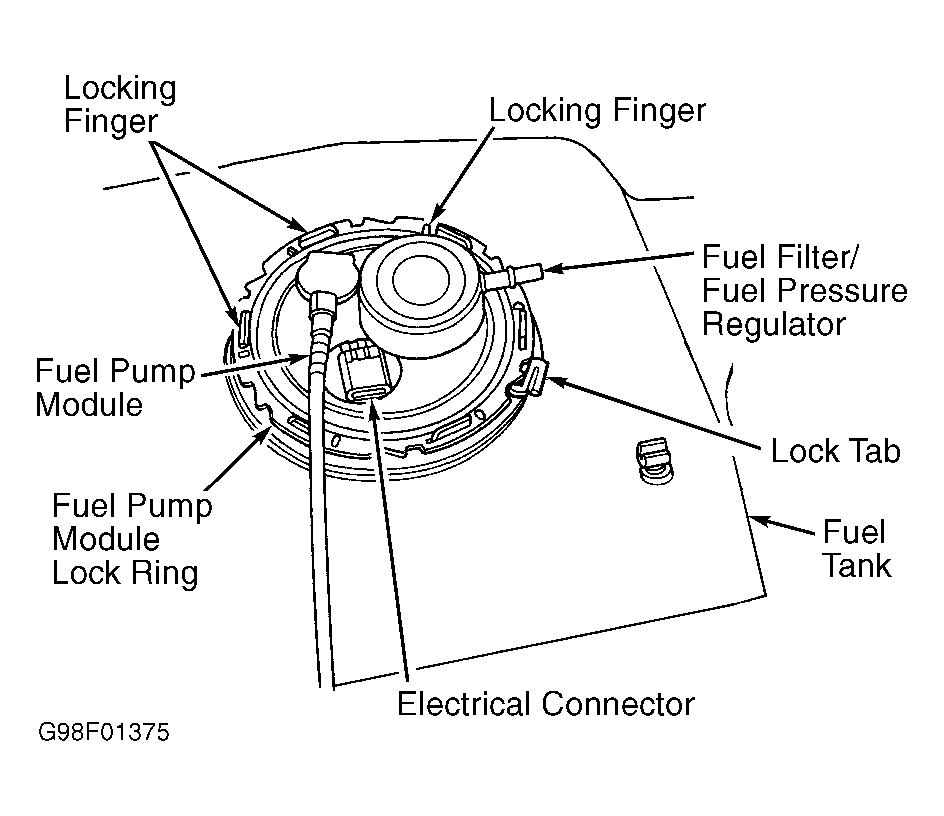

- Note location of metal fuel pump module lock ring and locking fingers on fuel tank. See Figure. There are 6 locking fingers molded into plastic fuel tank.
- Apply a small amount of engine oil on each locking finger at fuel pump module lock ring area. Engine oil will act as a lubricant when removing fuel pump module lock ring.
- Note location of lock tab on fuel pump module lock ring. Pry lock tab backward while using a hammer and brass drift to tap fuel pump module lock ring counterclockwise. Remove fuel pump module lock ring, fuel pump module and rubber gasket from fuel tank.
CAUTION:
When fuel pump module is removed from fuel tank, rubber gasket must be replaced. DO NOT reuse rubber gasket.
