Fuel Level Sending Unit/Sensor: Removal

Remove fuel pump module. Refer to FUEL PUMP MODULE .

1. Depress retaining tab and remove the fuel pump/level sensor connector from the BOTTOM  of the fuel pump module electrical connector (Fig 1).
   NOTE: The pump module harness on TOP of flange is not serviceable or removable.

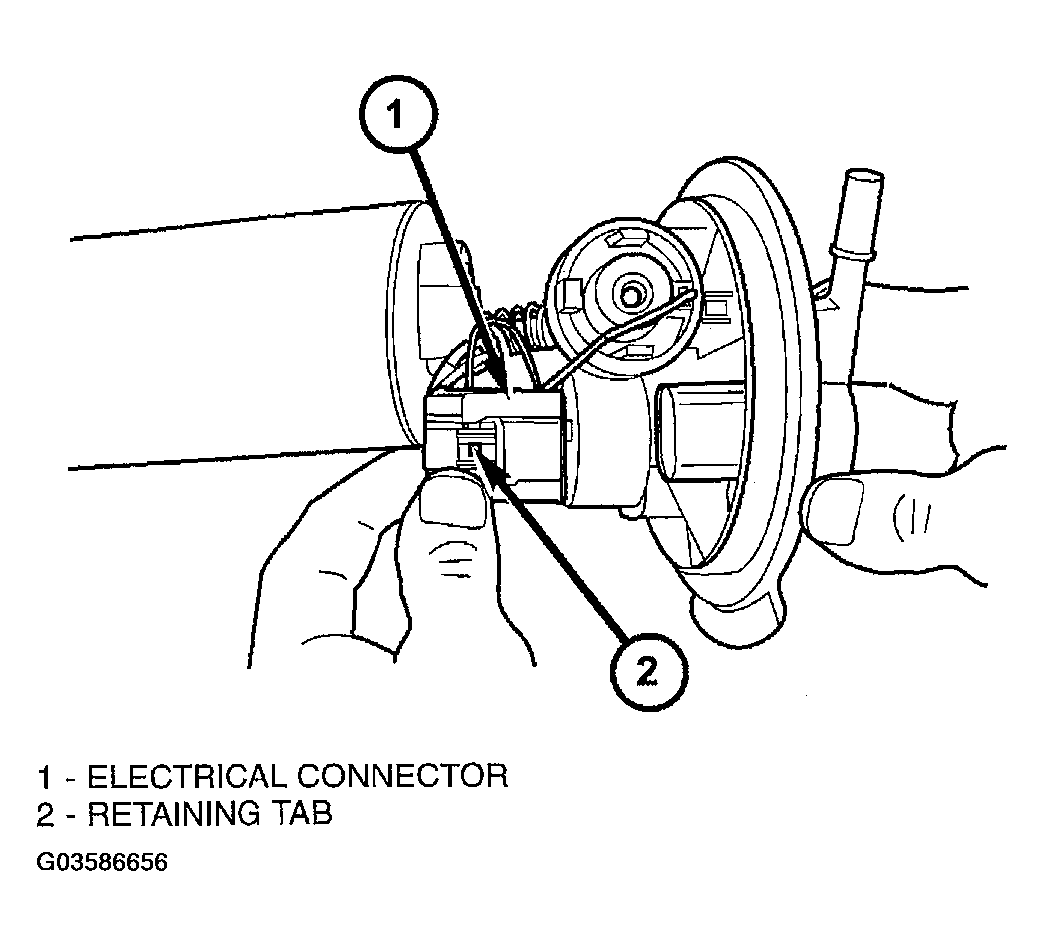

   Fig 1: Removing Fuel Pump/Level Sensor Electrical Connector

   Courtesy of DAIMLERCHRYSLER CORP.
2. Pull off the locking wedge.
3. Using a small screwdriver lift locking finger away from terminal and push terminal out of connector (Fig 2).

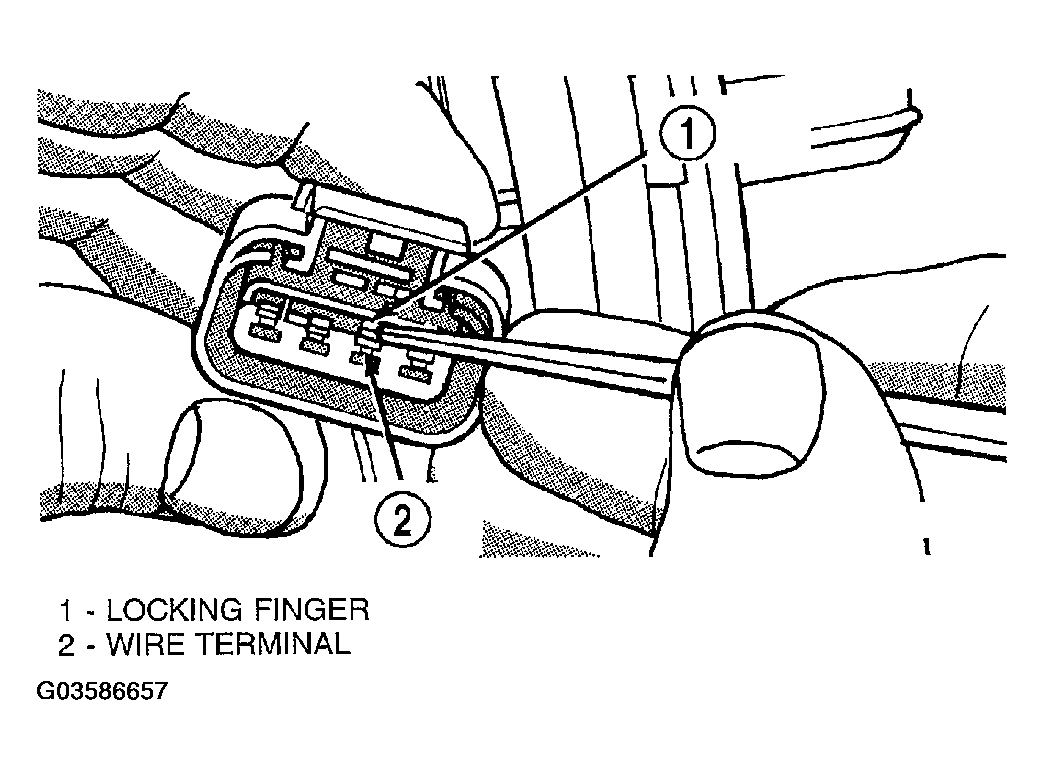

   Fig 2: Identifying Wire Terminal Locking Finger

   Courtesy of DAIMLERCHRYSLER CORP.
4. Push level sensor signal and ground terminals out of the connector (Fig 3).

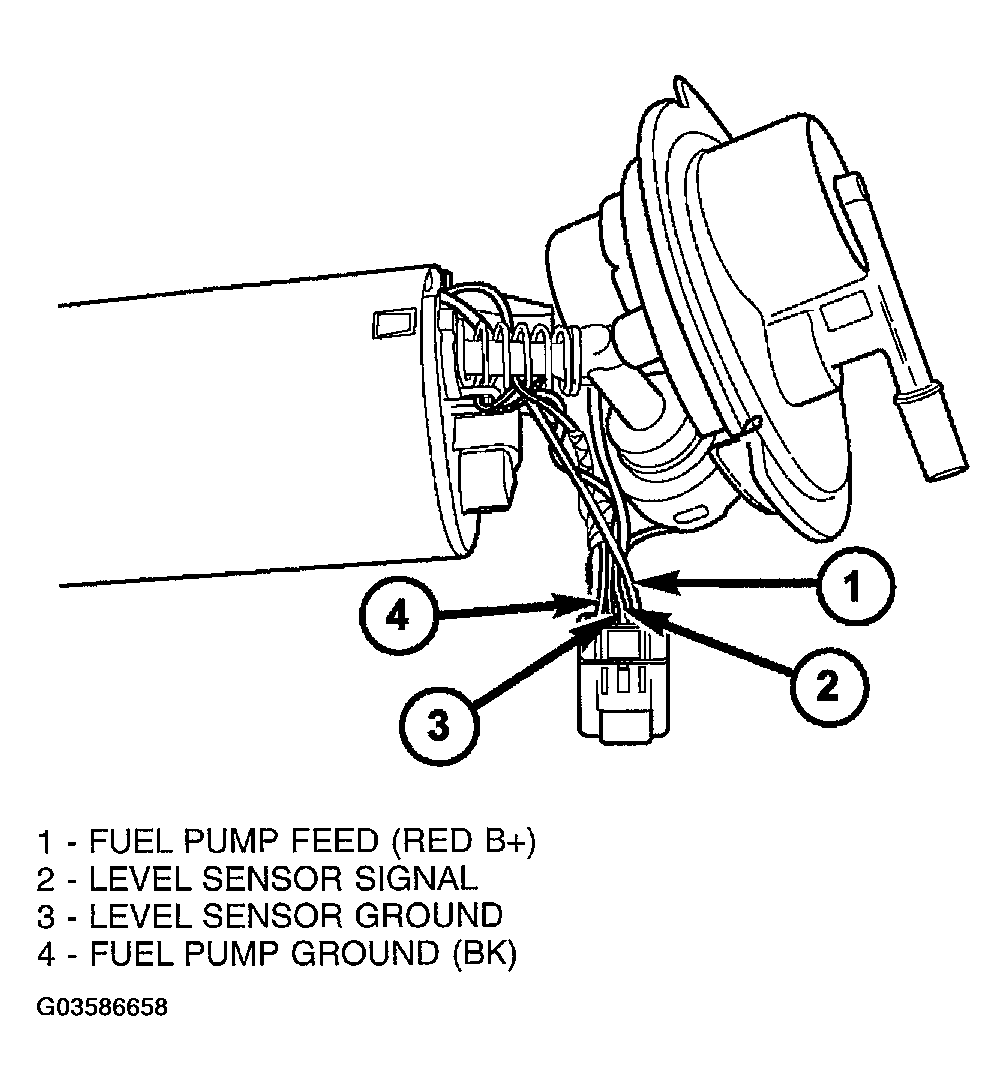

   Fig 3: Pushing Terminals Out Of Connector

   Courtesy of DAIMLERCHRYSLER CORP.
5. Insert a screwdriver between the fuel pump module and the top of the level sensor housing (Fig 4). Push level sensor down slightly.

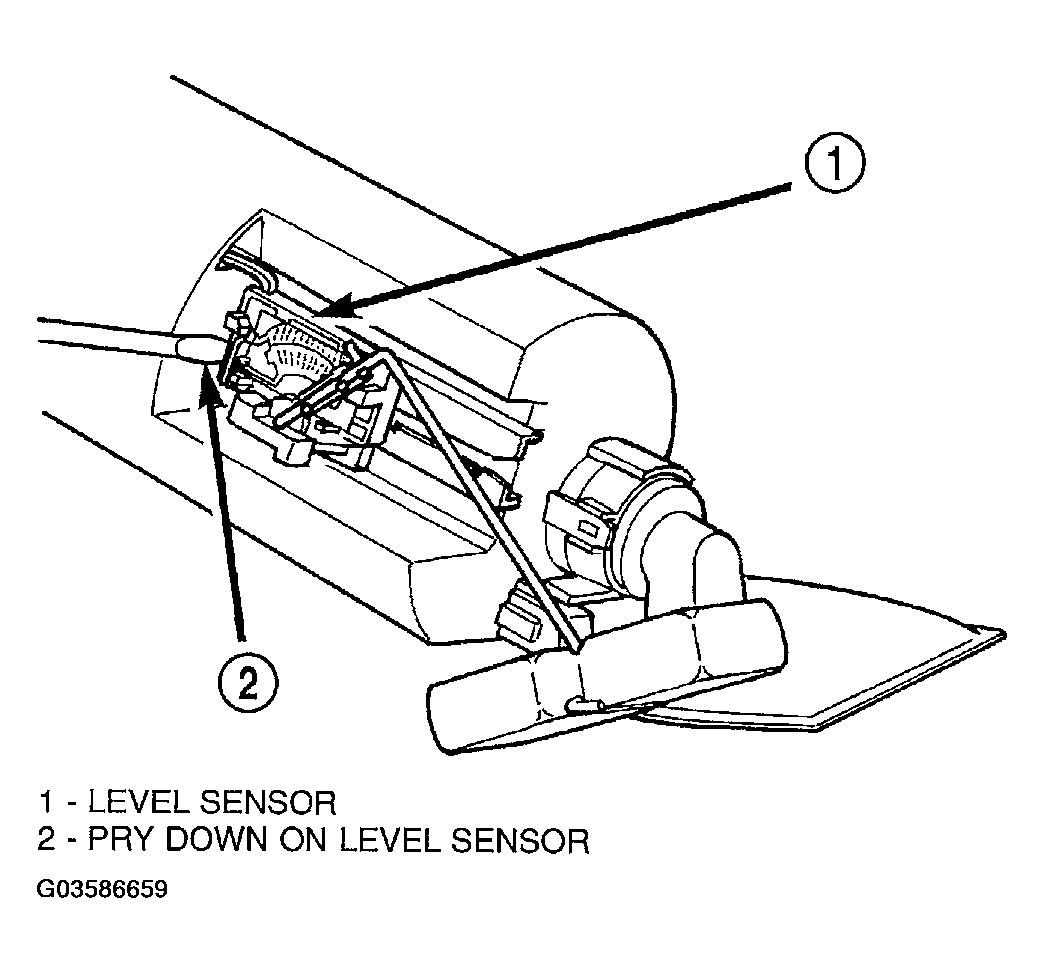

   Fig 4: Loosening Level Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
6. Slide level sensor wires through opening fuel pump module (Fig 5).

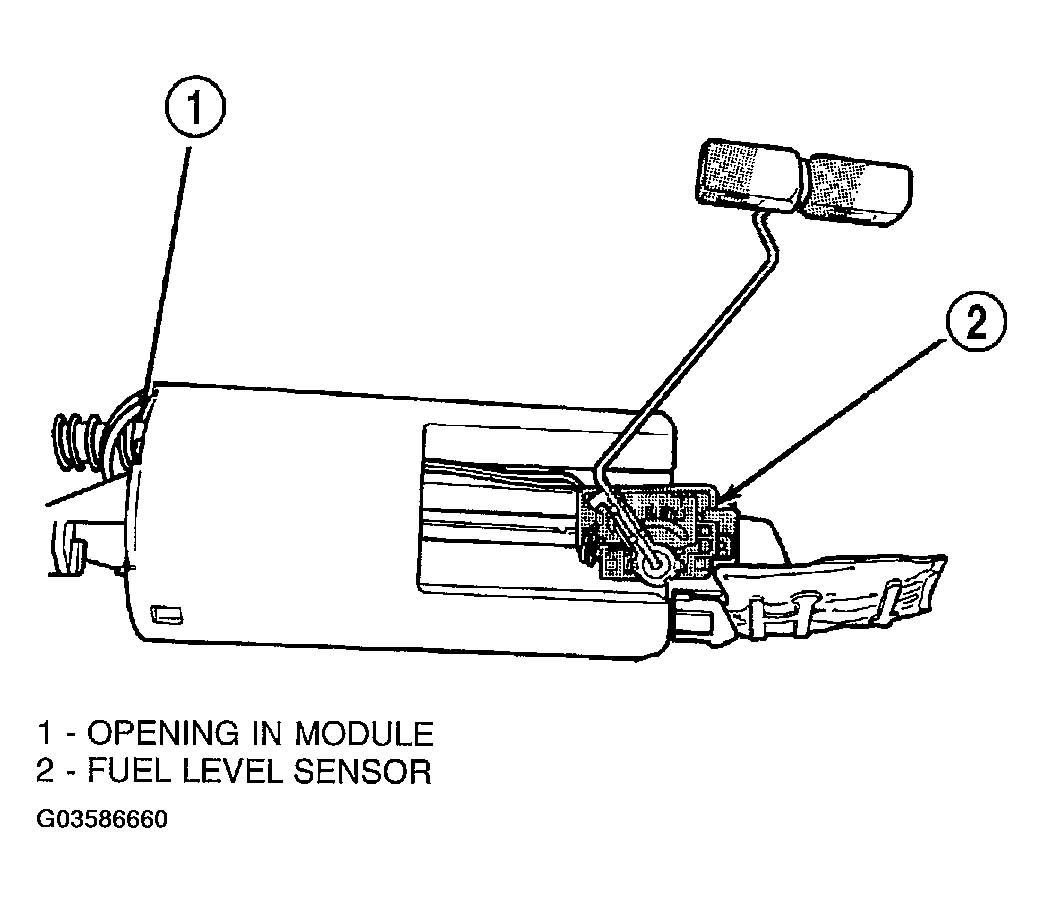

   Fig 5: Removing/Installing Level Sensor

   Courtesy of DAIMLERCHRYSLER CORP.
7. Slide level sensor out of installation channel in module.
