O2 Sensor: Description

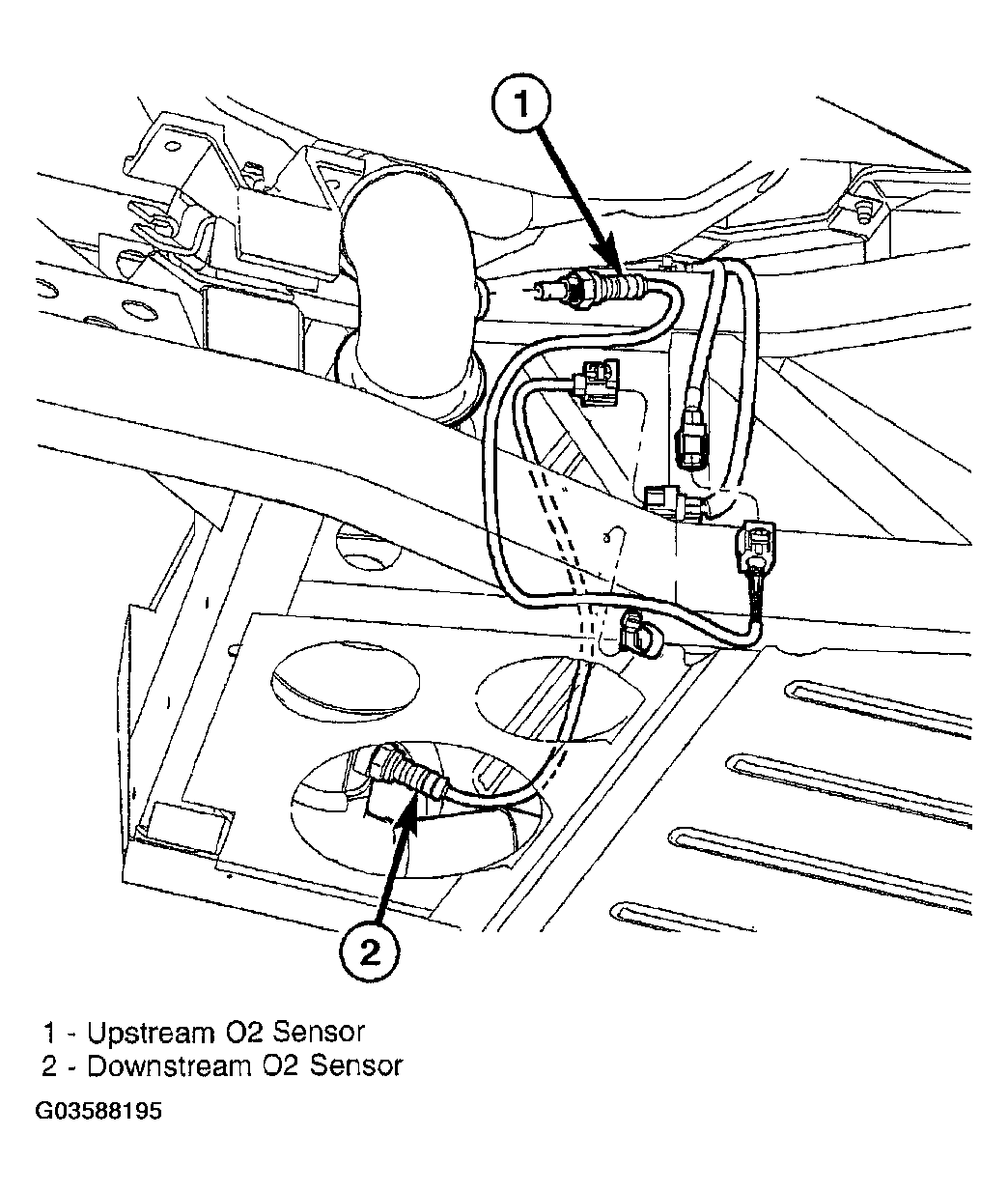

The upstream O2 sensors are in the exhaust system in the exhaust manifold collertor area before the upstream catalytic convertor (Fig 1).
Courtesy of DAIMLERCHRYSLER CORP.
The downstream O2 sensors are in the exhaust system in between the catalytic convertors (Fig 1).
