CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

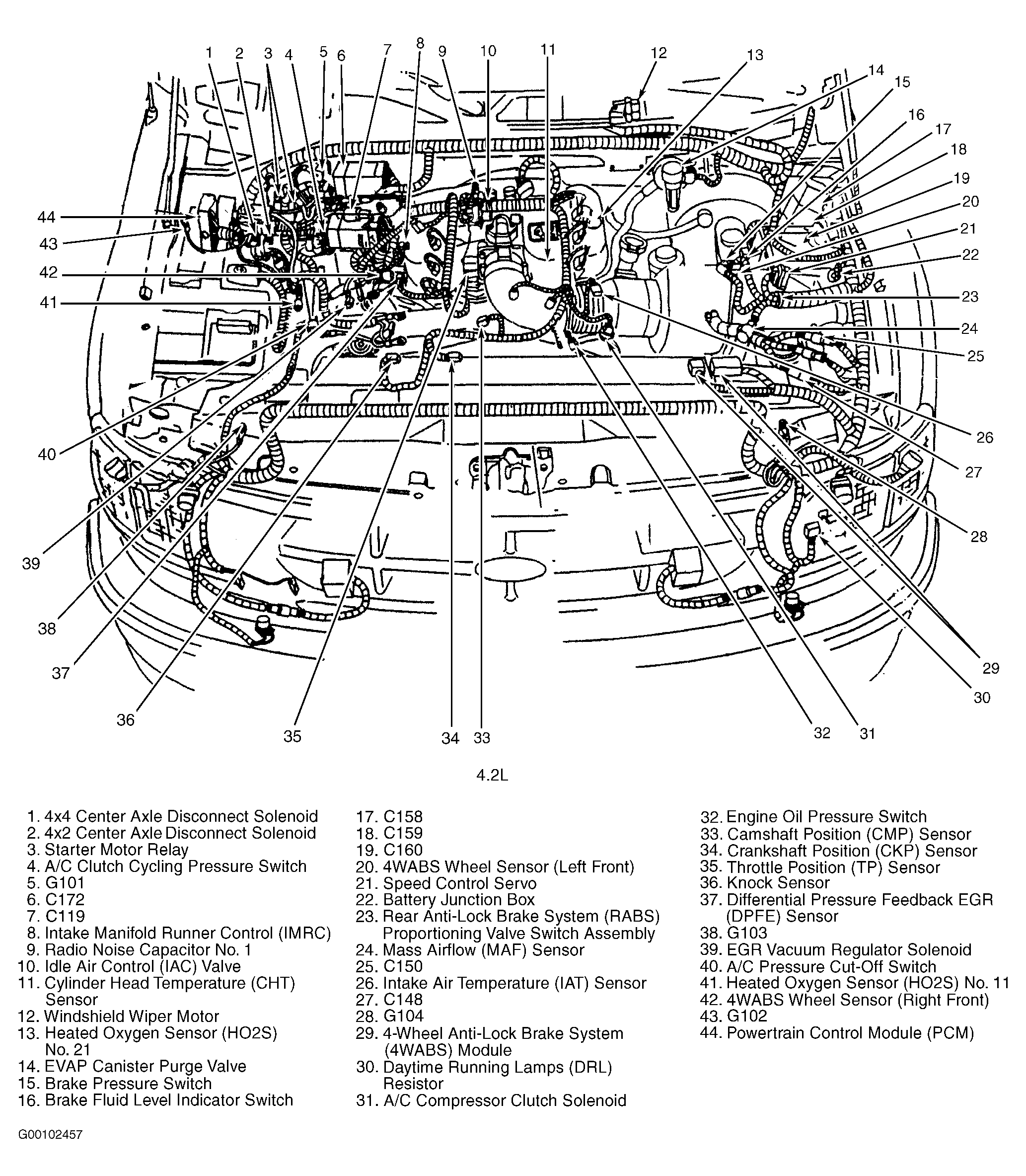

| Battery Junction Box (4.2L) | In left side of engine compartment. See Figure . |

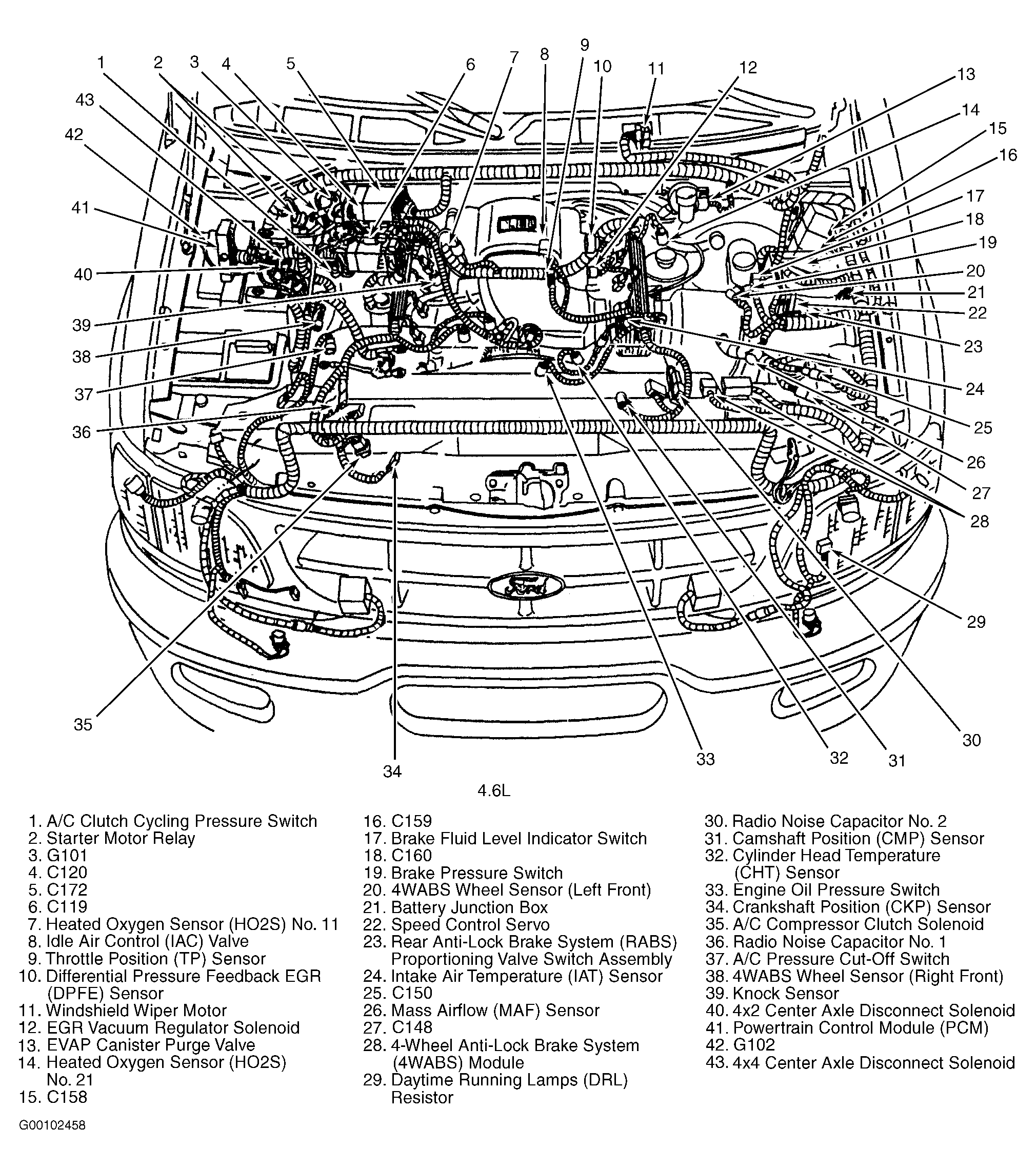

| Battery Junction Box (4.6L) | In left side of engine compartment. See Figure . |

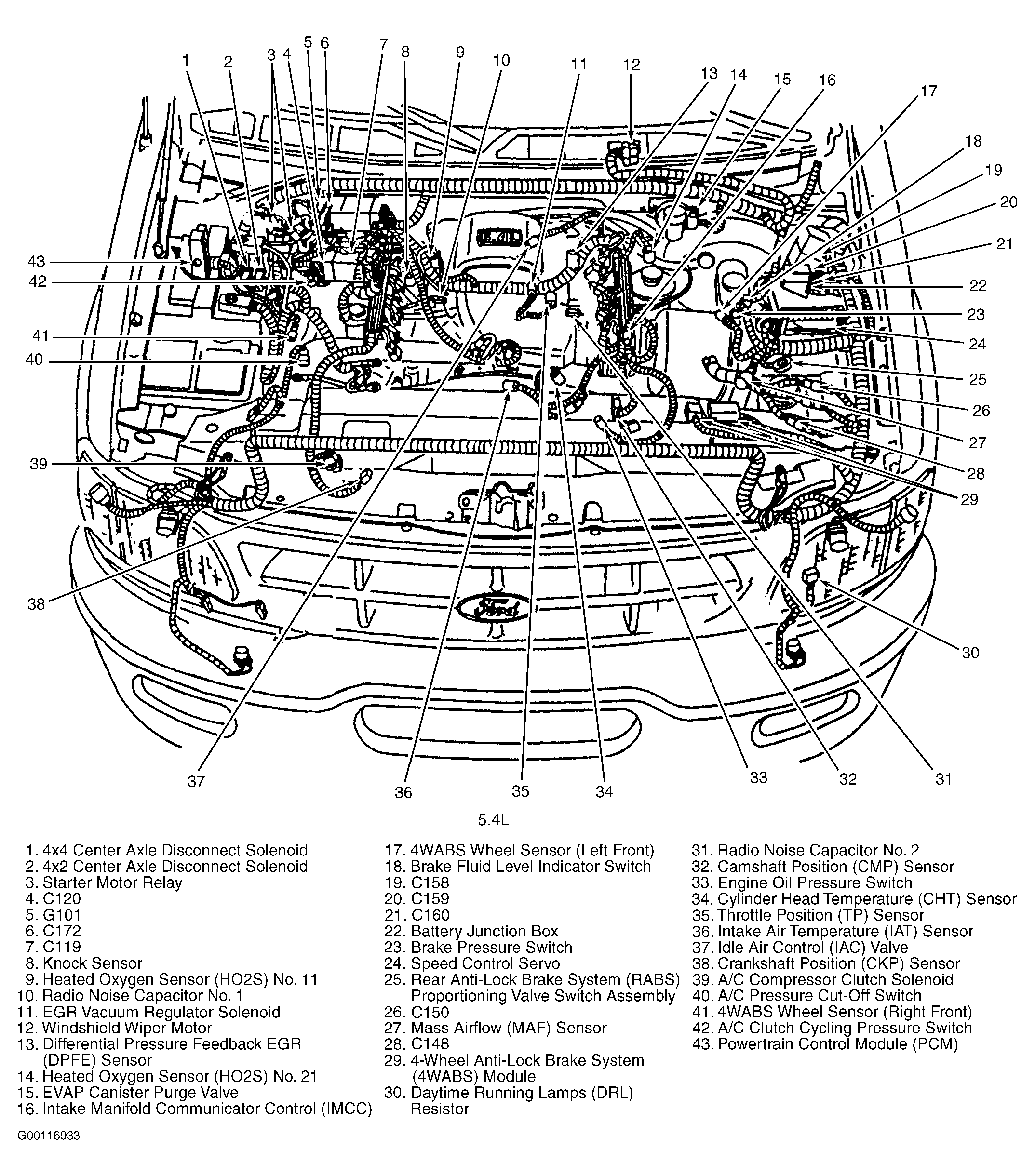

| Battery Junction Box (5.4L) | In left side of engine compartment. See Figure . |

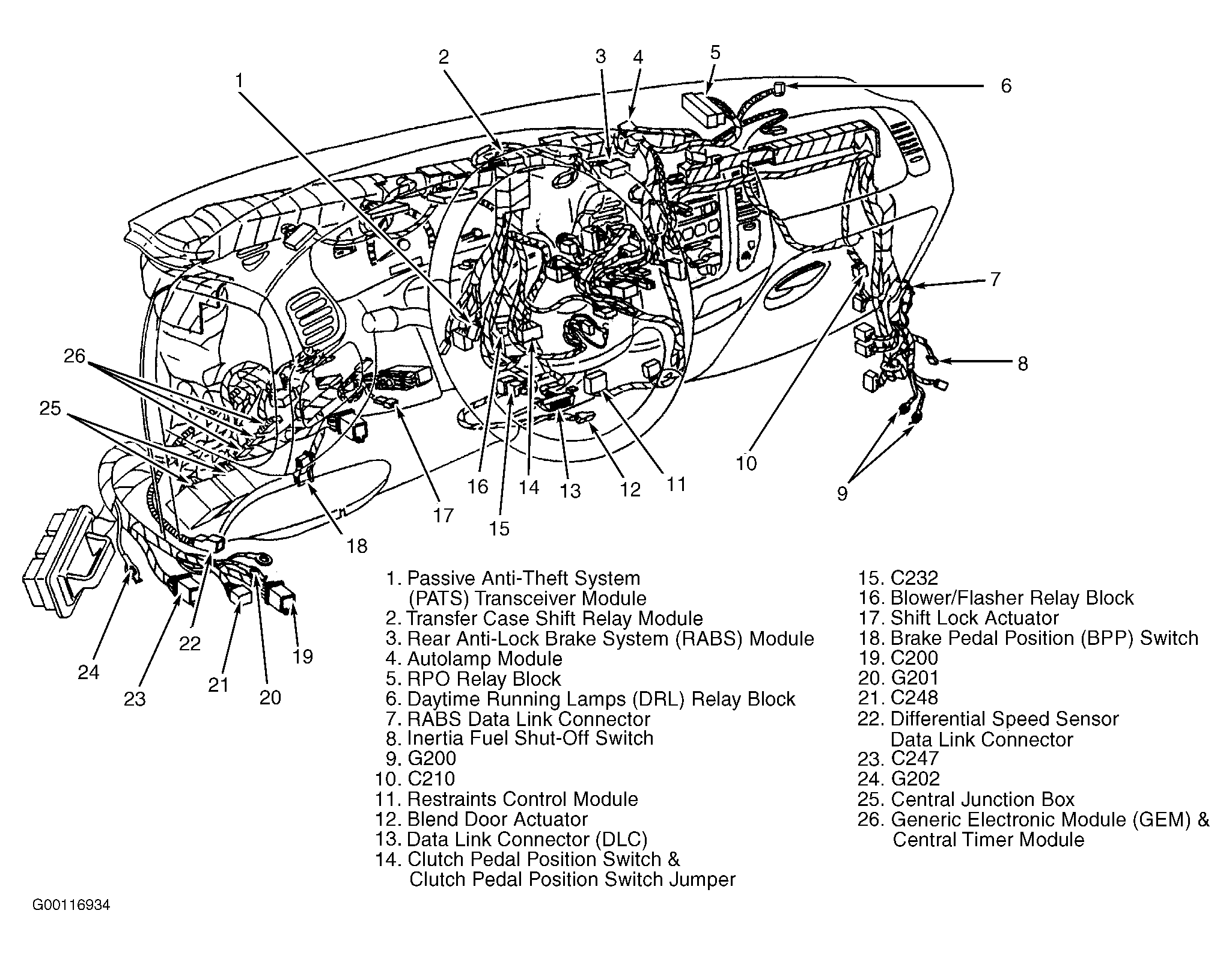

| Blower/Flasher Relay Block | Behind center of dash. See Figure . |
| Central Junction Box | Under left side of dash. See Figure . |
| Daytime Running Lamps (DRL) Relay Block | Under right side of dash. See Figure . |
| Fuse Link A | On engine near battery. |
| Fuse Link B | On engine near battery. |
| Fuse Link C | On engine near battery. |
| In-Line Fuse | In right side of engine compartment, near battery. |
| In-Line Fuse (CNG/LPG) | Behind left side of dash. |
| Lock Relay Block | Behind right side of dash. |
| RPO Relay Block | Behind right side of dash. See Figure . |
