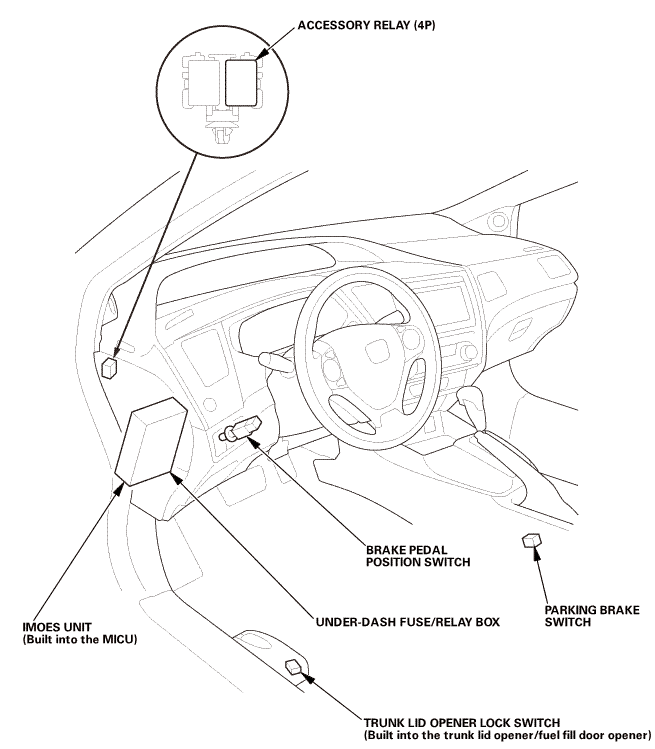

| ACCESSORY RELAY (4P) |
Test - Refer to: Power Relay Test (Natural Gas) ('14-'15)
, Power Relay Test ('14-'15: except Natural Gas models) |
| BRAKE PEDAL POSITION SWITCH |
Test |
| CLUTCH PEDAL POSITION SWITCH A (M/T) |
Adjustment - Refer to: Clutch Pedal Assembly Removal and Installation (M/T)
, Clutch Pedal and Clutch Pedal Position Switch Adjustment (M/T) |
| Removal and Installation - Refer to: Clutch Pedal Assembly Removal and Installation (M/T)
, Clutch Pedal and Clutch Pedal Position Switch Adjustment (M/T) |
| DRIVER'S DOOR OUTER HANDLE LOCK SWITCH/LF ANTENNA/TOUCH SENSOR (Built into the driver's door outer handle) |
LF Antenna Test - Refer to: Door and Trunk LF Antenna Test
, Interior LF Antenna Test |
| Outer Handle Removal and Installation - Refer to: Front Door Outer Handle Removal and Installation (4-door)
, Front Door Outer Handle Removal and Installation (4-door) |
| Touch Sensor Circuit Troubleshooting |
| ECM (K24Z7 engine) |
Removal and Installation - Refer to: ECM Removal and Installation (K24Z7)
, ECM/PCM Removal and Installation (Except K24Z7 and R18Z1 (CVT)) |
| Update - Refer to: ECM/PCM Update |
| ECM/PCM (Except K24Z7 engine) |
Removal and Installation - Refer to: ECM Removal and Installation (K24Z7)
, ECM/PCM Removal and Installation (Except K24Z7 and R18Z1 (CVT)) |
| Update - Refer to: ECM/PCM Update |

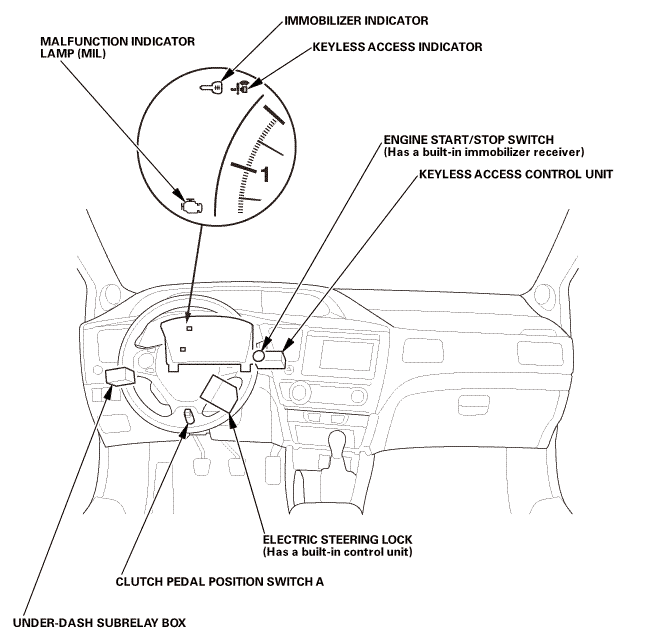

| ELECTRIC STEERING LOCK (Has a built-in control unit) (M/T or CVT (Canada models)) |
Input Test - Refer to: Keyless Access System (Keyless Access Control Unit and Electric Steering Lock) Input Test (Except KA KL models CVT)
, Keyless Access System (Keyless Access Control Unit) Input Test (KA KL models CVT) ('14-'15) |
| Removal and Installation |
| ENGINE START/STOP SWITCH |
Removal and Installation |
| Test |

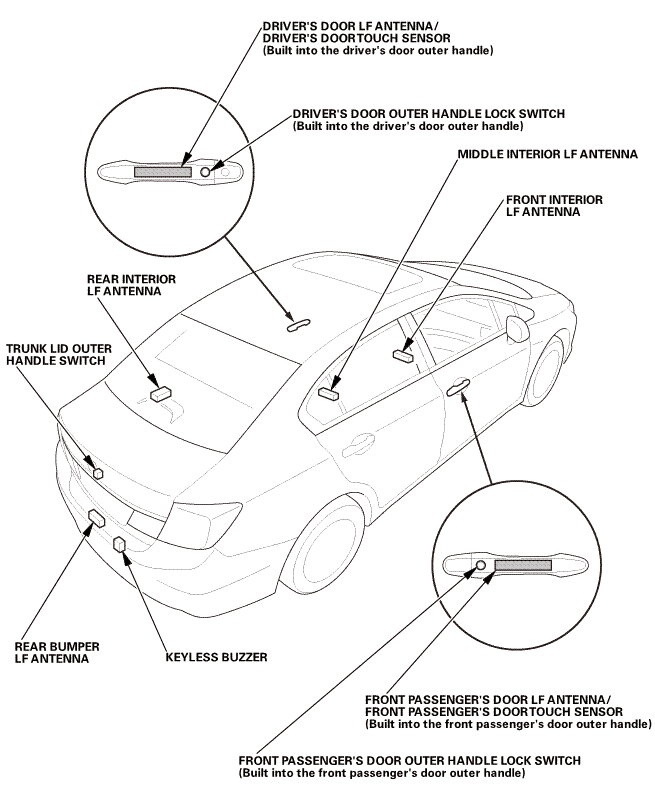

| FRONT INTERIOR LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Front Interior) Removal and Installation |
| Test - Refer to: Door and Trunk LF Antenna Test
, Interior LF Antenna Test |
| FRONT PASSENGER'S DOOR OUTER HANDLE LOCK SWITCH/LF ANTENNA/TOUCH SENSOR (Built into the front passenger's door outer handle) |
LF Antenna Test - Refer to: Door and Trunk LF Antenna Test
, Interior LF Antenna Test |
| Outer Handle Removal and Installation - Refer to: Front Door Outer Handle Removal and Installation (4-door)
, Front Door Outer Handle Removal and Installation (4-door) |
| Touch Sensor Circuit Troubleshooting |
| IMOES UNIT (Built into the MICU) |
Removal and Installation - Refer to: Under-Dash Fuse/Relay Box Removal and Installation (KA models with Keyless Access System)
, Under-Dash Fuse/Relay Box Removal and Installation (KA KX models without Keyless Access System) |
| KEYLESS ACCESS CONTROL UNIT |
Input Test - Refer to: Keyless Access System (Keyless Access Control Unit and Electric Steering Lock) Input Test (Except KA KL models CVT)
, Keyless Access System (Keyless Access Control Unit) Input Test (KA KL models CVT) ('14-'15) |
| Removal and Installation |
| KEYLESS BUZZER |
Circuit Troubleshooting |
| Removal and Installation |
| MIDDLE INTERIOR LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Middle Interior) Removal and Installation (4-door)
, Keyless Access LF Antenna (Middle Interior) Removal and Installation (4-door) |
| Test - Refer to: Door and Trunk LF Antenna Test
, Interior LF Antenna Test |

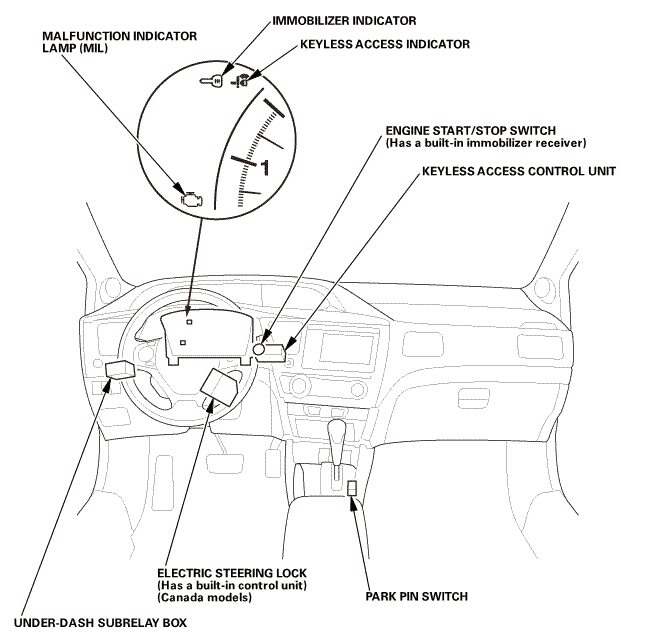

| PARK PIN SWITCH (CVT) |
Test |
| PARKING BRAKE SWITCH |
Test |
| REAR BUMPER LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Rear Bumper) Removal and Installation |
| Test - Refer to: Door and Trunk LF Antenna Test
, Interior LF Antenna Test |
| REAR INTERIOR LF ANTENNA |
Removal and Installation - Refer to: Keyless Access LF Antenna (Rear Interior) Removal and Installation |
| Test - Refer to: Door and Trunk LF Antenna Test
, Interior LF Antenna Test |

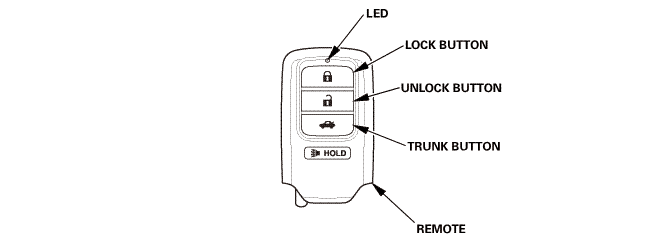

| REMOTE |
Registration |
| Test |

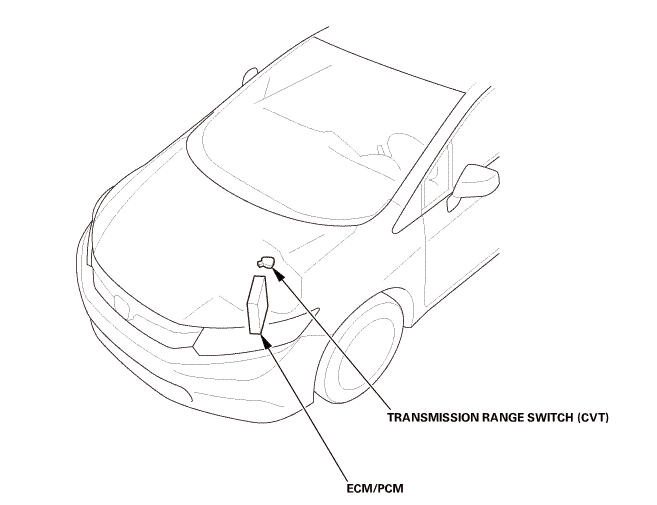

| TRANSMISSION RANGE SWITCH (CVT) |
Removal and Installation |
| Test |
| TRUNK LID OPENER LOCK SWITCH (Built into the trunk lid opener/fuel fill door opener) |
Removal and Installation |
| Test |
| TRUNK LID OUTER HANDLE SWITCH (K24Z7) |
Removal and Installation - Refer to: TRUNK LID OUTER HANDLE SWITCH REMOVAL AND INSTALLATION |
| Test |
| TRUNK LID OUTER HANDLE SWITCH (4-door) |
Removal, Installation, and Test - Refer to: Trunk Lid Outer Handle Switch Removal and Installation (4-door)
, Trunk Lid Outer Handle Switch Removal, Installation, and Test (4-door) |
| UNDER-DASH SUBRELAY BOX |
Removal, Installation, and Test |
