Voice Control Switch Test

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE: The HFL-navigation voice control switch and the HFL switch are the same parts.

Remove the HFL-navigation voice control switch (see VOICE CONTROL SWITCH REMOVAL/INSTALLATION ).

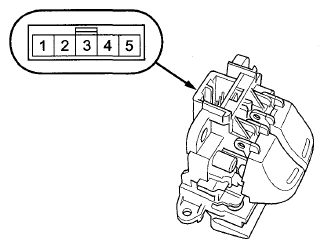

Fig 1: Identifying HFL-Navigation Voice Control Switch Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Measure the resistance between terminals No. 2 and No. 4 in each switch position according to the table.

VOICE CONTROL SWITCH

Position	Resistance
No buttons pressed	About 10 kΩ
Navigation Talk button pressed	About 2.2 kΩ
Navigation Back button pressed	About 650 Ω

If the resistance is not as specified, replace the HFL-navigation voice control switch (see STEERING WHEEL DISASSEMBLY/REASSEMBLY ).
