Generator & Regulator: Overhaul

NOTE: Overhaul information is not available at time of publication. Only exploded views are supplied. See Fig 1 .

NOTE: A ring is used to lock outer bearing race in generator rear cover. It may be necessary to heat bearing housing to remove cover. Use a 200-watt soldering iron to heat housing. DO NOT use heat gun, as it may damage diode.

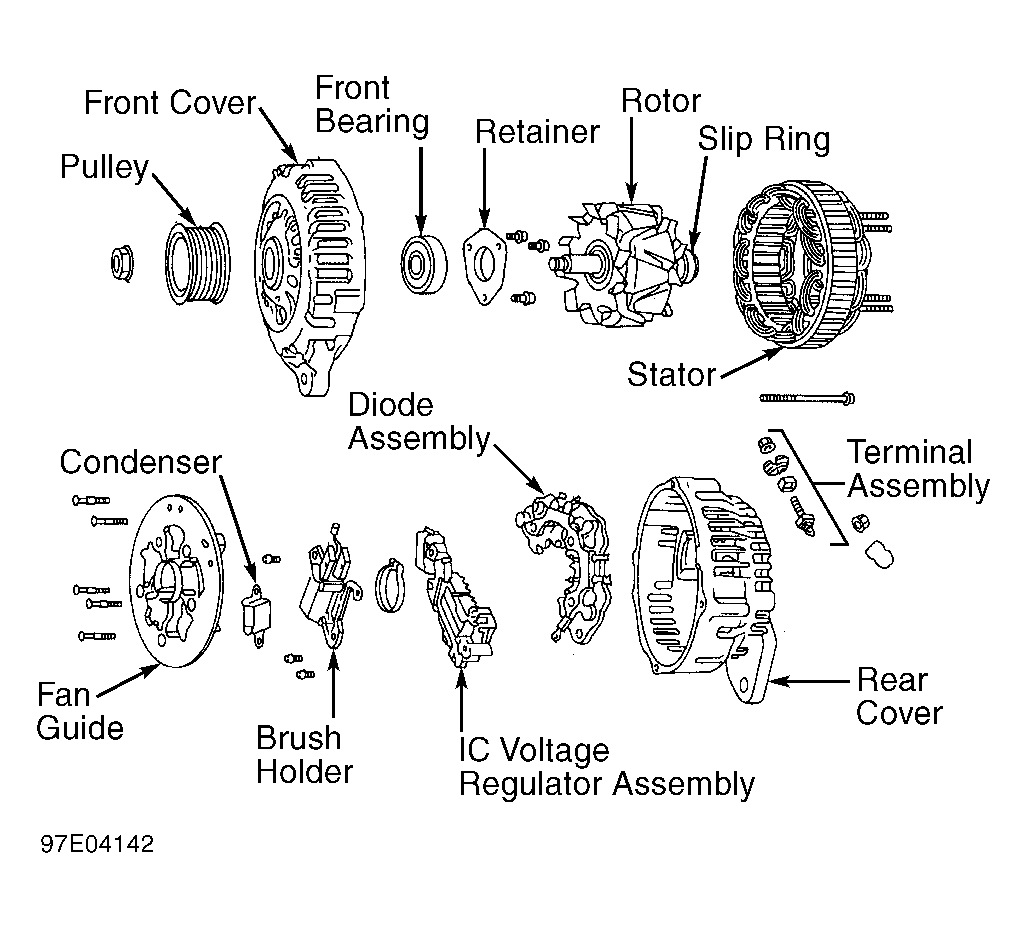

Fig 1: Exploded View Of Hitachi Generator

Courtesy of NISSAN MOTOR CO., U.S.A.
