Diagnosis Procedure

Regarding Wiring Diagram information, refer to "WIRING DIAGRAM ".

1. VERIFY SUBWOOFER POWER AND GROUND SUPPLY

   Check power and ground supply to the subwoofer. Refer to "SUBWOOFER : DIAGNOSIS PROCEDURE ".

   Did the power and ground supply check OK?

   YES: GO TO  2.

   NO:

   • Check connector housings for disconnected or loose terminals.
   • Repair harness or connector.
2. HARNESS CHECK
   1. Disconnect BOSE speaker amp. connector M112, M113 and subwoofer connector B72.
   2. Check continuity between BOSE speaker amp. harness connector M112 (A) and M113 (B) and subwoofer harness connector B72 (C).
      CONTINUITY CHART



      Connector	Terminal	Connector	Terminal	Continuity
      A: M112	9	C: B72	2	Yes
      	14		1
      B: M113	25		4

      Fig 1: Checking Continuity Between Bose Speaker Amp. Harness Connector M112 And M113

      Courtesy of NISSAN MOTOR CO., U.S.A.
   3. Check continuity between BOSE speaker amp. harness connector M112 (A) and M113 (B) and ground.
      CONTINUITY CHART



      Connector	Terminal	-	Continuity
      A: M112	9	Ground	No
      	14
      B: M113	25

      Are the continuity test results as specified?

      YES: GO TO  3.

      NO:

      • Check connector housings for disconnected or loose terminals.
      • Repair harness or connector.
3. SUBWOOFER AMP ON SIGNAL CHECK
   1. Connect BOSE speaker amp. connector M112 and M113.
   2. Turn ignition switch to ACC.
   3. Push "POWER" switch.
   4. Check voltage between subwoofer connector B72 terminal 4 and ground.
      VOLTAGE SPECIFICATION



      (+)		(-)	Voltage
      Connector	Terminal
      B72	4	Ground	Battery voltage

      Fig 2: Checking Voltage Between Subwoofer Connector B72 Terminal 4 And Ground

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Are the voltage readings as specified?

      YES: GO TO  4.

      NO: Replace BOSE speaker amp. Refer to "REMOVAL AND INSTALLATION ".

4. SUBWOOFER AUDIO SIGNAL CHECK
   1. Connect BOSE speaker amp. connector M112 and subwoofer connector B72.
   2. Turn ignition switch to ACC.
   3. Push "POWER" switch.
   4. Check the signal between BOSE speaker amp. harness connector M112 terminals with CONSULT-III or oscilloscope.
      SIGNAL REFERENCE



      Connector	Terminals		Condition	Reference signal
      	(+)	(-)
      M112	9	14	Receive audio signal	Courtesy of NISSAN MOTOR CO., U.S.A.

      Fig 3: Checking Signal Between Bose Speaker Amp. Harness Connector M112 Terminals

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Is the audio signal voltage as specified?

      YES: Replace subwoofer. Refer to "REMOVAL AND INSTALLATION ".

      NO: GO TO  5.

5. HARNESS CHECK
   1. Turn ignition switch OFF.
   2. Disconnect AV control unit connector M72 and BOSE speaker amp. connector M113.
   3. Check continuity between AV control unit harness connector M72 (A) and BOSE speaker amp. harness connector M113 (B).
      CONTINUITY CHART



      A		B		Continuity
      Connector	Terminal	Connector	Terminal
      M72	112	M113	21	Yes
      	118		22
      	108		23
      	114		33

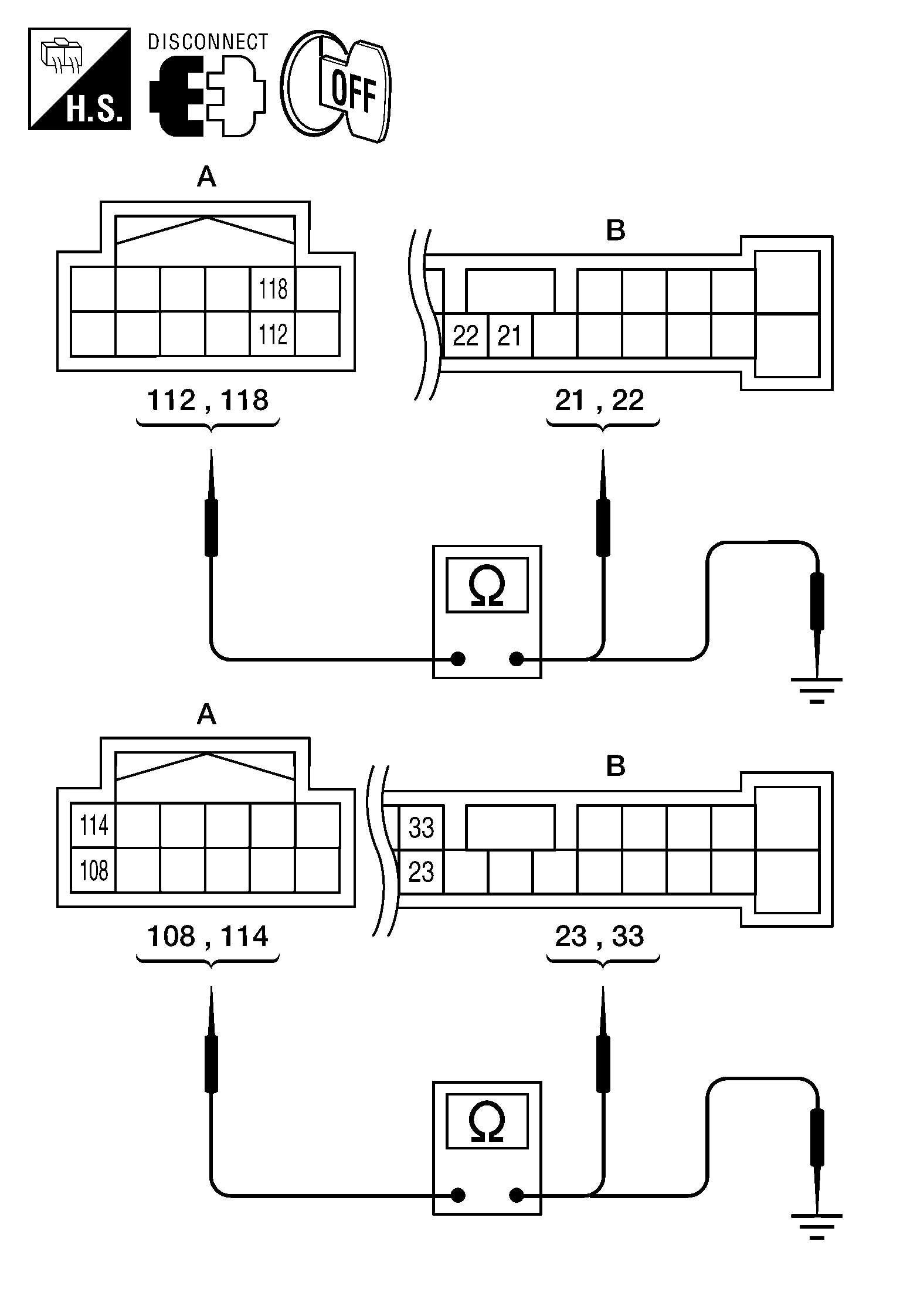

      Fig 4: Checking Continuity Between AV Control Unit Harness Connector M72 And Bose Speaker Amp. Harness Connector M113

      Courtesy of NISSAN MOTOR CO., U.S.A.
   4. Check continuity between AV control unit harness connector M72 (A) and ground.
      CONTINUITY CHART



      A		-	Continuity
      Connector	Terminal
      M72	112	Ground	No
      	118
      	108
      	114

      Are the continuity test results as specified?

      YES: GO TO  6.

      NO:

      • Check connector housings for disconnected or loose terminals.
      • Repair harness or connector.
6. SUBWOOFER SPEAKER SIGNAL CHECK
   1. Connect AV control unit connector M72 and BOSE speaker amp. connector M113.
   2. Turn ignition switch to ACC.
   3. Push "POWER" switch.
   4. Check the signal between AV control unit harness connector M72 terminals with CONSULT-III or oscilloscope.
      SIGNAL REFERENCE



      Connector	Terminals		Condition	Reference signal
      	(+)	(-)
      M72	112	118	Receive audio signal	Courtesy of NISSAN MOTOR CO., U.S.A.
      	108	114

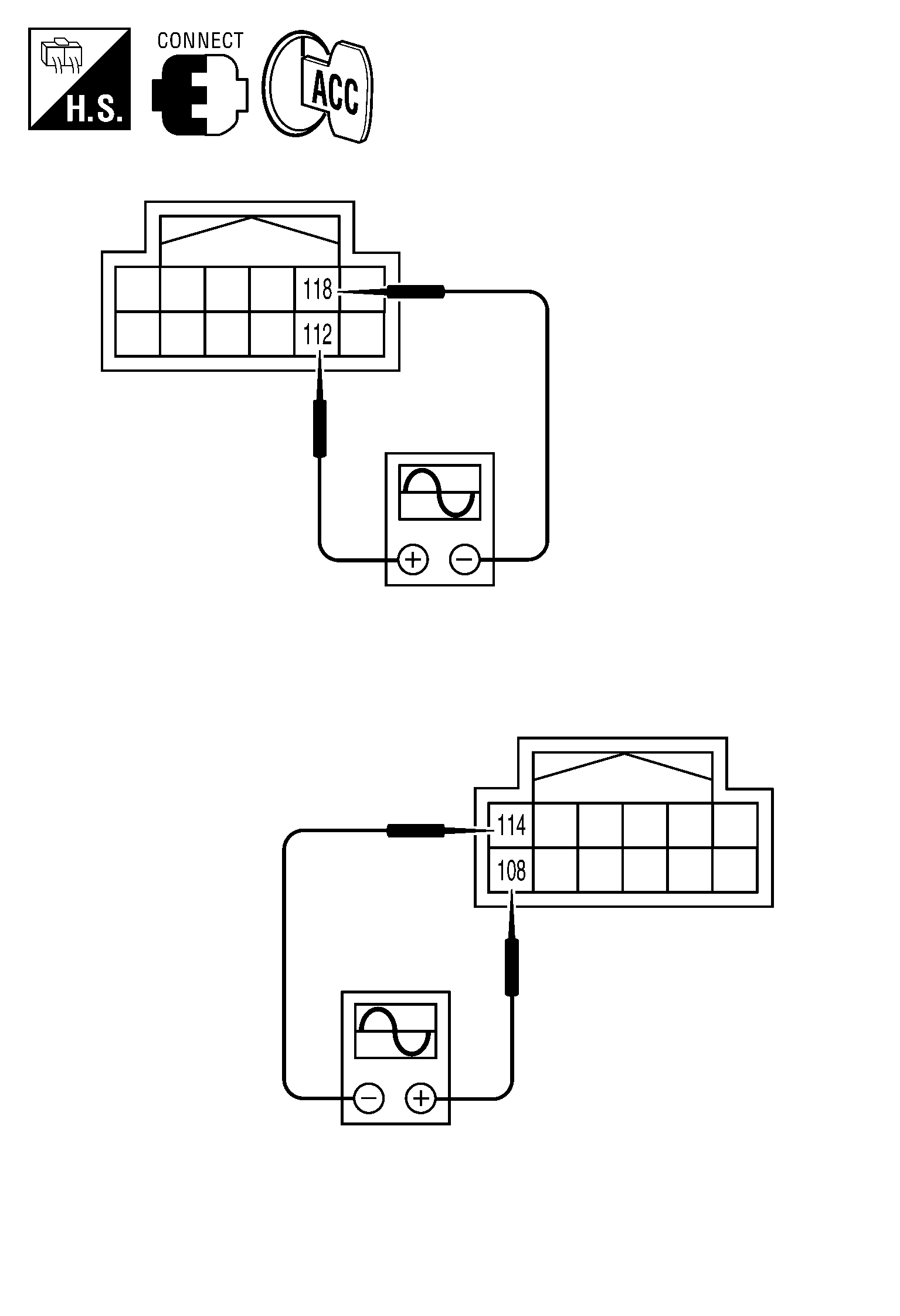

      Fig 5: Checking Signal Between AV Control Unit Harness Connector M72 Terminals

      Courtesy of NISSAN MOTOR CO., U.S.A.

      Is the audio signal voltage reading as specified?

      YES: Replace BOSE speaker amp. Refer to "REMOVAL AND INSTALLATION ".

      NO: Replace AV control unit. Refer to "REMOVAL AND INSTALLATION ".
