2.1 Inputs and Outputs

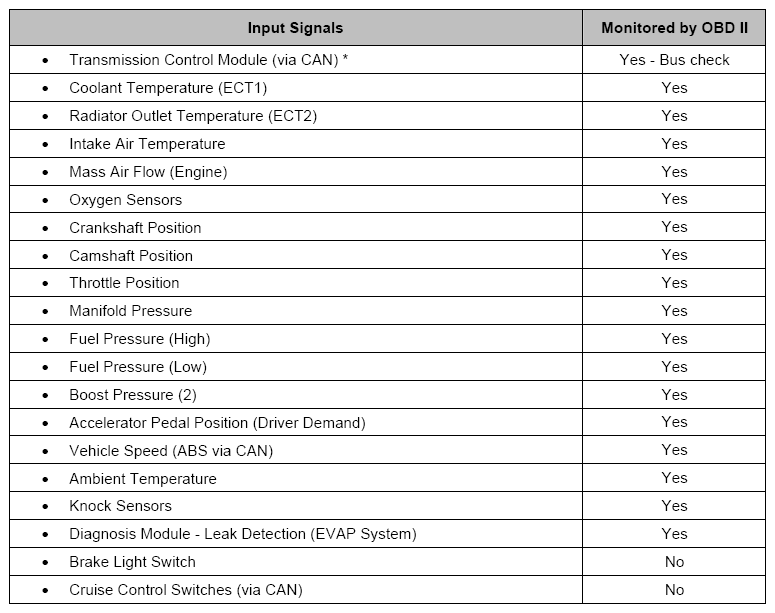

Fig 1: Input Signals Chart (1 Of 2)

Courtesy of JAGUAR CARS, INC.

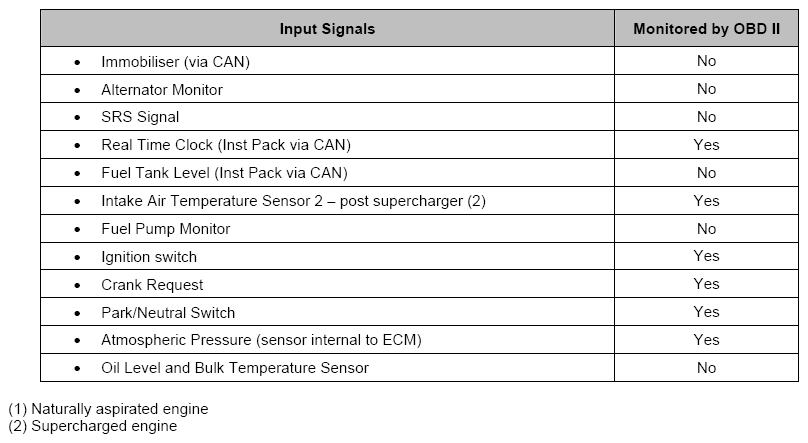

Fig 2: Input Signals Chart (2 Of 2)

Courtesy of JAGUAR CARS, INC.

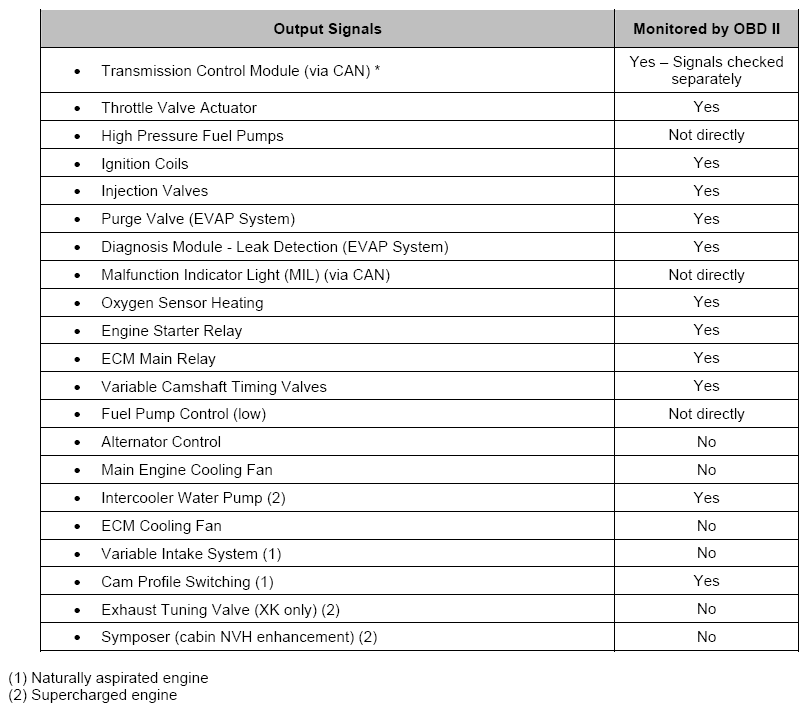

Fig 3: Output Signals Chart

Courtesy of JAGUAR CARS, INC.
