4.18.4 Monitoring Structure

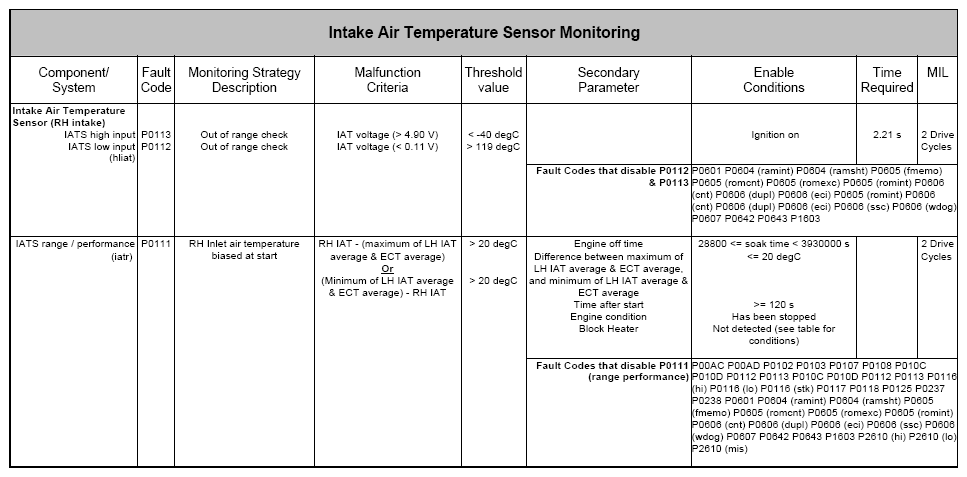

Fig 1: Intake Air Temperature Sensor Monitoring (P0111, P0112, P0113)

Courtesy of JAGUAR CARS, INC.

Fig 2: Intake Air Temperature Sensor Monitoring (P0111)

Courtesy of JAGUAR CARS, INC.

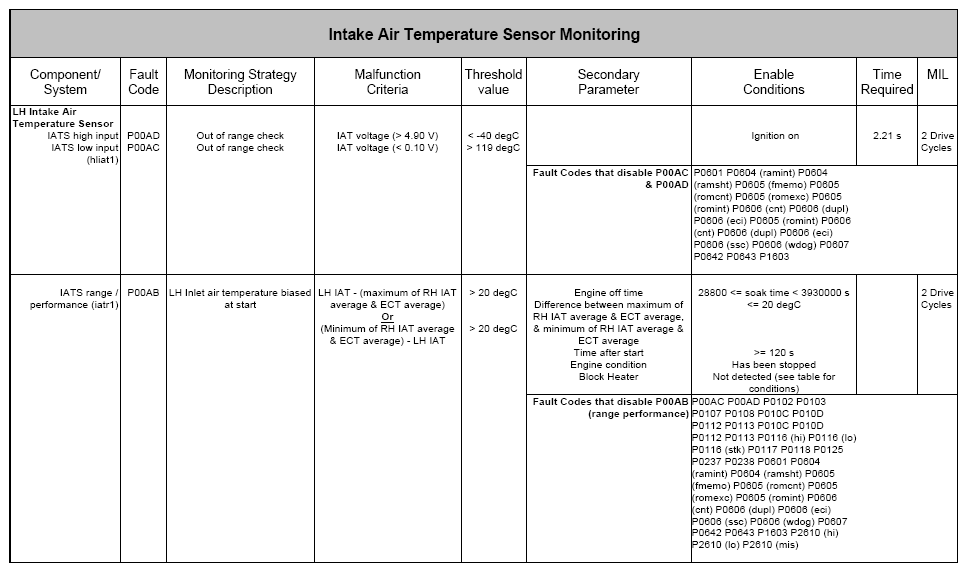

Fig 3: Intake Air Temperature Sensor Monitoring (P00AB, P00AC, P00AD)

Courtesy of JAGUAR CARS, INC.

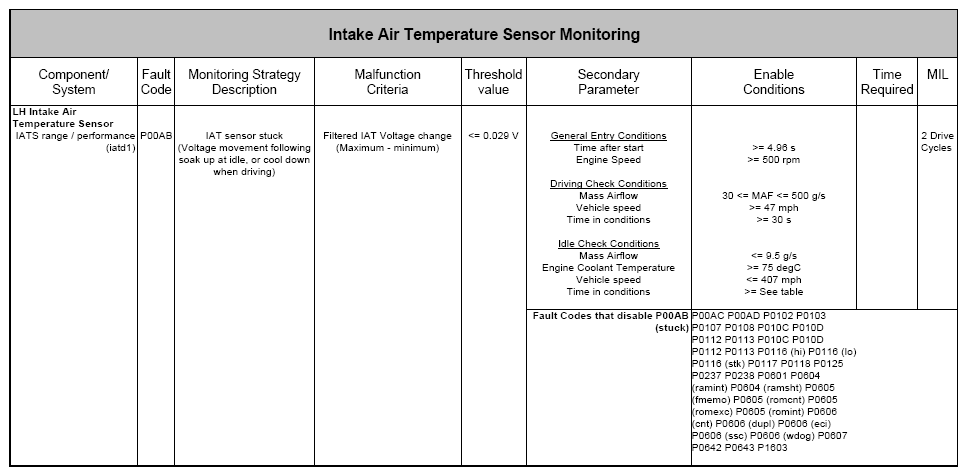

Fig 4: Intake Air Temperature Sensor Monitoring (P00AB)

Courtesy of JAGUAR CARS, INC.

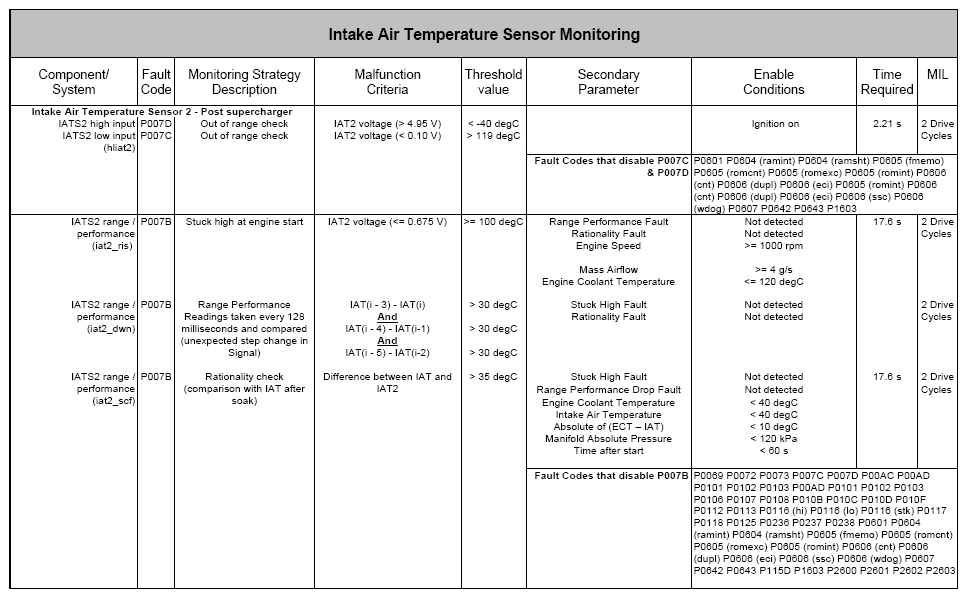

Fig 5: Intake Air Temperature Sensor Monitoring (P007B, P007C, P007D)

Courtesy of JAGUAR CARS, INC.

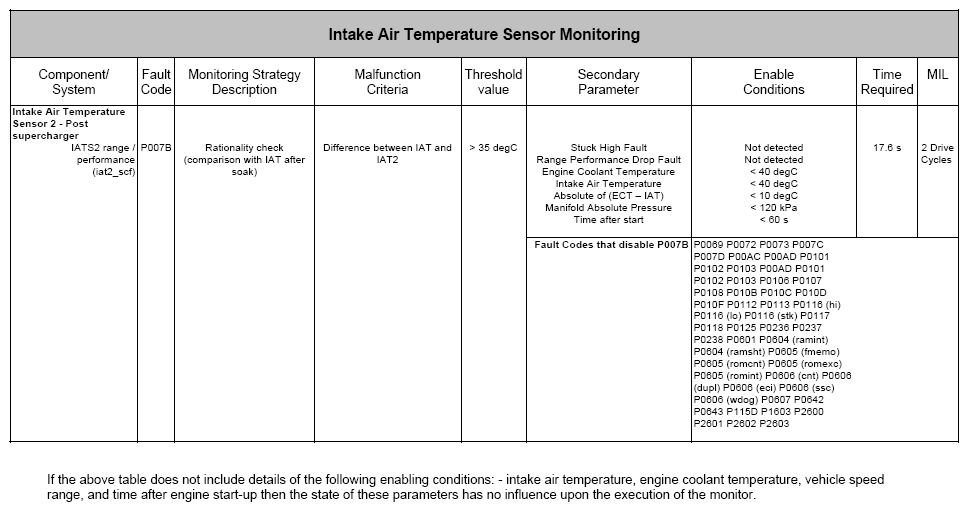

Fig 6: Intake Air Temperature Sensor Monitoring (P007B)

Courtesy of JAGUAR CARS, INC.

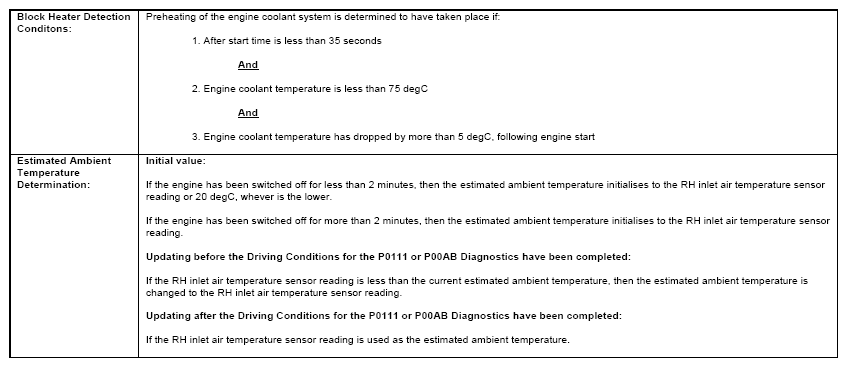

Fig 7: Block Heater Detection Condition Chart

Courtesy of JAGUAR CARS, INC.

Fig 8: Estimated Ambient Temperature Chart

Courtesy of JAGUAR CARS, INC.
