TRAC Actuator

Remove air cleaner, charcoal canister and ducting. Disconnect TRAC solenoid relay if necessary. Carefully disconnect brakelines from actuator. Remove bolts and actuator assembly. See Fig 1, Fig 2 or Fig 3 .
To install, reverse removal procedure. Tighten assembly mounting bolts. See TORQUE SPECIFICATIONS . Bleed brake and TRAC systems. See BLEEDING BRAKE SYSTEM .

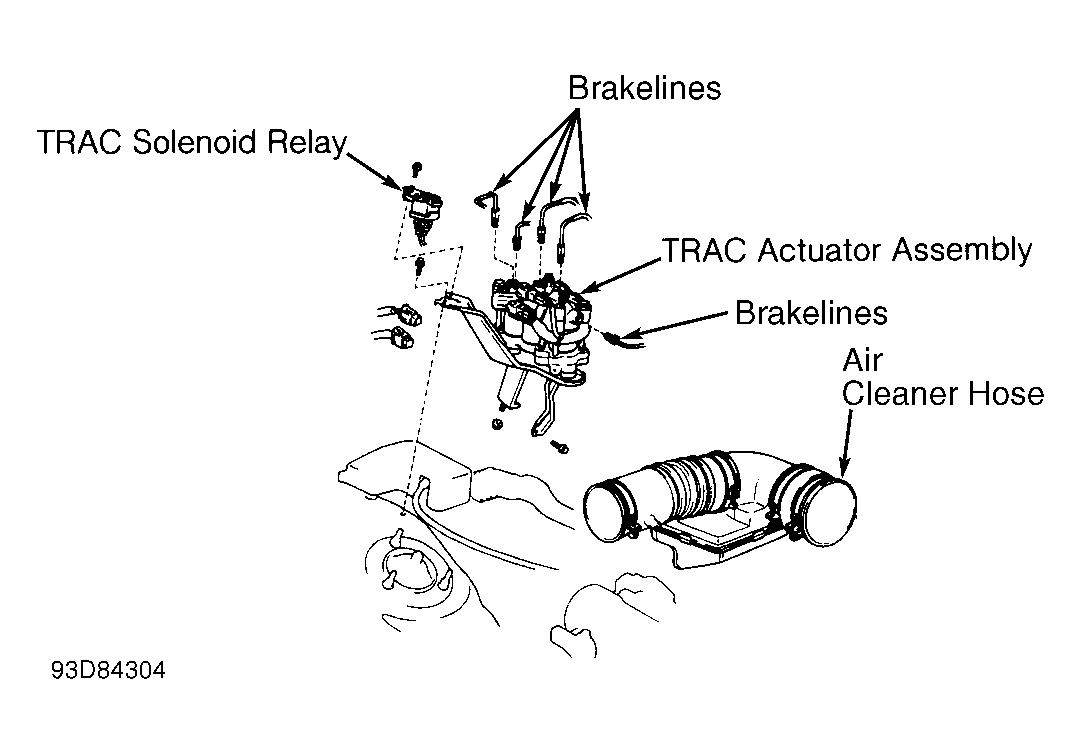

Fig 1: Exploded View Of TRAC Actuator Assembly (GS300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Exploded View Of TRAC Actuator Assembly (LS400)

Fig 3: Exploded View Of TRAC Actuator Assembly (SC300 & SC400)
