Control Units
WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

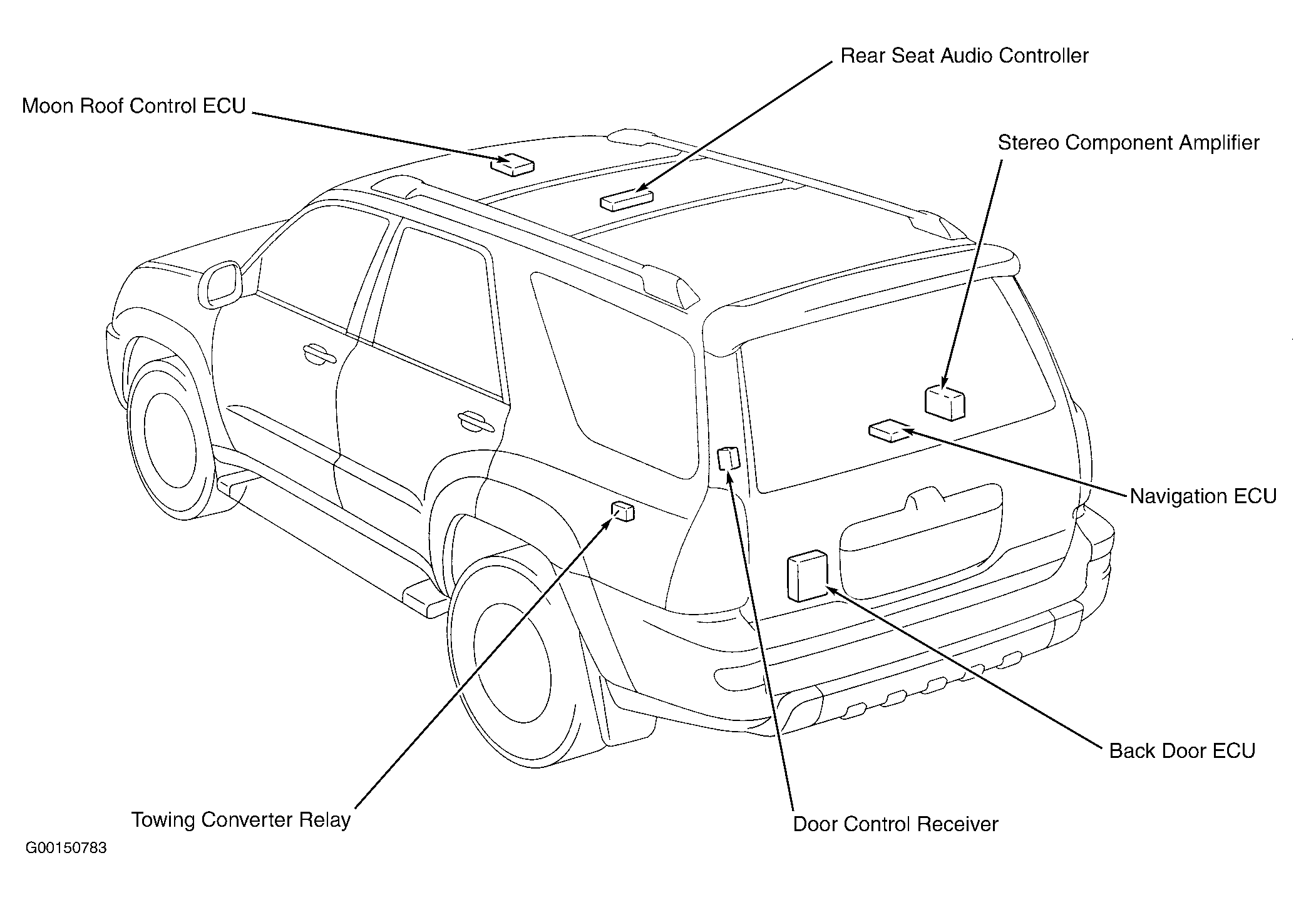

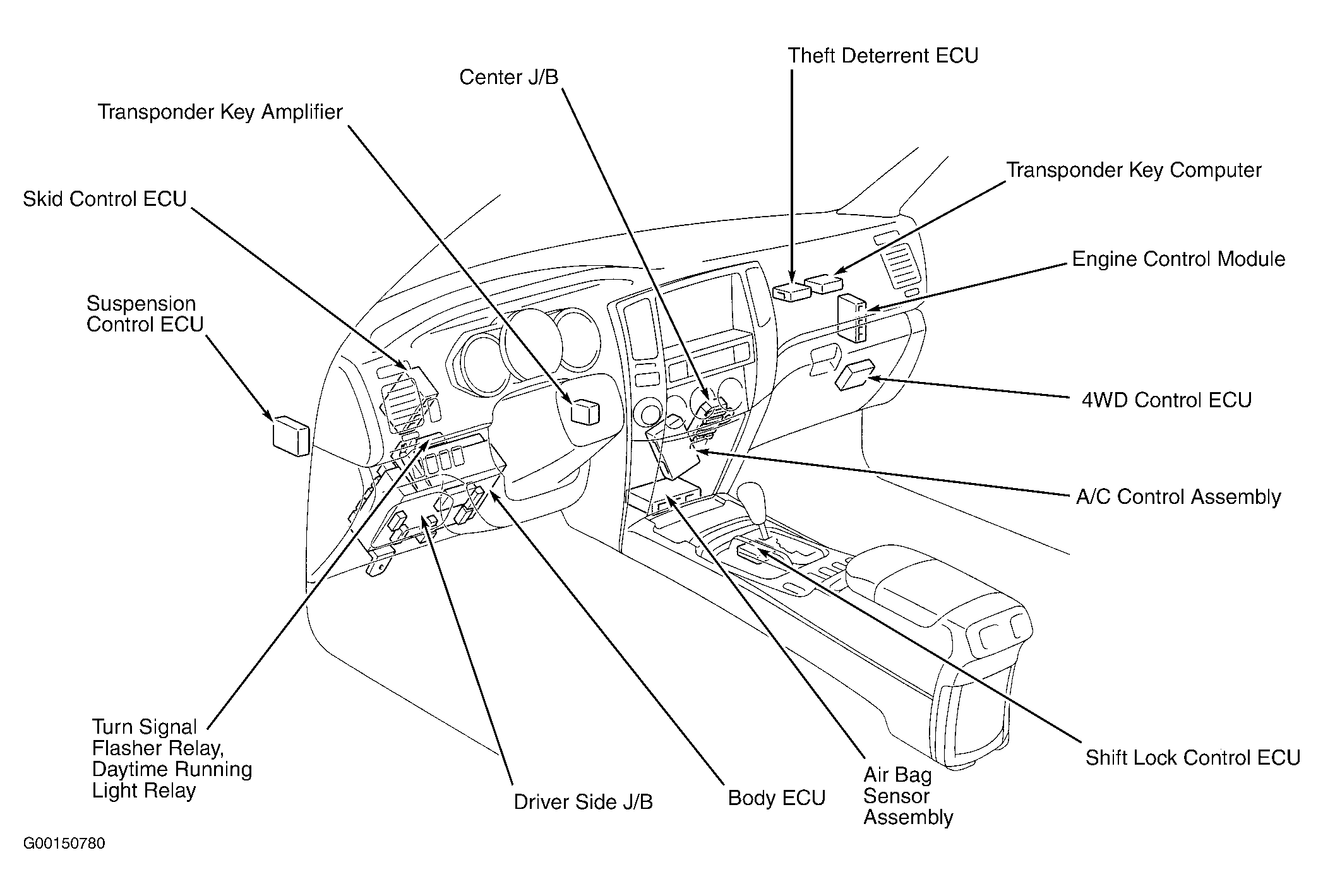

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| A/C Control Assembly | Behind lower center of dash. See Figure. |
| Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Back Door ECU | In left side of liftgate. See Figure. |
| Blower Motor Controller | Behind lower right side of dash. |
| Body ECU | Behind lower left end of dash, in driver side J/B. See Figure. |
| Door Control Receiver | On left "D" pillar, behind trim. See Figure. |
| Engine Control Module | Behind right end of dash. See Figure. |
| Moon Roof Control ECU | Above headliner, at center of windshield header. See Figure. |
| Navigation ECU | On right side of cargo area. See Figure. |
| Rear Seat Audio Controller | At top center of roof. See Figure. |
| Shift Lock Control ECU | Under center console, near shift lever assembly. See Figure. |
| Skid Control ECU | Behind left end of dash, above driver side J/B. See Figure. |
| Suspension Control ECU | Behind left end of dash, near base of "A" pillar. See Figure. |
| Theft Deterrent ECU | Behind upper right side of dash. See Figure. |
| Towing Brake Controller | Behind lower left end of dash. |
| Transponder Key Computer | Behind upper right side of dash. See Figure. |
| Shift Lock Control ECU | Below gear shift lever assembly. |
| 4WD Control ECU | Behind lower right end of dash. See Figure. |
