Section 154 (Partial Engine): Replacement

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCHARGE FUEL SYSTEM PRESSURE, see  PRECAUTION  .
  2. REMOVE FRONT WHEELS
  3. REMOVE ENGINE UNDER COVER NO. 1
  4. REMOVE FRONT FENDER LINER LH
  5. REMOVE FRONT FENDER LINER RH
  6. REMOVE FRONT FENDER APRON SEAL LH
  7. REMOVE FRONT FENDER APRON SEAL RH
  8. DRAIN COOLANT, see  REPLACEMENT  .
  9. DRAIN ENGINE OIL
  10. DRAIN AUTOMATIC TRANSAXLE FLUID, see  REPLACEMENT  .
  11. DRAIN TRANSFER OIL (4WD DRIVE TYPE)
  12. REMOVE FRONT WIPER ARM HEAD CAP
  13. REMOVE FR WIPER ARM RH, see  WINDSHIELD WIPER MOTOR ASSY  .
  14. REMOVE FR WIPER ARM LH, see  WINDSHIELD WIPER MOTOR ASSY  .
  15. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY, see  WINDSHIELD WIPER MOTOR ASSY  .
  16. REMOVE WIPER LINK ASSEMBLY, see  WINDSHIELD WIPER MOTOR ASSY  .
  17. REMOVE COWL TOP TO COWL BRACE INNER NO. 1, see  REPLACEMENT  .
  18. REMOVE COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT, see  REPLACEMENT  .
  19. REMOVE V-BANK COVER SUB-ASSEMBLY, see  ADJUSTMENT  .
  20. REMOVE BATTERY
  21. REMOVE AIR CLEANER CAP SUB-ASSEMBLY, see  REPLACEMENT  .
  22. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY
  23. REMOVE AIR CLEANER INLET NO. 2, see  REPLACEMENT  .
  24. REMOVE AIR CLEANER CASE, see  REPLACEMENT  .
  25. REMOVE AIR CLEANER BRACKET, see  REPLACEMENT  .
  26. REMOVE AIR CLEANER INLET NO. 1, see  REPLACEMENT  .
  27. REMOVE V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1, see  REPLACEMENT  .
  28. REMOVE GENERATOR ASSEMBLY, see  REPLACEMENT  .
  29. REMOVE ENGINE MOVING CONTROL ROD, see  REPLACEMENT  .
  30. REMOVE ENGINE MOUNTING STAY NO. 2 RH, see  REPLACEMENT  .
  31. REMOVE GENERATOR BRACKET NO. 2, see  REPLACEMENT  .
  32. REMOVE GENERATOR BELT ADJUSTING BAR, see  REPLACEMENT  .
  33. SEPARATE COMPRESSOR AND MAGNETIC CLUTCH, see  REPLACEMENT  .
  34. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY, see  REPLACEMENT  .
  35. DISCONNECT UNION TO CHECK VALVE HOSE
  36. DISCONNECT FUEL VAPOR FEED HOSE NO. 1
  37. DISCONNECT FUEL PIPE SUB-ASSEMBLY NO. 1, see PRECAUTION  .
  38. DISCONNECT HEATER WATER INLET HOSE B
  39. DISCONNECT HEATER WATER OUTLET HOSE B
  40. DISCONNECT RADIATOR HOSE INLET
  41. DISCONNECT RADIATOR HOSE OUTLET
  42. DISCONNECT OIL COOLER INLET HOSE NO. 1
  43. DISCONNECT OIL COOLER OUTLET HOSE NO. 1
  44. DISCONNECT OIL RESERVOIR TO PUMP HOSE NO. 1

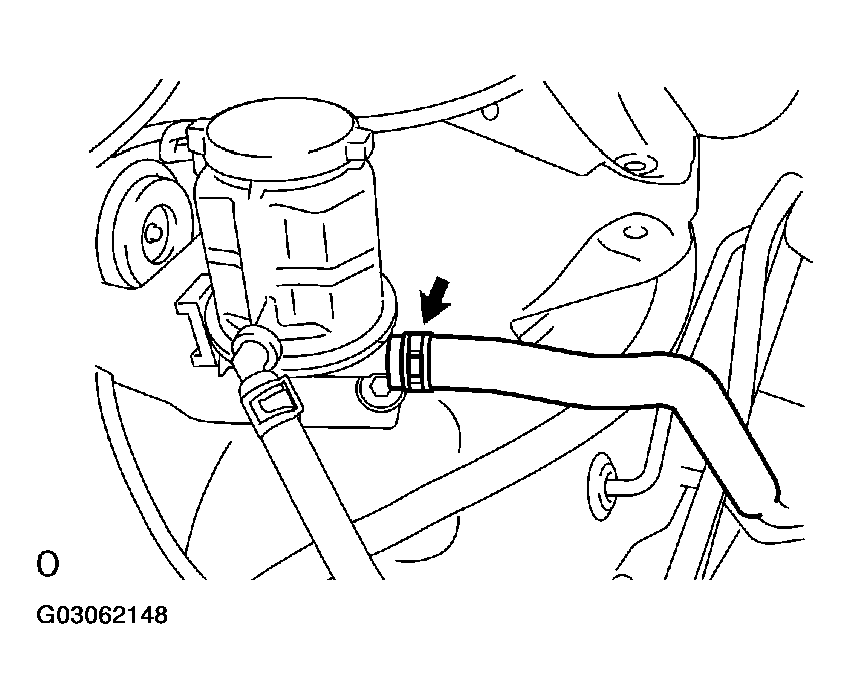

    Fig 1: Disconnecting Oil Reservoir To Pump Hose
    G03062148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. DISCONNECT STEERING GEAR OUTLET RETURN TUBE

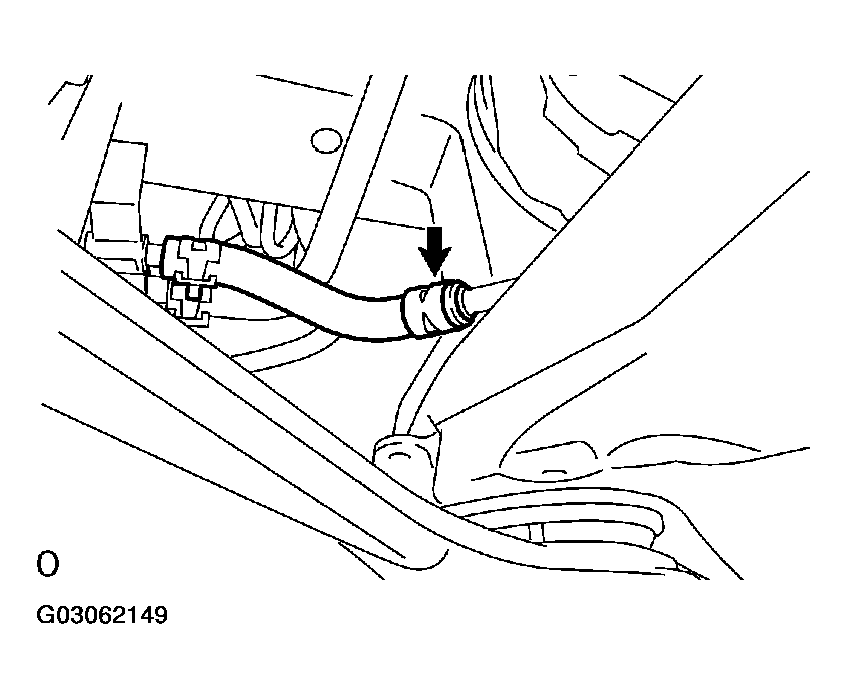

    Fig 2: Disconnecting Steering Gear Outlet Return Tube
    G03062149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
  47. SEPARATE ENGINE WIRE
    1. Disconnect the engine wire harness from the ECM and the junction block.
    2. Disconnect the engine wire harness from the engine room junction block.
      1. Remove the nut and separate the wire harness.
      2. Using a screwdriver, release the engine room junction block. Separate the engine wire by pulling it upward.
    3. Pull out the engine wire harness.
    4. Remove the body ground.

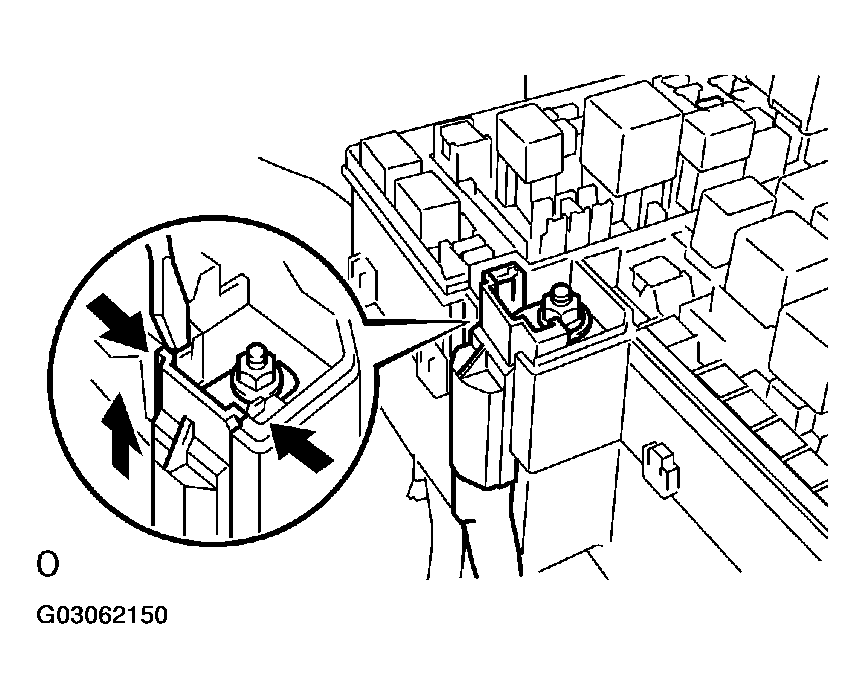

    Fig 3: Releasing Engine Room Junction Block
    G03062150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. REMOVE PROPELLER SHAFT (4WD DRIVE TYPE), see  OVERHAUL  .

    SST 09325-20010

  49. REMOVE EXHAUST PIPE ASSEMBLY CENTER (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  50. REMOVE EXHAUST PIPE ASSEMBLY FRONT (2WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  51. REMOVE EXHAUST PIPE ASSEMBLY FRONT (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  52. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH, see  REMOVAL & INSTALLATION  .
  53. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  54. REMOVE FRONT AXLE HUB LH NUT, see  REMOVAL & INSTALLATION  .

    SST 09930-00010

  55. REMOVE FRONT AXLE HUB RH NUT

    SST 09930-00010

    HINT:

    Perform the same procedure as above on the opposite side.

  56. SEPARATE SPEED SENSOR FRONT LH, see  REMOVAL & INSTALLATION  .
  57. SEPARATE SPEED SENSOR FRONT RH

    HINT:

    Perform the same procedure as above on the opposite side.

  58. SEPARATE TIE ROD ASSEMBLY LH, see  REMOVAL & INSTALLATION  .

    SST 09628-6201 1

  59. SEPARATE TIE ROD ASSEMBLY RH

    SST 09628-6201 1

    HINT:

    Perform the same procedure as above on the opposite side.

  60. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 LH, see  REMOVAL & INSTALLATION  .
  61. SEPARATE FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 RH

    HINT:

    Perform the same procedure as above on the opposite side.

  62. SEPARATE FRONT AXLE ASSEMBLY LH, see  REMOVAL & INSTALLATION  .
  63. SEPARATE FRONT AXLE ASSEMBLY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  64. SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY, see  OVERHAUL  .
  65. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine lifter.
    2. Remove the 6 bolts, the 2 nuts, the frame side rail plate RH and LH.

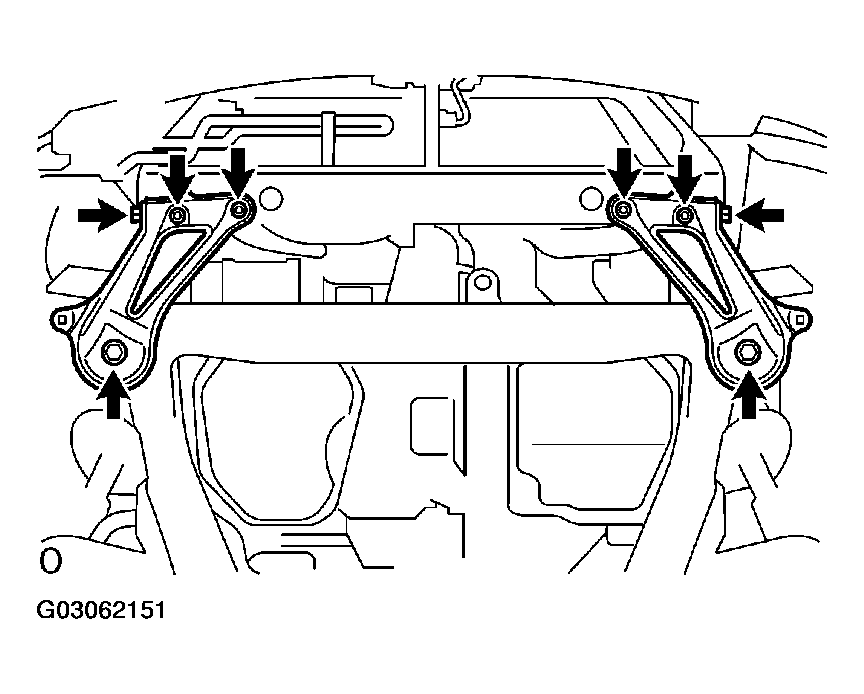

      Fig 4: Removing Bolts And Nuts Of Frame Side Rail Plate RH And LH
      G03062151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 bolts, the 2 nuts, the front suspension member brace rear RH and LH.
    4. Carefully remove the engine assembly from the vehicle.

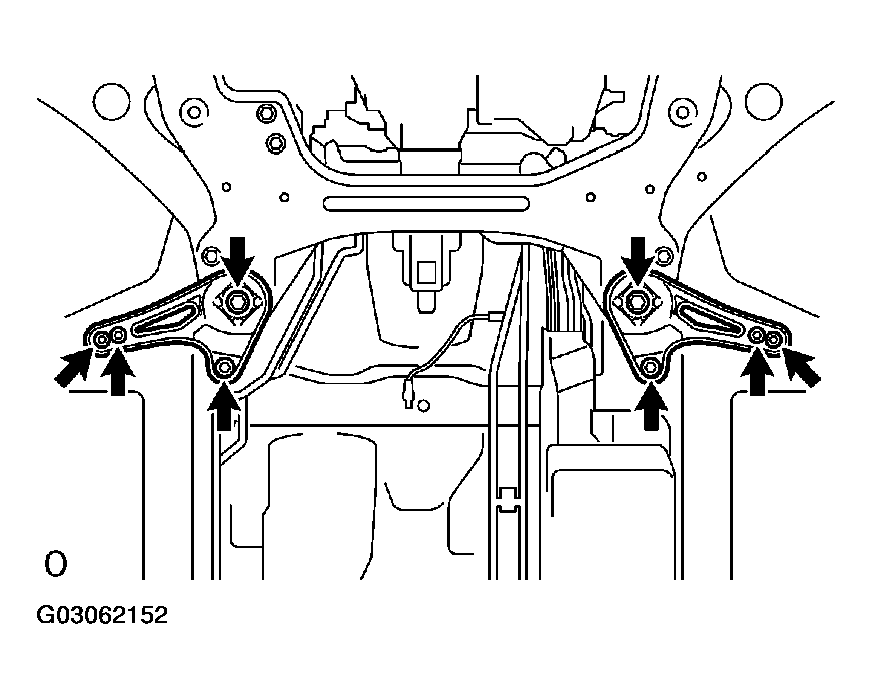

      Fig 5: Removing Bolts And Nuts Of Front Suspension Member Brace Rear RH And LH
      G03062152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the No. 2 engine hanger in correct direction (shown in the illustration).

      Part No.:

      No. 2 engine hanger 12282-20020

      Bolt 90080-11331

      Torque: 20 N.m (199 kgf.cm, 14 ft.lbf)

    6. Attach the engine sling and hang the engine assembly with the chain block.

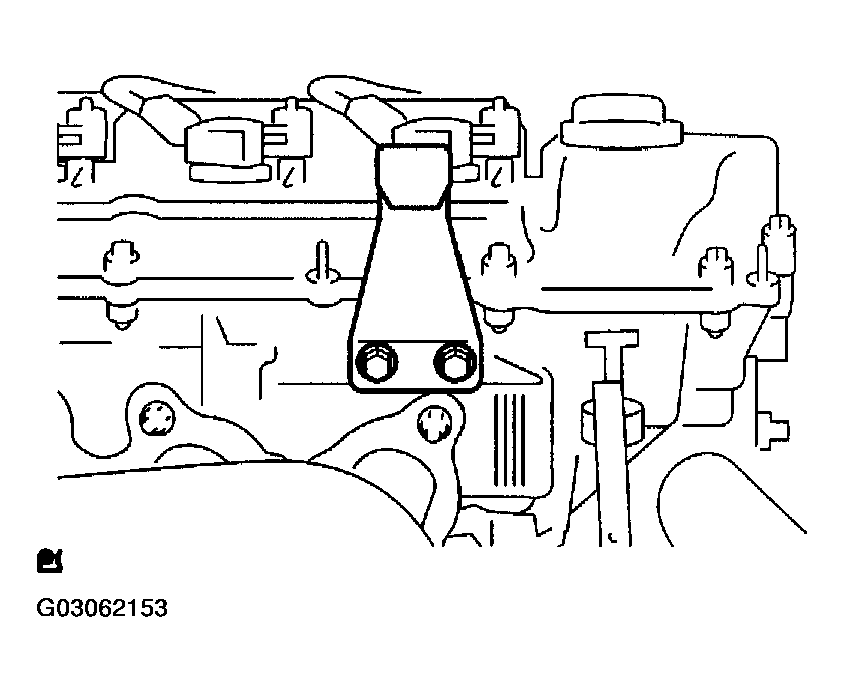

    Fig 6: Attaching Engine Sling And Hang Engine Assembly With Chain Block
    G03062153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  66. REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO. 1
  67. REMOVE MANIFOLD STAY
  68. REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (2WD DRIVE TYPE), see  REPLACEMENT  .
  69. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  70. REMOVE VANE PUMP V BELT, see  REPLACEMENT  .
  71. REMOVE VANE PUMP ASSEMBLY
    1. Remove the 2 nuts and disconnect the PS pressure tube.
      Fig 7: Disconnecting PS Pressure Tube
      G03062154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and the vane pump.

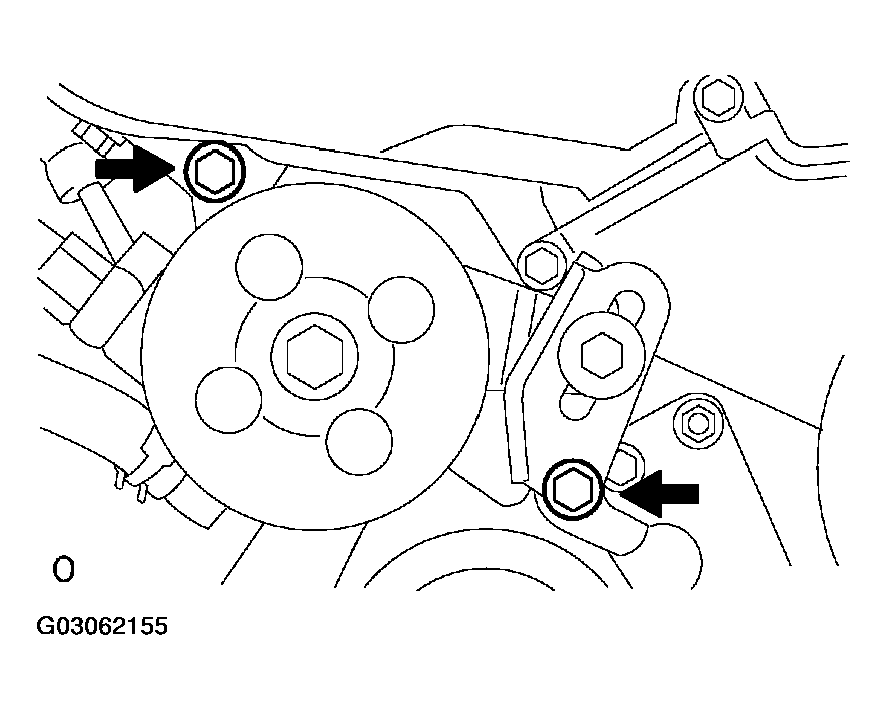

    Fig 8: Removing Bolts Of Vane Pump
    G03062155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE STABILIZER BAR FRONT (4WD DRIVE TYPE)
  73. REMOVE RACK & PINION POWER STEERING GEAR ASSEMBLY (4WD DRIVE TYPE)
  74. REMOVE FRONT FRAME ASSEMBLY
    1. Remove the 2 nuts and separate engine mounting insulator RH and LH.

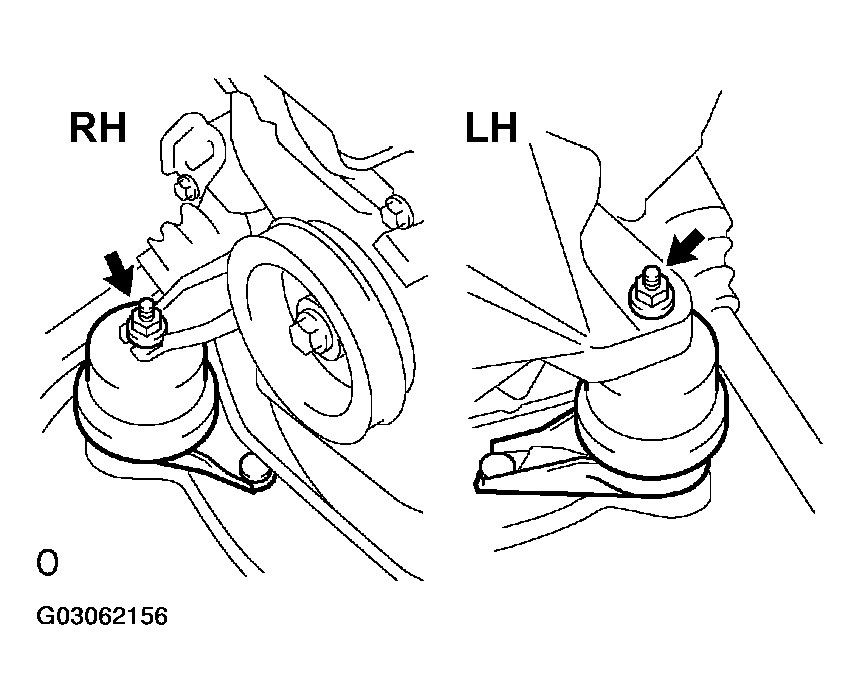

      Fig 9: Removing Nuts And Separate Engine Mounting Insulator RH And LH
      G03062156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and separate the engine mounting insulator FR.

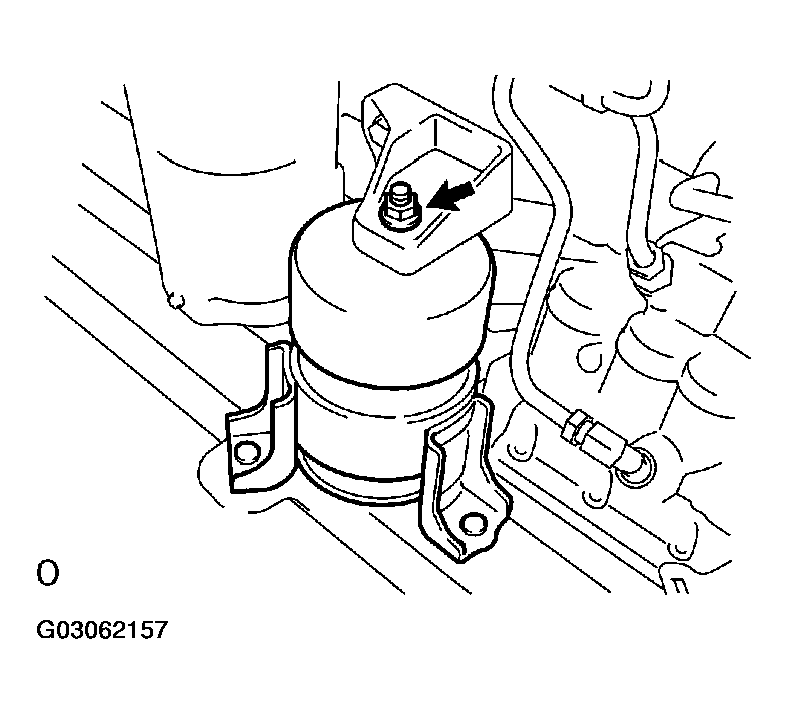

      Fig 10: Removing Nut And Separate Engine Mounting Insulator FR
      G03062157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. (c) 4WD:

      Remove the 2 bolts and separate the engine mounting insulator RR.

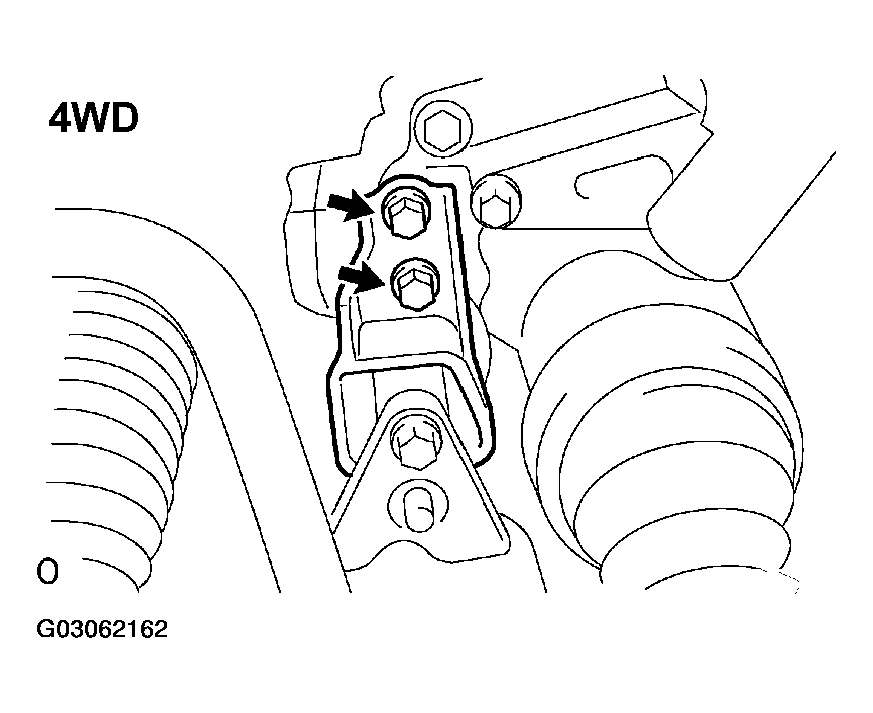

    Fig 11: Removing Bolts And Separate Engine Mounting Insulator RR
    G03062158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH, see  REMOVAL & INSTALLATION  .

    SST 09520-01010, 09520-24010 (09520-32040)

  76. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (2WD DRIVE TYPE), see  REMOVAL & INSTALLATION  .
  77. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION  .
  78. REMOVE STARTER ASSEMBLY, see  REPLACEMENT  .
  79. REMOVE ENGINE MOUNTING BRACKET FR, see  REPLACEMENT  .
  80. REMOVE AUTOMATIC TRANSAXLE ASSEMBLY (2WD DRIVE TYPE), see  REPLACEMENT  .
  81. REMOVE TRANSFER STIFFENER PLATE RH (4WD DRIVE TYPE), see  REPLACEMENT  .
  82. REMOVE AUTOMATIC TRANSMISSION W/TRANSFER (4WD DRIVE TYPE), see  REPLACEMENT  .
  83. REMOVE DRIVE SHAFT BEARING BRACKET (2WD DRIVE TYPE)
  84. REMOVE ENGINE MOUNTING BRACKET RR (4WD DRIVE TYPE)
  85. REMOVE DRIVE PLATE & RING GEAR SUB-ASSEMBLY, see REPLACEMENT  .

    SST 09213-54015 (91651-60855), 09330-00021

  86. INSTALL ENGINE STAND
  87. REMOVE ENGINE HANGER NO. 2
  88. REMOVE EMISSION CONTROL VALVE SET, see  ADJUSTMENT  .
  89. REMOVE INTAKE AIR SURGE TANK, see  ADJUSTMENT  .
  90. REMOVE INTAKE MANIFOLD, see  REPLACEMENT  .
  91. REMOVE WATER OUTLET, see  REPLACEMENT  .
  92. REMOVE IGNITION COIL ASSEMBLY
  93. REMOVE MANIFOLD CONVERTER INSULATOR NO. 3
  94. REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO. 2
  95. REMOVE MANIFOLD STAY NO. 2
  96. REMOVE EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY NO. 2, see REPLACEMENT.
  97. REMOVE ENGINE MOUNTING BRACKET RH
  98. REMOVE PUMP BRACKET
  99. REMOVE GENERATOR BRACKET NO. 1
  100. REMOVE COMPRESSOR MOUNTING BRACKET NO. 1, see  REPLACEMENT  .
  101. REMOVE WATER INLET
  102. REMOVE THERMOSTAT
  103. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Using a 27 mm deep socket wrench, remove the oil pressure switch.

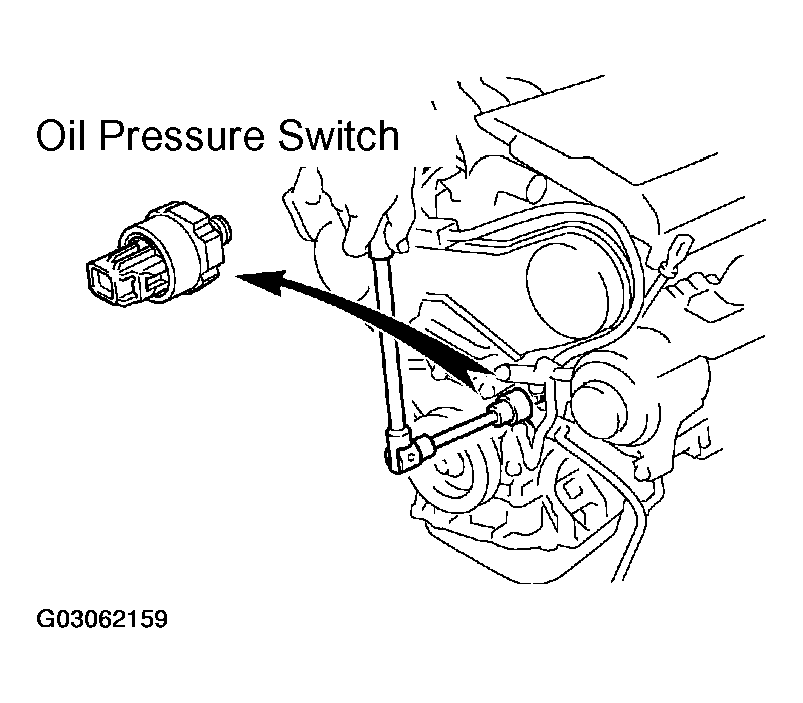

    Fig 12: Removing Oil Pressure Switch
    G03062159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  104. REMOVE KNOCK SENSOR, see  REPLACEMENT  .
  105. REPLACE PARTIAL ENGINE ASSEMBLY
  106. INSTALL KNOCK SENSOR, see  REPLACEMENT  .
  107. INSTALL ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Apply adhesive to 2 or 3 threads of the oil pressure switch.

      Adhesive:

      Part No. 08833-00080 THREE BOND 1344, LOCTITE 242 or equivalent.

    2. Using a 27 mm deep socket wrench, install the oil pressure switch.

      Torque: 15 N.m (153 kgf.cm, 11 ft.lbf)

  108. INSTALL THERMOSTAT, see  REPLACEMENT  .
  109. INSTALL WATER INLET, see  REPLACEMENT  .
  110. INSTALL COMPRESSOR MOUNTING BRACKET NO. 1, see  REPLACEMENT  .
  111. INSTALL GENERATOR BRACKET NO. 1

    Torque: 58 N.m (591 kgf.cm, 43 ft.lbf)

  112. INSTALL PUMP BRACKET

    Torque: 32 N.m (326 kgf.cm, 24 ft.lbf)

  113. INSTALL ENGINE MOUNTING BRACKET RH

    Torque: 54 N.m (551 kgf.cm, 40 ft.lbf)

  114. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY NO. 2, see REPLACEMENT.
  115. INSTALL MANIFOLD STAY NO. 2

    Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

  116. INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO. 2, see REPLACEMENT.
  117. INSTALL MANIFOLD CONVERTER INSULATOR NO. 3, see REPLACEMENT.
  118. INSTALL IGNITION COIL ASSEMBLY, see  ADJUSTMENT  .
  119. INSTALL WATER OUTLET, see  REPLACEMENT  .
  120. INSTALL INTAKE MANIFOLD, see  REPLACEMENT  .
  121. INSTALL INTAKE AIR SURGE TANK, see  ADJUSTMENT  .
  122. INSTALL EMISSION CONTROL VALVE SET, see  ADJUSTMENT  .
  123. INSTALL DRIVE PLATE & RING GEAR SUB-ASSEMBLY, see REPLACEMENT  .

    SST 09213-54015 (91651-60855), 09330-00021

  124. INSTALL DRIVE SHAFT BEARING BRACKET (2WD DRIVE TYPE)

    Torque: 64 N.m (650 kgf.cm, 47 in.lbf)

  125. INSTALL ENGINE MOUNTING BRACKET RR (4WD DRIVE TYPE)

    Torque: 64 N.m (653 kgf.cm, 47 in.lbf)

  126. INSTALL AUTOMATIC TRANSMISSION W/TRANSFER (4WD DRIVE TYPE), see  COMPONENTS  .
  127. INSTALL TRANSFER STIFFENER PLATE RH (4WD DRIVE TYPE), see  COMPONENTS  .
  128. INSTALL AUTOMATIC TRANSAXLE ASSEMBLY (2WD DRIVE TYPE), see  COMPONENTS  .
  129. INSTALL ENGINE MOUNTING BRACKET FR, see  COMPONENTS  .
  130. INSTALL STARTER ASSEMBLY, see  REPLACEMENT  .
  131. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH, see  REMOVAL & INSTALLATION  .
  132. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (2WD DRIVE TYPE), see  REMOVAL & INSTALLATION  .
  133. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION  .
  134. INSTALL FRONT FRAME ASSEMBLY
    1. Install the engine mounting insulator RH and LH with the 2 nuts.

      Torque: 95 N.m (969 kgf.cm, 70 ft.lbf)

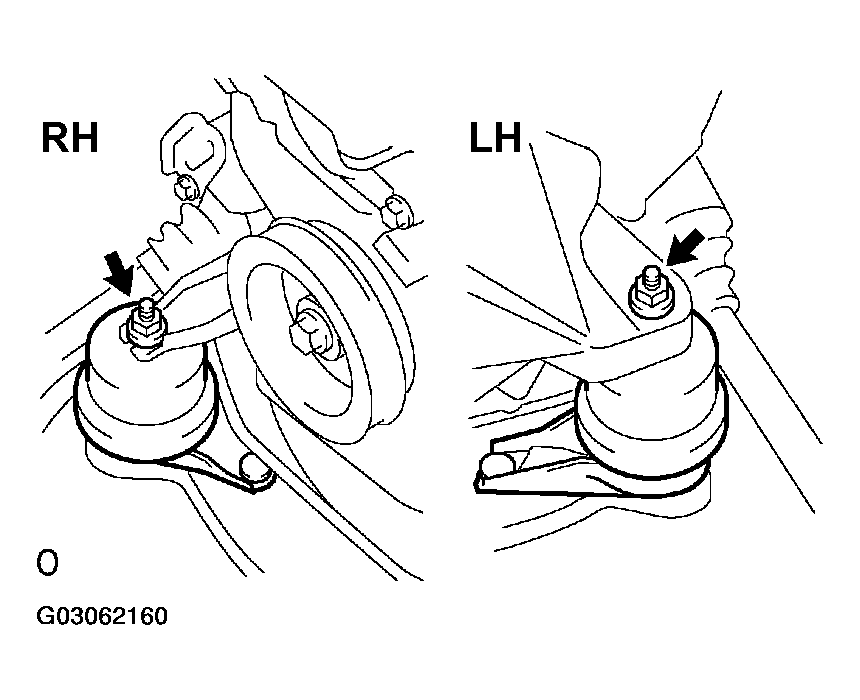

      Fig 13: Installing Engine Mounting Insulator RH And LH
      G03062160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the engine mounting insulator FR with the nut.

      Torque: 87 N.m (887 kgf.cm, 64 ft.lbf)

      Fig 14: Installing Engine Mounting Insulator FR
      G03062161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. (c) 4WD:

      Install the engine mounting insulator RR with the 2 bolts.

      Torque: 75 N.m (765 kgf.cm, 55 ft.lbf)

    Fig 15: Installing Engine Mounting Insulator RR
    G03062162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  135. INSTALL RACK & PINION POWER STEERING GEAR ASSEMBLY (4WD DRIVE TYPE)

    Torque: 70 N.m (714 kgf.cm, 52 ft.lbf)

  136. INSTALL STABILIZER BAR FRONT (4WD DRIVE TYPE)

    Torque: 17 N.m (173 kgf.cm, 13 ft.lbf)

  137. INSTALL VANE PUMP ASSEMBLY
    1. Temporarily tighten the bolt.
    2. Install the adjusting strut to the engine mounting bracket RH with the bolt.

      Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)

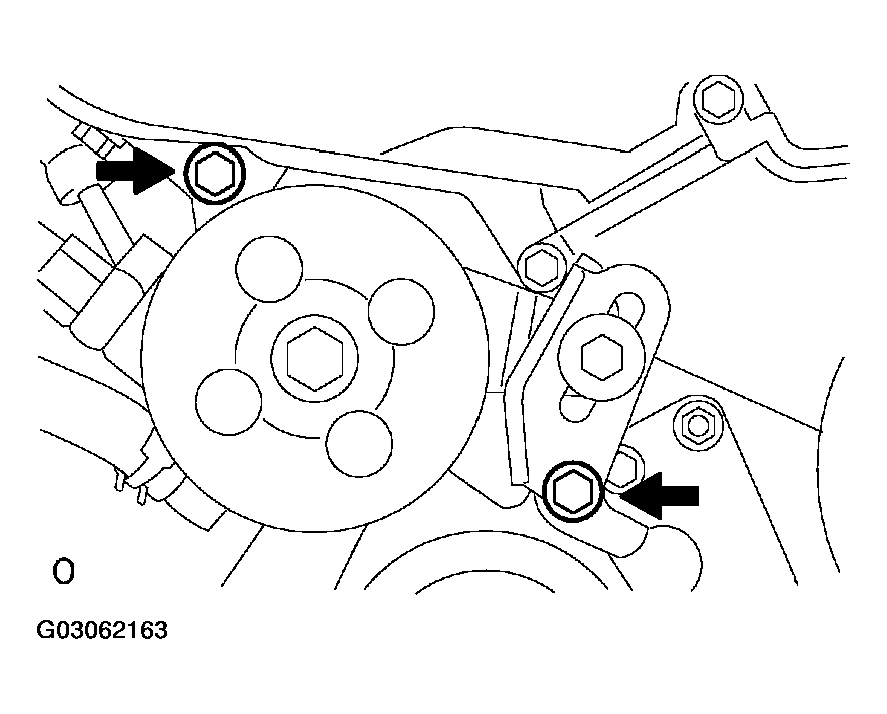

      Fig 16: Installing Adjusting Strut To Engine Mounting Bracket RH
      G03062163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the PS pressure tube with the 2 nuts.

      Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

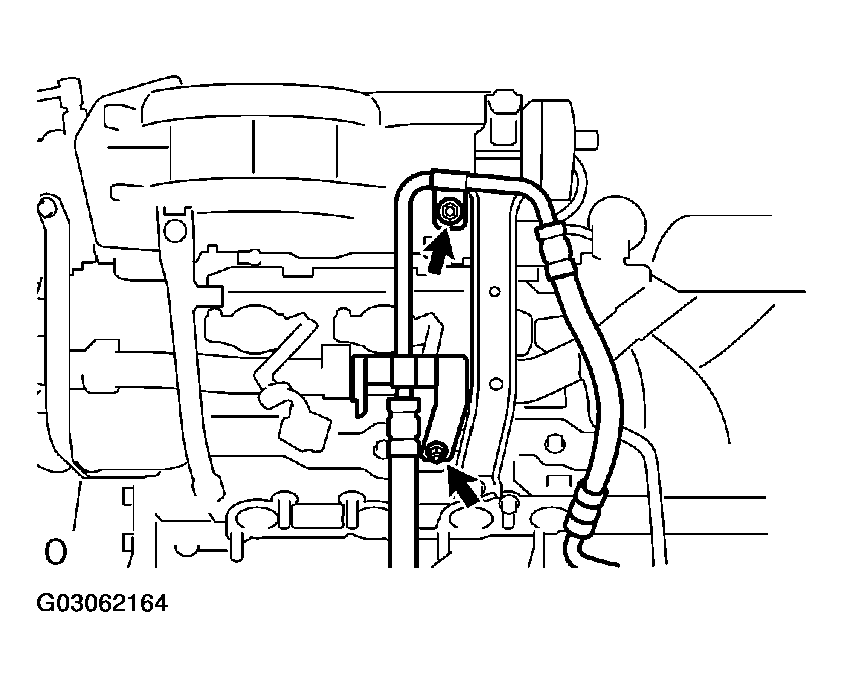

    Fig 17: Connecting PS Pressure Tube
    G03062164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  138. INSTALL VANE PUMP V BELT, see  REPLACEMENT  .
  139. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH (2WD DRIVE TYPE), see  REPLACEMENT  .
  140. INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY (4WD DRIVE TYPE), see  REPLACEMENT  .
  141. INSTALL MANIFOLD STAY, see  REPLACEMENT  .
  142. INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO. 1, see  REPLACEMENT  .
  143. INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
    1. Set the engine assembly with transaxle on the engine lifter.
    2. Install the engine assembly to the vehicle.
    3. Install the frame side rail plate RH and LH with the 6 bolts and the 2 nuts.

      Torque:

      Bolt A 85 N.m (867 kgf.cm, 63 ft.lbf)

      Bolt B 32N.m (329 kgf.cm, 24 ft.lbf)

      Nut C 32N.m (329 kgf.cm, 24 ft.lbf)

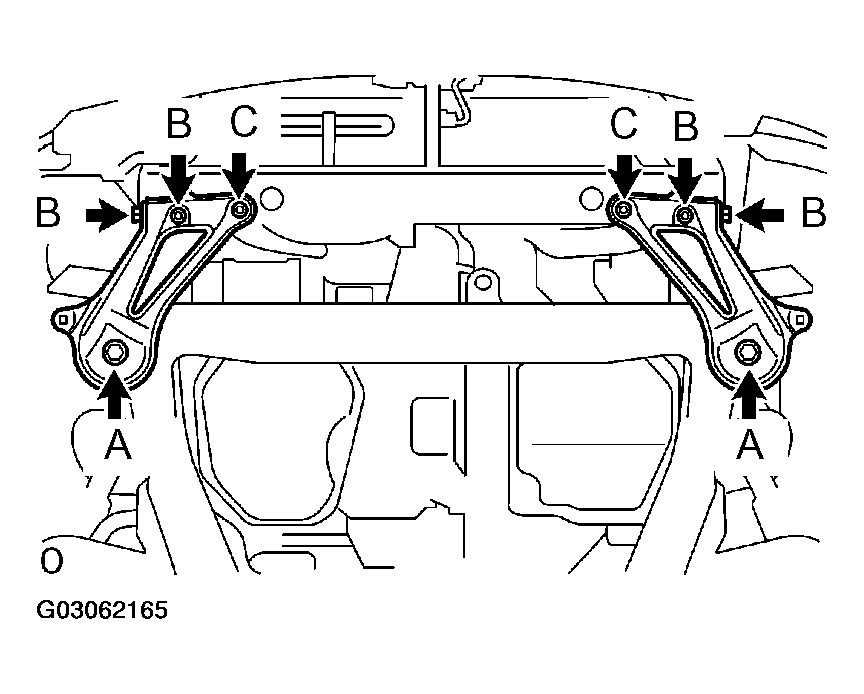

      Fig 18: Installing Frame Side Rail Plate RH And LH With Bolts And Nuts
      G03062165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the front suspension member brace rear RH and LH with the 6 bolts and the 2 nuts.

      Torque:

      Bolt A 85 N.m (867 kgf.cm, 63 ft.lbf)

      Bolt B 32N.m (329 kgf.cm, 24 ft.lbf)

      Nut C 32N.m (329 kgf.cm, 24 ft.lbf)

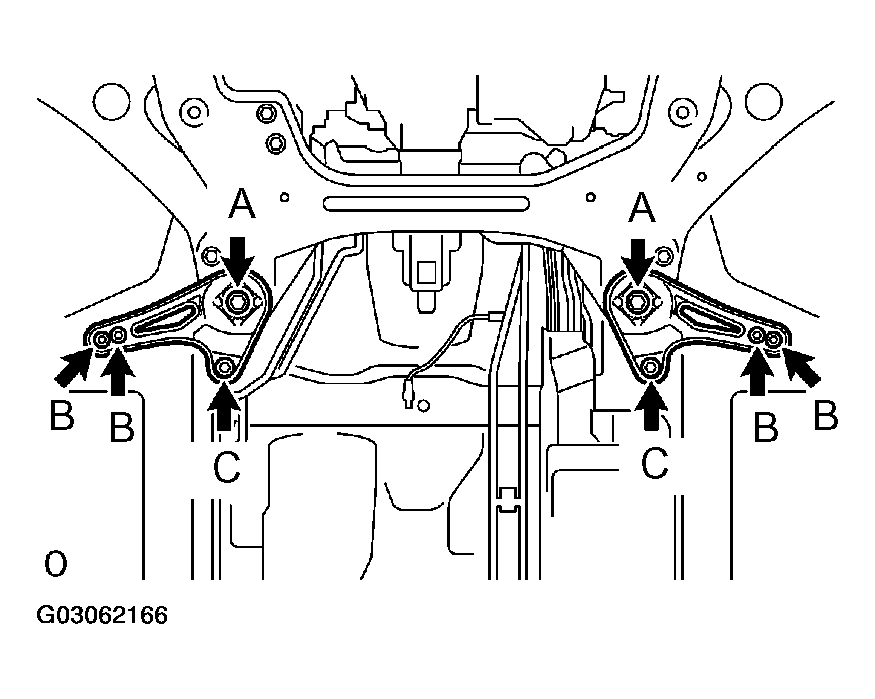

    Fig 19: Installing Front Suspension Member Brace Rear RH & LH
    G03062166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  144. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY, see  OVERHAUL  .
  145. INSTALL FRONT AXLE ASSEMBLY LH, see  REMOVAL & INSTALLATION  .
  146. INSTALL FRONT AXLE ASSEMBLY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  147. INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 LH, see  REMOVAL & INSTALLATION  .
  148. INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO. 1 RH

    HINT:

    Perform the same procedure as above on the opposite side.

  149. INSTALL TIE ROD ASSEMBLY LH, see  REMOVAL & INSTALLATION  .
  150. INSTALL TIE ROD ASSEMBLY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  151. INSTALL SPEED SENSOR FRONT LH, see  REMOVAL & INSTALLATION  .
  152. INSTALL SPEED SENSOR FRONT RH

    HINT:

    Perform the same procedure as above on the opposite side.

  153. INSTALL FRONT AXLE HUB LH NUT, see  REMOVAL & INSTALLATION  .
  154. INSTALL FRONT AXLE HUB RH NUT

    HINT:

    Perform the same procedure as above on the opposite side.

  155. INSTALL FRONT STABILIZER LINK ASSEMBLY LH, see  REMOVAL & INSTALLATION  .
  156. INSTALL FRONT STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as above on the opposite side.

  157. INSTALL EXHAUST PIPE ASSEMBLY FRONT (2WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  158. INSTALL EXHAUST PIPE ASSEMBLY FRONT (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  159. INSTALL EXHAUST PIPE ASSEMBLY CENTER (4WD DRIVE TYPE), see  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  .
  160. INSTALL PROPELLER SHAFT (4WD DRIVE TYPE), see  OVERHAUL  .
  161. CONNECT FUEL PIPE SUB-ASSEMBLY NO. 1, see  PRECAUTION  .
  162. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY, see  REPLACEMENT  .
  163. INSTALL COMPRESSOR AND MAGNETIC CLUTCH, see  REPLACEMENT  .
  164. INSTALL GENERATOR BELT ADJUSTING BAR, see  REPLACEMENT  .
  165. INSTALL GENERATOR BRACKET NO. 2, see  REPLACEMENT  .
  166. INSTALL ENGINE MOUNTING STAY NO. 2 RH, see x REPLACEMENT  .
  167. INSTALL ENGINE MOVING CONTROL ROD, see  REPLACEMENT  .
  168. INSTALL GENERATOR ASSEMBLY, see  REPLACEMENT  .
  169. INSTALL V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY) BELT NO. 1, see  REPLACEMENT  .
  170. INSPECT DRIVE BELT DEFLECTION AND TENSION (REFERENCE), see  INSPECTION  .
  171. INSTALL AIR CLEANER INLET NO. 1, see  REPLACEMENT  .
  172. INSTALL AIR CLEANER BRACKET, see  REPLACEMENT  .
  173. INSTALL AIR CLEANER CASE, see  REPLACEMENT  .
  174. INSTALL AIR CLEANER INLET NO. 2, see  REPLACEMENT  .
  175. INSTALL AIR CLEANER CAP SUB-ASSEMBLY, see  REPLACEMENT  .
  176. CONNECT VACUUM HOSE

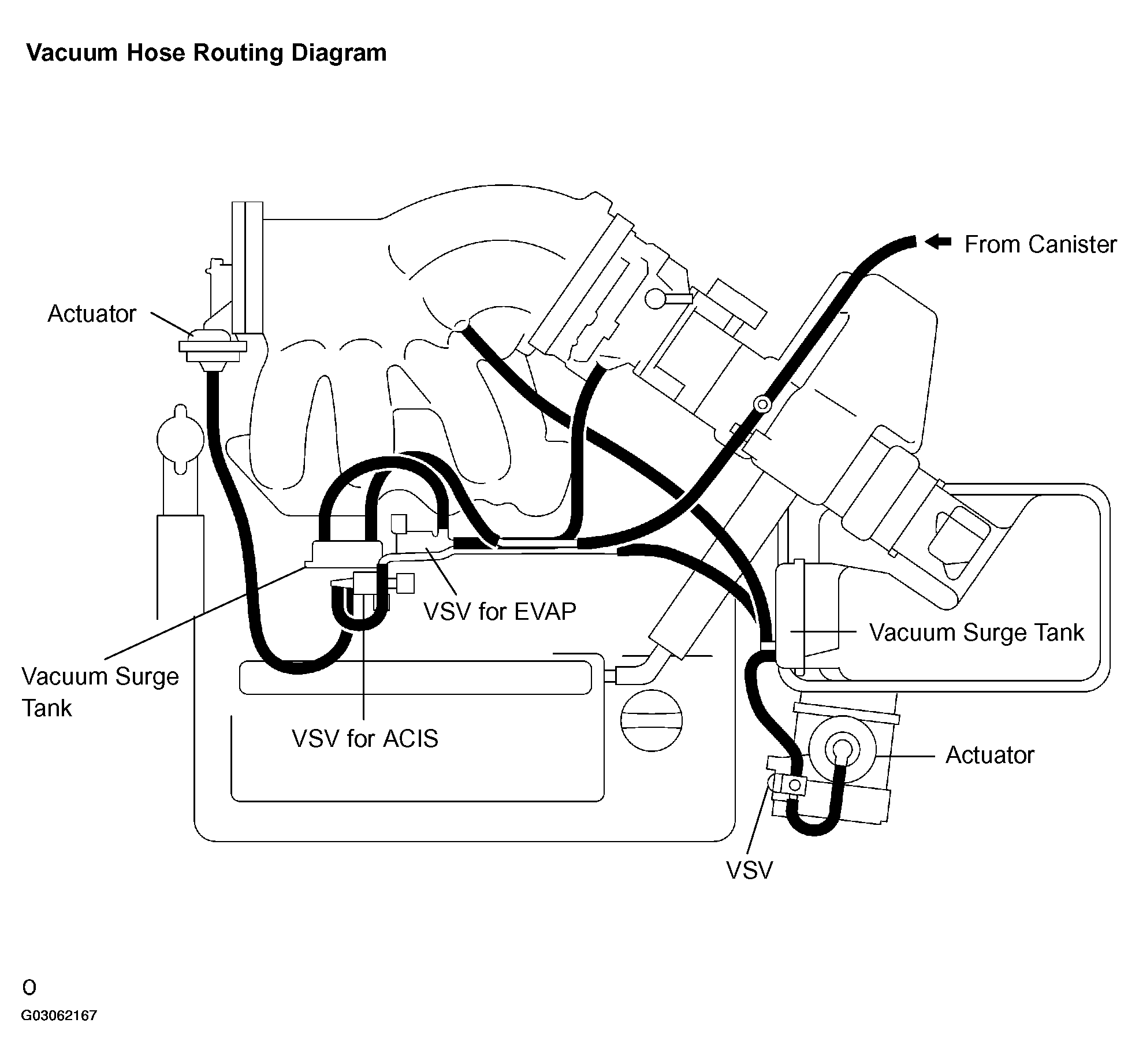

    Fig 20: Vacuum Hose Routing Diagram
    G03062167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  177. INSTALL V-BANK COVER SUB-ASSEMBLY, see  ADJUSTMENT  .
  178. INSTALL COWL TOP PANEL SUB-ASSEMBLY OUTER FRONT, see  REPLACEMENT  .
  179. INSTALL COWL TOP TO COWL BRACE INNER NO. 1, see  REPLACEMENT  .
  180. INSTALL WIPER LINK ASSEMBLY, see  WINDSHIELD WIPER MOTOR ASSY  .
  181. INSTALL FR WIPER ARM LH, see  WINDSHIELD WIPER MOTOR ASSY  .
  182. INSTALL FR WIPER ARM RH, see  WINDSHIELD WIPER MOTOR ASSY  .
  183. INSTALL FRONT WHEELS, see  REPLACEMENT  .
  184. ADD TRANSFER OIL (4WD DRIVE TYPE), see  ADJUSTMENT  .
  185. INSPECT TRANSFER OIL (4WD DRIVE TYPE), see  ADJUSTMENT  .
  186. ADD AUTOMATIC TRANSAXLE FLUID
  187. ADD ENGINE OIL, see  REPLACEMENT  .
  188. ADD COOLANT, see  REPLACEMENT  .
  189. ADD POWER STEERING FLUID
  190. BLEED POWER STEERING FLUID
  191. INSPECT AUTOMATIC TRANSAXLE FLUID, see  ON-VEHICLE INSPECTION  .
  192. CHECK FOR ENGINE OIL LEAKS
  193. CHECK FOR ENGINE COOLANT LEAKS, see  REPLACEMENT  .
  194. CHECK POWER STEERING FLUID LEAKAGE
  195. INSPECT FOR FUEL LEAKS
  196. CHECK FOR EXHAUST GAS LEAKS
  197. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT, see  ADJUSTMENT  .
  198. INSPECT STEERING WHEEL CENTER POINT
  199. INSPECT IGNITION TIMING, see  INSPECTION  .

    SST 09843-18040

  200. INSPECT ENGINE IDLE SPEED, see  INSPECTION  .

    SST 09843-18040

  201. INSPECT CO/HC, see  INSPECTION  .
  202. CHECK ABS SPEED SENSOR SIGNAL, see  PRE-CHECK  .
scientia non olet · About LEMON Manuals
