Control Units
WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

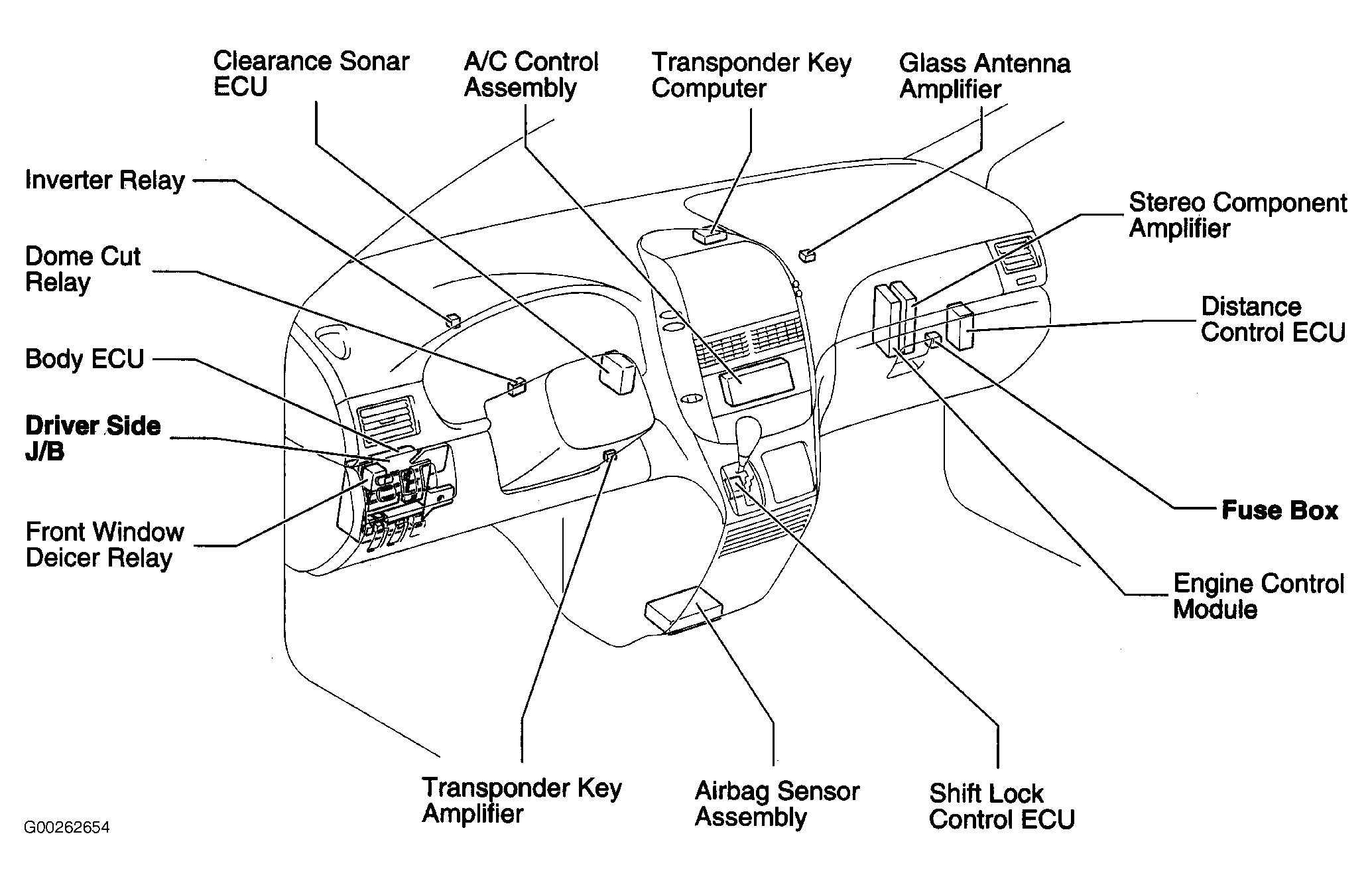

| Airbag Sensor Assembly | Below center of dash. See Figure. |

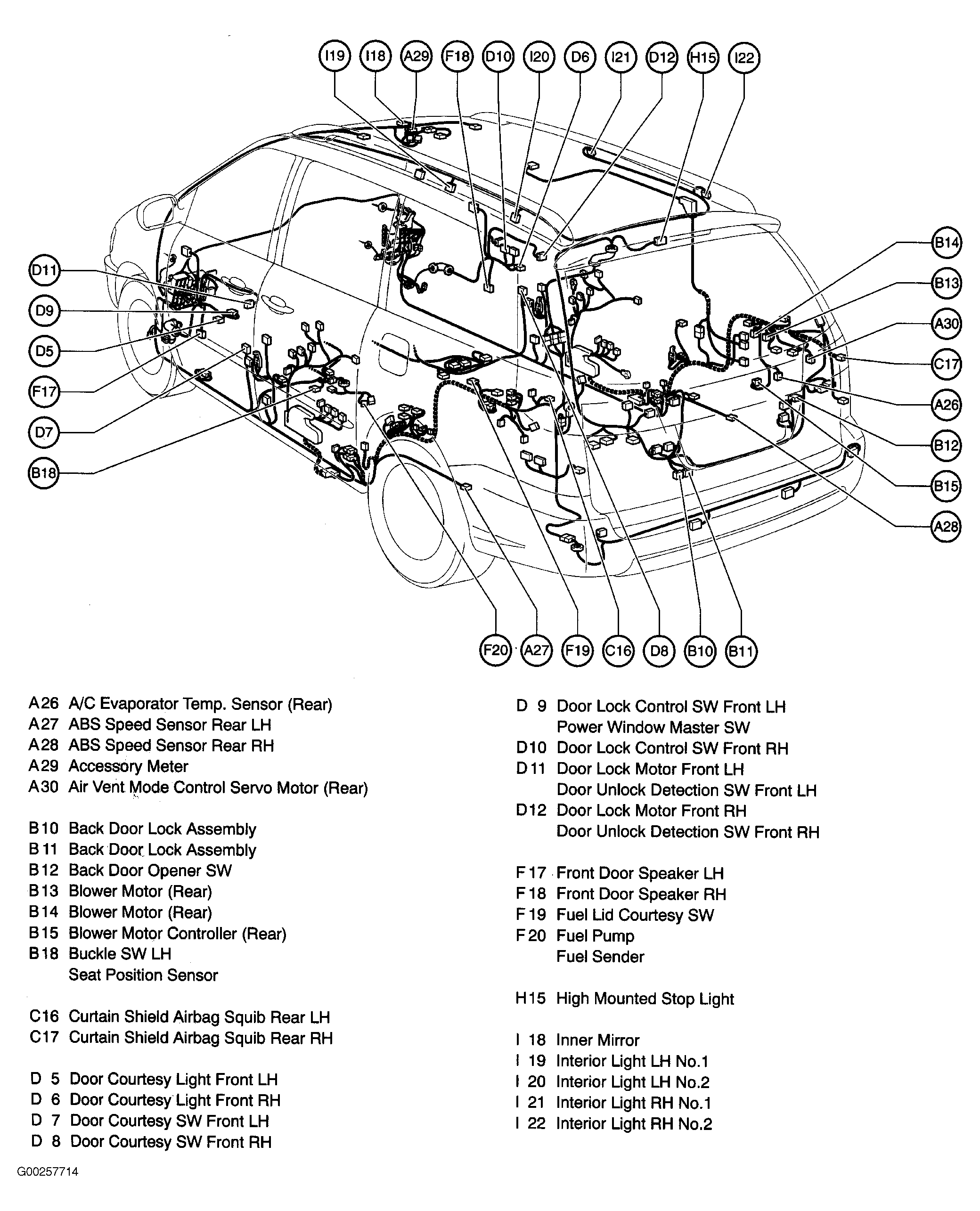

| Blower Motor Controller (Rear) | Behind right rear quarterpanel. See Figure. |
| Body ECU | Behind left side of dash. See Figure. |
| Clearance Sonar ECU | Behind center of dash. See Figure. |

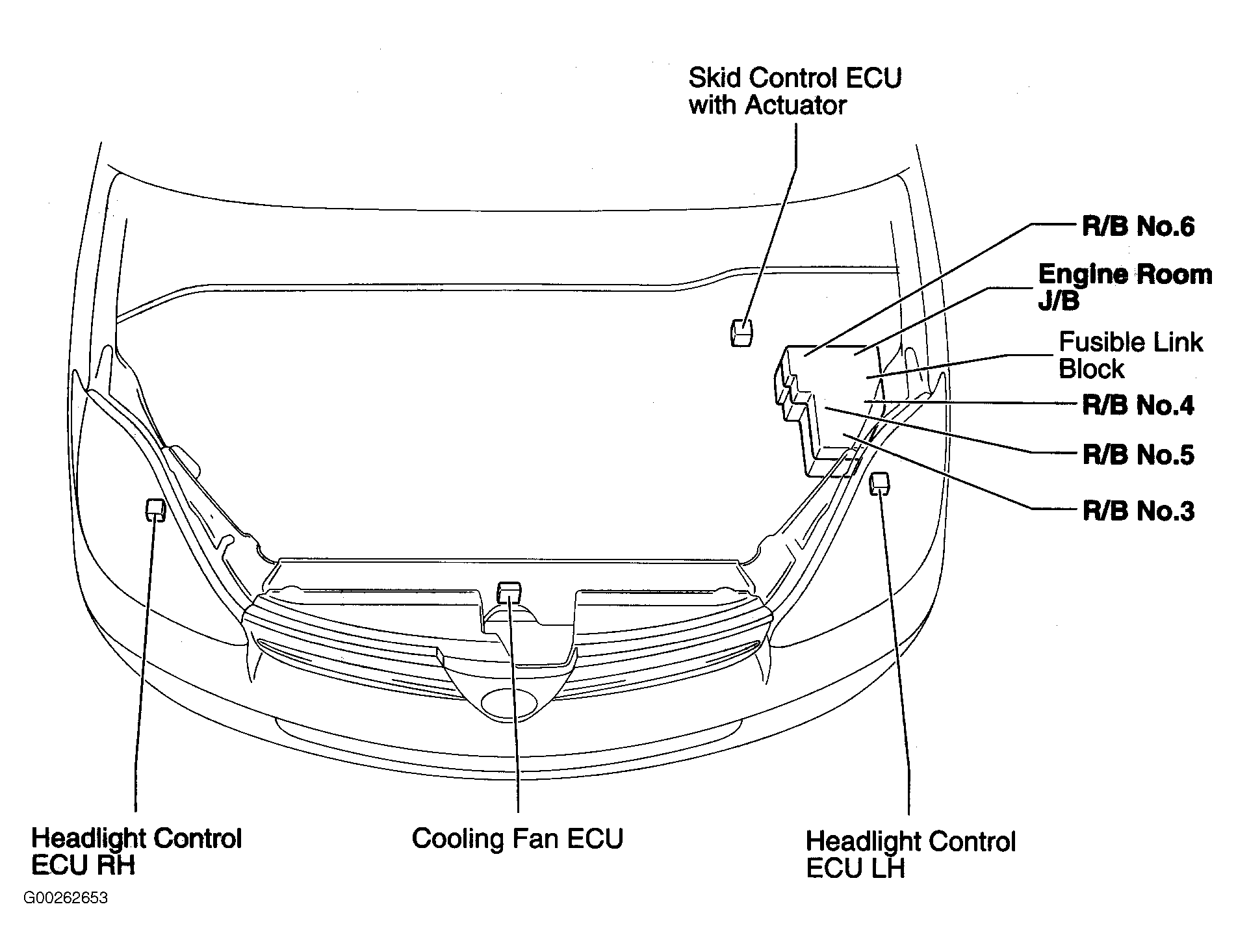

| Cooling Fan ECU | At center front of engine compartment. See Figure. |
| Distance Control ECU | Behind right side of dash. See Figure. |
| Door Lock Control Receiver | Behind upper center of dash. See Figure. |

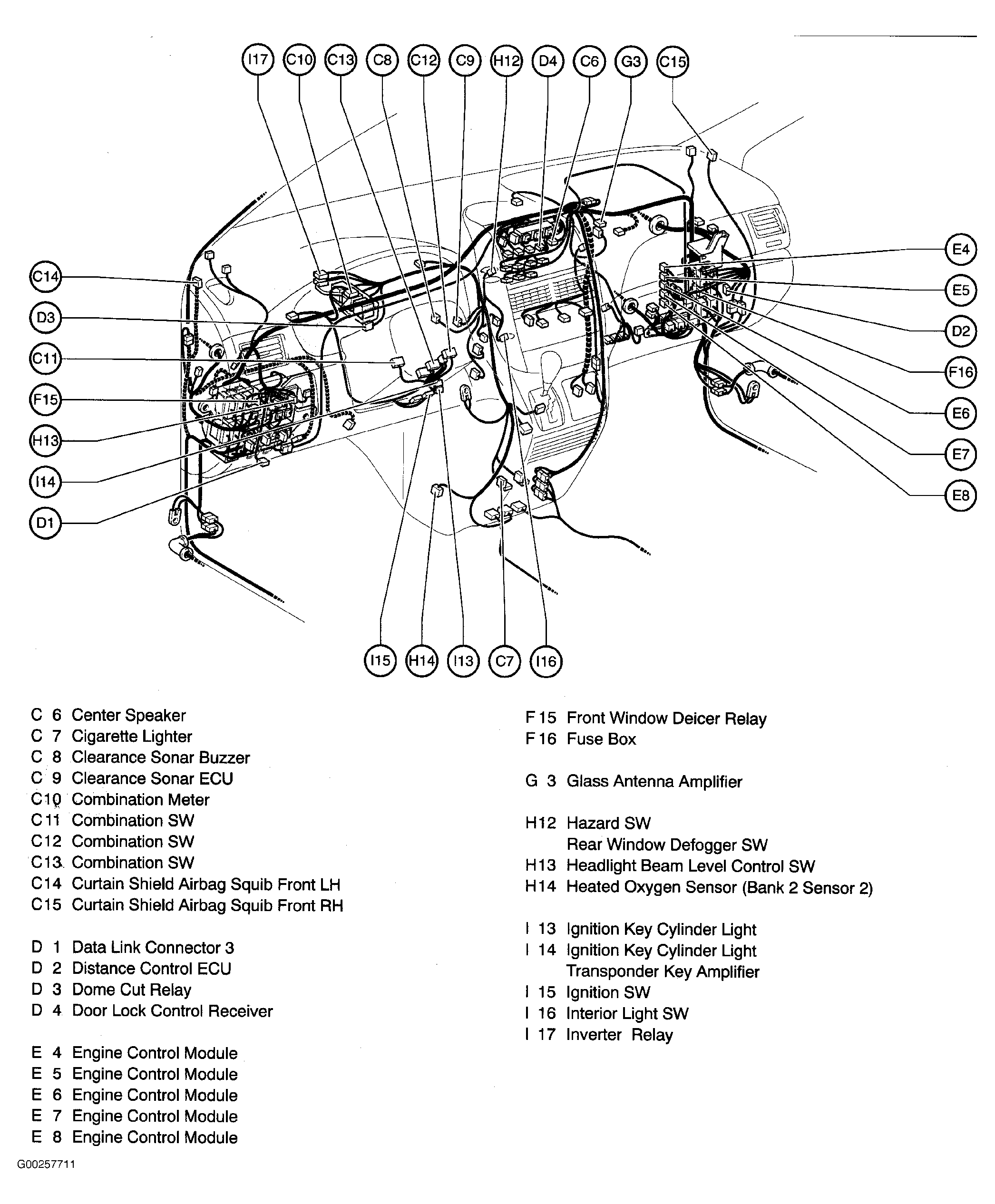

| Engine Control Module | Behind right side of dash. See Figure. |
| Headlight Control ECU LH | Behind left headlight. See Figure. |
| Headlight Control ECU RH | Behind right headlight. See Figure. |

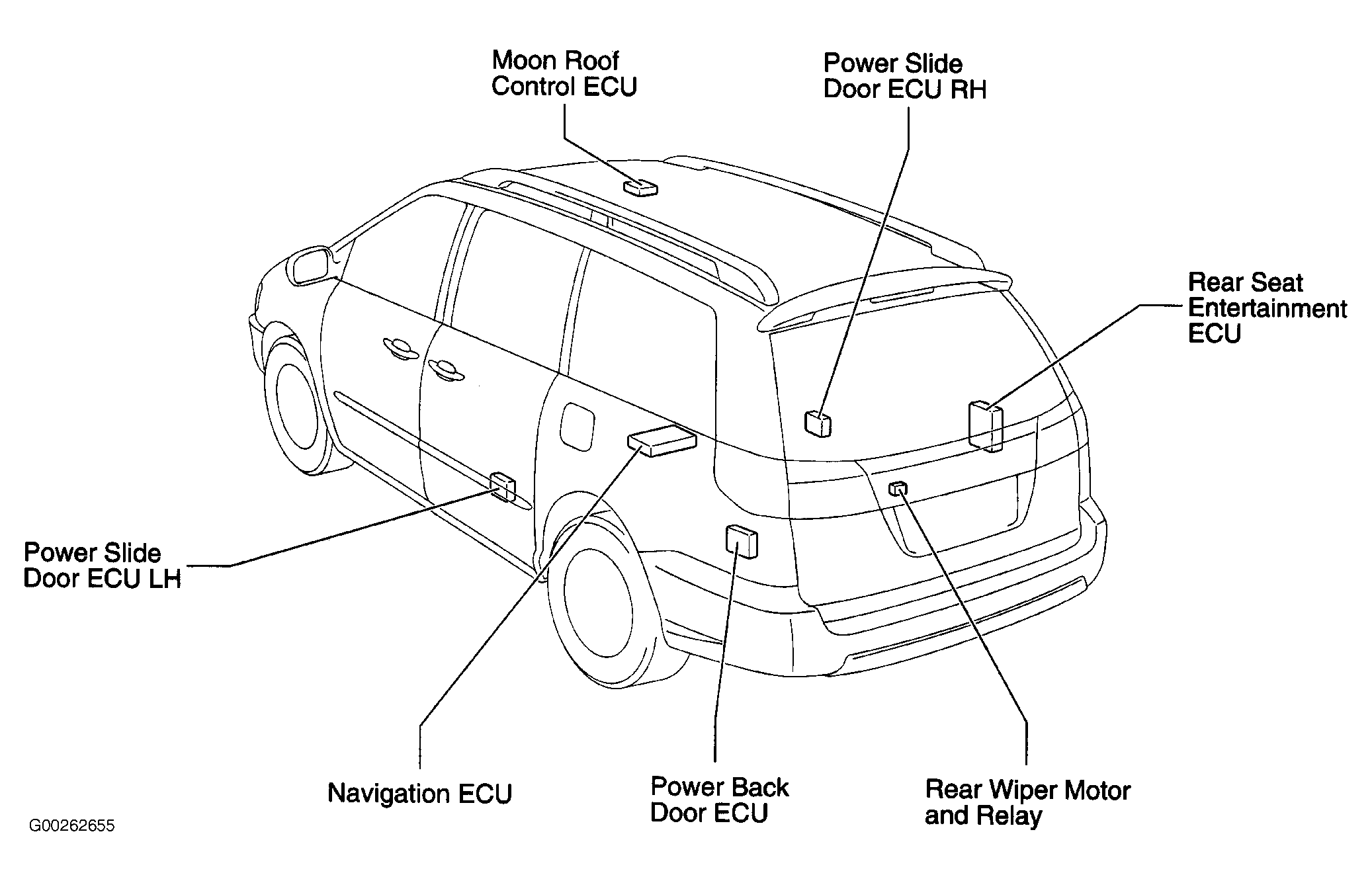

| Moon Roof Control ECU | At center front of roof. See Figure. |
| Navigation ECU | Under right front seat. See Figure. |
| Power Back Door ECU | Behind left rear quarterpanel. See Figure. |
| Power Slide Door ECU LH | In left siding door. See Figure. |
| Power Slide Door ECU RH | In right sliding door. See Figure. |
| Rear Seat Entertainment ECU | Behind right rear quarterpanel. See Figure. |

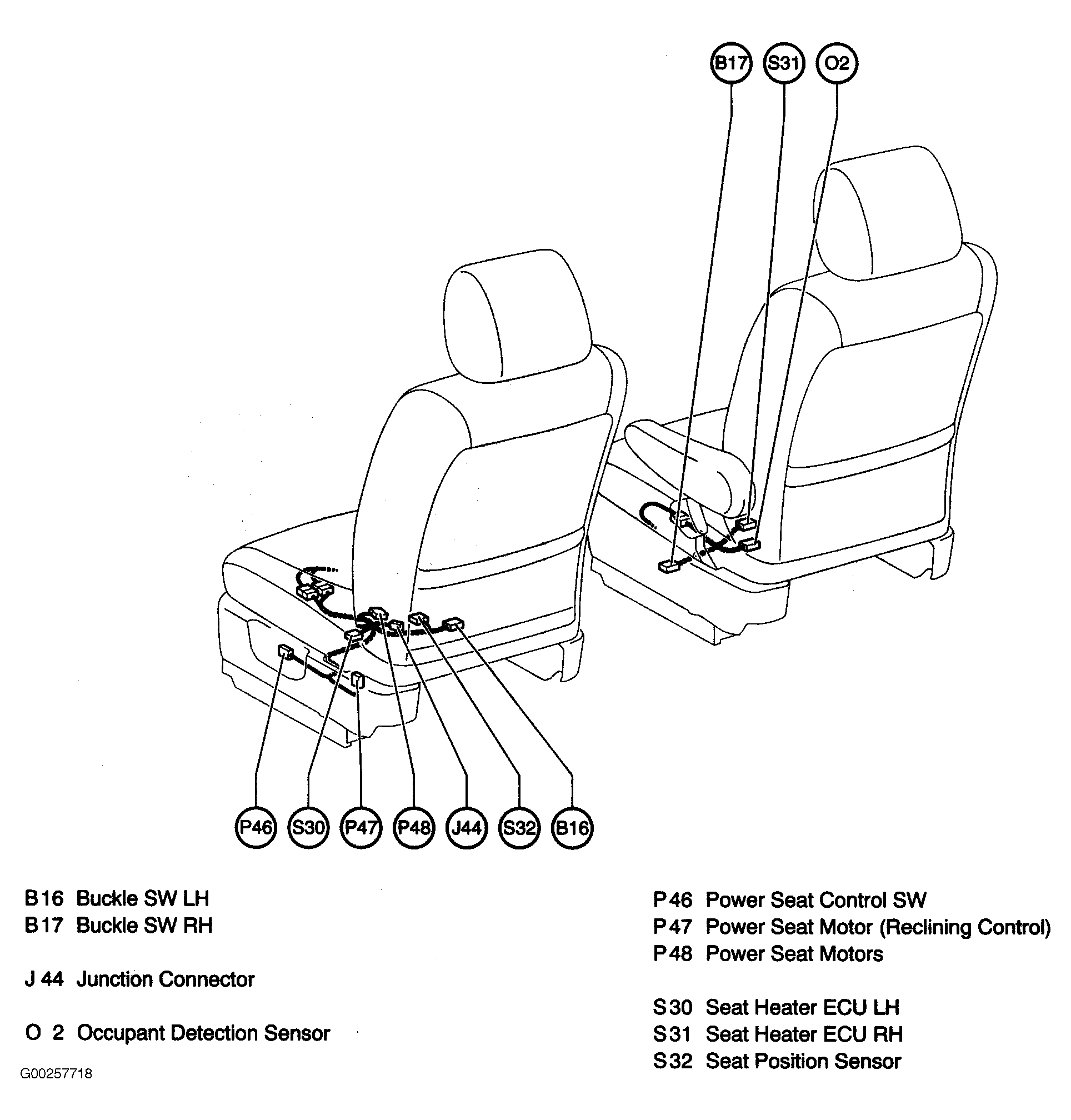

| Seat Heater ECU LH | Under left front seat. See Figure. |
| Seat Heater ECU RH | Under right front seat. See Figure. |
| Shift Lock Control ECU | At base of shifter assembly. See Figure. |
| Skid Control ECU With Actuator | At left rear of engine compartment. See Figure. |

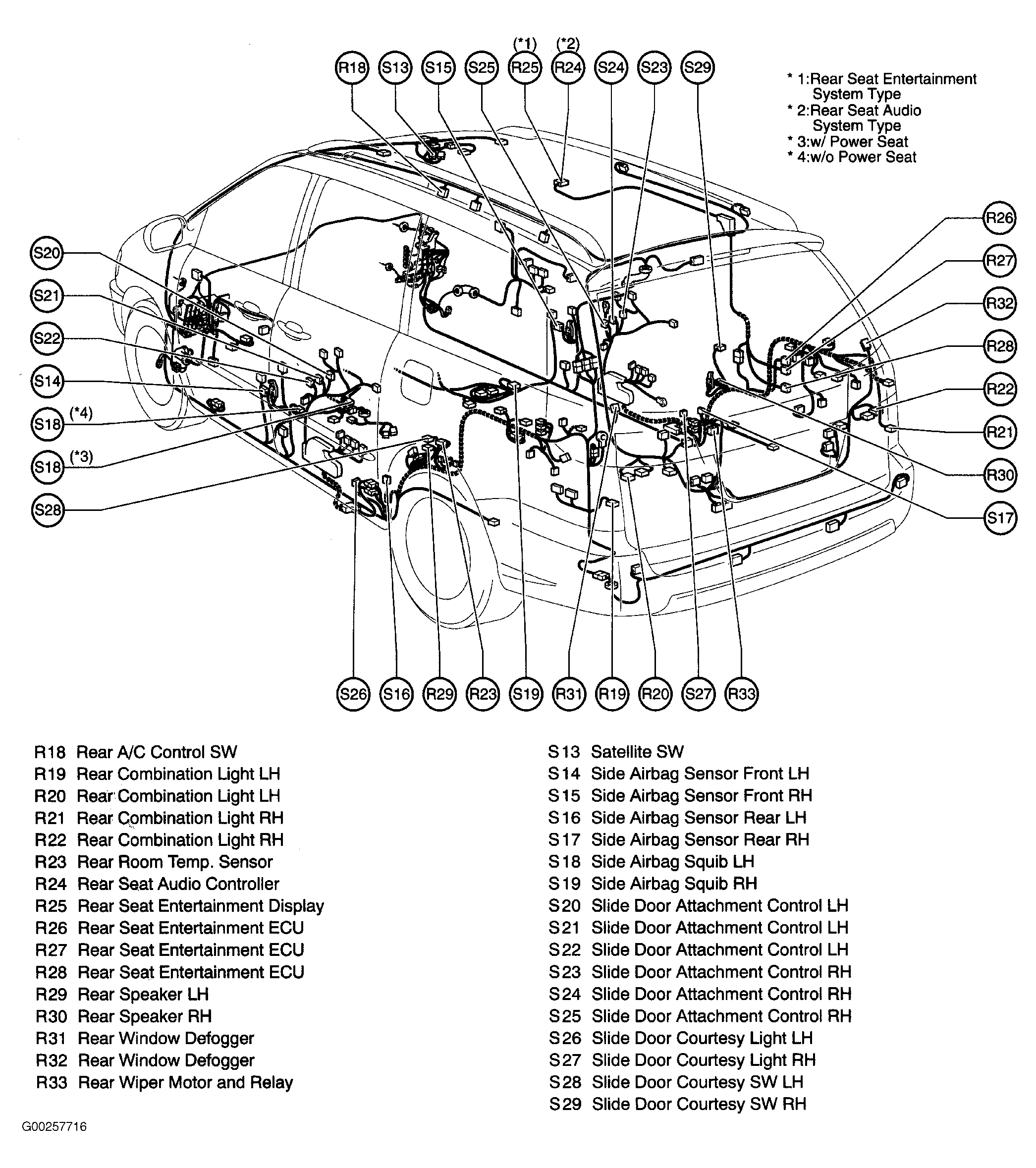

| Slide Door Attachment Control LH | At center of left sliding door. See Figure. |
| Slide Door Attachment Control RH | At center of right sliding door. See Figure. |
| Transponder Key Amplifier | Behind left side of dash. See Figure. |
| Transponder Key Computer | Behind upper center of dash. See Figure. |
