Problem Symptoms Table

HINT:

The normal code is displayed during the diagnostic trouble code check although the trouble still occurs, check the electrical circuits for each symptom in the order given in the charts on the following pages and proceed to the page given for troubleshooting.

The Matrix Chart is divided into 2 chapters.

Chapter 1: Electronic Circuit Matrix Chart
- Refer to the figure Fig 1 below when the trouble cause is considered to be electrical.
- If the instruction "Proceed to next circuit inspection shown on matrix chart" is given in the flow chart of each circuit, proceed to the circuit with the next highest number in the table to continue the check.
- If the trouble still occurs even though there are no abnormalities in any of the other circuits, check and replace the ECM.
HINT:

1: When the circuit on which mark *1 is attached is a malfunction, DTC could be output (see DIAGNOSTIC TROUBLE CODE CHART ).

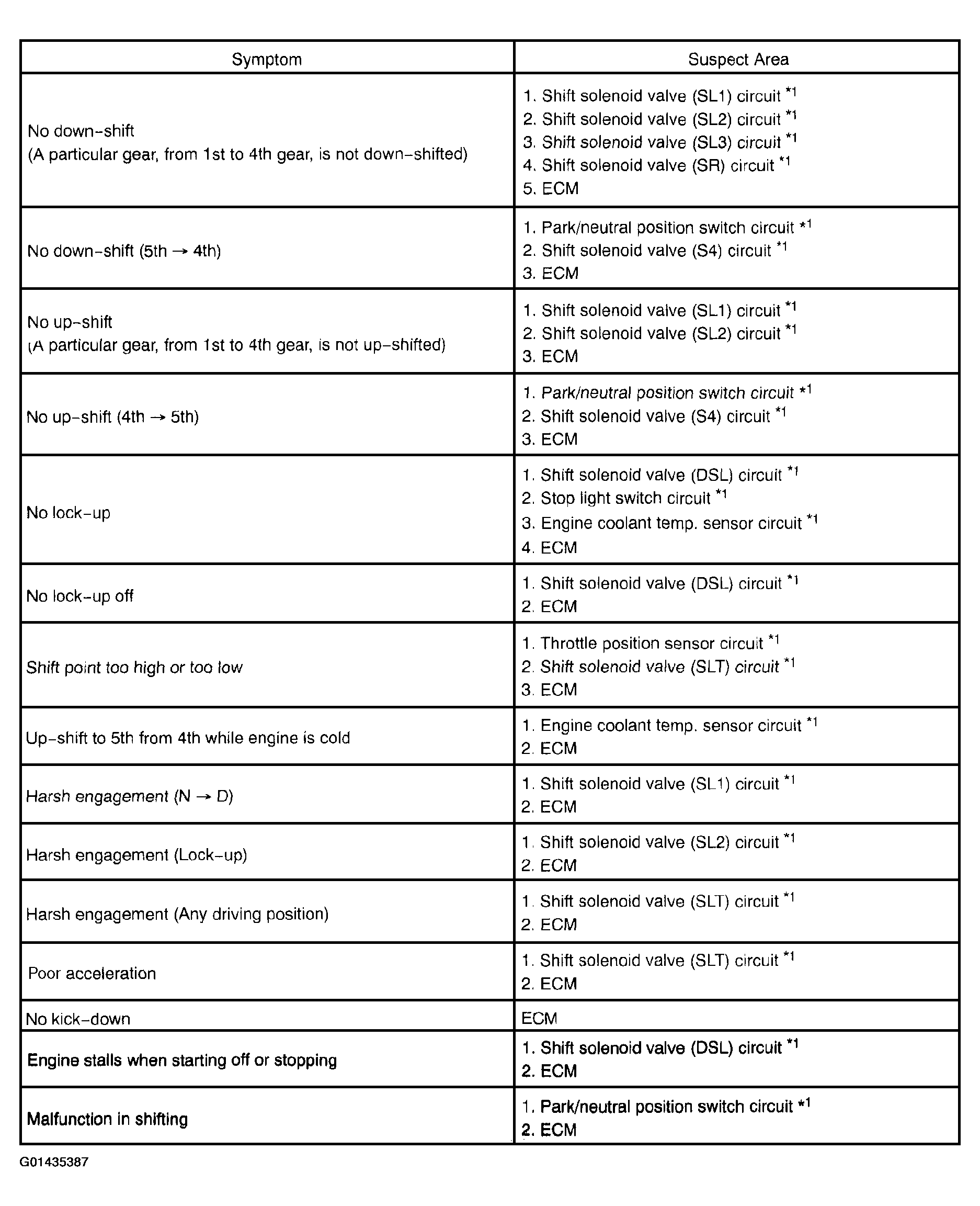

Fig 1: Problem Symptom Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Chapter 2: On-Vehicle Repair and Off-Vehicle Repair

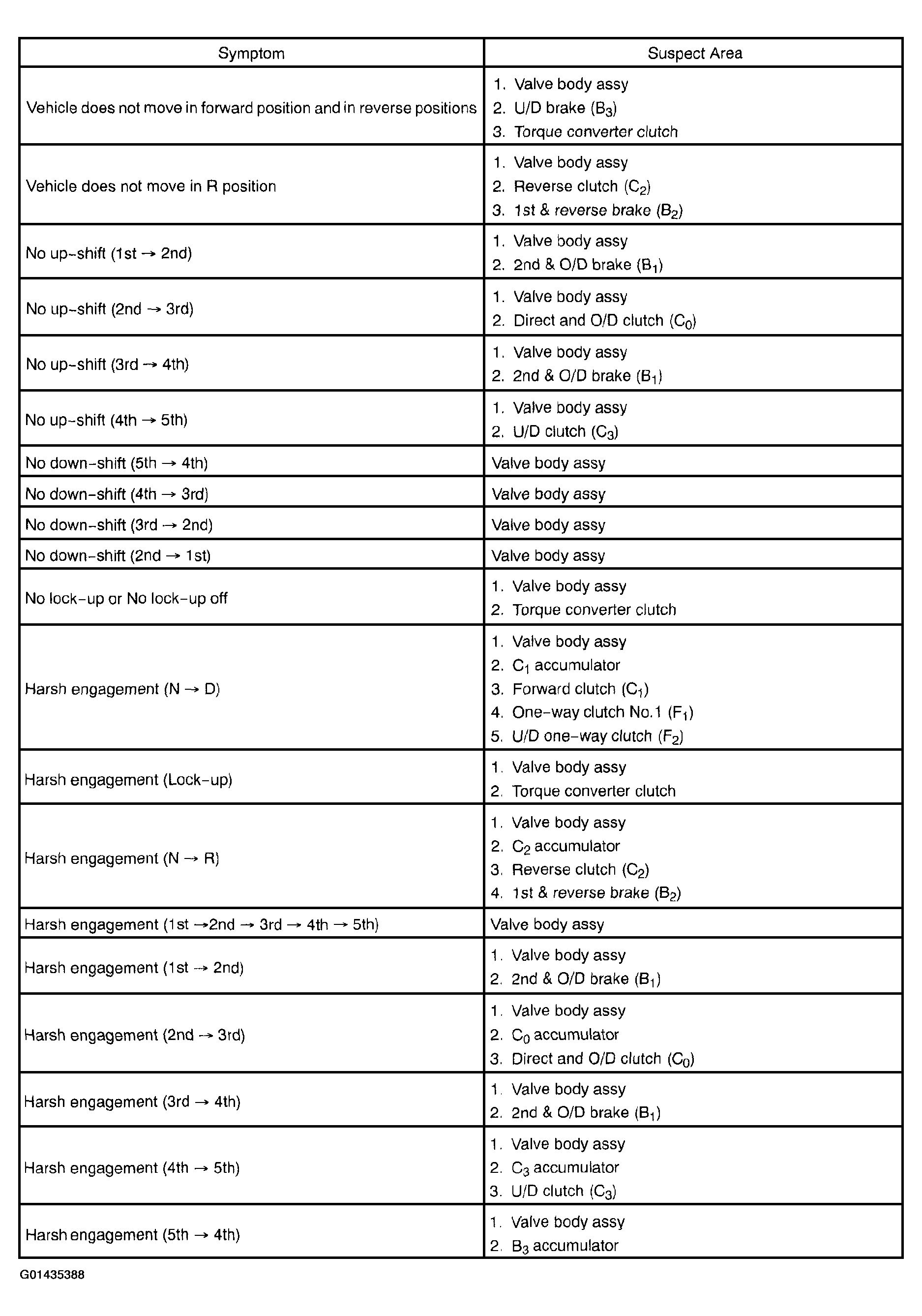

Fig 2: Problem Symptom Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

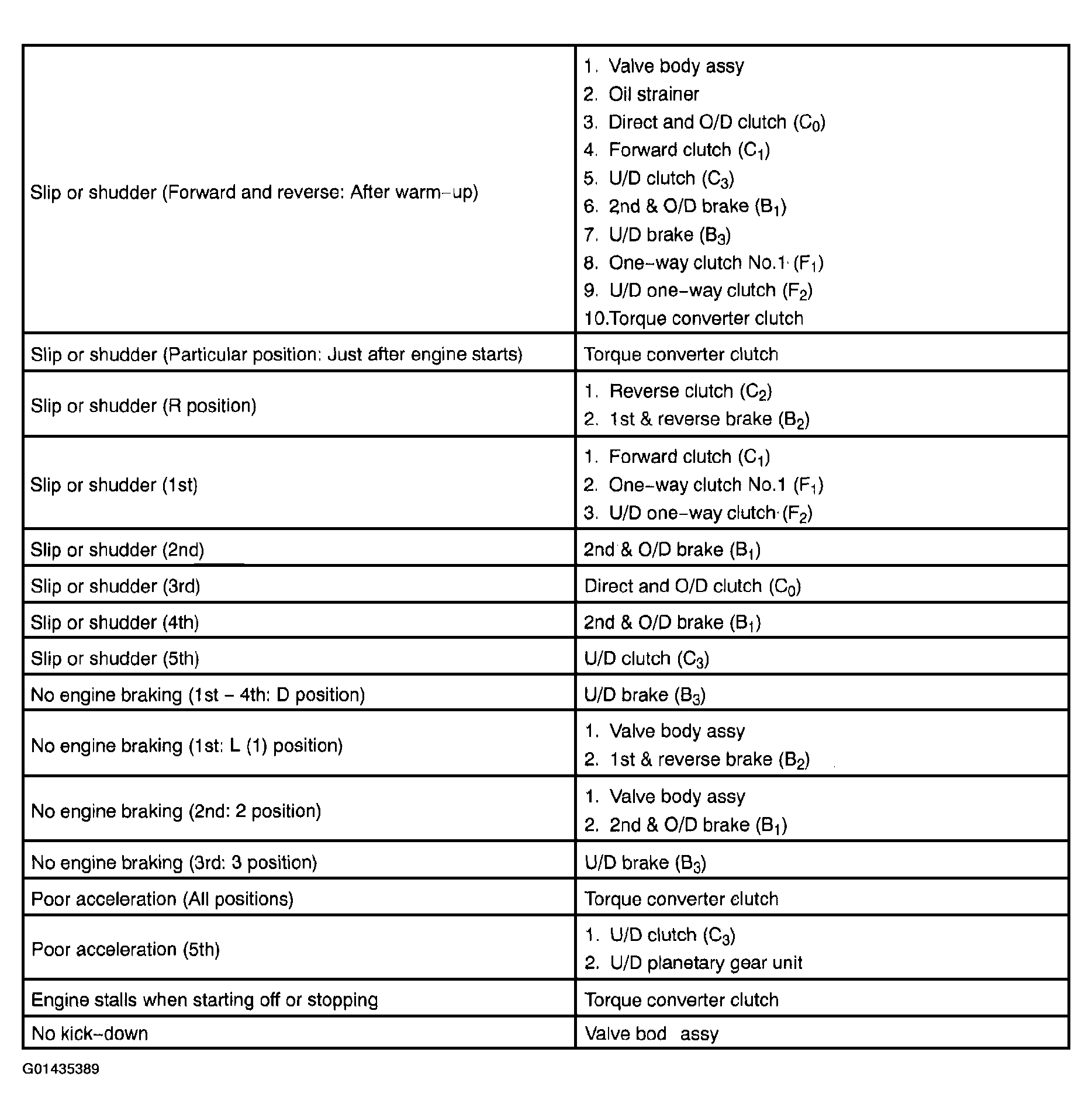

Fig 3: Problem Symptom Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
